Free Shipping Australia Wide


Listing Includes:

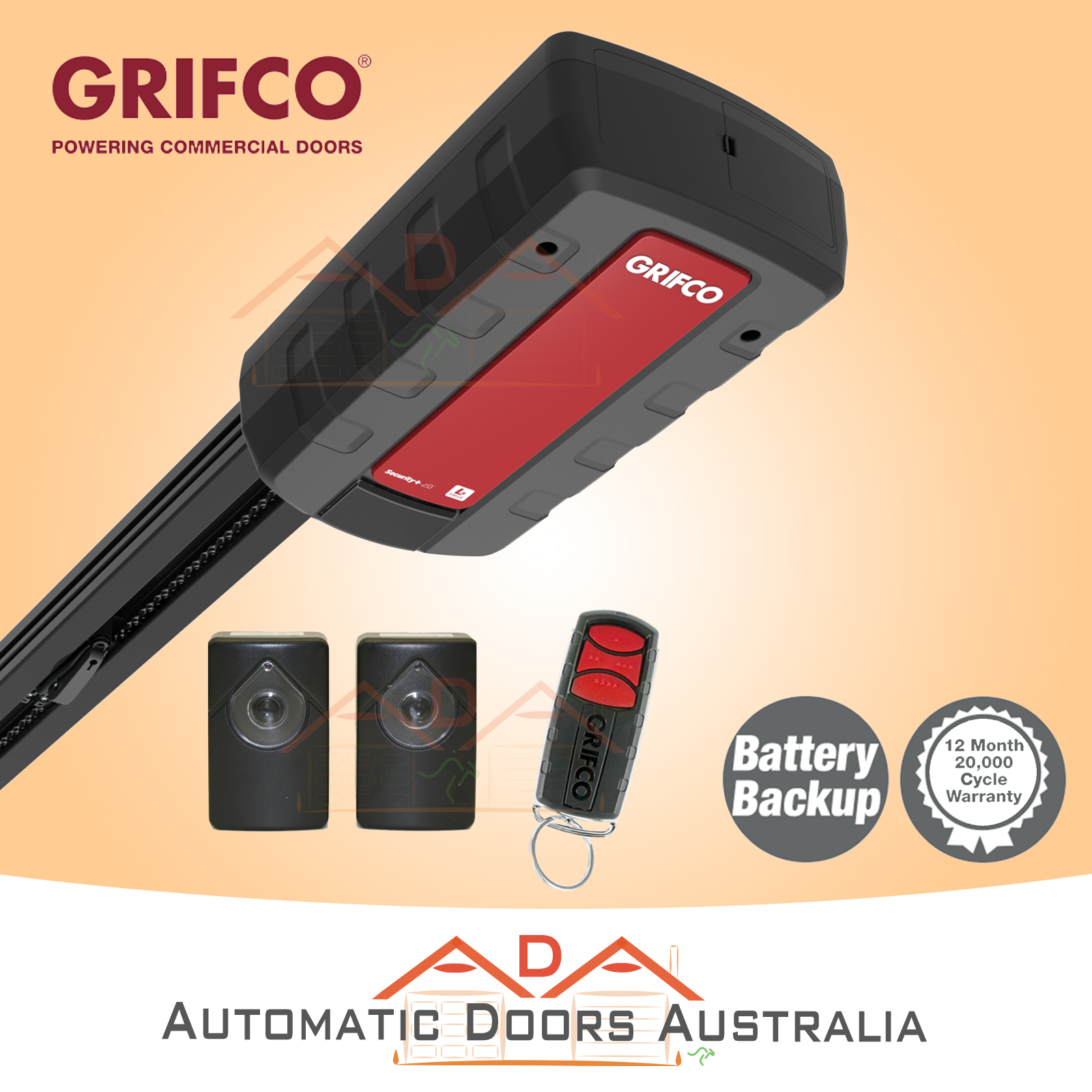

1 x Grifco GLD-SDO LS-DRIVE Opener
1 x GLD-R2.4M Black anodized Aluminium Chain rail for max 2.4m high

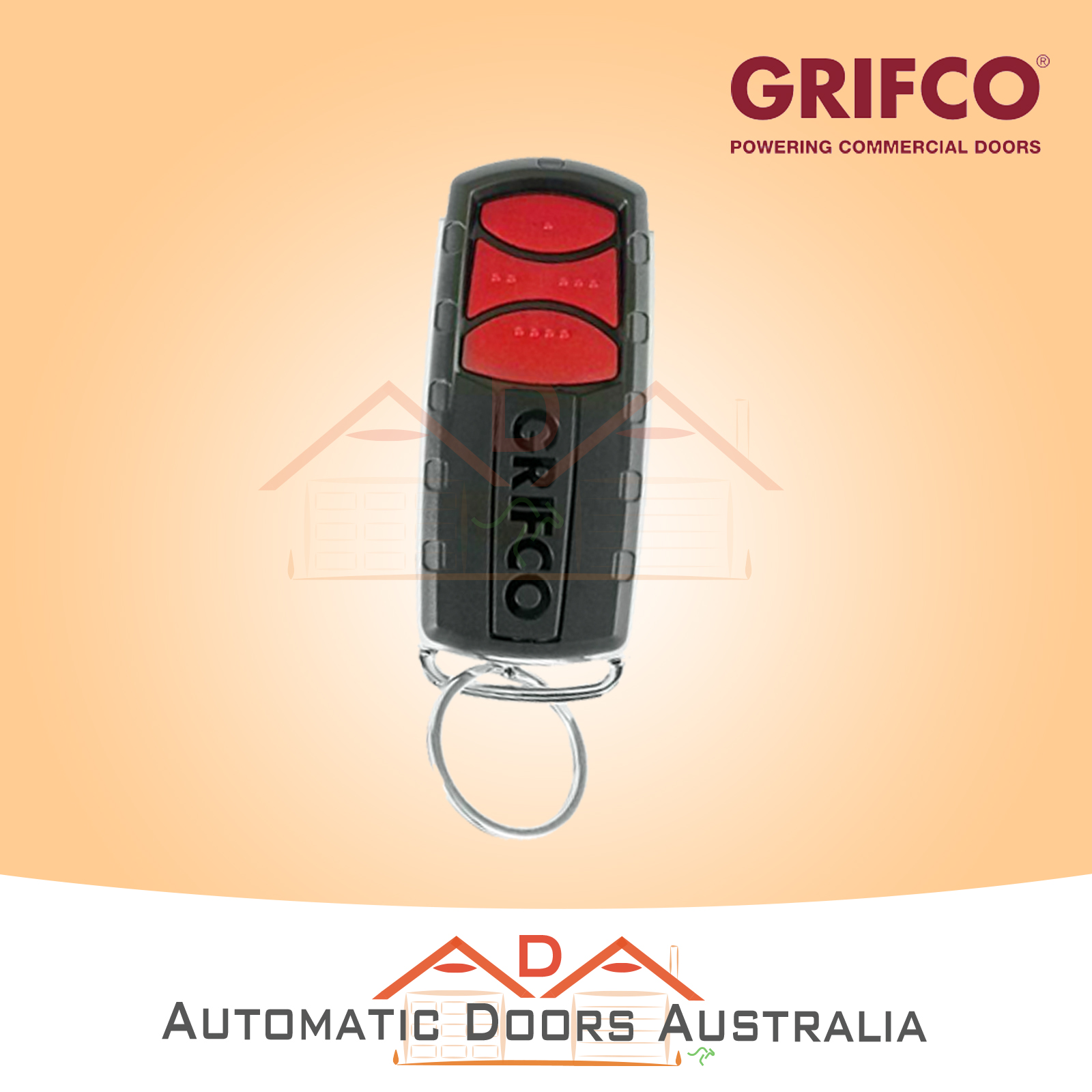

1 x E960G premium remote

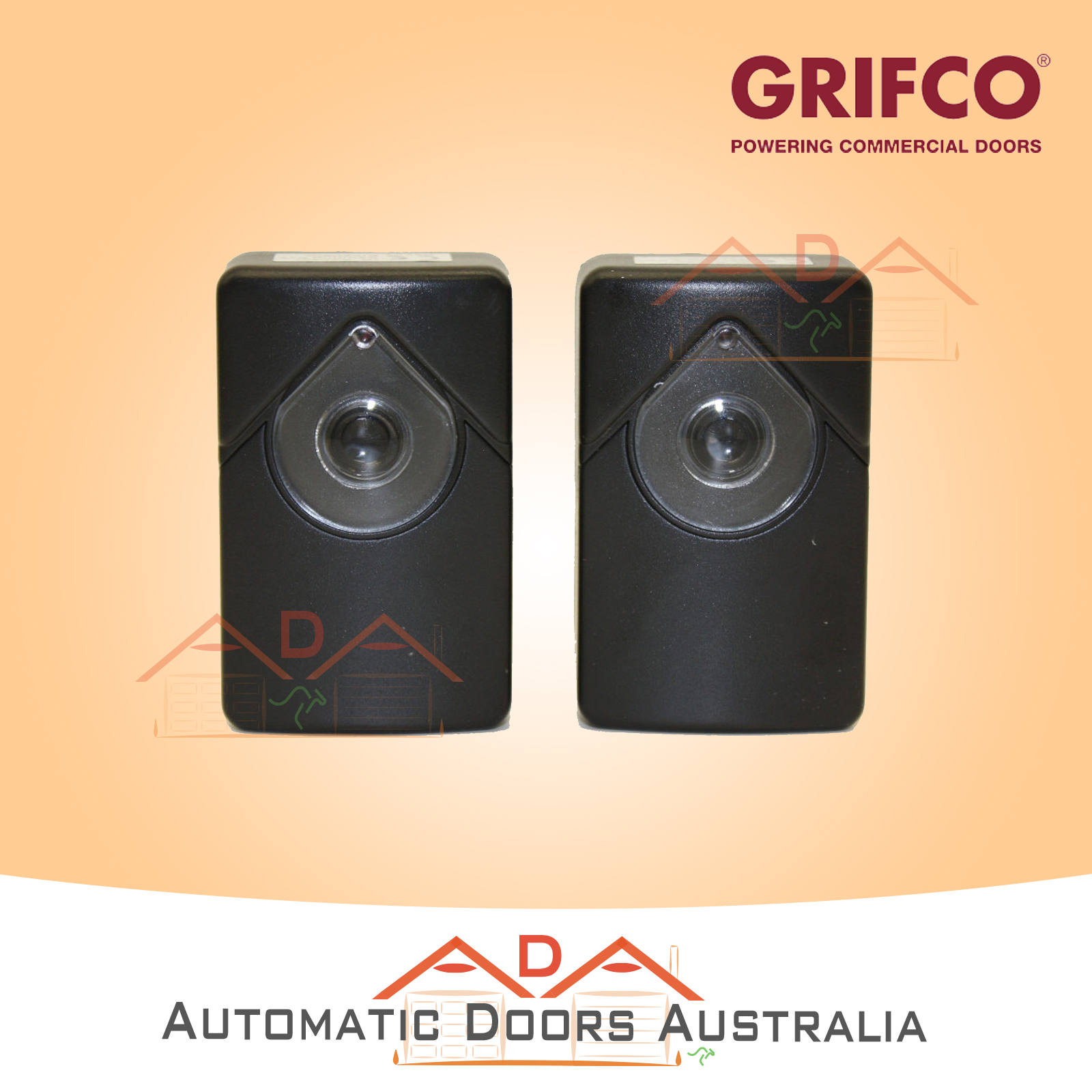

1 x 774ANZ safety beams
1 x Mounting hardware
1 x Manual Instructions



Warranty:


12 Months / 20,000 Cylcle manufacturing warranty.



Description:


High-Cycle Operator for Light-Commercial Sectional Doors

The Grifco LS-Drive is the perfect high-cycle operator for sectional doors found in small carparks. Designed for up to 50 cycles per day, it is the ideal automation solution for small multi-tenanted applications. It delivers all the necessary logic configurations without any unnecessary complexity.

  • The quiet, powerful drive train delivers smooth and fast door cycles, with soft start and soft stop

  • Logic options can be easily configured (such as “open only” and “timer-to-close”) using the simple button panel

  • The extremely durable extruded aluminium rail is available in 2 lengths and features a clever mounting method and integrated cable management

  • The rail can be easily surface mounted for low ceiling carparks



Specifications:


  • Main AC Power Supply: 230-140 VAC 50Hz, 225W
  • System Operating Voltage
  • Accessory Power: Continuous unregularated 30 VDC, 50 mA max. Switched regulated 24VDC, 150 mA max
  • Max Door Heights (Part No.): 2.4m (GLD-R2.4M) / 3.0m (GLD-R3.0M)
  • Max Door Weight: 160kg balanced door
  • Maximum Door Area: 15m2
  • Opening Travel Speed: 14.2cm per second
  • Closing Travel Speed: 7.6cm per second - Default speed

​                                           14.2cm per second - Fast speed for light weight doors

  • Max. Door Doors Cycles: 50 cycles / day
  • Operating Temperature: +5oC to 40oC
  • Transmitter Management: 64 Devices, compatible with with STAR1000EVO (sold separately)
  • Timer-to-Close: 10 - 180 seconds (10 second increments)
  • Compliance: AS/NZS 60335-1 / AS/NZs 60335-2-103 / AS/NZS 4417.1



(GRIFCOLRSDRIVE2.4M)

SKU GRIFCOLRSDRIVE2.4M
Brand Grifco
Unit Of Measure ea
