Listing Includes:

1 x MERLIN MR655MYQ SilentDrive Essential Roller Door Motor

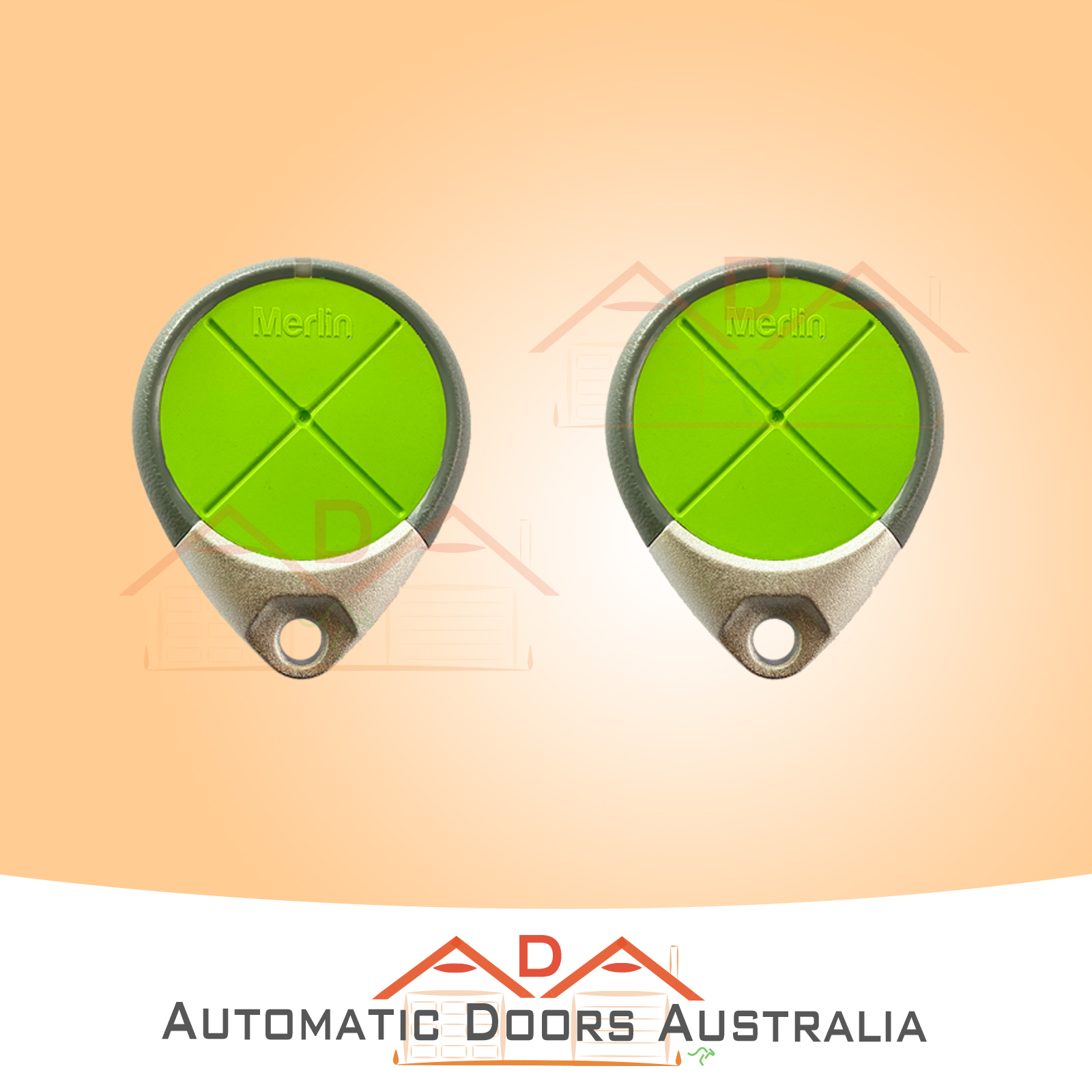

2 x Premium E970M remotes

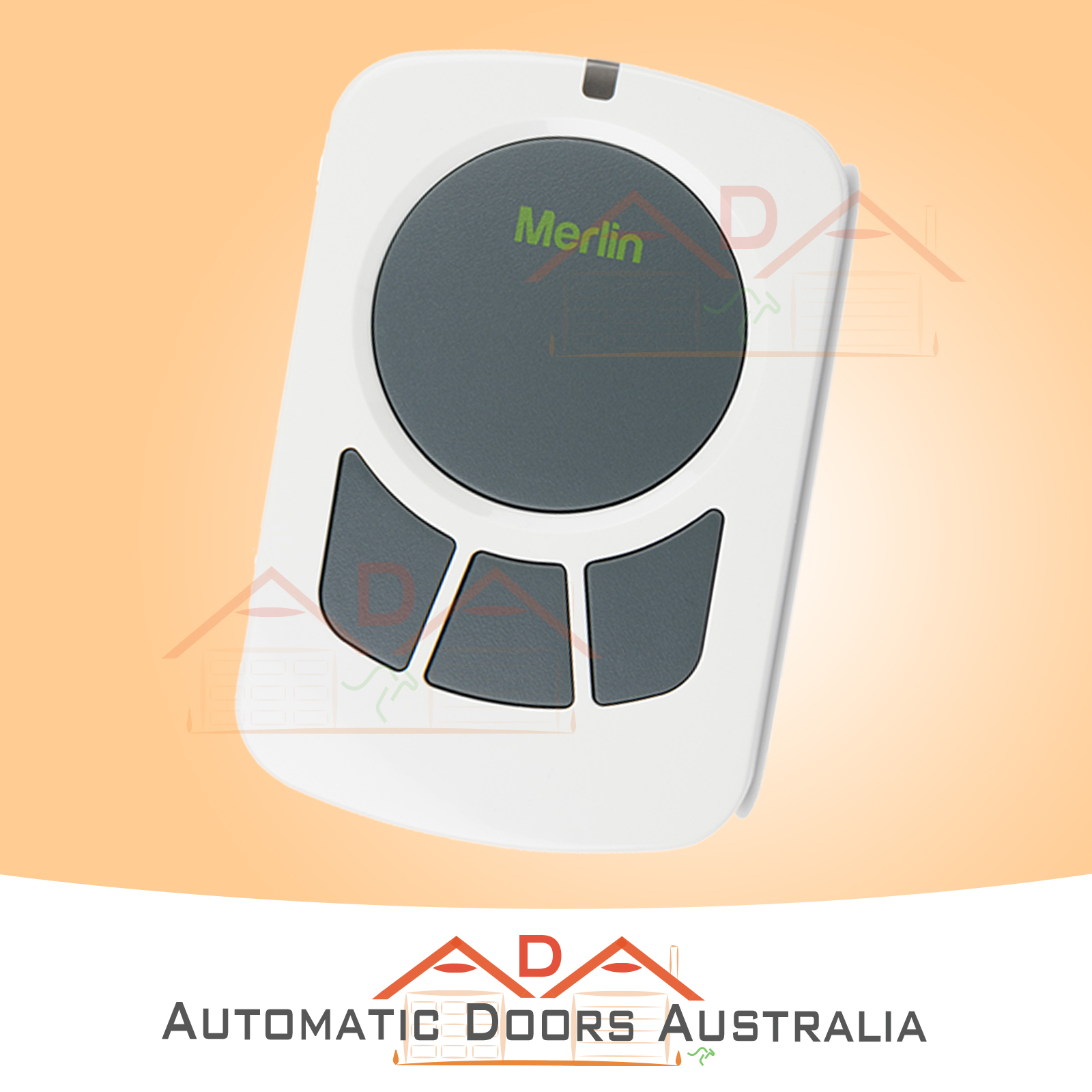

1 x E148M Wireless Wall Button
1 x Weight Bar
1 x Installation Instructions





Warranty:



5 Years  Merlin's online warranty.



Specifications:


General
  • 24 DC motor with thermal overload protection
  • Input voltage: 240V AC
  • Rated door area up to 16.5m2
  • Drum rotations: 4.5
  • Max Door weight: up to 100kg
  • Max peak pulling force: 500N
  • Minimum side room 45mm
  • 433.30, 434.54, 433.92 MHz AM radio with Security+2.0 encrypted rolling code technology
  • Up to 64 memory registers
  • Courtesy light: LED
  • Noise rating: 1M 57DB

Door Specs
  • Maximum lifting under spring tension = 20kg
  • Suitable for steel spring balanced doors

Door Opening and Closing Times
  • Door opening time: 13 seconds
  • Door closing time: 13 seconds
  • Based on a 2.3m high door

Door Height



  • Door height: 4.5m, 3.0m
  • Door width: 3.6m, 5.4m
  • Single dwelling

Suited For:

Can be used as a replacent for any MR650EVO opener or equivalent.



(MERLINMR655EVO)

SKU MERLINMR655EVO
Brand Merlin
Shipping Weight 8.5000kg
Shipping Width 0.320m
Shipping Height 0.230m
Shipping Length 0.480m
Shipping Cubic 0.035328000m3
Unit Of Measure ea
