Free Shipping Australia Wide
Listing Includes:

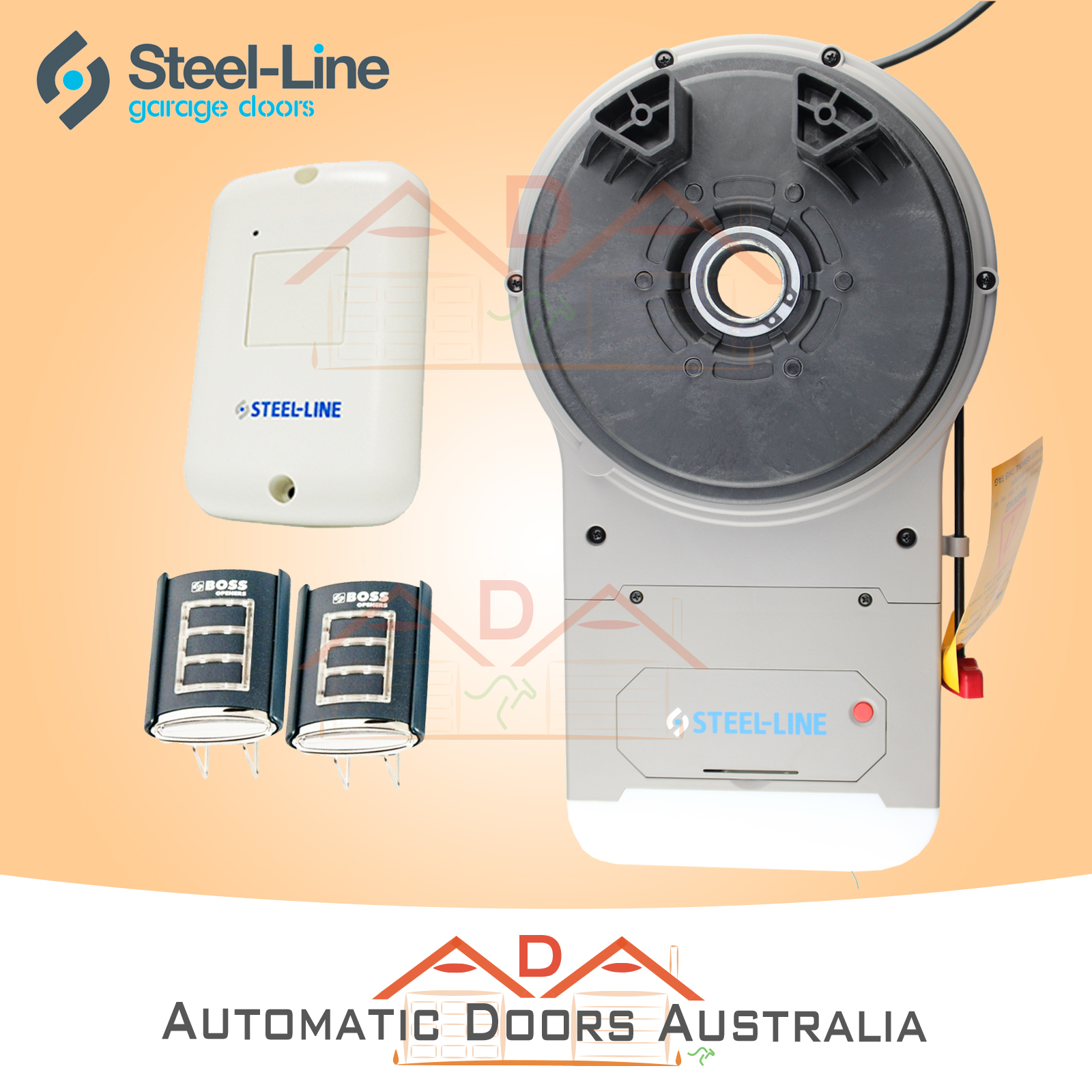

1 x Steel-line RD11 Powerhead

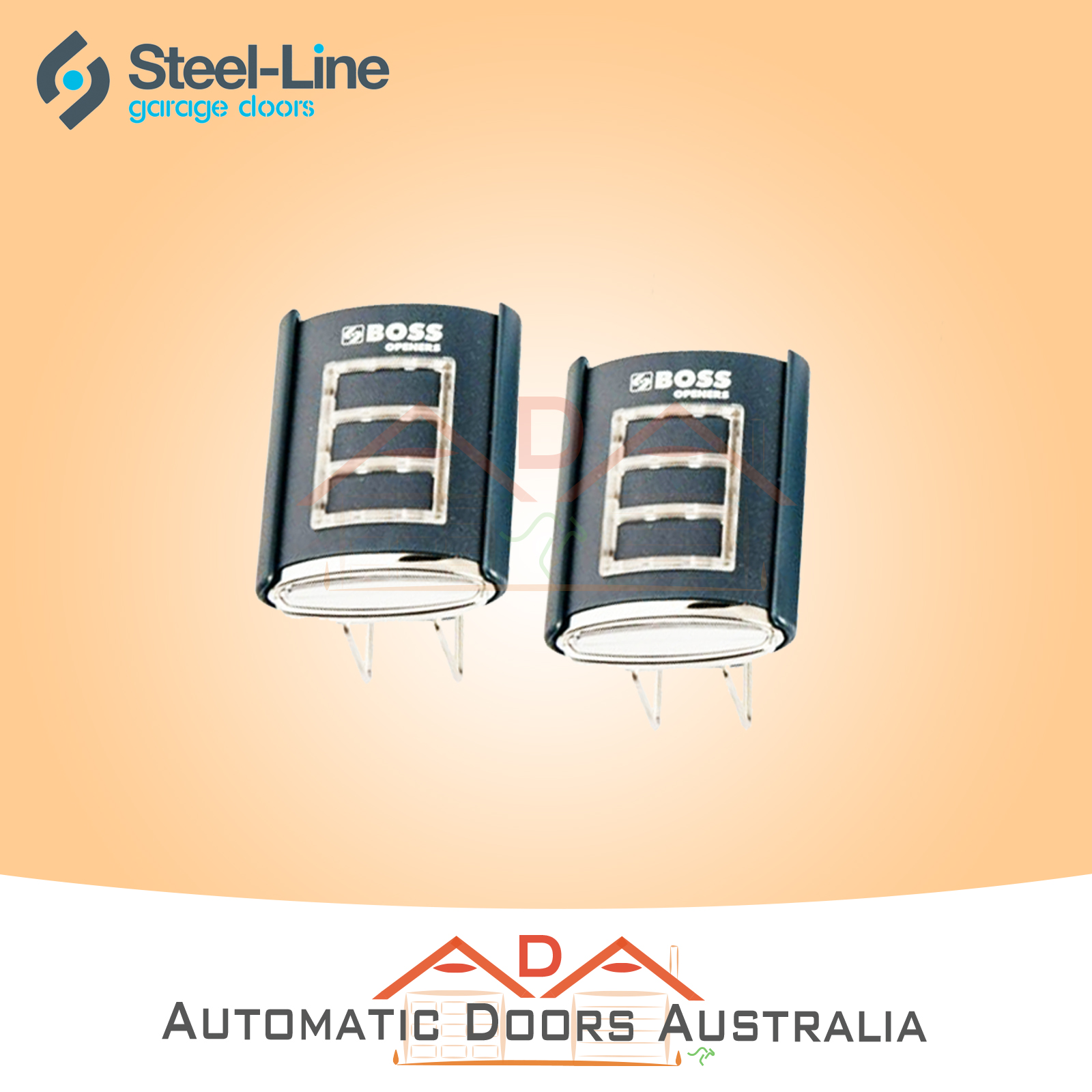

2 x HT3 Transmiiters

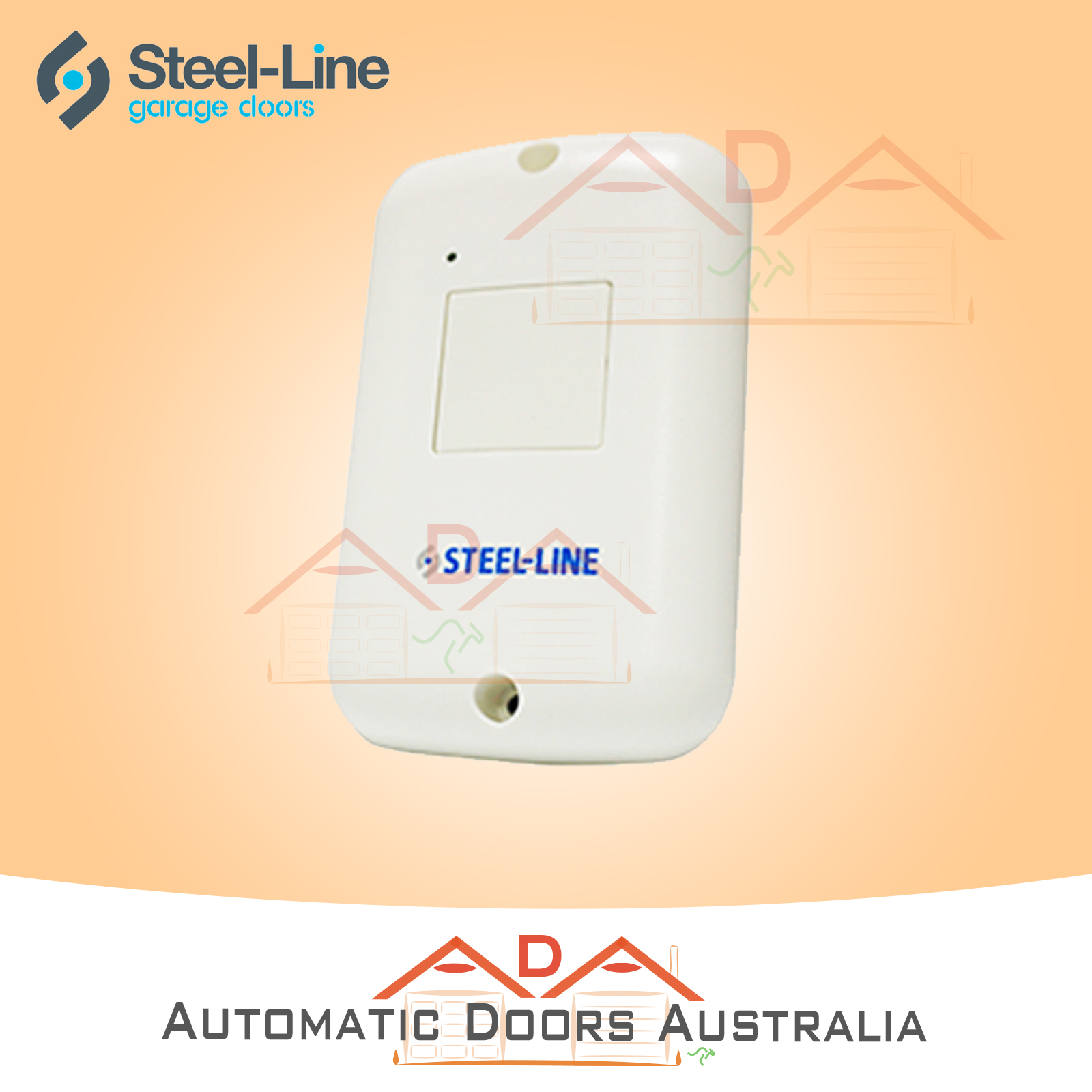

1 x WB13 Wall Button
2 x Remote Holders with visor clips
1 x Weight bar
1 x Mounting Hardware
1 x Instruction Manual
5 -YEAR/10,000 CYCLE WARRANTY on drive unit and 2 year warrnty on electronics/ circuit board

Designed especially for tight spots, this garage roller door operator only requires 90mm of side room for installation. Despite being compact in size it is packed full of features as well as being super quiet.

  • Reliable 1000N Motor
  • Suits up to 16.5m2 Doors
  • Automatic courtesy LED light
  • 24V d.c Motor



  • 24V DC motor type
  • 16.5m2 maximum garage door size
  • Maximum doorheight:4.6m
  • 433.92 MHz trnsmitter frequency
  • Maximum driving force: 1000N
  • Minimum side rrom of 100mm (edge of curtain to wall)
  • Automatic CLose function (when the Photo Eye system is fitted)
  • Overload Adjustment included
  • Optional photo eye protection
  • Courtsey LED light included
  • Manual disengagemnet system
  • Electronic limit system
  • Electrical input: 240V, 50Hz


SKU Steel-line-RD11
Brand Steel-line
Shipping Weight 8.8000kg
Shipping Width 0.270m
Shipping Height 0.210m
Shipping Length 0.450m
Shipping Cubic 0.025515000m3
Unit Of Measure ea
