ATA GDO-9v3 Dynamo Gen2 - Morter -  /// Power Head Only /// NO RAIL OR TRACK ////

Free Standard Delivery Australia-wide only

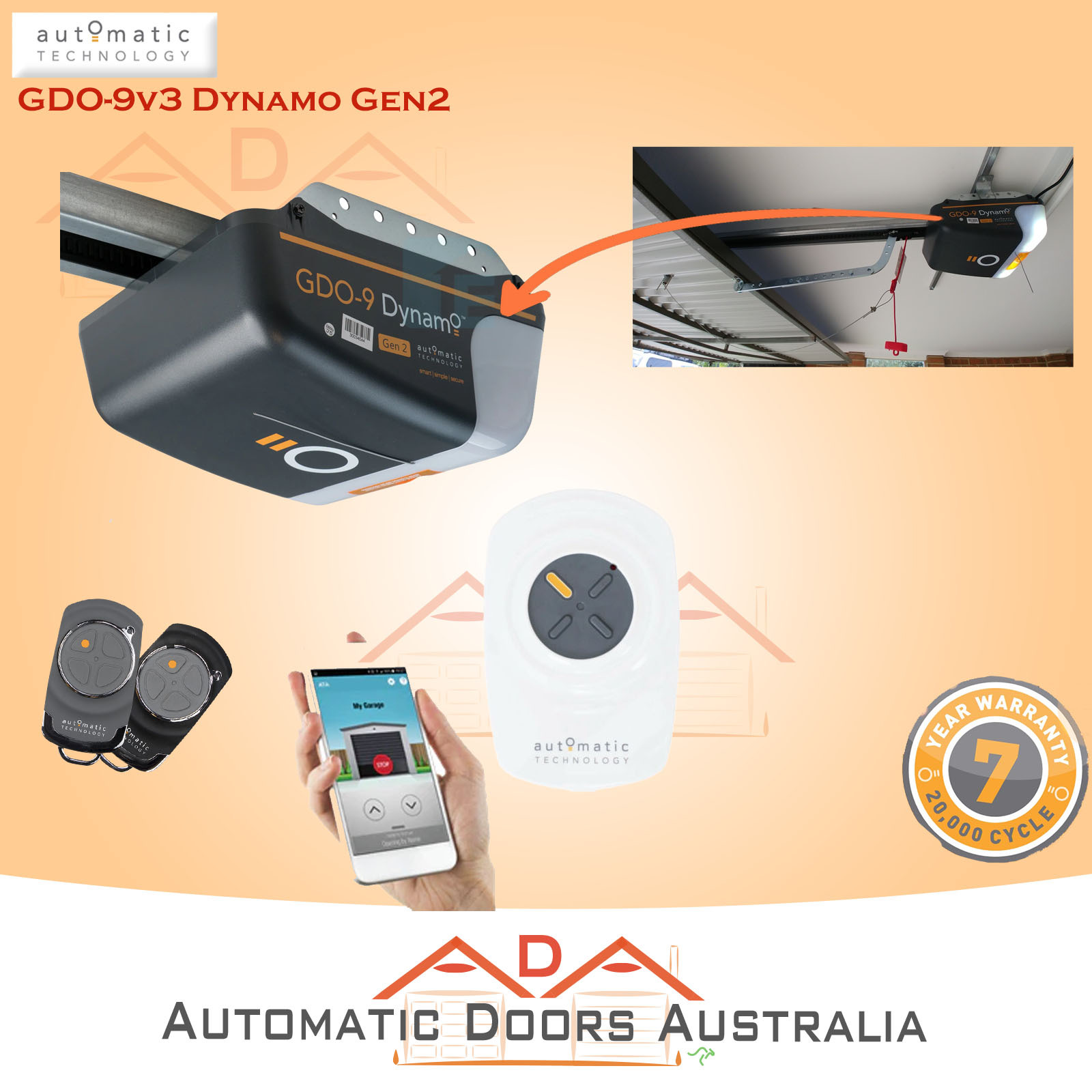

  • 1 x GDO-9v3 GEN2 Dynamo Garage Door Motor

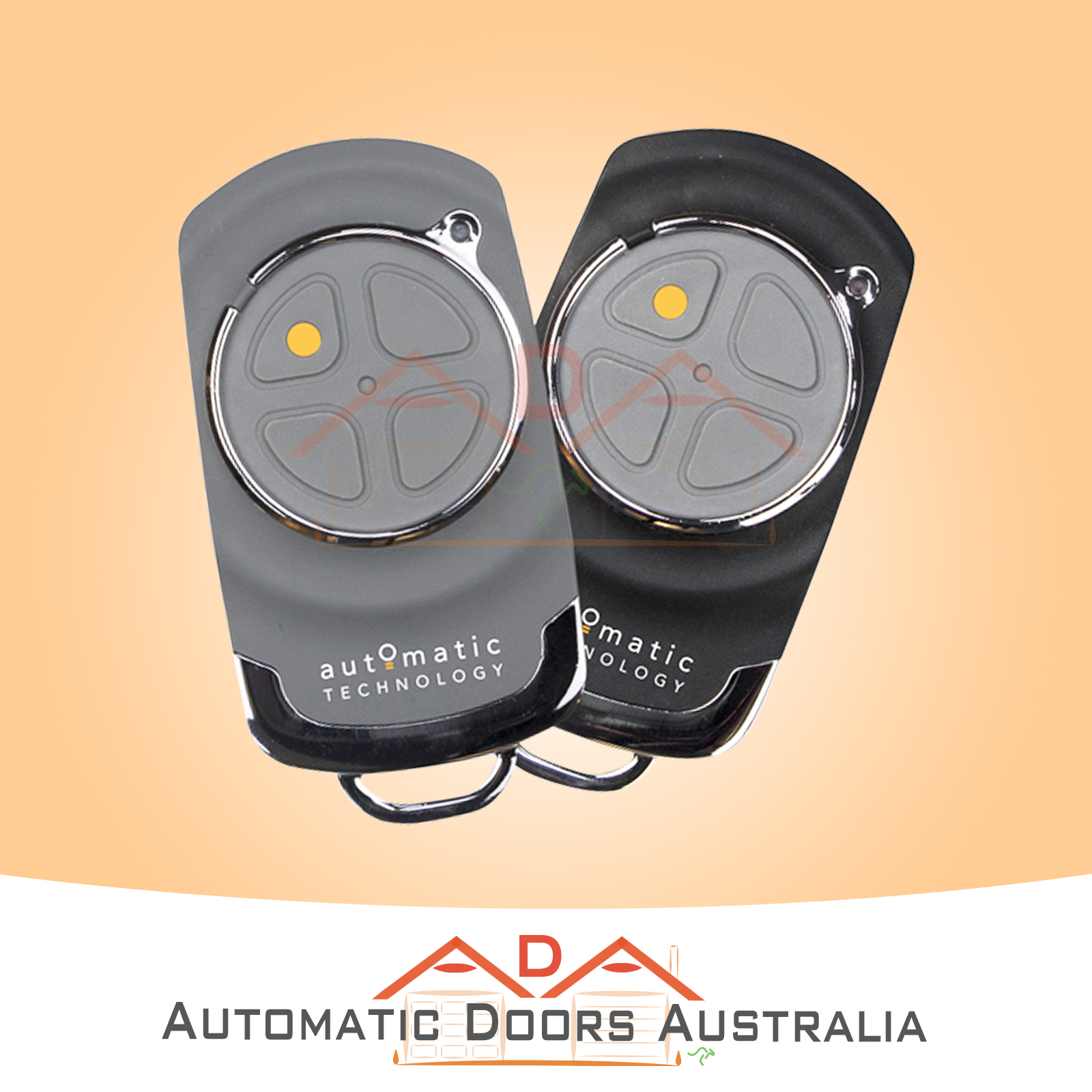

  • 2 x PTX-6v1 Transmitter Remotes

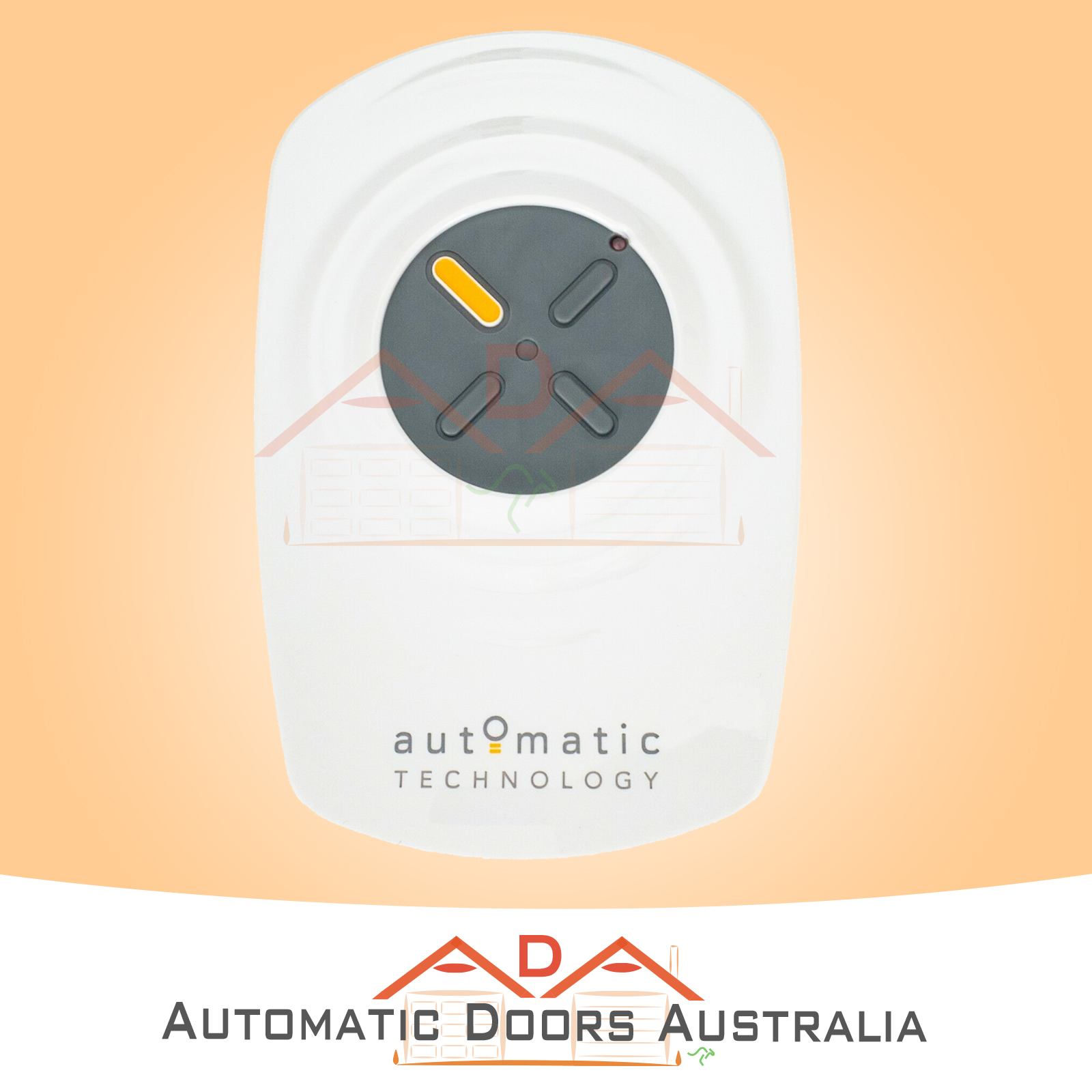

  • 1 x  ATA Wireless Wall Button (WTX6)
  • 2 x Door Attachment Arms
  • 1 x Accessory and Hardware Pack
  • 1 x Installation Manual
  • 1 x Home Owners Manual
  • Warranty: 7-YEAR / 20,000 CYCLE WARRANTY

Warranty -  07 years manufacturer's warranty (This warranty covers failure due to manufacturer's fault)


Installation Instructions


ATA include a full installation manual with their opener, breaking down each step of the installation process.
If you prefer a visual guide, there are a number of videos online that show you the basic steps on installing an overhead motor to a garage door.

Model Name  Dynamo
Type Of Door  Sectional
Pear Short Term Pulling Force  1000N
Maximum Door Weight  175Kg
Rated Door Area  16.5m2
Rail Steel - Alum.
Drive Chain / Belt
Speed (mm/Sec) 130
Side Room Req. N / A
Minimum Headroom 25mm
Soft Start / Soft Stop 25Yes
Light System LED
Transmitter Storage Caacity  64
Warranty  7years /  20,000 cycles
4 Button Transmittes  X2
Wall Transmitter X1
Safe Beam ( Optional) Check the Price
Batter Back up ( Optional )  Check the Price


SKU ATAGDO9v3DynamoGen2
Brand ATA Automatic Technology Australia
Shipping Weight 10.0000kg
Shipping Width 0.250m
Shipping Height 0.200m
Shipping Length 0.440m
Shipping Cubic 0.022000000m3
Unit Of Measure ea
