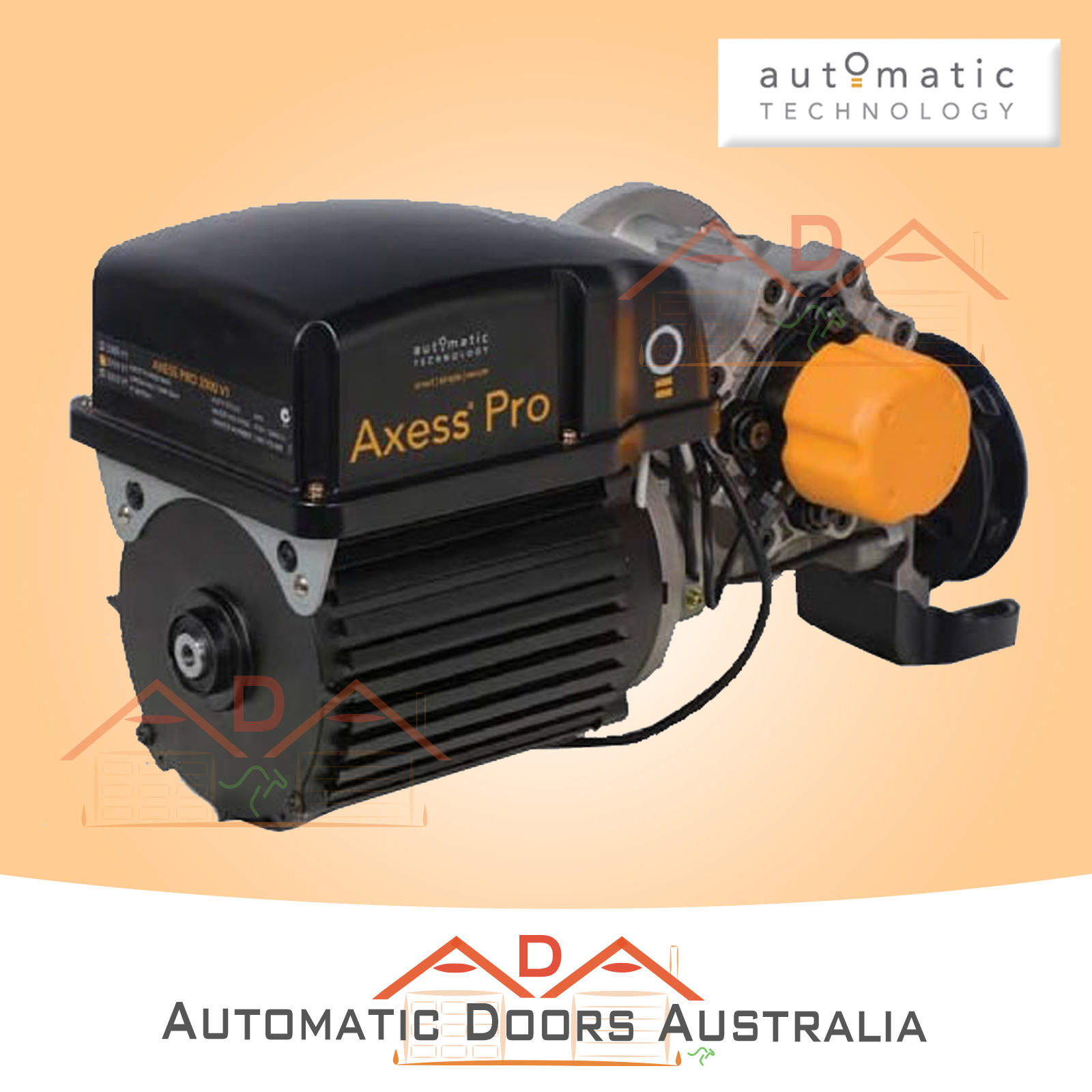

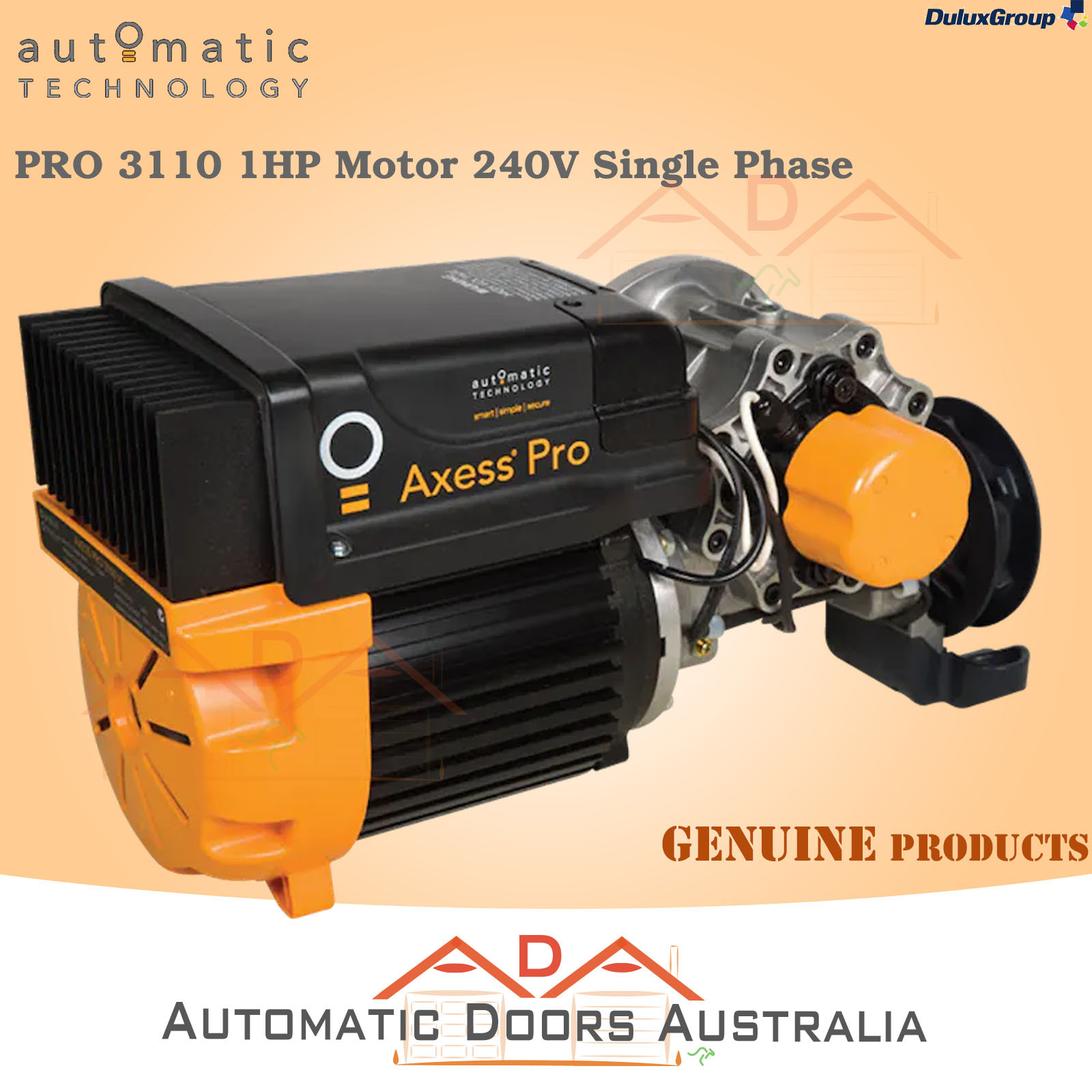

ATA AXESS PRO 3110 1HP Motor 240V Single Phase Industrial Shutter Opener

Free Standard Delivery Australia-wide only

Incudes

  •  ATA AXESS PRO 3110 unit 1HP 240V Motorhead Only (Mounting Bracket Kit, Deadman Console and Logic Kit sold seperately
  • 10B Drive Chain (1.5m lenght)

Warranty -  NOW WITH 5-YEAR 10,000 CYCLES MANUFACTURING WARRANTY  (This warranty covers failure due to manufacturer's fault)



Axess Pro Series 3100 Opener

The Axess Pro Series 3100 provides an innovative suite of features for the demanding world of industrial shutter automation. With a selection of input and output power variations, and a scalable suite of control and safety options, this combination of strength and smarts is an evolutionary step forward.

Suitable for doors up to 36m² in size this opener can be controlled either by a simple manual console, or the sophisticated logic control system with LCD screen, integrated time clock and TrioCode technology. The flagship 240V units require only a standard power point for install, but deliver 3-phase power, reliability and speed control through a custom designed inverter.

Features:

  • Heavy Duty
  • Can Be used on most sliding gate openers NEO SLIDER 24v1, 24v2, 24v3, NES500 / NES800
  • gear ratio 8 tooth per 100mm
  • The High Tensile Plastic Outside protects a Steel Core
  • Fixing Lugs Every 200mm
  • Rack has proved to be highly successful
  • 6 Bottom Mount lugs for stability


Specifications:


Power
       Input Voltage:                                230-240V a.c.   1-phase
       Standby Power:                              2.8W
       Motor Type:                                   Inducti
       Motor Power:                                 1.0 HP - 750W
       Controller Fuze:                            60%
       Rated:                                             Variable via inverter

Transmitter System
       Receiver/Transmitter                    Multi-frequency UHF FM
       Frequency                                      (433.47, 433.92 & 434.37MHz)



(ATAAXESS3110)

SKU ATAAXESS3110
Brand ATA Automatic Technology Australia
Shipping Weight 21.0000kg
