Free Shipping Australia Wide


Listing Includes:


1 x GDO-6v4 Powerhead
2 x PTX-6v1 Transmitters
1 x EAT-2v2 Easy Access Transmitter
1 x Weight Bar
2 x Locking Bar Covers
1 x Mounting Hardware
1 x Instruction Manual


Warranty:


NOW WITH 7-YEAR/20,000 CYCLE WARRANTY


Description:

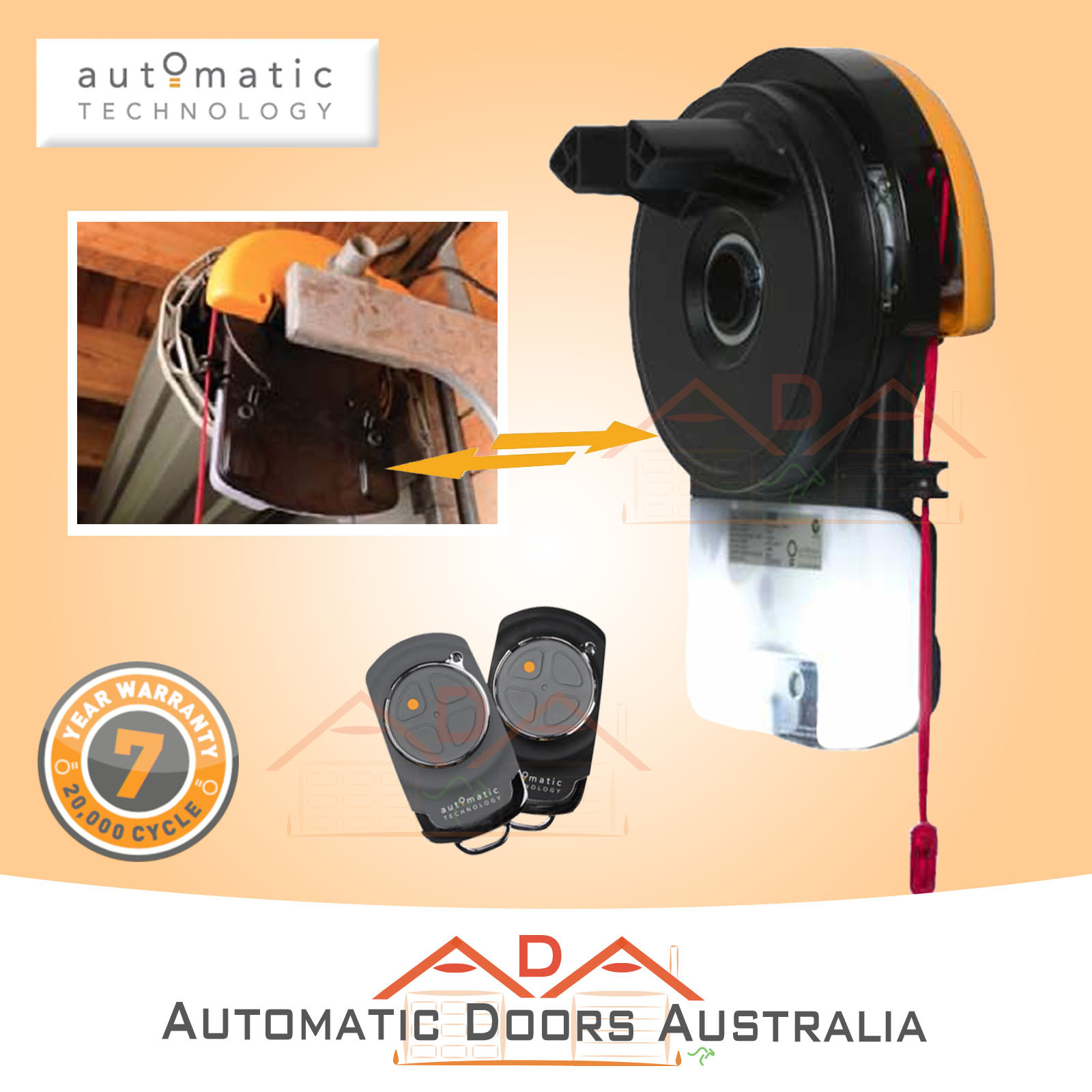

ATA's new flagship rolling door opener, the GDO-6 EasyRoller®now features their Series 2 upgrades. Designed to deliver a slim profile, reliability, security and convenience, it is compatible with our Smart Phone Control Kit and Wireless Safety Beams.

The Series 2 EasyRoller® takes forward the impressive reputation earned by this series of openers over the past decade. This version incorporates bright LED courtesy lighting and compatibility with Wireless Safety Beams. The Service Indicator lets you know when it is time to service your door. This is in addition to TrioCode128 transmitters, Soft Start/Soft Stop operation, advanced door profiling and obstruction sensing for secure and safe operation.


Features:

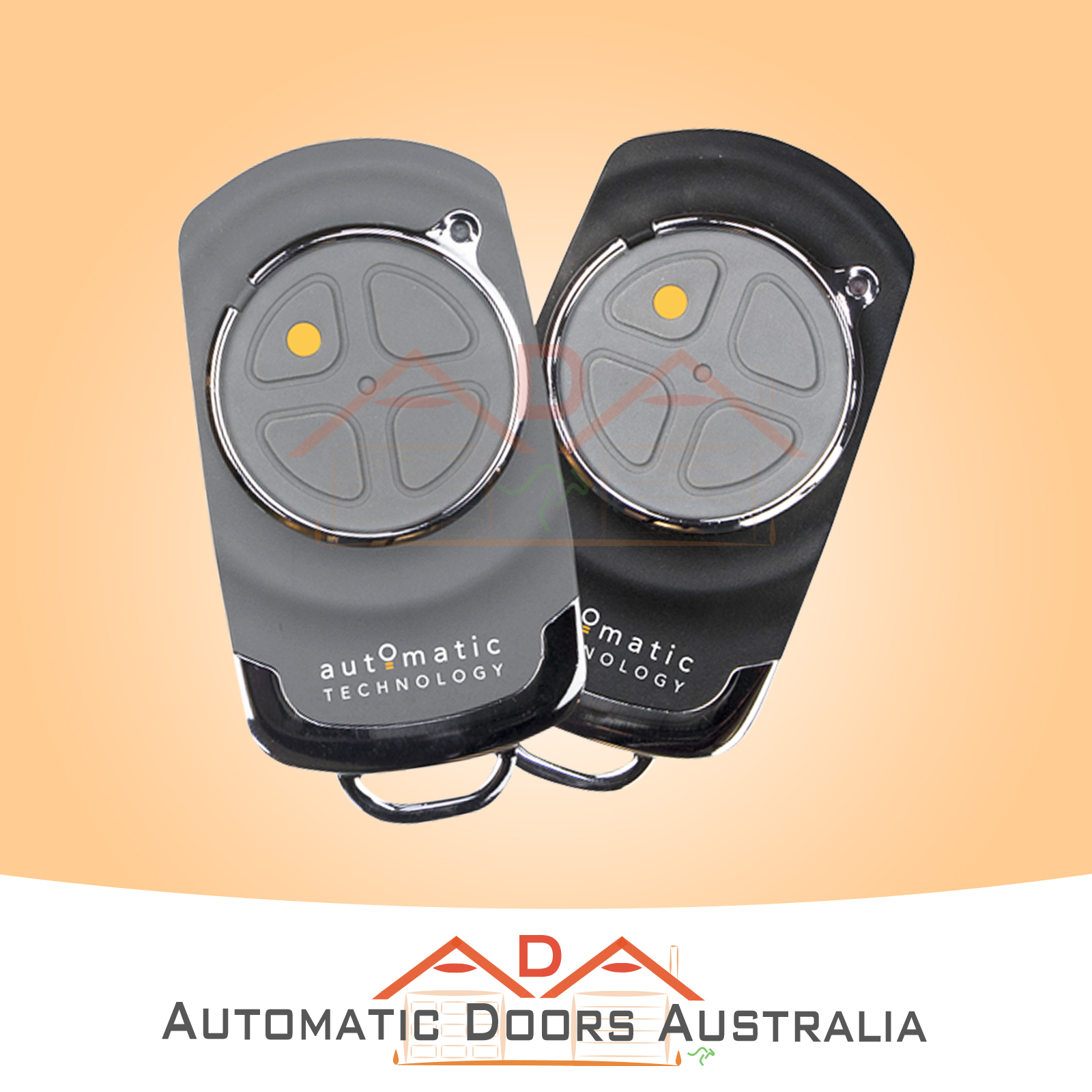

TrioCodeTM Code Hopping Technology

Every time a TrioCodeTM transmitter is used, a new security code is randomly generated from over 4.29 billion possibilities. This greatly enhances the security of the system and makes “code grabbing” a thing of the past.
These transmitters also overcome interference issues by simultaneously sending a signal over three slightly different frequencies. Even if two of the three signals are jammed, the system will still work.

ALPS (Automatic Limits Positioning System)

ALPS does away with manual adjustment of the door’s limits position using mechanical parts, such as cams and microswitches. During installation the handheld transmitter can be programmed to set the door limits positions.

ISS (intelligent safety obstruction system)

While the door is performing a close cycle, should it hit an obstacle or be restricted in some manner, it
will automatically reverse. The amount of force the door should encounter before reversing is automatically adjusted by the doors control system during the initial installation of the automatic door opener. The door will also stop if restricted whilst opening. The Safety Obstruction Force should be checked monthly.

Auto courtesy light

The courtesy light comes on automatically for three minutes whenever the door is activated. The light can also be operated independently of the door by coding a dedicated button on a transmitter.

SmartSolarTM and Battery Backup Compatibility (optional)

The opener can be fitted with a SmartSolarTM or Battery Backup kit for operation in the event of a power outage, or where mains power access is not available. NOTE: If the door is the only entrance to the garage, and a battery backup kit is not fitted,
a keyed cable release should be fitted externally to the garage.

Vacation mode

A handheld transmitter can be programmed to lock and unlock all other transmitters that have been programmed into the openers’ memory. The vacation
mode can be used when the door is left idle for long periods of time.

Pet/Pedestrian mode

The transmitter can be programmed to open the door to an adjustable partial height so that the family pet can enter and exit the garage at any time. You may also wish to
open the door to a height suitable for pedestrian access.

Auto-Close mode

The opener can be programmed to automatically close after an open cycle. The Auto-Close time is adjustable. It is compulsory to install a PE Beam if this mode is selected, otherwise the
door may cause personal injury or damage to property.

Photo Electric (PE) Beam (optional)

The opener has an input to connect a PE Beam for extra safety and use of the Auto-Close mode.

Manual operation

The opener is equipped with a unique manual disengaging device. If the power to the opener is disrupted, the door can be put into manual mode by pulling down on the string handle on an angle towards the door. This allows for manual operation of the door. To re-engage the opener, pull the string handle away from the door.

Easy Access Transmitter

Inside the manual release handle is a transmitter designed to be in easy reach so that the garage door can be operated without having to stretch to reach the operate button on the control panel.



Specifications:


Factory Default Settings


                          Default
         Step
       Maximum
Maximum motor run time
                         25 secs
          -
       -
Courtesy light time
                         3 mins
          10 secs
       4 mins
Obstruction force margin
                         13
          1
       20
Auto close time
                         0 secs
          1 secs
       4 mins


Technical Specifications

Power supply                                                  230V - 240V A.C. 50Hz

Standby power                                               2.2 Watts

Motor power                                                   100 Watts
Peak driving force                                          600NM
Motor type                                                      24VD.C. Permanent Magnet
Controller Voltage                                         24VD.C.

Maximum door opening:
Width:                                                              5500mm
Height:                                                             3000mm
Maximum door weight                                 110kg
Rated door area                                             16.5m2
Typical travel speed                                     130mm/sec
Opener Limits Travel                                    3.0 turns of Door Drum Wheel
Receiver type                                                TrioCodeTM type
Receiver code storage capacity                64 X 4 button Transmitter Codes
Transmitter frequency                                 TrioCodeTM type
Coding type                                                   Code hopping
Number of code combinations                  Over 4.29 billion random codes
Code generation                                           Non-linear encryption algorithm
Courtesy light                                                LED (Light Emitting Diodes)
Controller fuse                                              10A slow blow
Network connectivity                                  Network compatible, (requires
                                                                         optional Smart Phone Control Kit)





(ATAGDO6v4)

SKU ATAGDO6v4
Brand ATA Automatic Technology Australia
Shipping Weight 9.5000kg
Shipping Width 0.330m
Shipping Height 0.250m
Shipping Length 0.400m
Unit Of Measure ea
