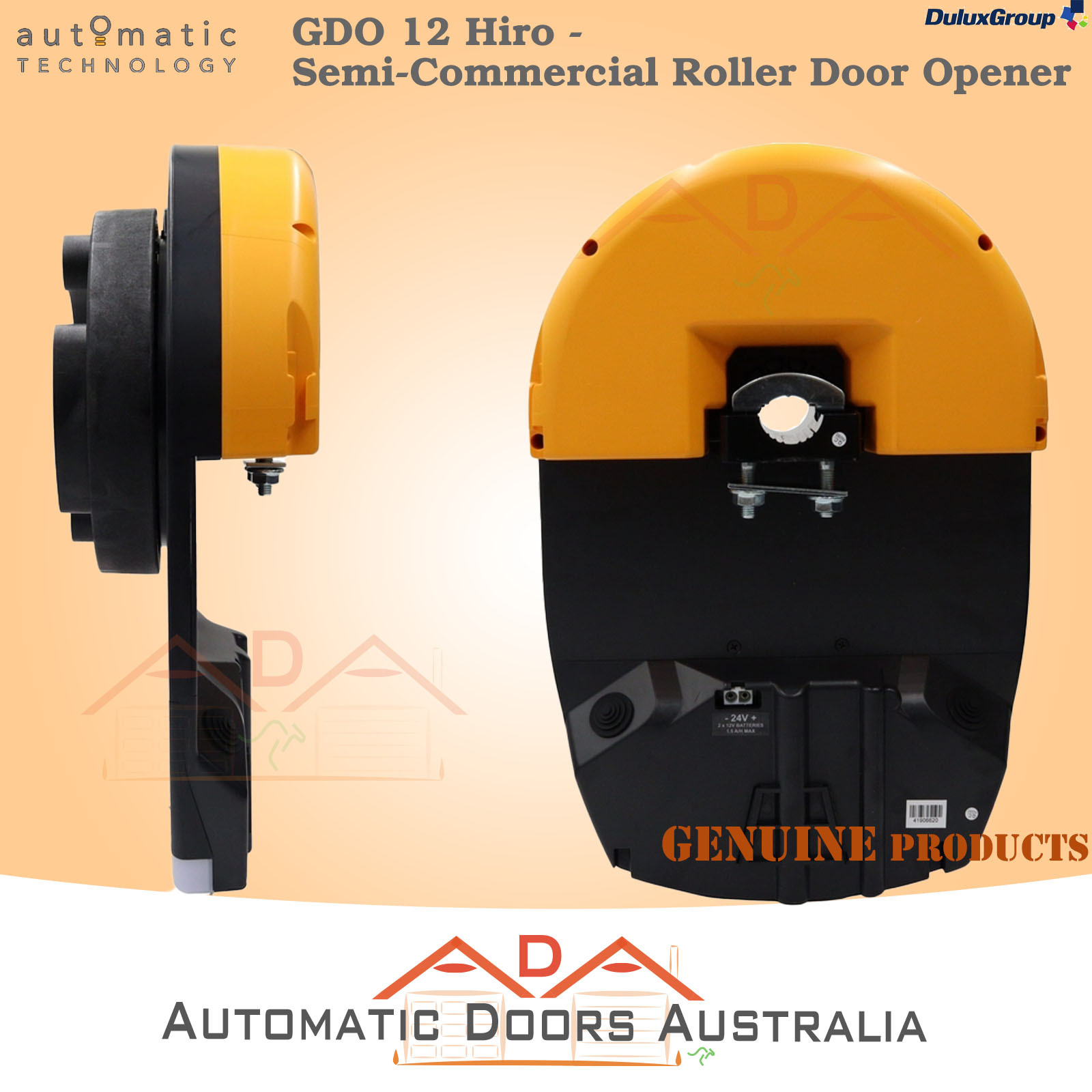

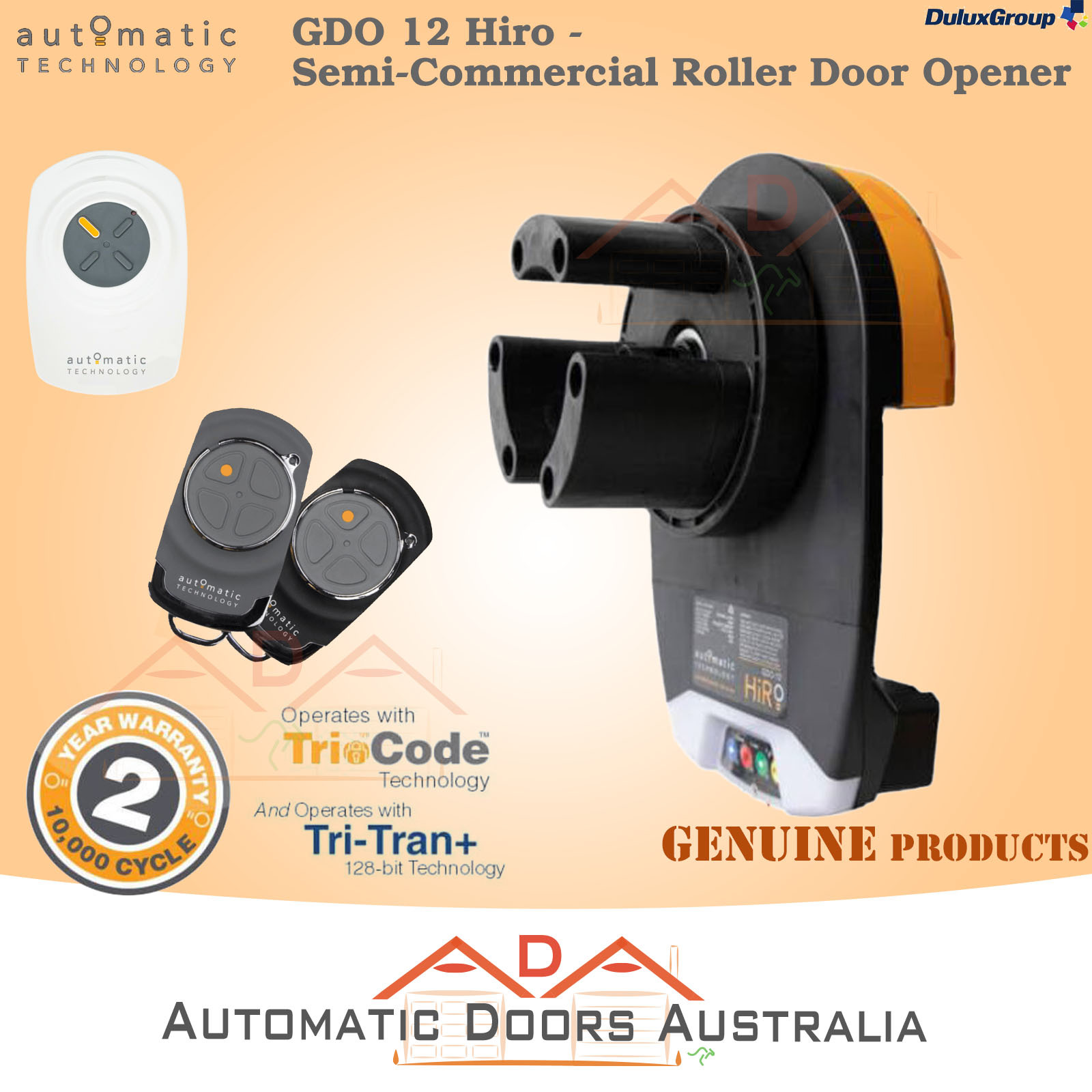

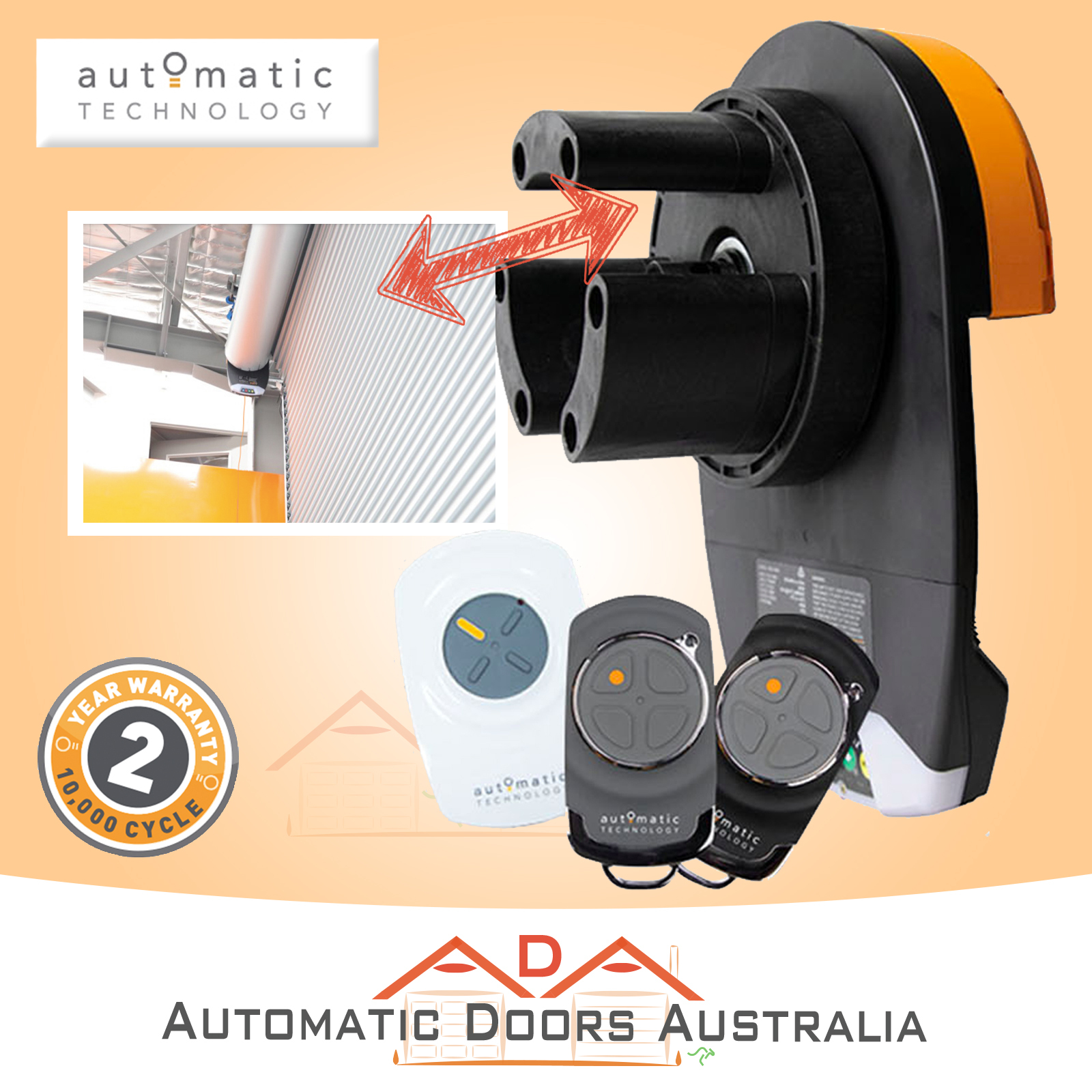

ATA GDO12 - Roller Door Opener Hiro Light Commercial -#100250

Free Standard Delivery Australia-wide only


  • ATA GDO-12 Hiro Light Industrial Motor

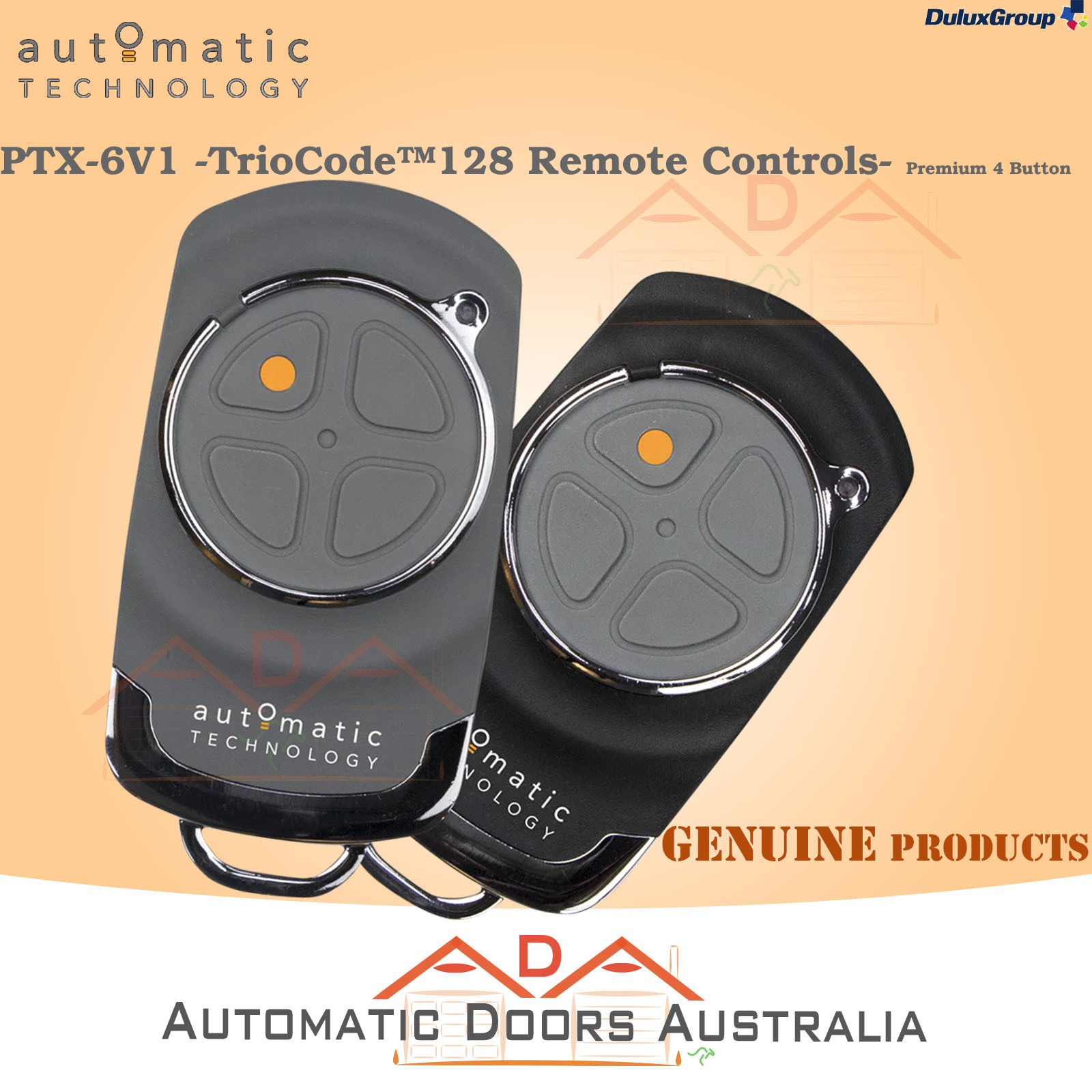

  • PTX6 Premium Remotes x2

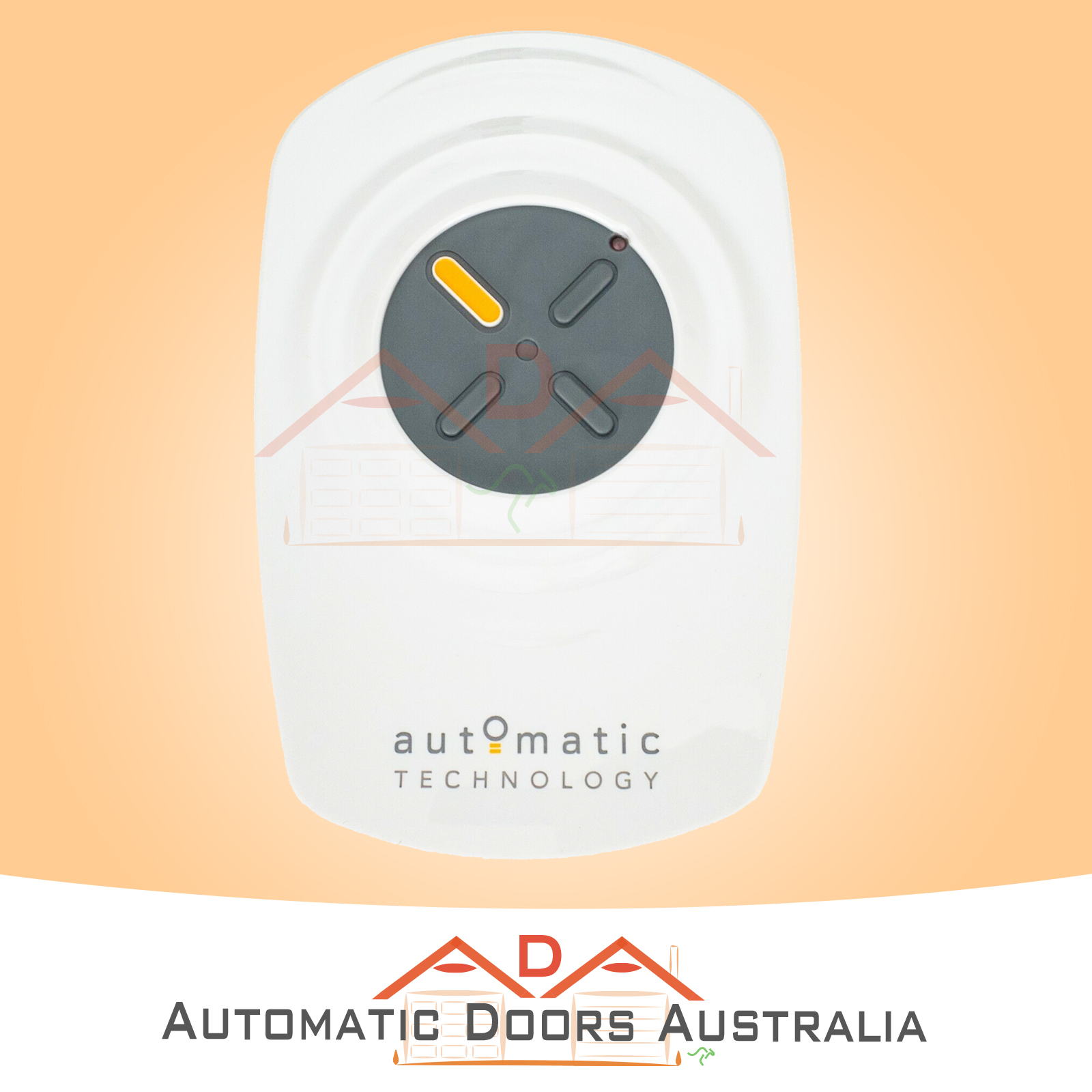

  • WTX6 Premium Wall Button
  • Weight Bar
  • Installation Manua

Warranty -  2 Year Warranty/10,000 Cycles,  manufacturer's warranty (This warranty covers failure due to manufacturer's fault)


The GDO12 Hiro is the slimmest and most powerful roller door opener in the range it leads the way in connectivity by delivering smartphone control as an optional upgrade in light commercial operations. If you need to operate a very large roller door or wind-locked door or have a site with low side room, the GDO12 Hiro is a natural choice.

The Hiro can cater for roll-up doors up to 28m2 and wind-locked doors up to 22m2. Premium PTX6 remote controls and WTX6 wall button add to the design of this sleek unit. The Hiro can be installed on the left or right hand side of the door, has an optional battery back up and is Smart Phone compatible.


  • The Hiro offers short term peak force of 1400N to easily and reliably open a door up to 28m2 and 22m2 for a wind-locked door.
  • Left or right-hand installation.
  • Slim fit design only requires 35mm from the edge of the door curtain to the edge of the bracket. (105mm required when optional battery back up is installed)
  • Optional slide-on or wall mount battery back up (sold separately)
  • Variable opening speeds
  • Smart Phone Compatible (sold separately)
  • Soft start/soft stop operation
  • Large removable forks suit most drum wheels
  • Variable Auto close settings
  • Holds 64 x 4 Button Transmitters
  • Input Voltage 230-240V ac
  • 150W Motor Power Peak Pulling Force: 1400N
  • Multi-frequency UHF FM 433.47, 433.92 & 434.37MHz
  • Wireless Safety Beam Compatible
  • Courtesy light
  • Key Switch (sold separately)
  • Service Indicator to let you know when your door needs to be serviced
  • Triocode128 & Tri Tran+


  • Suits Doors Up To 28m2
  • Suits Wind-locked Doors Up To 22m2
  • Max Door Weight: 270kg (Gross weight including all fittings)



Brand ATA Automatic Technology Australia
Shipping Weight 12.0000kg
Shipping Width 0.340m
Shipping Height 0.340m
Shipping Length 0.510m
Shipping Cubic 0.058956000m3
