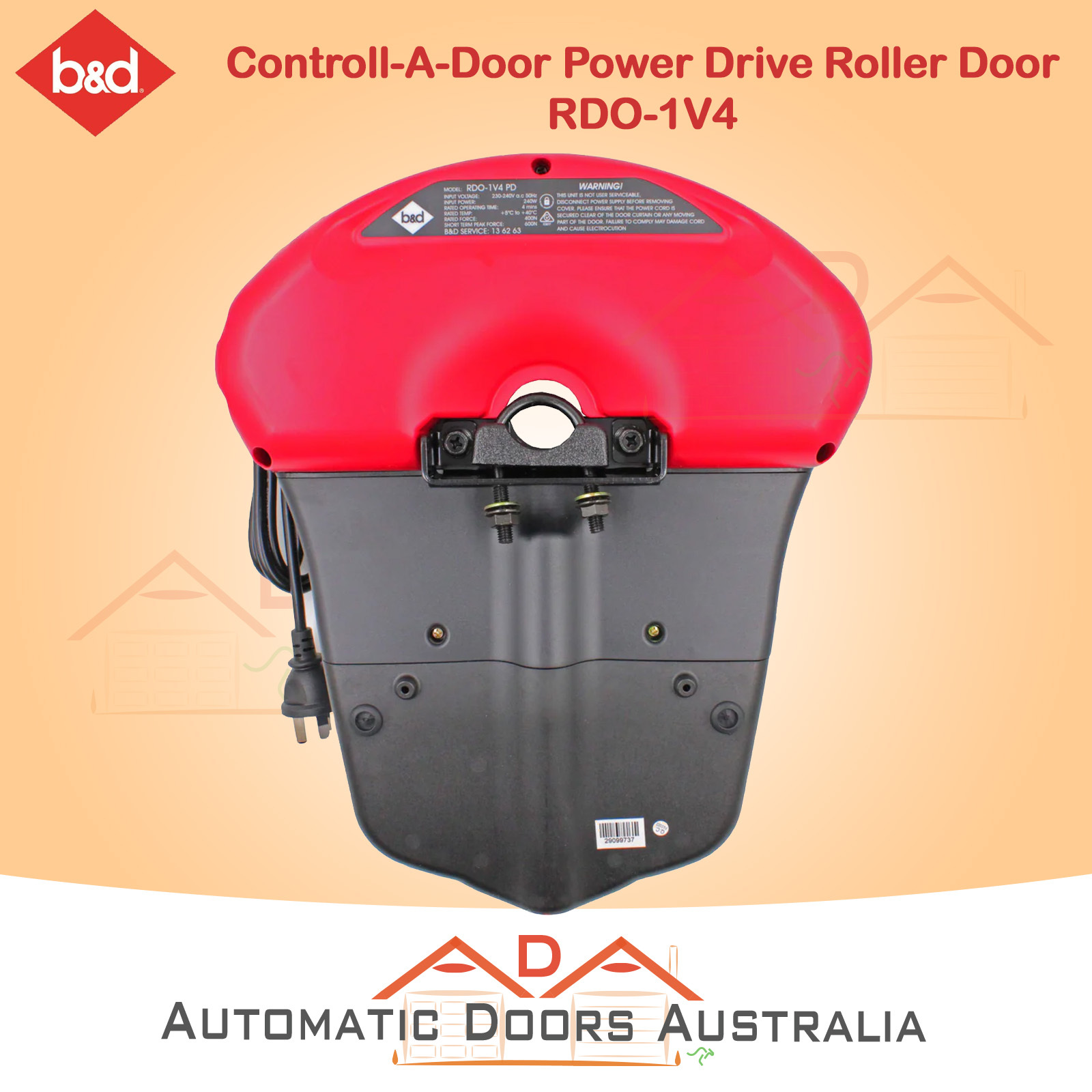

B&D Control A Door Power Drive CAD PD Garage Roller Door opener -RDO1-V4
Free Shipping Australia Wide

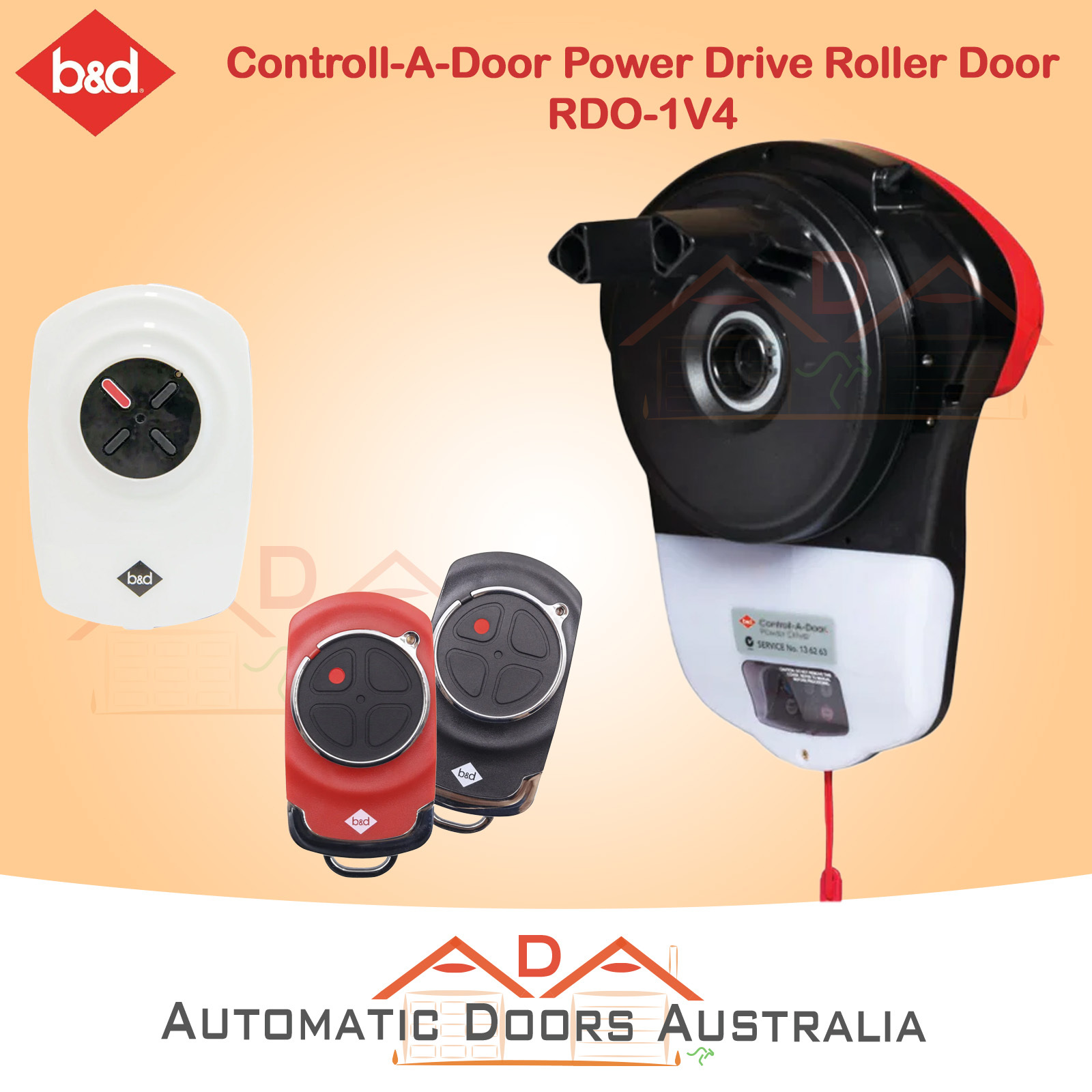

Listing Includes:

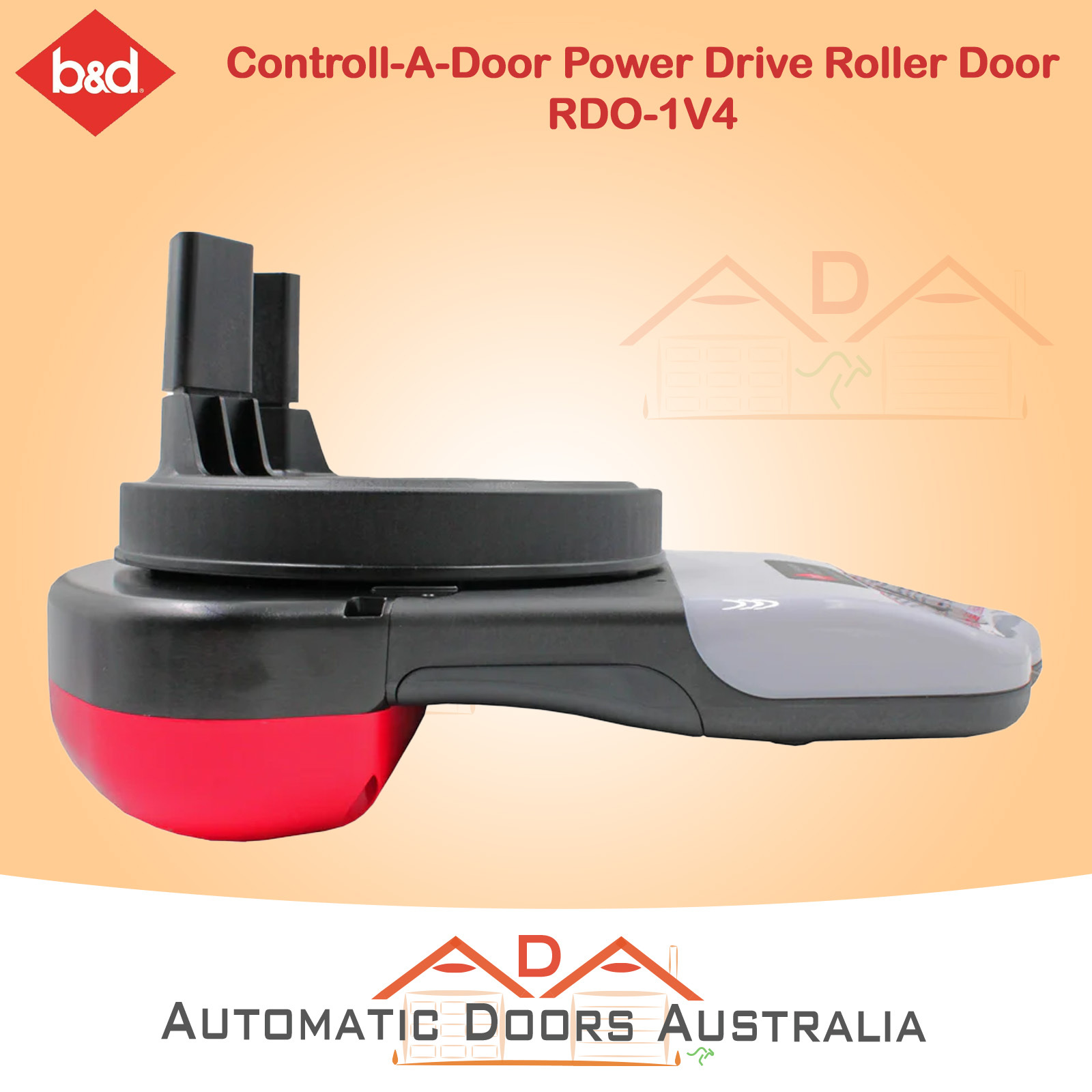

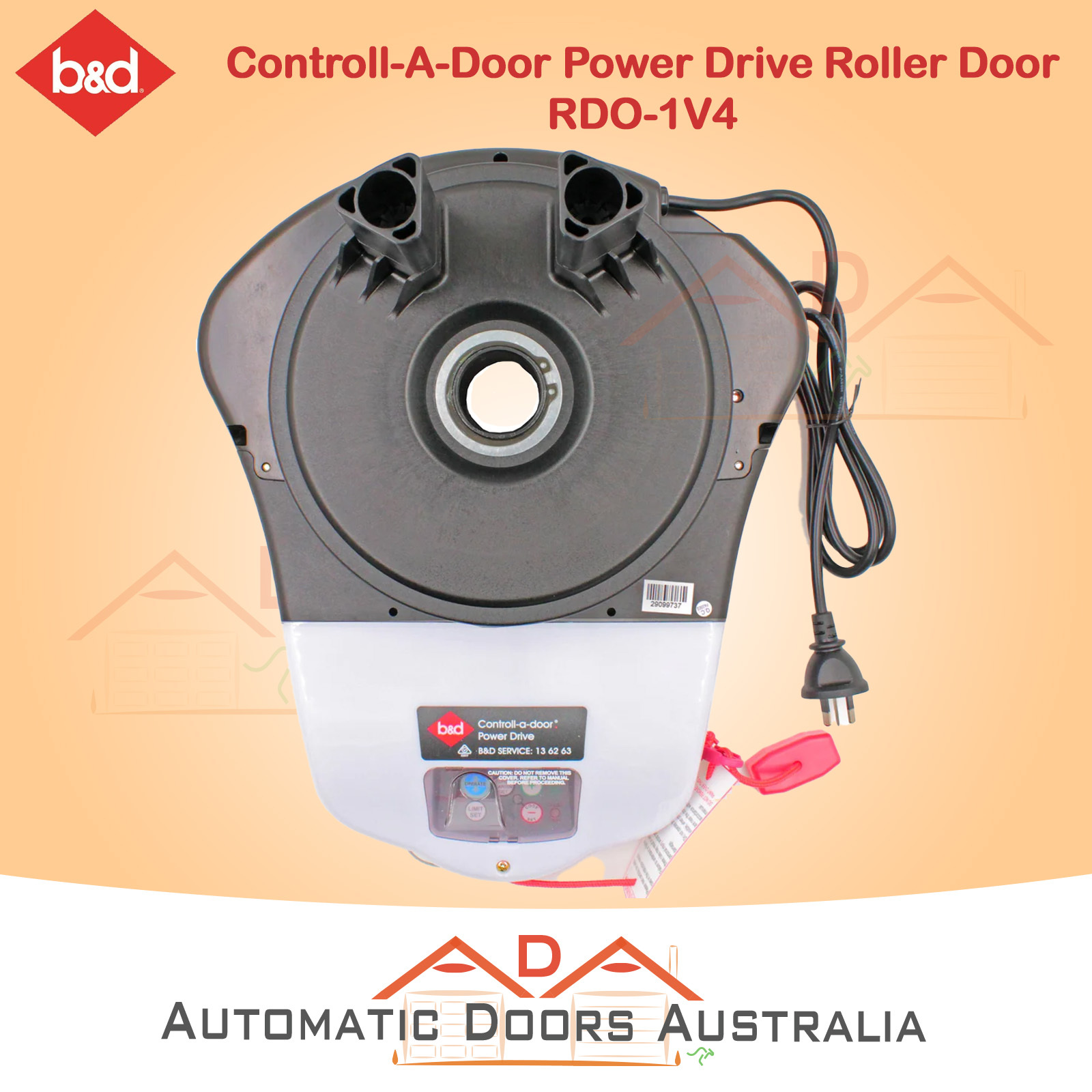

1 x RDO-1V4 CADPD Powerhead

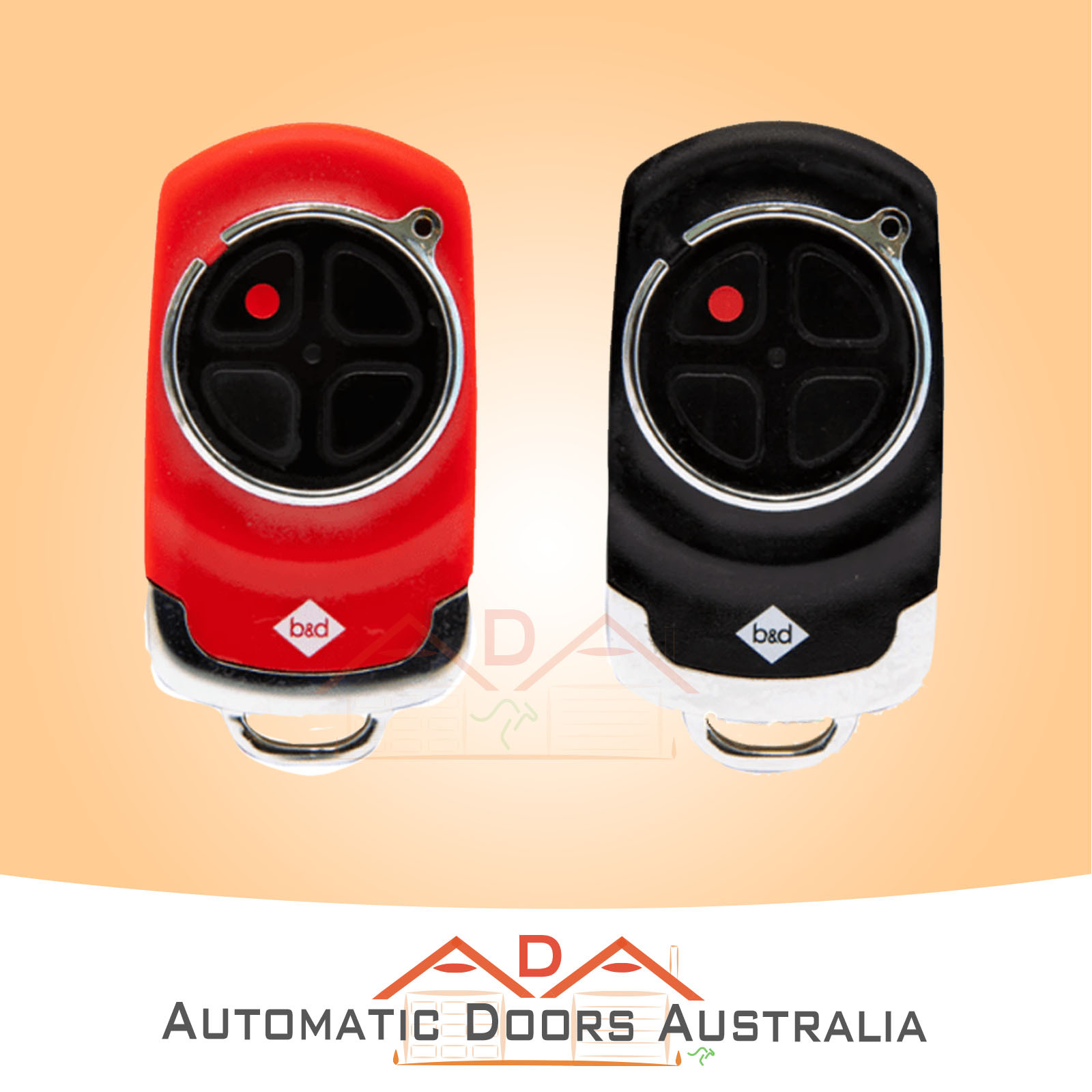

2 x TB-7 Transmitters (1 x Red, 1 x Black)

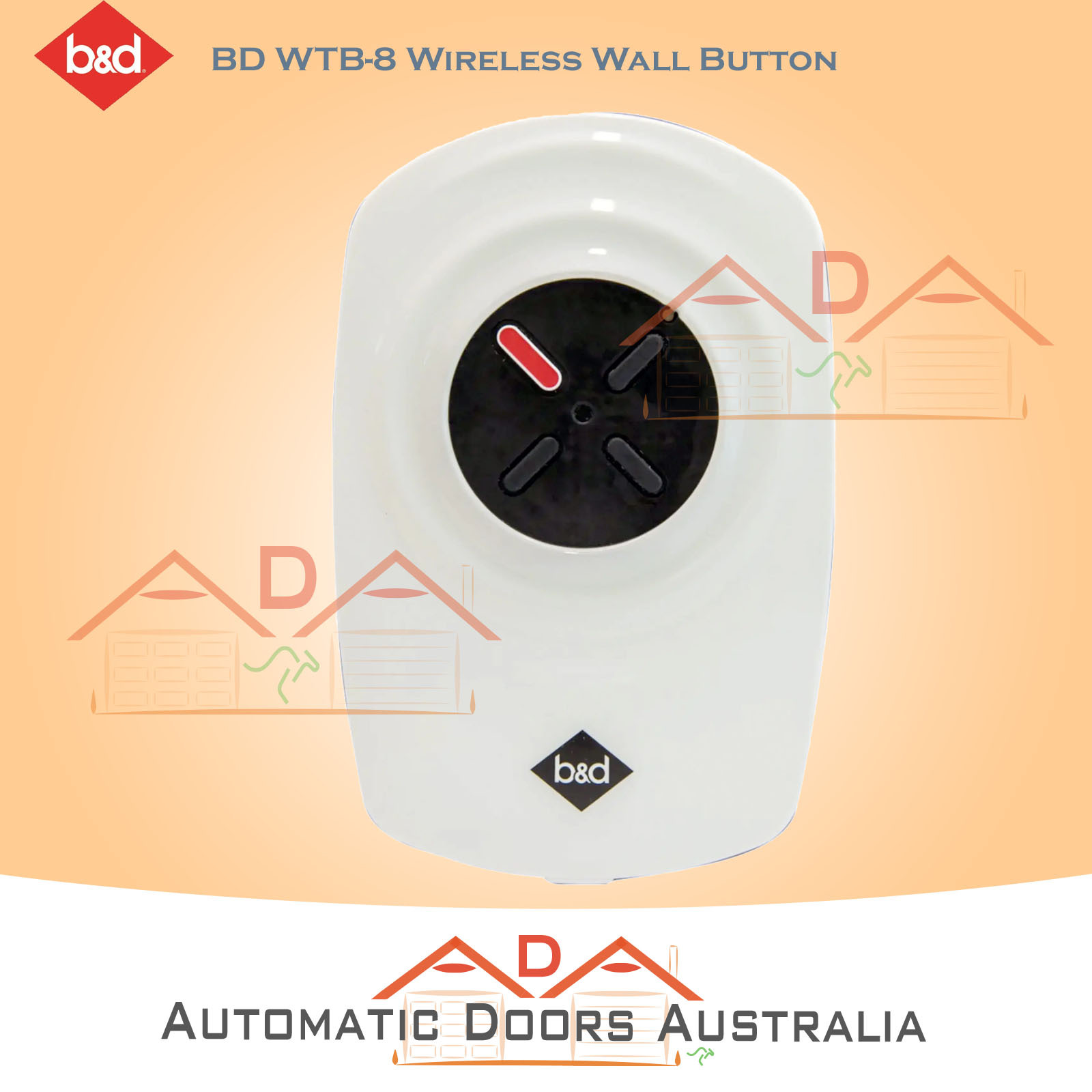

1 x WTB-8 Wall Transmitter

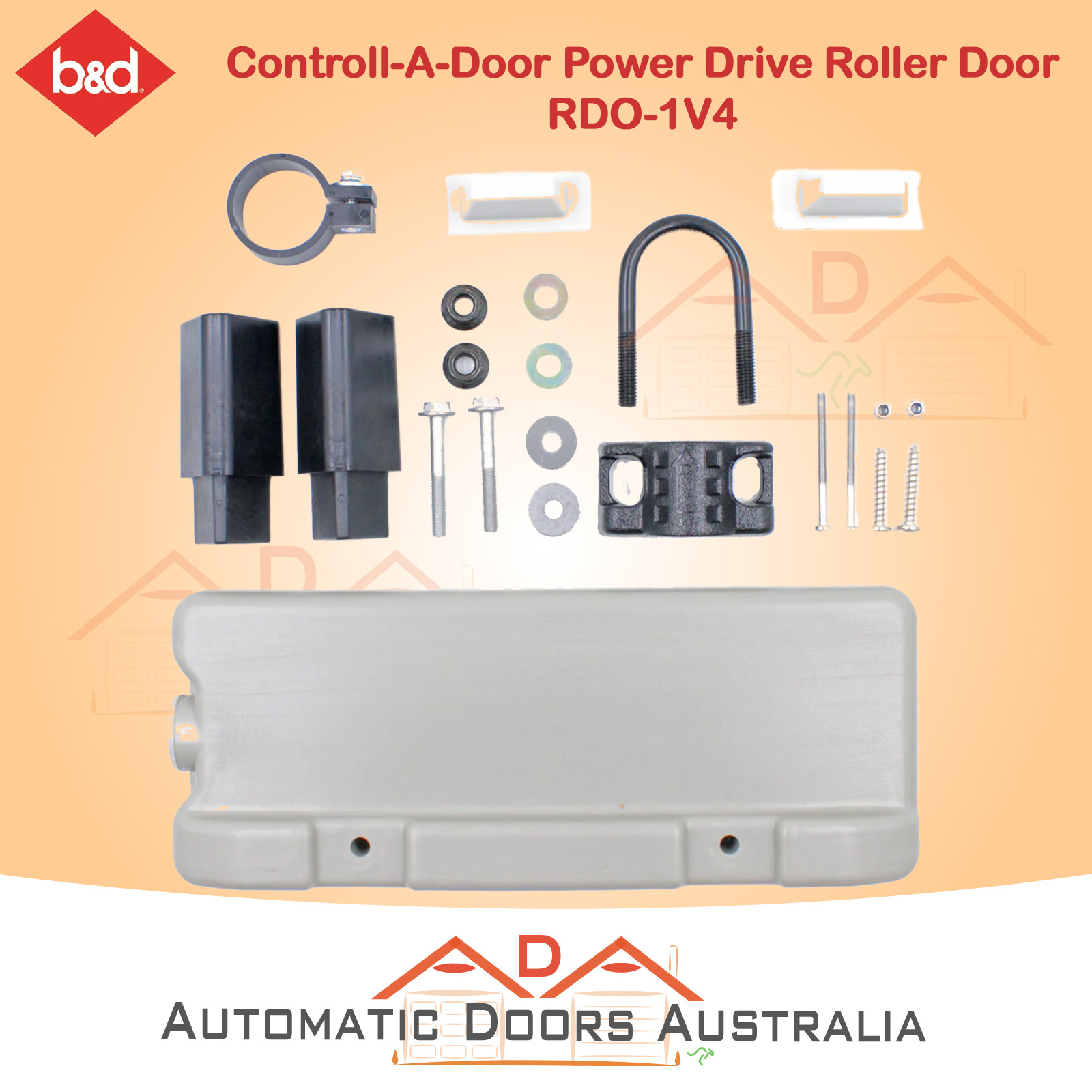

1 x Weight Bar
2 x Locking Bar Covers
1 x Mounting Hardware
1 x Instruction Manual
Power Drive Opener


The Power Drive is B&D’s most popular rolling garage door opener. With a powerful yet quiet motor, long-lasting LED courtesy lights and soft start-and-stop functionality to reduce stress on the door, the Power Drive opener can seamlessly automate most residential roller doors.

Featuring top-of-the-range safety features and with plenty of extra security add-ons available, the Power Drive is a smart choice when it comes to automating your roller door.

  • Powerful yet quiet 600N Motor
  • Long lasting LED automatic courtesy lights
  • Soft start and stop to reduce door stress
  • Includes: 2 x Tri-Tran+ Premium Remote Controls and Wall Mount Remote Control
Technical Specifications


Power supply:  230V - 240V A.C. 50Hz
Maximum door opening  3.25 turns of the drum wheel
Door Height:                           (approx. 3000mm)
Maximum Door Weight:  110kg
Door Area:  16.5m2
Door must be well balanced and
able to be operated by hand, as per
warranty conditions and standard
AS/NZS 4505:2012
Minimum sideroom:  41mm
Lift Force:  600N (60kg)
Nominal force:  150N (15kg)
Receiver type:  Multi-frequency UHF FM
                       (433.47, 433.92 & 434.37 MHz)
Receiver code storage capacity:  64 x Tri-Tran+ 4-button Transmitters
Coding System:  Tri-Tran+ Technology
Coding type:  Non-linear encyrcption algorithm
Number of code combinations:  Over 100 billion random codes
Transmitter battery:  CR2032 (3 Volts)
Courtesy light:  LED (Light Emitting Diodes)
Note: Intermittent operations may occur in areas which experience very strong winds. The strong wind put puts extra pressure on the door and trcks which may in turn intermitterntly trigger the safety obstruction detection system.


Brand B&D
Shipping Weight 9.5000kg
Shipping Width 0.330m
Shipping Height 0.250m
Shipping Length 0.400m
Unit Of Measure ea
