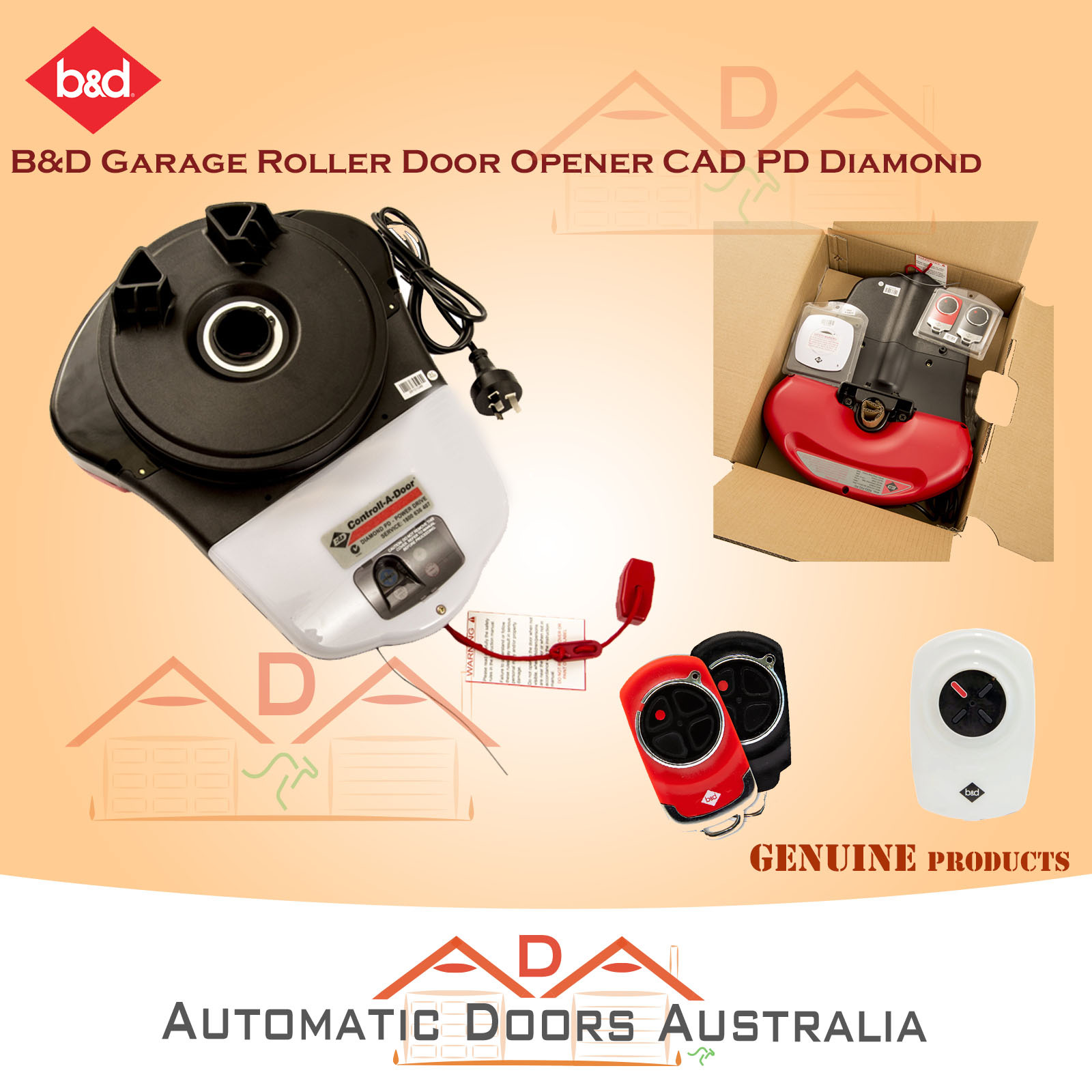

B&D Garage Roller Door Opener CAD PD Diamond




The BnD Roller Door Opener Includes

1x BnD “Power Drive” CAD PD Roller Door Opener

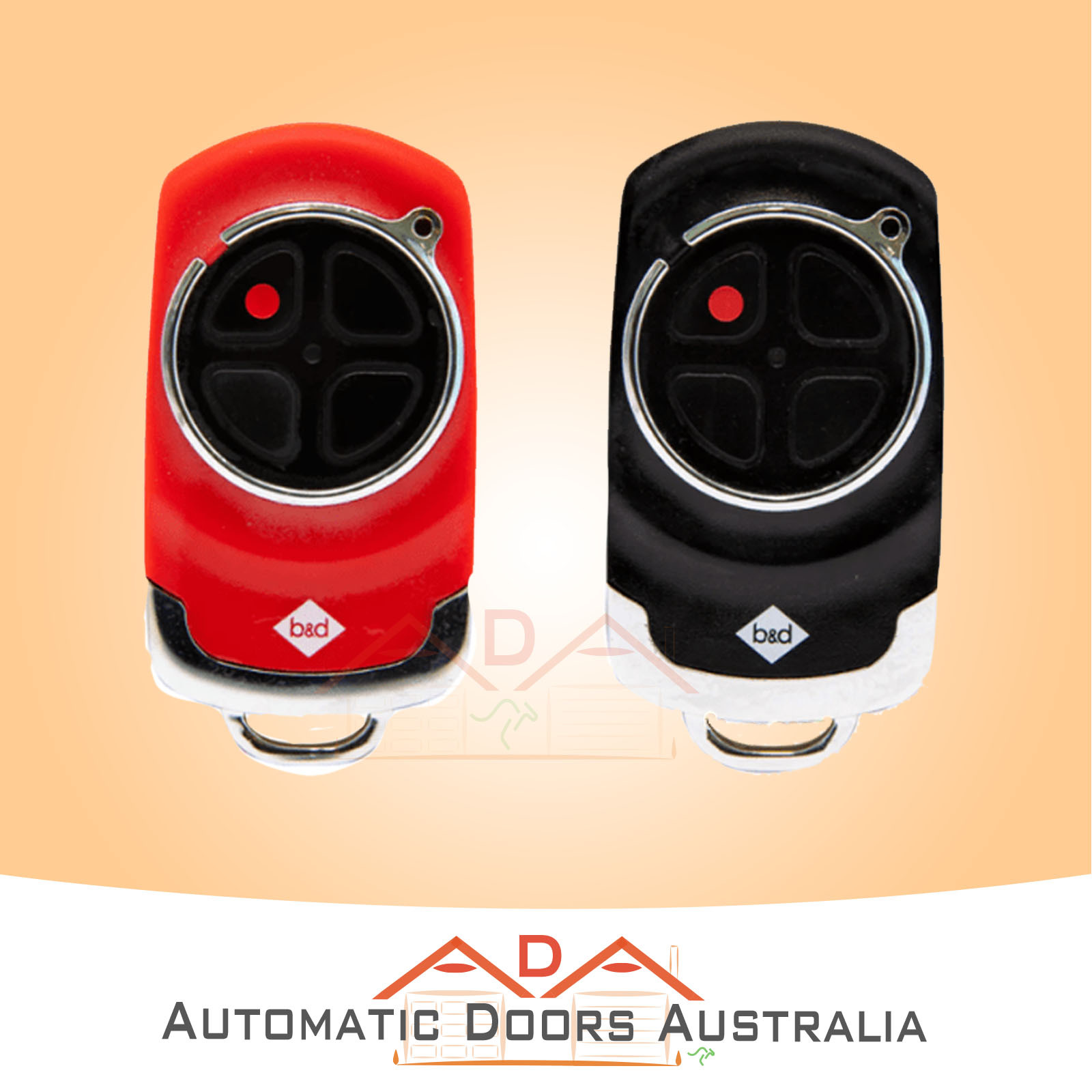

2x BnD TB-7 Remote Controls

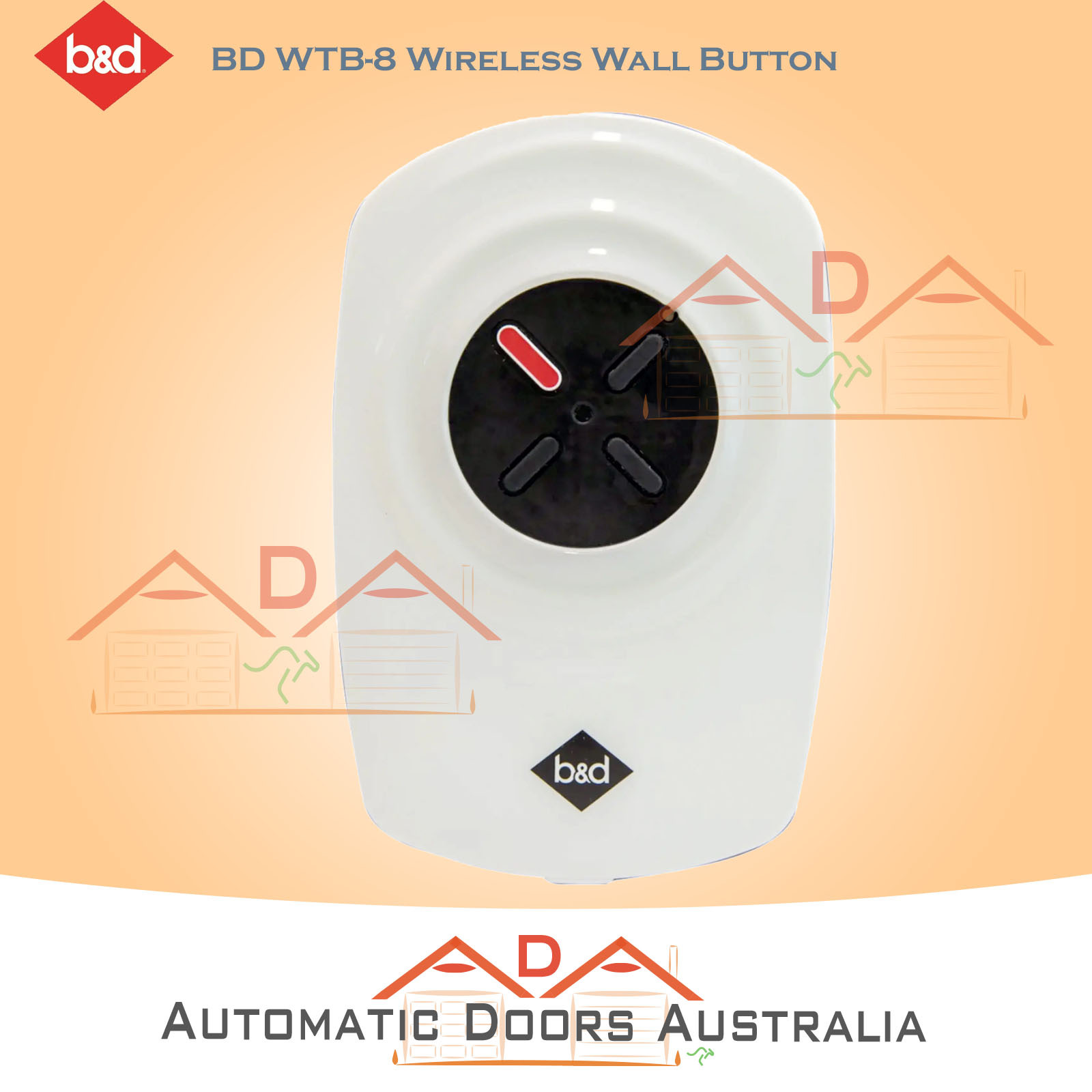

1x WTB8 Wireless Wall Button


7 Year / 20,000 Cycles


Rated Door Area 16.5m² (5.5m W x 3m H)
Suitable Doors Single, Double Rollers
Min Side Room 45mm
Model Number CADPD
Peak Power 600N
Standby Power 2.2W
Opening Speed 130mm/sec
MHz Frequency FM 433.92
Memory Register 64
Lighting 6x UltraBright LED’s
Warranty 7 Year / 20,000 Cycles


BnD Roller Door Opener

The Control-A-Door series have been a staple of automation in Australian homes since the late 80’s. With a history dating back to 1946, B and D Roller Door Openers have been a part of Australia’s iconic history of the garage roller door and innovators within garage door automation. The Control-A-Door PowerDrive is now on it’s 4th iteration of their most popular garage door opener, coming with enough power to effortlessly operate the majority of residential roller doors. Whilst B&D Garage Doors recommend the CAD PD to be paired with their own brand of B&D Roller Doors, the CADPD is able to power any brand of Australian Roller Door, including Taurean, Gliderol, Steel Line, Creeks Roller Doors and more.

The Control-A-Door Power Drive also has a wide range of optional features, including a Battery Backup for when the power is out, PE Safety Beams to help prevent damage to your property and loved ones, as well as a Smartphone Kit for operating your door via a mobile phone or Smartphone Assistant.

B&D Australia provide a QR code or web link on the top of their shipping box, which will link you through to your installation guide.
If you prefer a visual guide, B&D have also released a YouTube video showing how you can install your garage door opener.


Brand B&D
Shipping Weight 7.0000kg
Shipping Width 0.260m
Shipping Height 0.180m
Shipping Length 0.440m
Shipping Cubic 0.020592000m3
