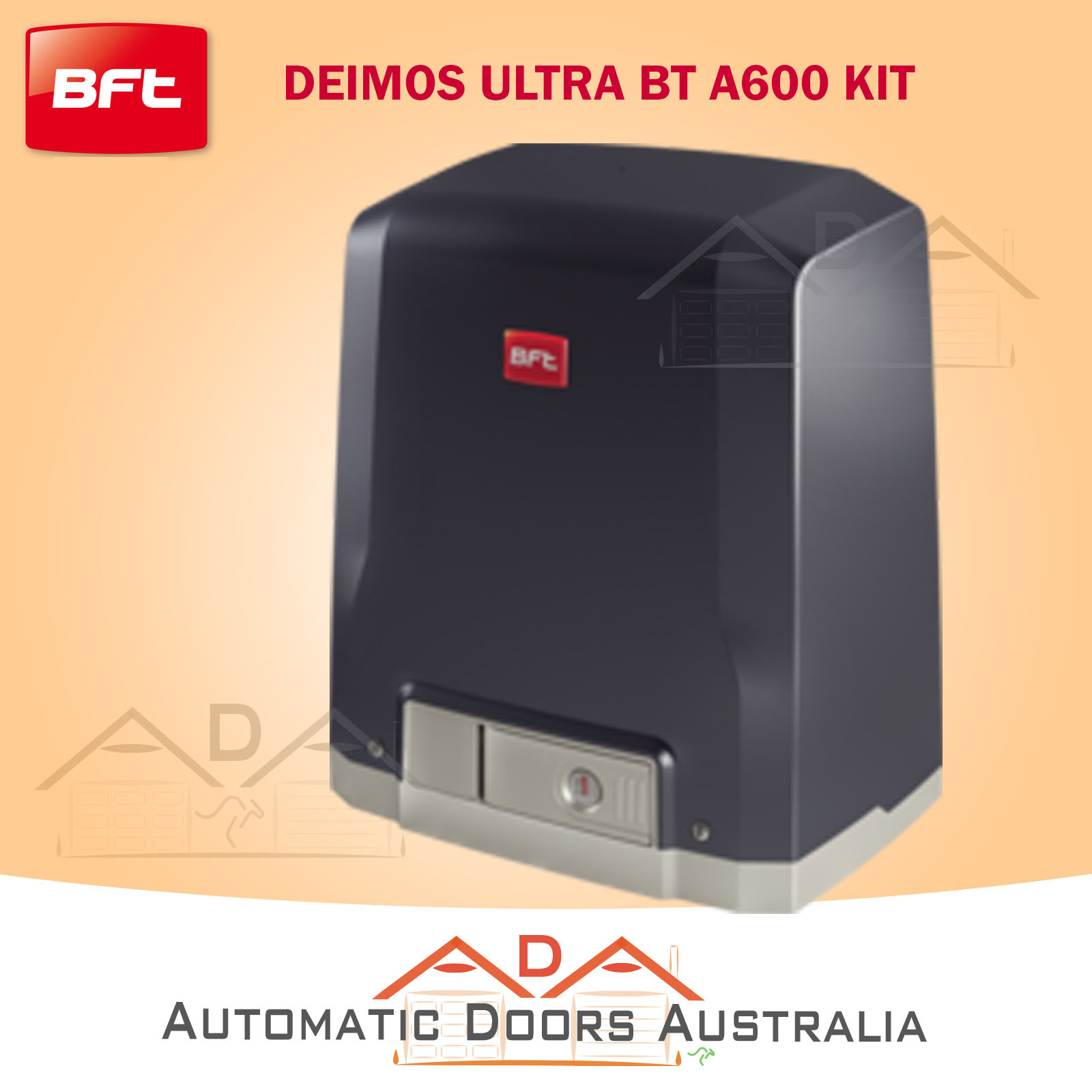

BFT_DEIMOS ULTRA BT A600 KIT /

Complete kit 24 V for sliding gates weighing up to 600 kg. Leaf speed 12 m/min.

Free Standard Delivery Australia-wide only

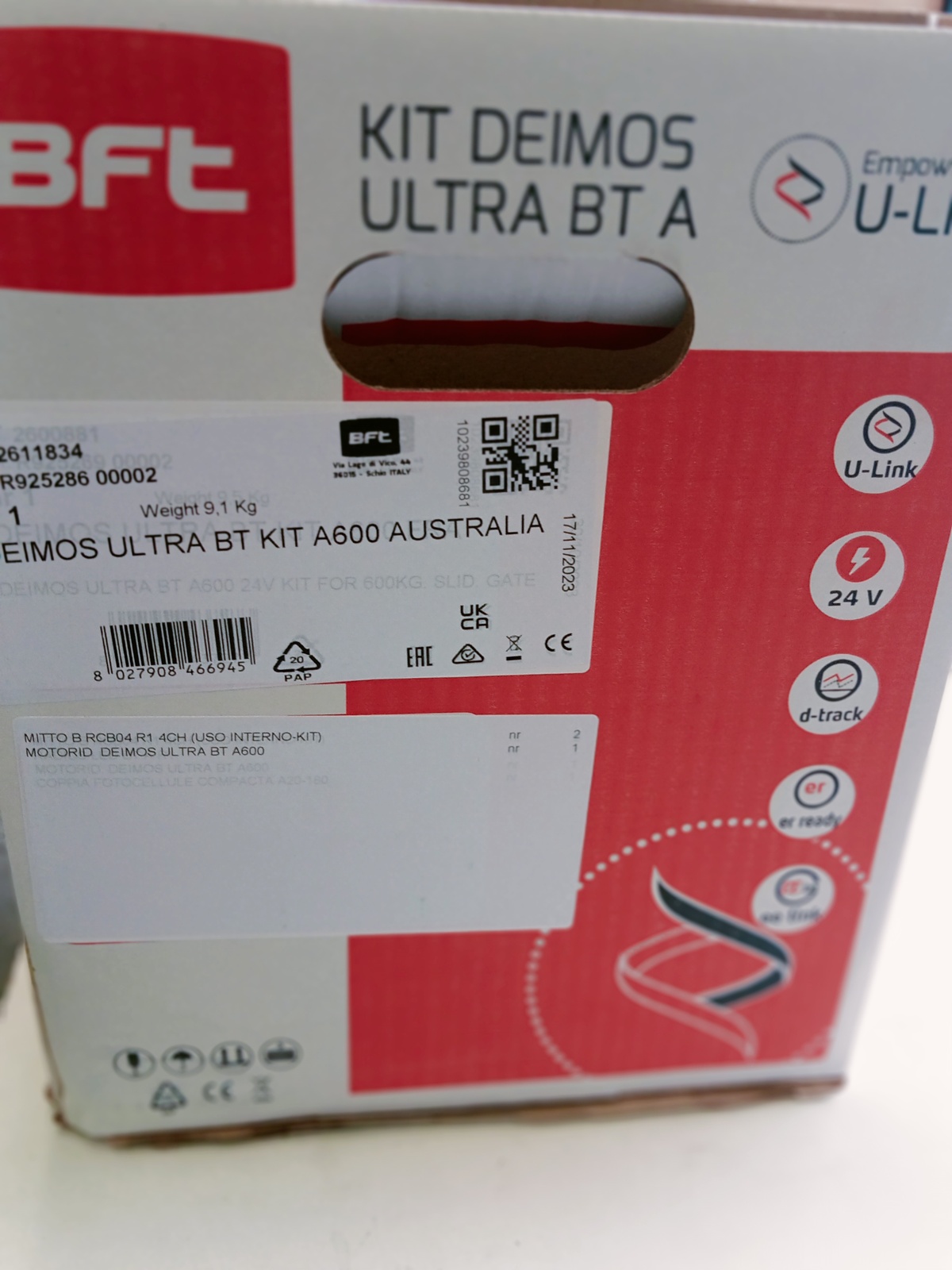

Incudes

  • Deimos Ultra 600 x 1
  • BFT Mitto Remote x 3
  • Manual

Warranty -  01 year manufacturer's warranty (This warranty covers failure due to manufacturer's fault)

Note -

Gate Tracks/ Guides should be ordered separately through below link or  all universal tracks from local hardware are compatible with this unit

https://www.ada-aust.com/nylon-coated-steel-rack-for-sliding-gate-automatio

Descripion

BFT Motor Deimos Ultra 600 Kit 240V is a comprehensive motor kit designed for sliding gates that operate on a 240V power supply. This kit features the BFT Deimos Ultra 600 model, known for its powerful performance and durability. It is suitable for large sliding gates and provides smooth and reliable operation. The kit includes all the necessary components, such as the motor, control panel, receiver, and safety features, to ensure a complete and secure automated gate system. With the GMSG602 BFT Motor Deimos Ultra 600 Kit 240V, you can enjoy convenient and efficient gate automation for your property.



Main features

Magnetic limit switches: this type of limit switch ensures safe and precise installations in any ambient condition

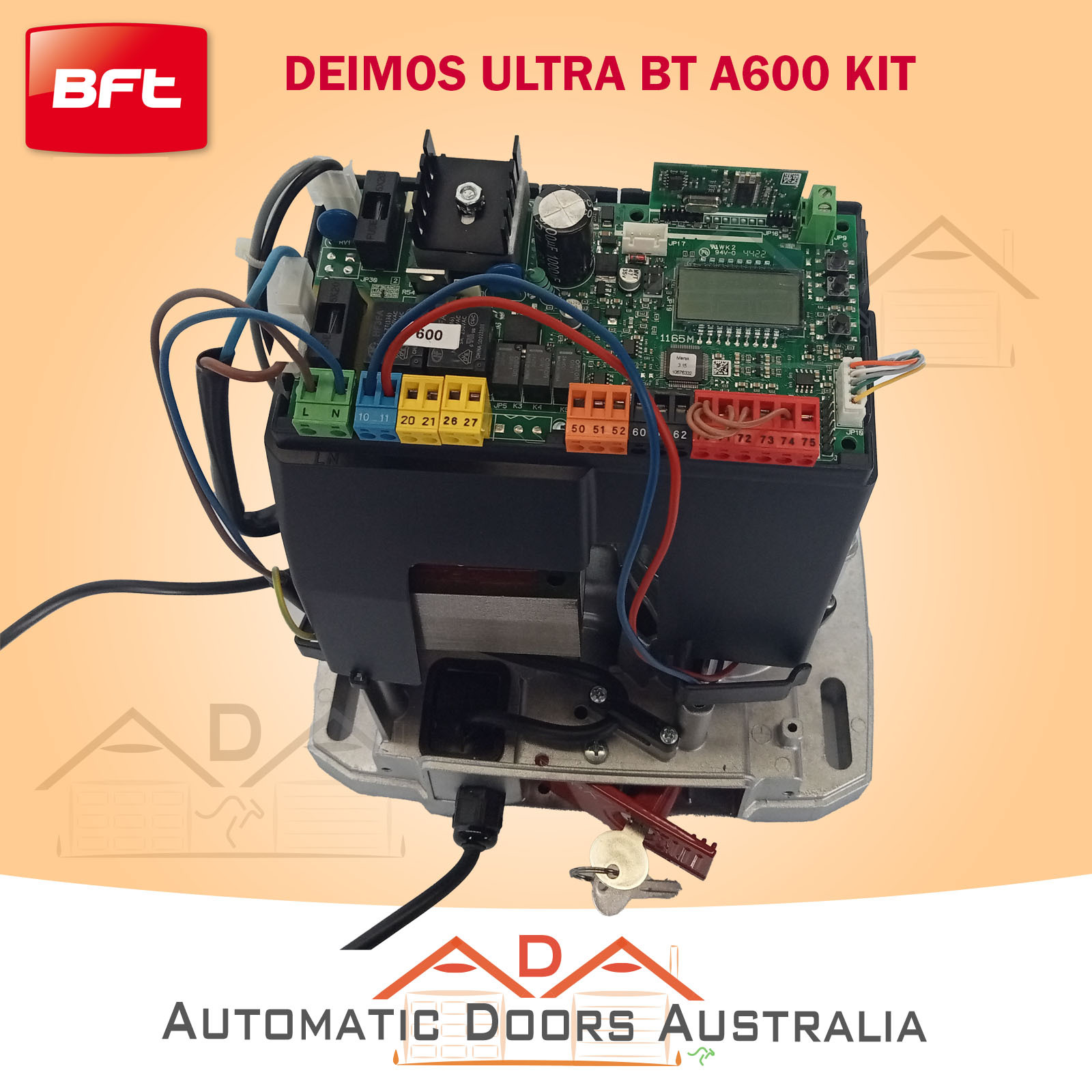

Control unit with programming display: the Merak control unit with programming display with pre-programmed scenarios helps the installer in the programming phase; the control unit is arranged in an oblique way, to facilitate reading and making the s...

[ Read everything ]

Front screws: this arrangement of the casing screws offers ease and convenience during installation and maintenance, even when there is limited space.

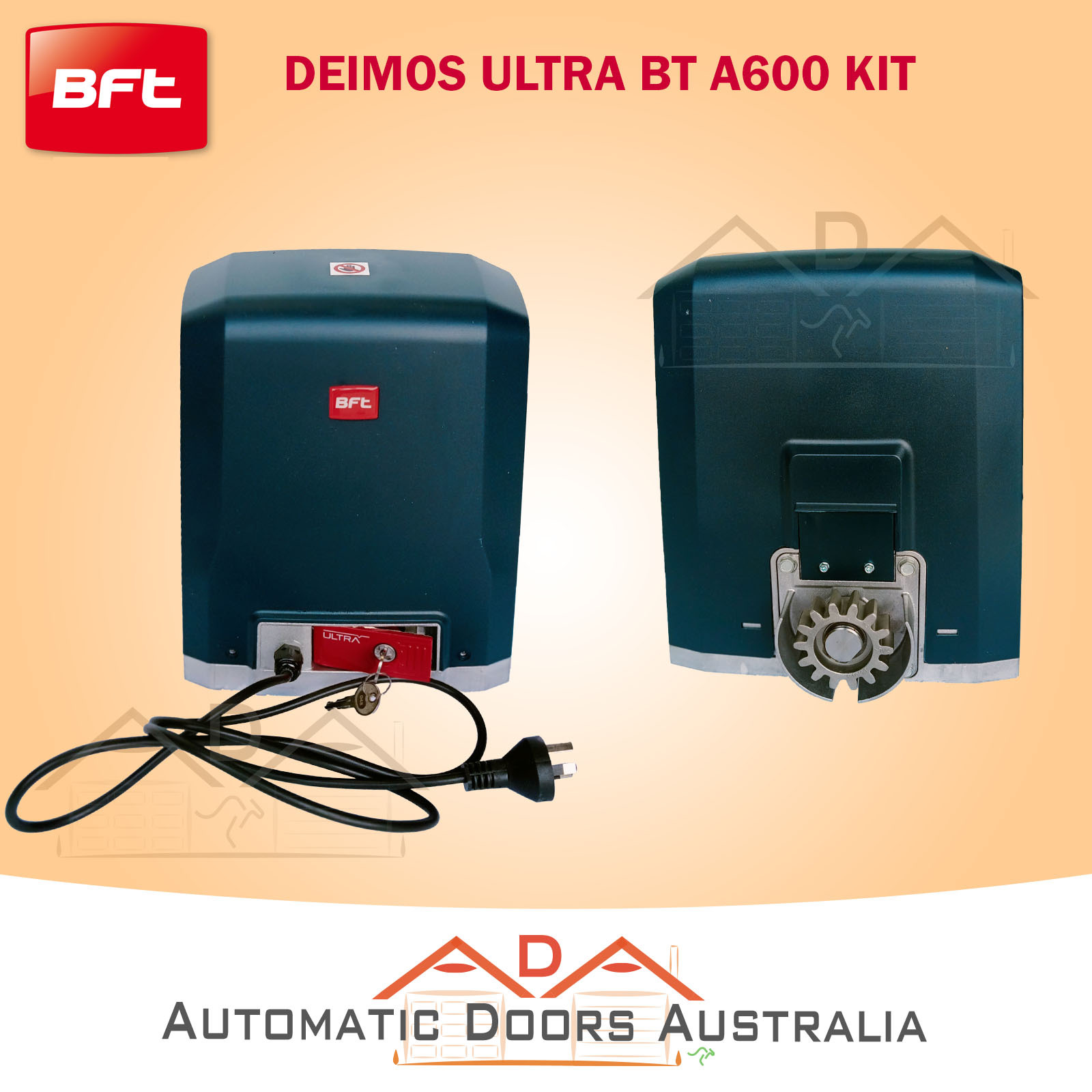

Release lever with personalised key: the release lever simplifies motor release and the personalized key ensures its uniqueness, for better safety

Technologies

Technologies

Dynamic Path Tracking

The thrust required to operate safely. A smart torque management system based on the microprocessor technology of BFT control units. Acquiring data from several indicators, it updates the level of thrust required to perform the operation. D-Track also facilitates the installer in providing for the certifications required by law. Conventional control units do not "read" the exact position of the gate and consequently apply constant thrust levels, without ensuring stable sensitivity during the opening and closing operations. BFT control devices record the slightest variation in the gate or door force, for example due to differences in temperature or wear, constantly supplying the optimum torque to the motor. A conventional control unit could not detect these thrust variations, which would result in it indicating the presence of non-existent obstacles. The BFT system thus guarantees the maximum safety and perfect functioning of the equipment, no matter what the climactic and temperature conditions and degree of mechanical wear.

Technical data sheets

technical design
Control unit MERAK SL2
Board power supply 230 V
Supply voltage 24 V
Power consumption 70 W
Max. door/gate weight 600 kg
Gate panel speed 12 m/min
Type of limit switch Magnetic
Pinion module 4
Slowdown Yes
Locking Mechanical
Release Lever-operated with personal key
Impact reaction D-Track
Frequency of use intensive
Protection rating IP44
Environmental conditions -20 ÷ 55 °C
Interconnectivity no

(BFT_ULT_600)

SKU BFT_ULT_600
Shipping Weight 8.0000kg
Shipping Width 0.250m
Shipping Height 0.250m
Shipping Length 0.250m
Shipping Cubic 0.015625000m3
