Free Standard Delivery Australia-wide only


Warranty -  02 year manufacturer's warranty

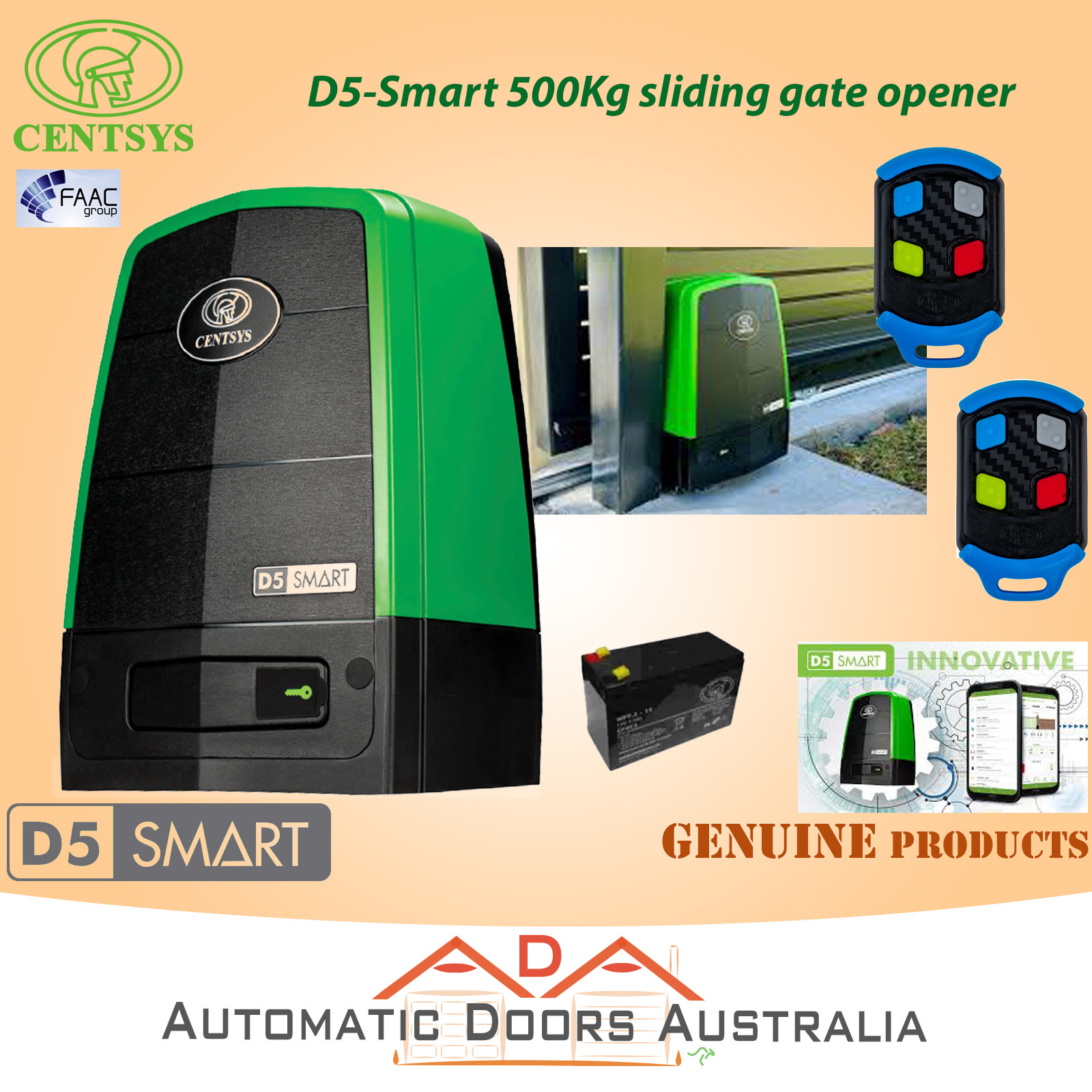

With Centsys brand new D5 SMART sliding gate motor, they ve engineered all the effort out of operating your gate, bringing you pushbutton convenience through industry-leading intelligence. With an incredible top speed of 600mm/sec, the D5 SMART is the fastest in its class, so there’s never any time wasted waiting for your gate to open and close when you have this high-octane performer installed.

With longer battery backup, the D5 SMART gate motor gives you the certainty and peace of mind that you can always count on with uninterrupted security and convenience.

The D5 SMART gate motor also features the most innovative theft protection and vandal proofing on the market, thanks to a factory-made patented theft-deterrent cage and an integral vibration sensor that has the ability to notify you if the motor is being tampered with or someone is trying to break in. This is peace of mind at your entrance like you’ve never experienced it.

Designed for speed and performance, crafted for excellence, ruggedly robust and endlessly innovative, our new sliding gate motor is smart sophistication at the cutting edge.

Upgrade to the D5 SMART. It’s the intelligent choice.

Our brand essence is “making your life easier” and, with the D5 SMART, we believe that we have created a product that is the very embodiment of this.

Taking what we’ve learned through more than 30 years of being the market leader in access automation, we are bringing you a solution that gives you everything from intelligent reporting to easy mobile-based setup and operation.

With unsurpassed convenience and control at your fingertips, you’ll love using the D5 SMART.

Main features



  • The perfect balance between security, safety and convenience with a top speed of up to 35 metres per minute (583mm per second)

Diagnostics and logging

  • Makes your life easier with advanced diagnostic feedback
  • Intelligent logging and reporting

Wireless user interface

  • Wireless and effortless – easy setup and configuration from your smartphone

SMART hardware

  • Provides the best experience for installers and end-users alike with easy access to mounting hardware and optimised cable management for the neatest installation around

All the most innovative technological features

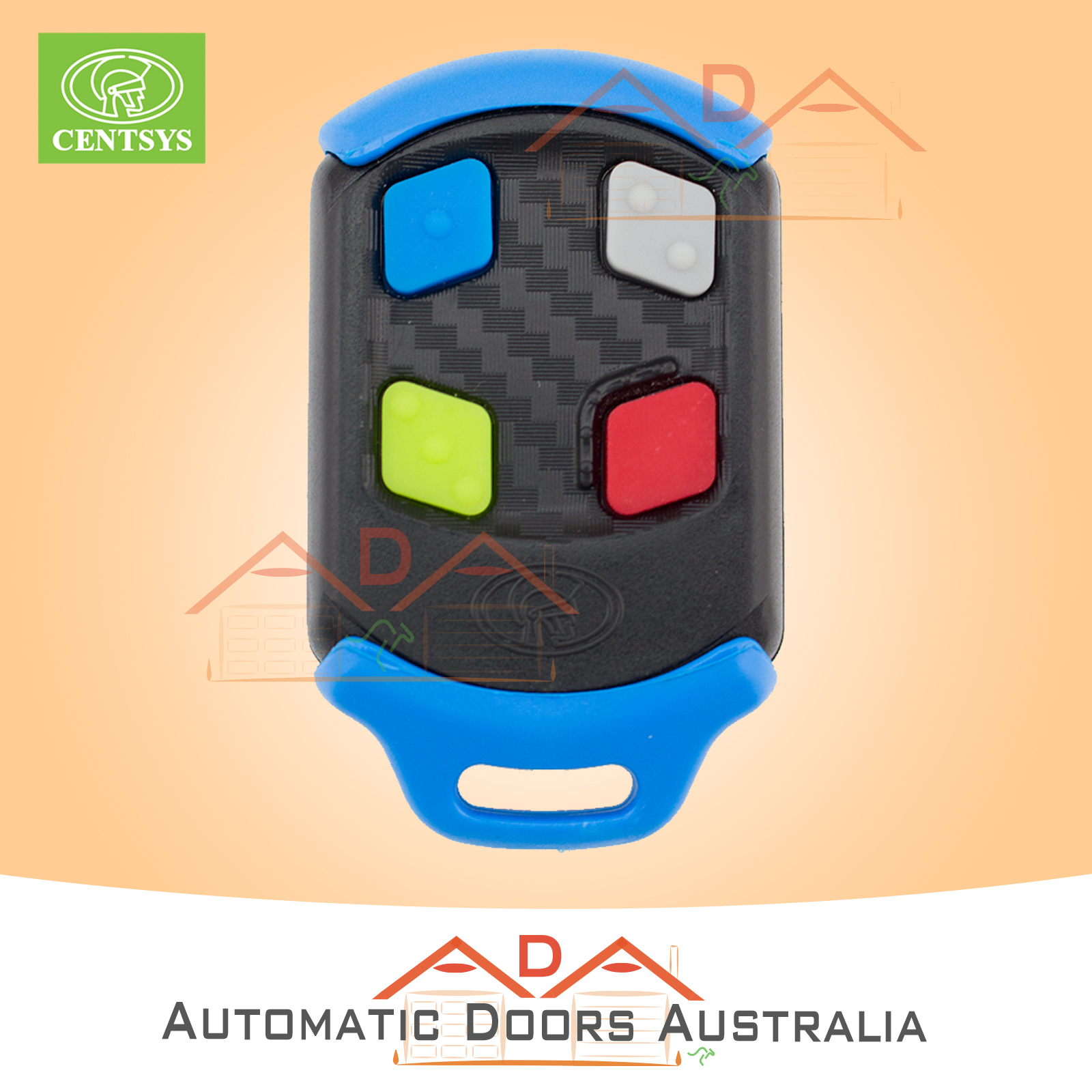

  • Onboard multichannel NOVA receiver with 1500 button memory
  • Wireless and effortless – easy setup and configuration from your smartphone
  • 24V system capable of performing more operations and offering extended battery backup and power failure autonomy
  • New and improved theft-resistant cage with a patented design offering outstanding security and peace of mind
  • Vibration sensor that can be connected to a third-party device to notify you in the event that the gate motor is being tampered with
  • Intelligent battery charger with onboard diagnostics and SMART communication between the charger and the controller
  • Improved position control system incorporating hall effect technology – highly resistant to interference
  • Individually-configurable inputs and outputs
  • Convenient and intuitive single-action manual release
Technical Data D5-SMART
Input voltage 1 90V - 240V AC +/-10% @ 50Hz
Current consumption (Mains) 200mA
Battery charger current output 1.3A
Maximum number of operations per day 150
Duty cycle - Mains present 2, 3 50%
Motor voltage 24V DC
Motor power supply 5 Battery-driven (Standard Capacity - 2x12V)
Current consumption (motor at rated load) 13A
Input / Output sink currents (Max accessory current draw)
I/O 1-4 100mA (12/24V)
I/O 5 and 6 3A (12/24V) 10sec Pulse
Motor push force - starting 30kgf
Motor push force - rated 17kgf
Gate mass - maximum 500kg
Gate length - maximum 100m
Gate speed (varies with load)4 35m/min (583mm per second) @ 17kgf
Manual Override Lockable with key release
Operations in standby with 2 x 7Ah (28W) battery
Half day 5, 6 125
Full day5, 6 120
Collision Sensing Electronic
Operating temperature range -15°C to +50°C
On-board receiver type Code-hopping multichannel receiver with selective add and delete
Receiver code storage capacity7 1500 Remotes
Receiver frequency 433.92MHz
Degree of protection IP55
Mass of unit packed (with standard kit, but excl. rack and battery) 9.1kg
Packaging dimensions (with standard kit, but excl. rack and battery) 325mm wide x 244mm deep x 445mm high

1. Can operate off a solar supply, consult your local dealer for assistance
2. Based on 25°C ambient temperature and unit not in direct sunlight
3. Based on a motor push force of less than 50% of rated (Starting and Running forces)
4. Gate opening and closing speeds can be configured to run slower depending on the requirements of individual installations
5. Can increase battery capacity for longer standby times
6. Based on 4m gate, excluding all accessories
7. Multiple buttons per remote can be used


Brand CENTSYS Centurion Nova 2
Shipping Weight 9.0000kg
Shipping Width 0.440m
Shipping Height 0.240m
Shipping Length 0.320m
Shipping Cubic 0.033792000m3
