Dave _ Commercial Door Operator // Single Phase 120-240V///

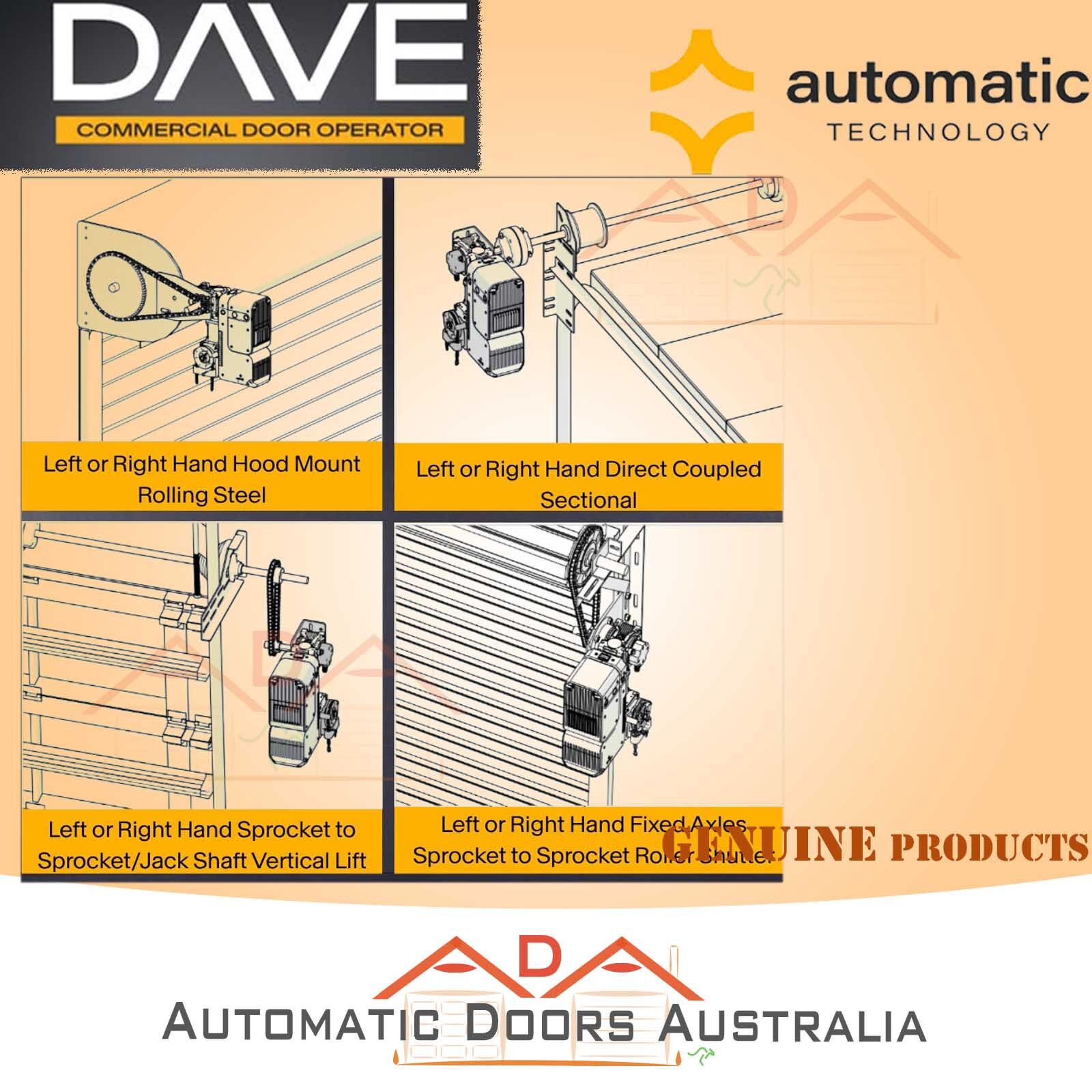

DAVE for commercial shutters and side-mouting opener

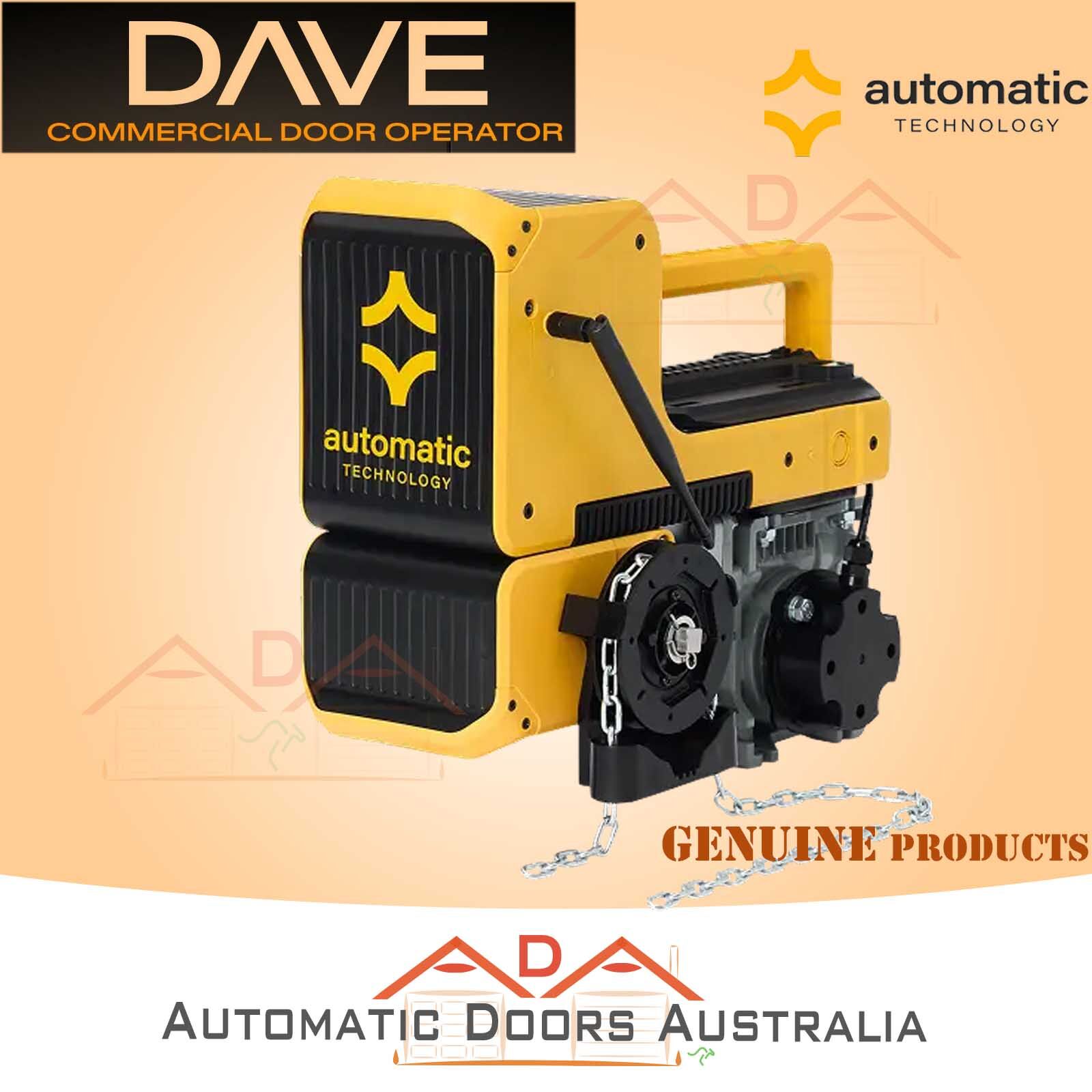

Dave® Commercial Door Operator by ( Automatic Technology Pty Ltd)
Free Shipping Australia Wide...
Includes:

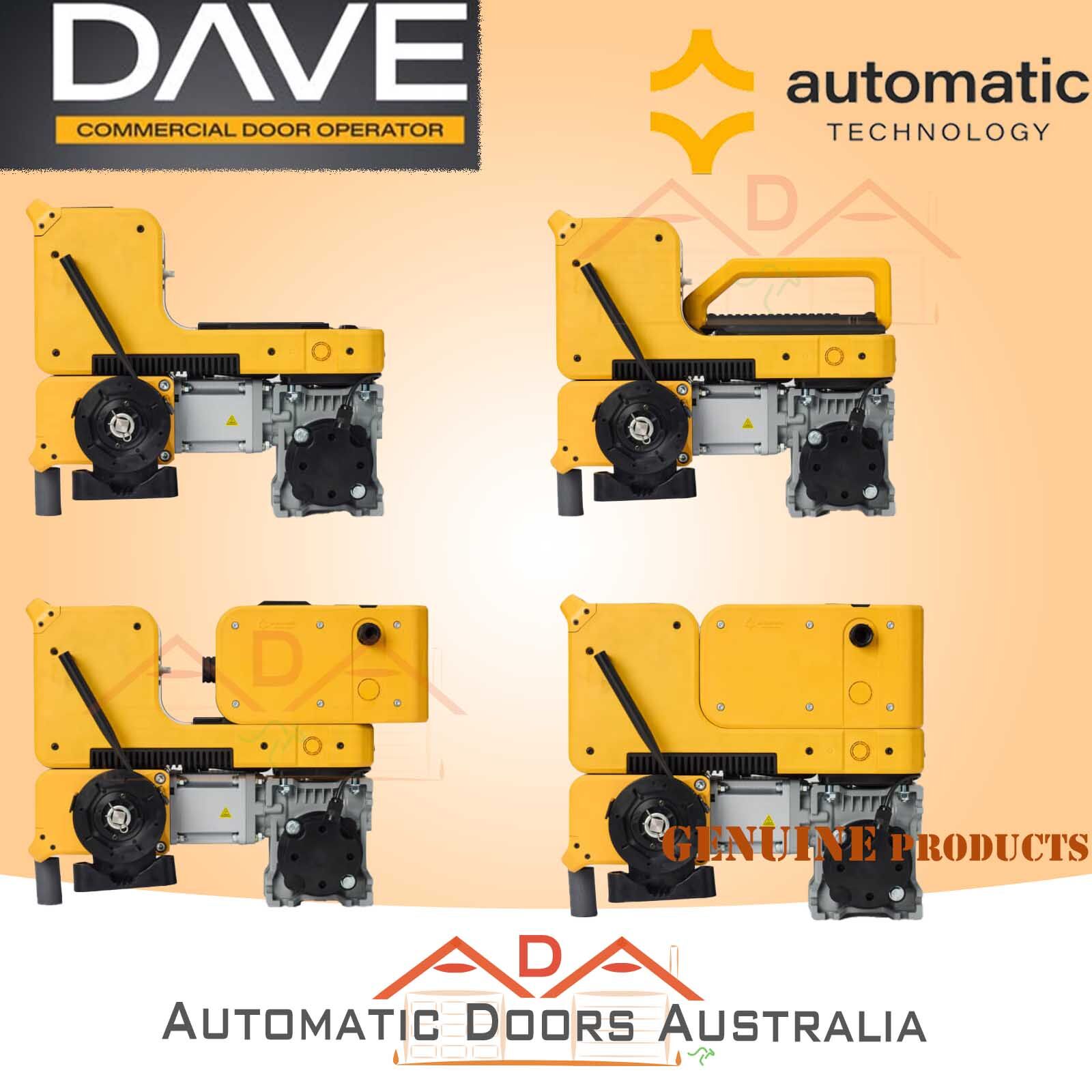

- Dave drive unit
- Removable 120-240V Single Phase Power Cartridge

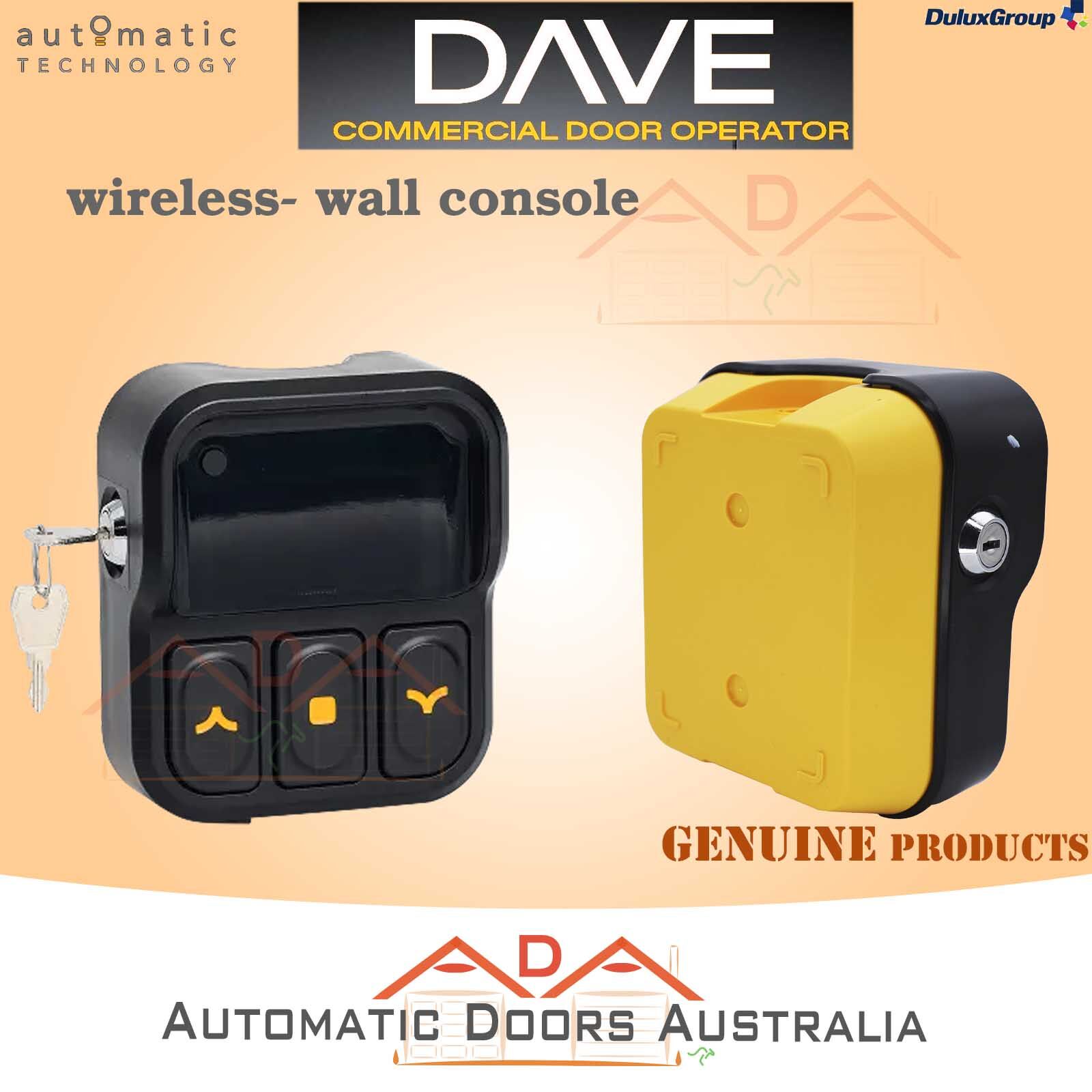

- Wireless wall console
- 10B drive chain, joiner & gauge of chain
- Shaft, key & circlip
- 10B 12-tooth drive sprocket
- Hauling chain
- Adaptor flange
- Mounting spacer
- Mounting hardware
- Brochure
Warranty:
Dave comes with a 5 year warranty, giving you total peace of mind. Terms and conditions apply. Find out more here
Description:
Dave is a first for commercial door operators. With uncompromised lifting ability and a world-first Omnivolt® swappable power cartridge (patent pending), Dave’s your answer for almost any commercial application.
Dave features a wireless-first wall console, PE Beams and supports single- and three-phase power from 120-480V around the world.
Instant torque on demand means Dave can handle virtually any door or conditions. And unlike others, Dave never stops learning. Dave’s built-in machine learning technology is constantly profiling your garage door and adjusting things to keep your doors opening smoothly and seamlessly, all day, every day.
Technical Specifications:
| DAVE-Drive Unit | ||
| Part # | 101510 | |
| Motor type | PMSM | |
| Reducer ratio | 50 to 1 | |
| Rated output torque | 32Nm (23.5ft.lb) | |
| Maximum door weight | Up to 1000kg balanced | |
| Maximum rated load (N) | 450N | |
| Operating temperature | -20°C to 65°C | |
| Environment | Indoor use only | |
| Output drive shaft diameter | 25.4mm | |
| Output drive shaft length | 95mm | |
| Standard operator sprocket | 12 teeth 10B | |
| Optional sprocket | 10 teeth 12B | |
| Overall unit side room | 290mm | |
| Drive unit weight (with shaft and sprocket) | 11.4kg | |
| Reducer output speed (at 3000RPM motor speed) | 60RPM | |
| Maximum duty cycle | 60% | |
| On board receiver memory capacity | 64 | |
| IP Rating | IP42 | |
| Wireless Wall Console4 | ||
| Control button range | 20 metres* | |
| Configuration / set up range via Bluetooth | 15 metres† | |
| Menu display LCD | 4 lines x 20 characters | |
| LCD back-lighting | Yes | |
| Power options | 2 x D size (1.5V) (5 year battery life)* | |
| Power options | 5VDC power adaptor | |
| Power options | Direct wiring to the operator | |
| OmniVolt® Power Cartridge | ||
|
Part #
|
101640
|
103070
|
| Description | OmniVolt® LV2 Power Cartridge | OmniVolt® HVN4 Power Cartridge |
| Connection type | Single-Phase (Pre-corded) | Three-Phase (Requires direct hard wiring with Neutral) |
| Input power | 1000W | 1000W |
| Input voltage | 230-240Vac 50/60Hz | 400-480Vac 50/60Hz |
| Power cartridge weight (with power cord) | 1.6kg | 1.6kg |
| Max current consumption | 5A @ 240V | 5A @ 240V |
| Operating temperatures | -20°C to 65°C | -20°C to 65°C |
(ATA_DAVE)
| SKU | ATA_DAVE |
| Brand | ATA Automatic Technology Australia |
| Shipping Weight | 20.0000kg |
| Shipping Width | 0.440m |
| Shipping Height | 0.260m |
| Shipping Length | 0.520m |
| Shipping Cubic | 0.059488000m3 |
