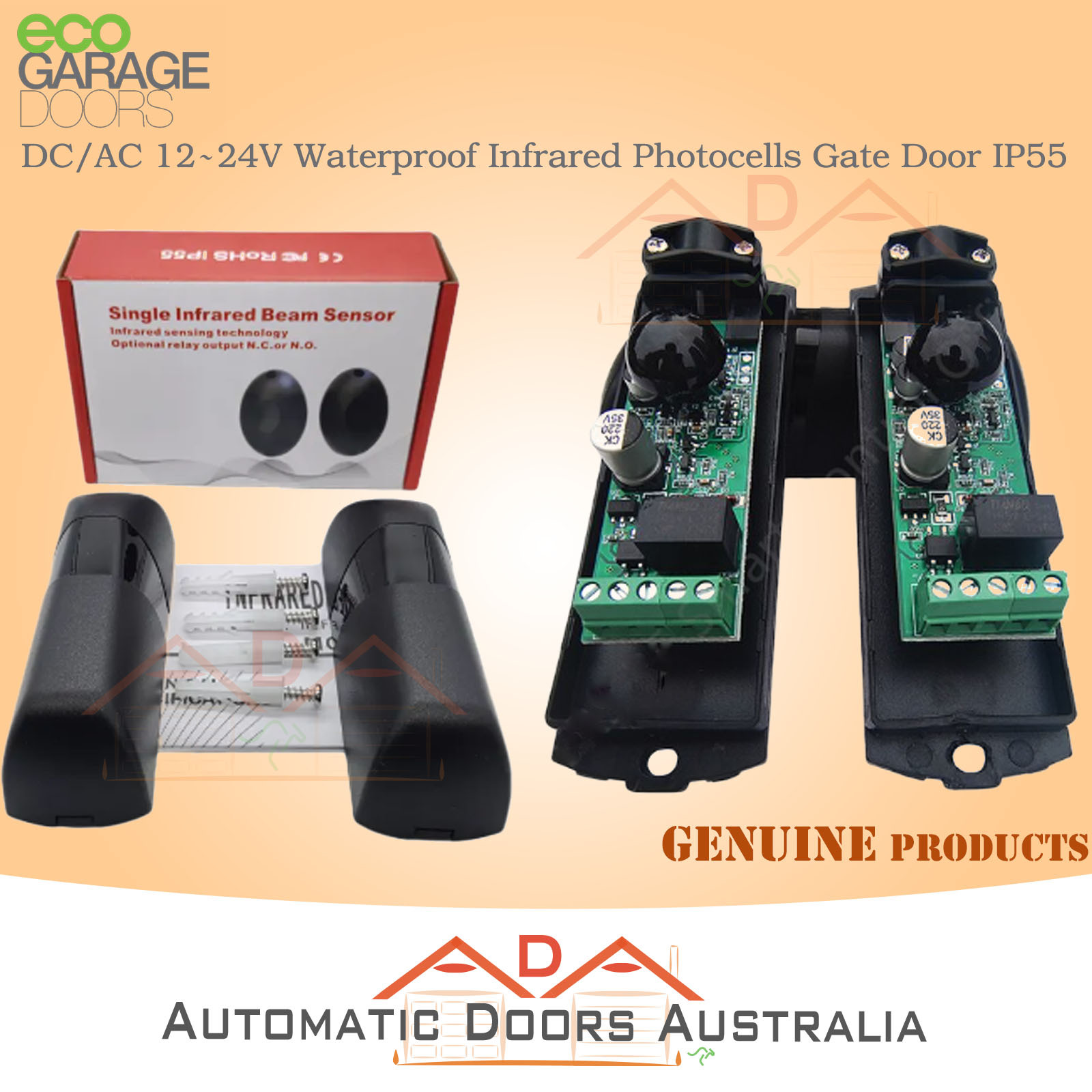

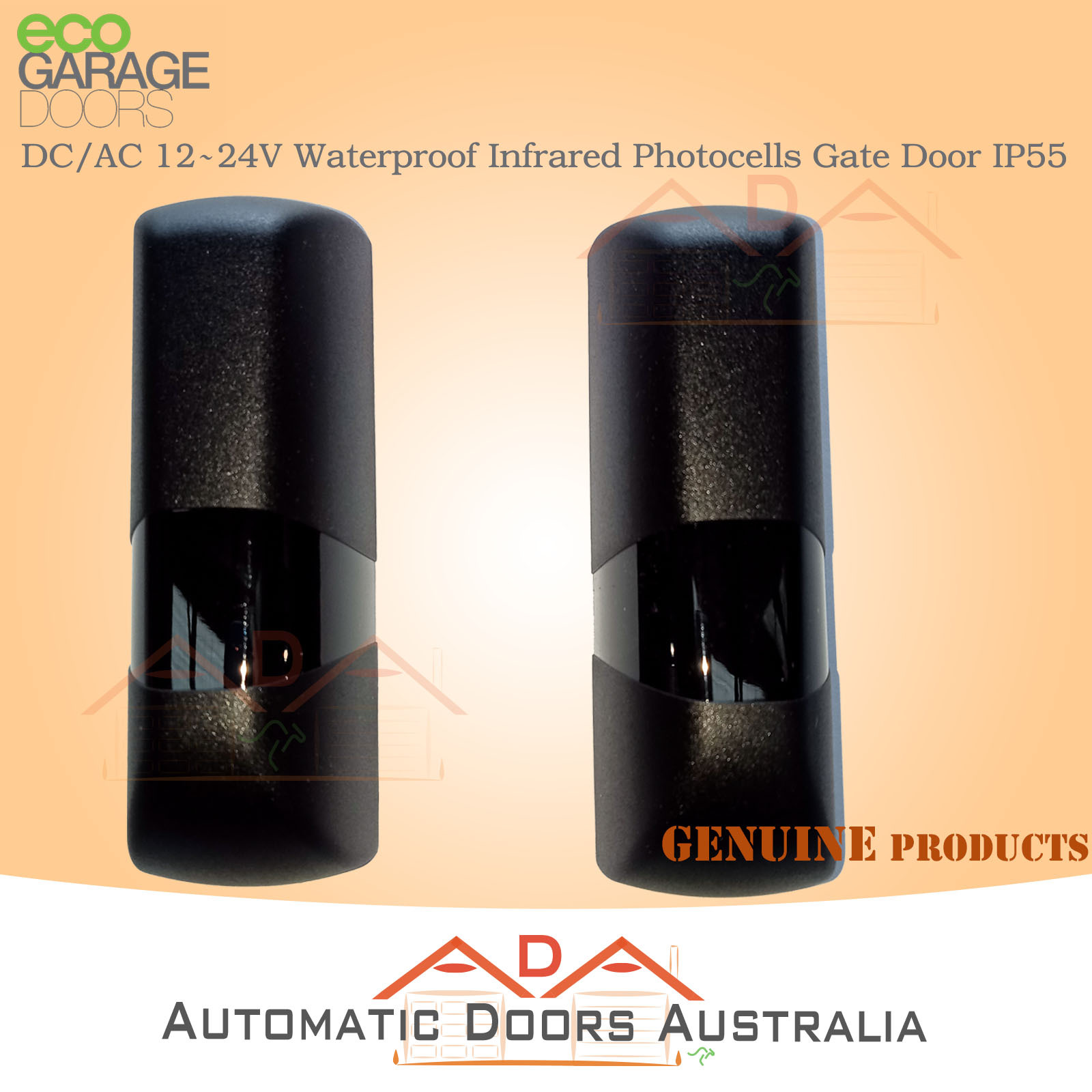

ECO_DC/AC 12~24V Waterproof Infrared Photocells Gate Door IR sensor-IP55- 609

Free Standard Delivery Australia-wide only


Warranty -  01 year manufacturer's warranty


10m to 15m Automated Gate Safe Infrared Detector Sensor/ Swing /Sliding/Garage Gate / Door Safety Infrared Photocells


Photocell sensor for automatic door and gate
1.Indoor 15m, Outdoor 10m
2.12-24 VDC/AC



Infrared Frequancy : 1.92khz

Power supply : 12 to 24 VDC /AC

Wave length :940nm

Input : r*15ma - t*30ma

operating temperature : -20 degrees to 180degrees

Relay output : 1 a max *36 v

Range : range can be reduced to 30% in bad weather conditions : for rain ,dust ,etc


Single beam photocell sensor/single beam detector is used for automatic slide door, coil door , garage door windows etc.

Consists of a transmitter and a receiver, and the integrated amplifier can produce infrared beam.

Narrow infrared beam (I or II) can avoid interruption by external light.

Even installed at low height(20-40cm from the floor), the detecting distance can also be guaranteed(5-15meters).

The beam produced by MICROCELL provides a self-detecting function for the sliding doors. Once the self-detecting beam is interrupted, the door will stop closing and reverse rapidly to the utmost width. The door will open until the detecting beam is resumed. When the door completely closes, the detecting beam becomes invalid.



Shipping Weight 0.1080kg
Shipping Width 0.080m
Shipping Height 0.040m
Shipping Length 0.125m
Shipping Cubic 0.000400000m3
