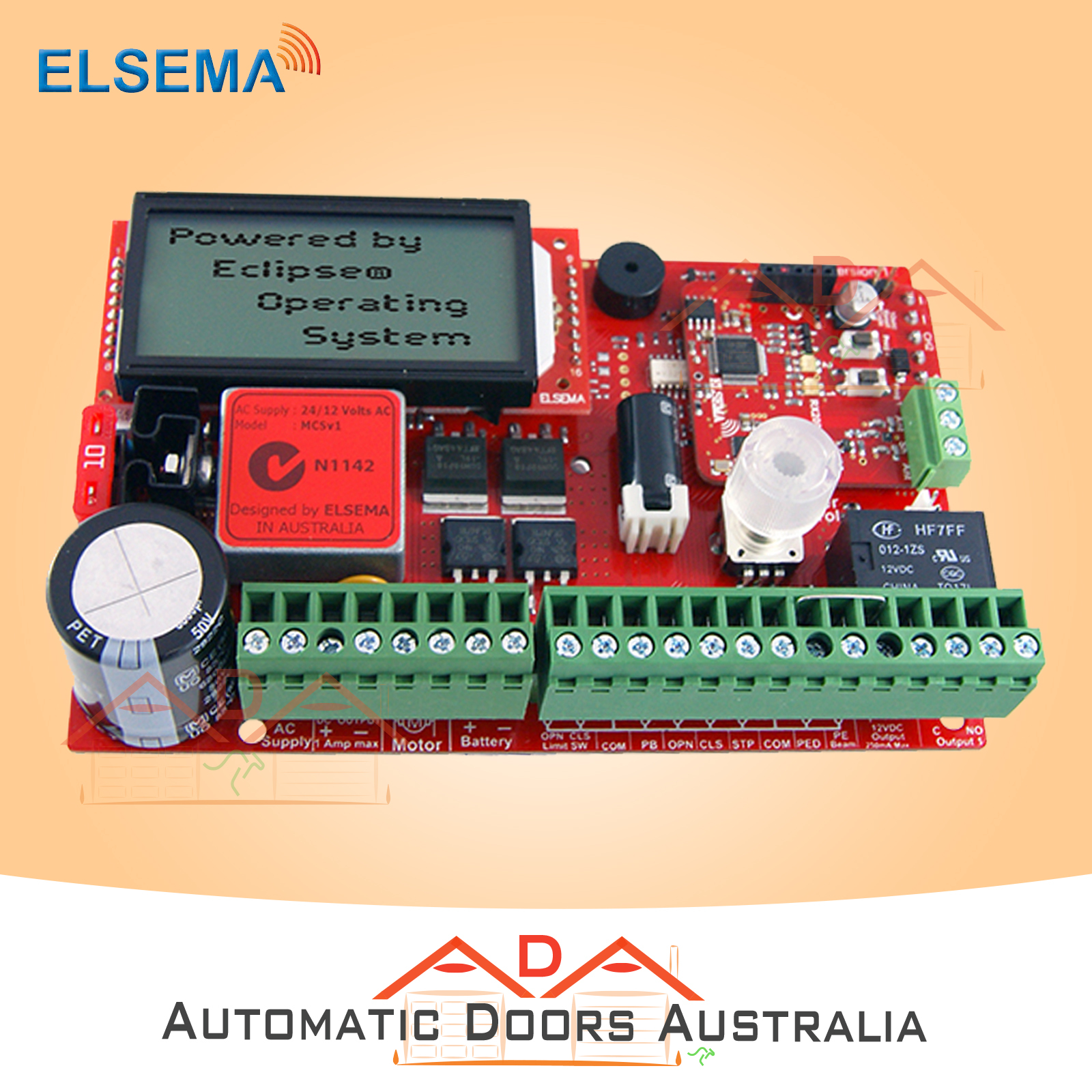

Elsema Motor Control Card Universal Controller for Automatic single and Double Sliding and Swing Gates ( MC24E2 )

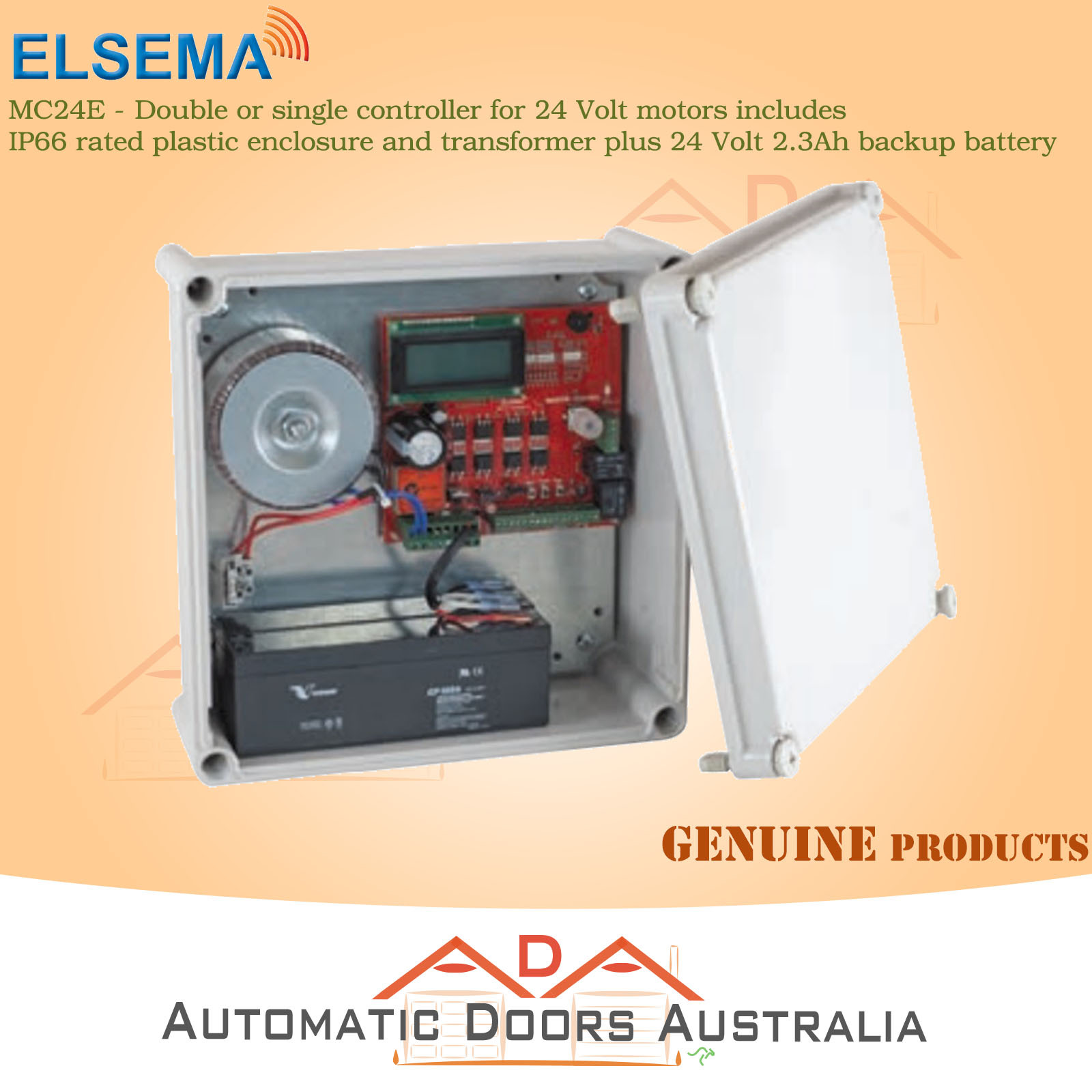

Double or single controller for 24 Volt motors includes  IP66 rated plastic enclosure and transformer plus 24 Volt 2.3Ah backup battery

Listing Include

• 1 x ELSEMA-MC24E2 , Eclipse Gate Controller, IP66 enclosure, 12V DC/24V DC,

https://www.ada-aust.com/assets/files/mc-manual.pdf

Features

• Suitable for swing and sliding gates
• Double or single motor operation
• 24 Volt DC motor operation
• Motor soft start and soft stop
• Speed and force adjustment
• Large 4-line LCD to indicate controllers status and setup instructions
• 1-Touch control for easy setup
• Auto profiling using latest intelligent technology

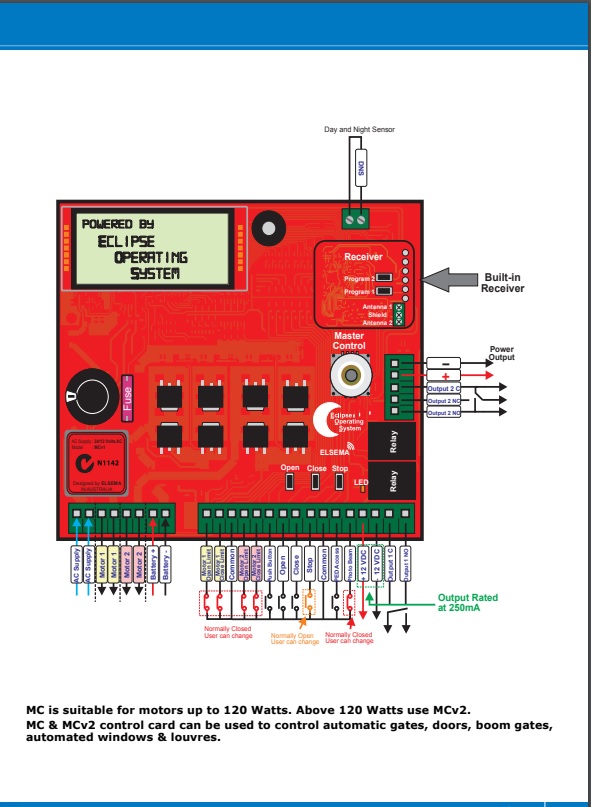

• Various inputs, push button, open only, close only, stop, pedestrian and photoelectric beam
• Supports limit switch inputs or mechanical stops
• Adjustable auto close, obstruction load and pedestrian access
• Adjustable lock and courtesy light outputs
• Variable photoelectric safety beam functions
• Energy saving mode to reduce running costs
• 24 Volt DC Output to power accessories
• Service counters, password protection, holiday mode and many more features
• 24 Volt battery charger for backup batteries
• 12mA standby current making it ideal for solar gates

​Warranty - 12 Months

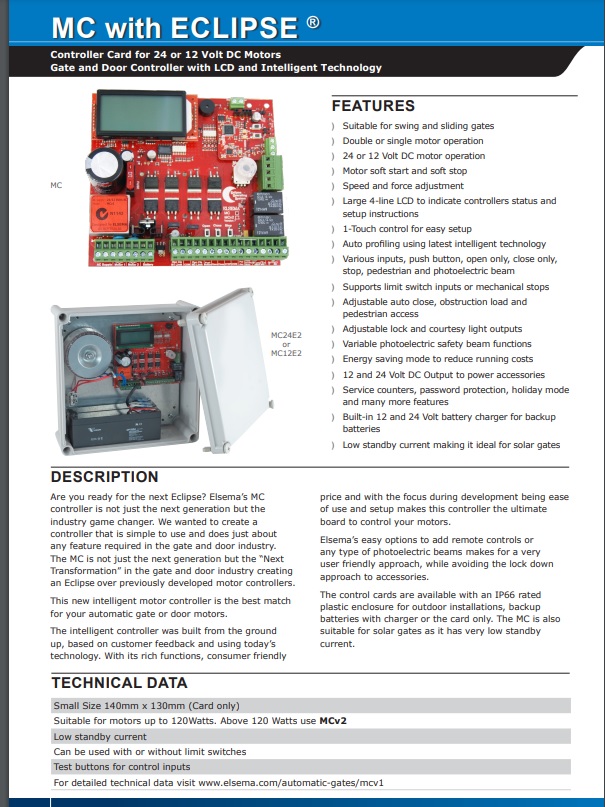

ELSEMA ECLIPSE DOUBLE MC BOARD AND TRANSFORMER 24V (MC24E) TECH SPECS

Spesifications

• Suitable for swing and sliding gates
• Double motor operation
• Eclipse Operating System (EOS)
• Day and night sensor (DNS)
• 24 Volt DC motor operation
• Motor soft start and soft stop
• Speed and force adjustment
• Large 4-line LCD to indicate controllers status and setup instructions
• 1-Touch control for easy setup
• Auto profiling using latest intelligent technology
• Various inputs, push button, open only, close only, stop, pedestrian and photoelectric beam
• Supports limit switch inputs or mechanical stops
• Adjustable auto close, obstruction load and pedestrian access
• Adjustable lock and courtesy light outputs
• Variable photoelectric safety beam functions
• Uses industry standard 6 pin receiver input
• Energy saving mode to reduce running costs
• 24 Volt DC Output to power accessories
• Service counters, password protection, holiday mode and many more features
• Built in 24 Volt battery charger for backup batteries
• 12mA standby current making it ideal for solar gates.
• Free Standard Shipping Australia-wide*
