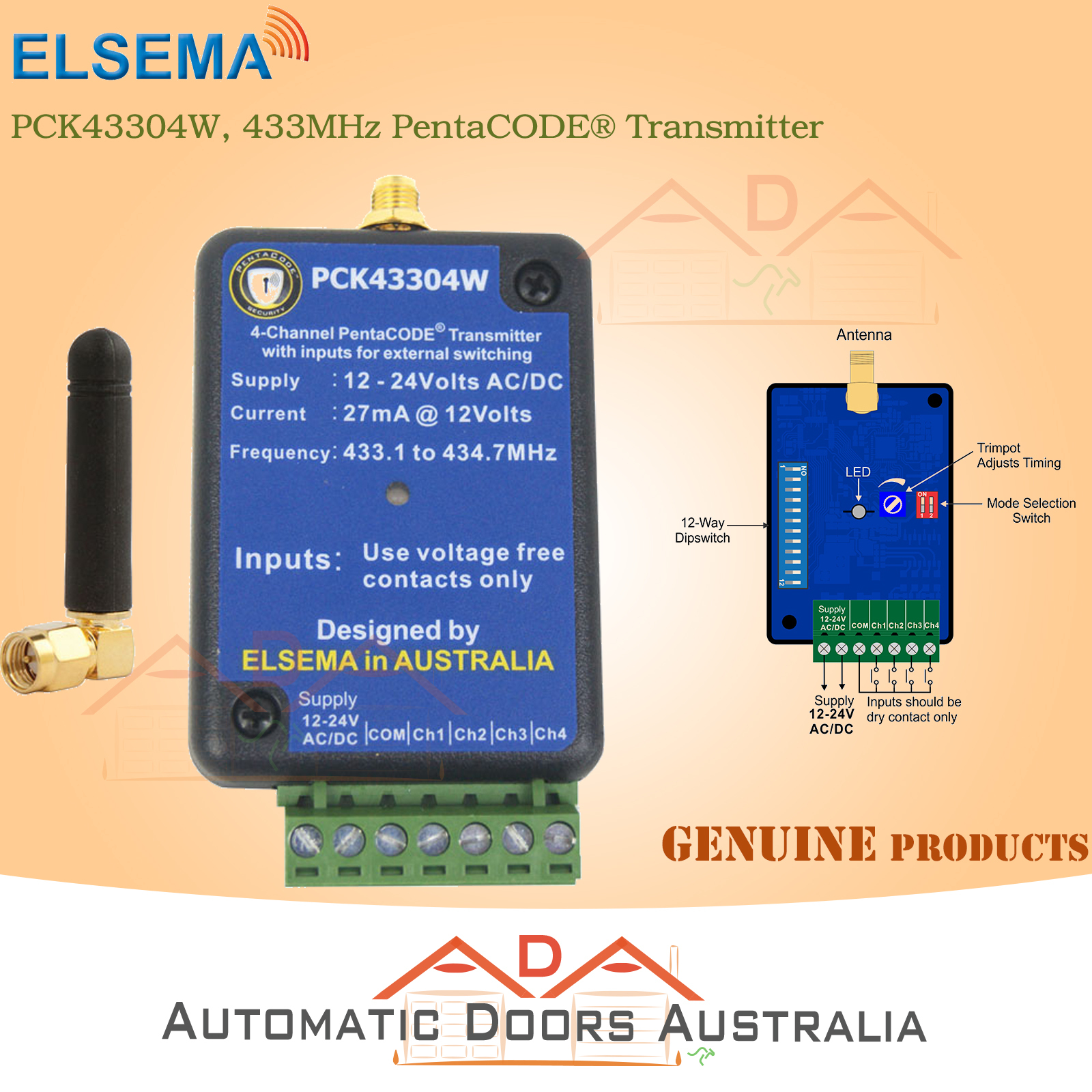

ELSEMA _PCK43304W, 433MHz PentaCODE® Transmitter with External Inputs

The PCK43304W is a 4-channel PentaCODE® transmitter with terminals to connect external normally open contact closures. You can wire in push buttons or easily integrate it into your existing equipment.

The PentaCODE® dual coding system gives the installer the option to use the classic 12-way dip switch coding or one of over 17 billion encrypted codes.

With the 12-way dip switch, just match the transmitters and the receivers dip switch and it’s coded. With the encrypted code you switch all the 12-way dip switches OFF and the remote and receiver automatically goes into the encrypted coding. Please see coding instructions for encrypted coding procedure.


  • Supply Voltage: 12.0 – 24 VAC/DC
  • Current Consumption: 6 uA standby
  • Operating frequency: 433.100 to 434.700 MHz
  • Operating range: 500 metres
  • Inputs: Four wired inputs (normally open type NO)
  • Antenna: Pre-wired
  • Dimensions: 90 x 50 x 25mm
  • Useable Receivers: All Elsema type Penta series
  • Wireless push button, PLC controls or anywhere else you need a wireless signal to transmit a contact closure


Brand Elsema
Shipping Weight 0.0830kg
Shipping Width 0.090m
Shipping Height 0.010m
Shipping Length 0.120m
Shipping Cubic 0.000108000m3
