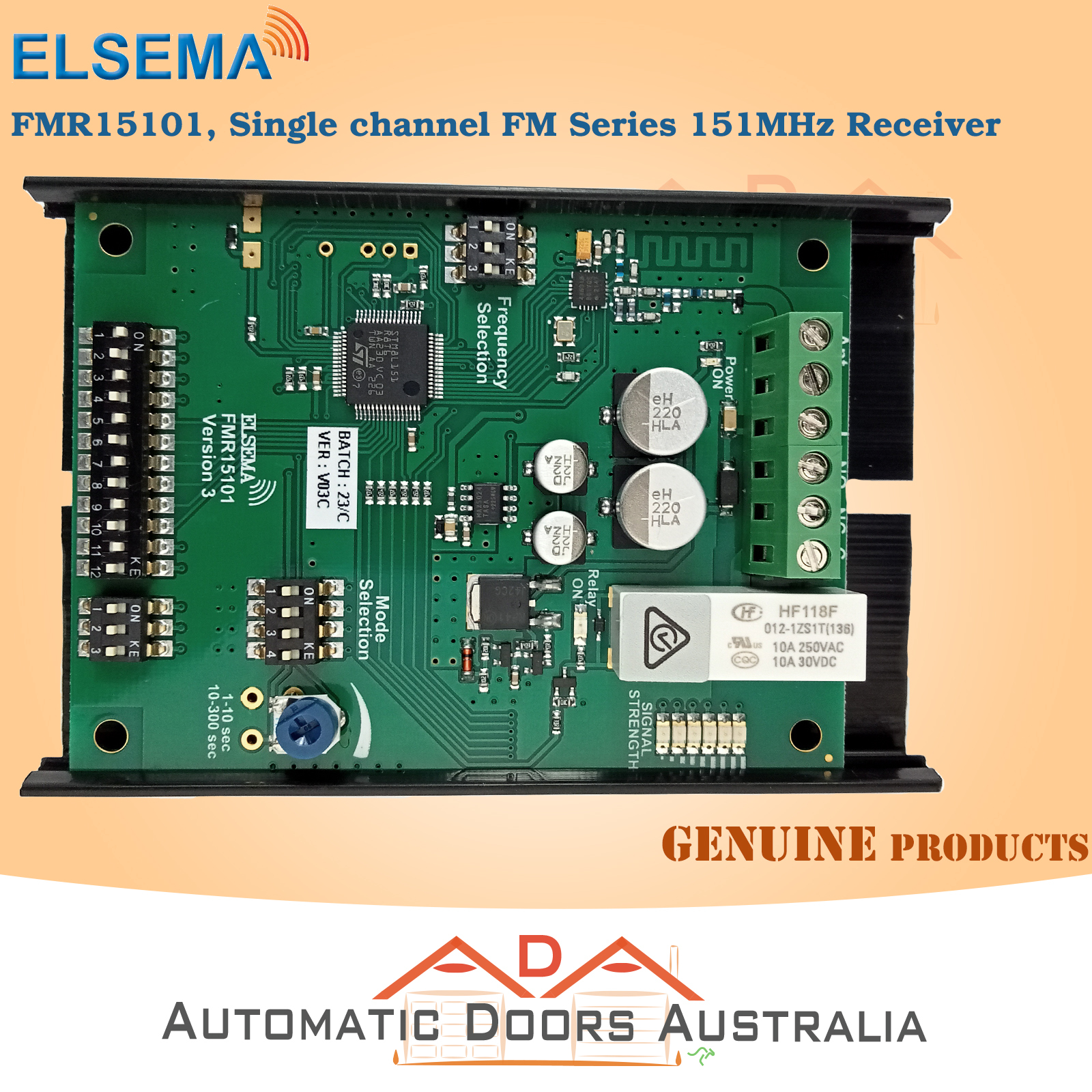

ELSEMA FMR15101 – 151 MHZ 1CH RECEIVER
ELSEMA_FMR15101
ELSEMA FMR15101 – 151 MHZ 1CH RECEIVER
Free Standard Delivery Australia-wide only
Incudes
- Single channel Elsema Receiver -FMR15101
- https://www.ada-aust.com/assets/files/fmr15101.pdf
Warranty - 02 year manufacturer's warranty
Description
This receiver gives you a single relay output with a contact rating of 5 amps at 240VAC. The relay mode can be set to momentary, latching, security latching, adjustable timed off delays or pulsing.
The user can select 8 different narrow band frequencies and program unlimited number of transmitters to the receiver. With a narrow band FM 151MHz signal from the transmitter a line of sight operating range of 5000 metres is possible. The receiver uses a crystal oscillator circuit that ensures high frequency stability allowing optimal performance in the receiving range.
Features
- Single channel receiver with relay output
- Supply voltage can be AC or DC
- Built-in noise or signal strength indicator
- User can select 8 different frequencies
- Momentary, Latching, Security latching and Off delay modes are all user selectable
- Easy code setup with dip switch settings
- Antenna:Elsema ANT151M
- Usable Transmitters: All Elsema type FMT151 series
- Ideal for Industrial Automation
- Technical data click here
Compatibility
This FMR15101 Receiver is suited for Industrial and Agricultural Devices requiring Momentary, latching, timed or security latching output modes.
- Pump Controls
- Long Distance Panic Buttons
- On/Off Applications in Agricultural Devices
- Security Alarm
- Basic Telemetry ie – Water level indications
This receiver gives you a single relay output with a contact rating of 5 amps at 240VAC. The relay mode can be set to momentary, latching, security latching, adjustable timed off delays or pulsing. The user can select 8 different narrow band frequencies and program unlimited number of transmitters to the receiver. With a narrow band FM 151MHz signal from the transmitter a line of sight operating range of 5000 metres is possible. The receiver uses a crystal oscillator circuit that ensures high frequency stability allowing optimal performance in the receiving range.
| Supply Voltage | 11.0 – 28.0 VDC 10.0 – 28.0 VAC |
| Can use Elsema AC power pack (PP12 / PP24) Supply lines should be less than 3m long to comply with radio frequency authorities | |
| Current Consumption | 24mA Standby at 12VDC |
| 57mA when relay “ON” at 12VDC | |
| Receiving Frequency | 151.6MHz (8 selectable frequencies. See table below) |
| Operating Temperature Range | -5 to 50°C |
| Sensitivity | Better than 0.5uV (For relay to activate) |
| Type of Demodulation | Narrow-Bandwidth Frequency Modulation (FM) |
| Connection | Supply, Antenna & Outputs – Screw type terminal block |
| Antenna | 50Ω, 151MHz Antenna, Elsema ANT151M for maximum performance |
| A piece of approximately 1metre wire can be used for short range applications | |
| Dimensions | 95 x 70 x 20mm |
| Mounting Hole Size | 3.97mm or 5/32” |
| Weight | 83g |
| Useable Transmitters | All FMT151 series (with correct setting on the dip switch). |
| See Transmitter datasheet for details. | |
| Useable operating range | Up to 5000 metres, depending on installation and type of antenna used. Recommended Antenna is Elsema ANT151M |
(FMR15101)
| SKU | FMR15101 |
| Brand | ELSEMA |
| Shipping Weight | 0.0810kg |
| Shipping Width | 0.125m |
| Shipping Height | 0.010m |
| Shipping Length | 0.145m |
| Shipping Cubic | 0.000181250m3 |
