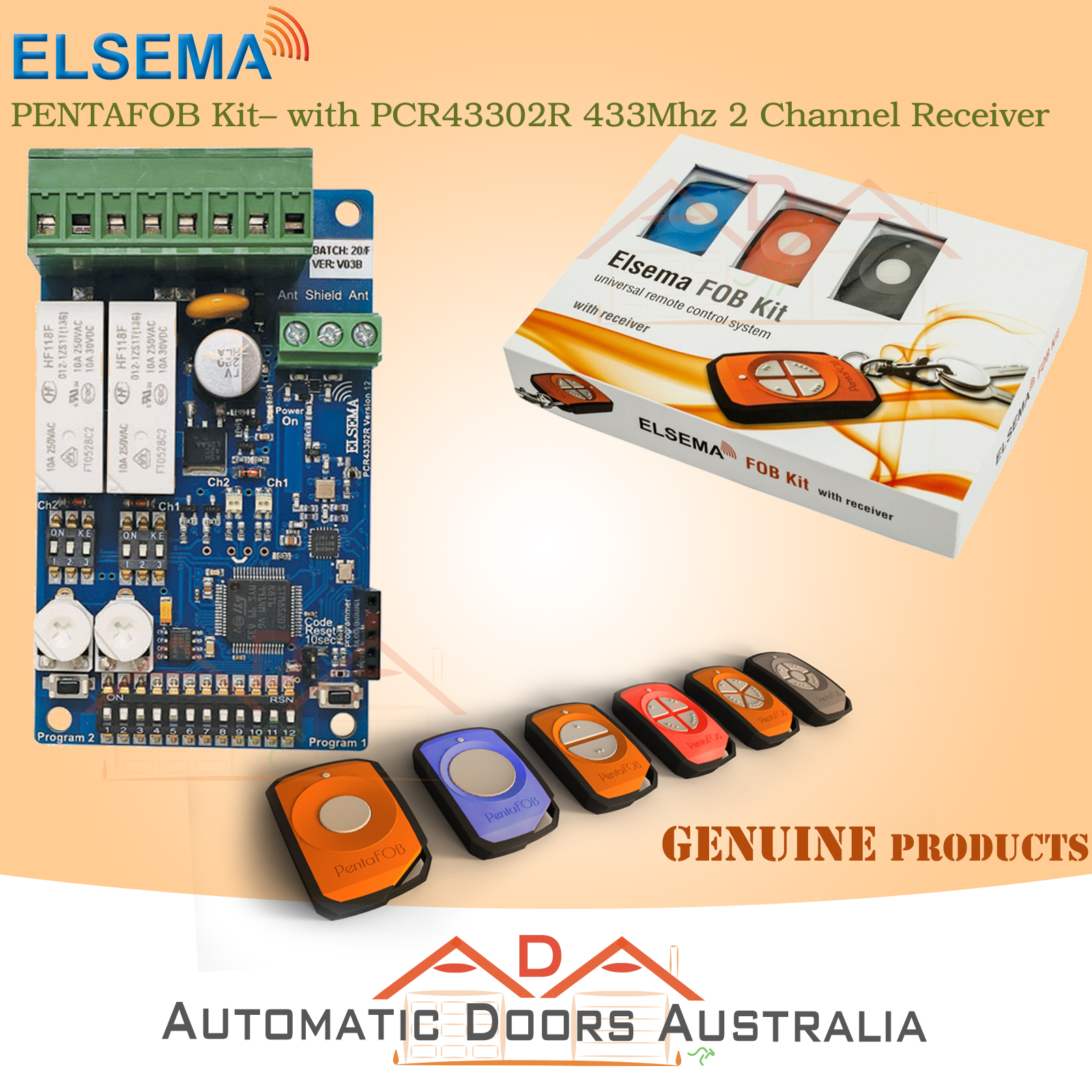

Elsema FOB Kit  WITH 433Mhz 2 Channel Receiver - Penta PCR43302R

Free Delivery within Australia only


  • 3 x Pentafob Remotes
  • 1 x Elsema  433Mhz 2 Channel Receiver - Penta PCR43302R
  • Manual

Note :- Please let us know your choise of  Remote and colour by mail with the attaching  invoice

Personalise FOB remotes to match your personal choice or your company colour. Four different colours to choose from.
Default colour is orange.

Part Number Description

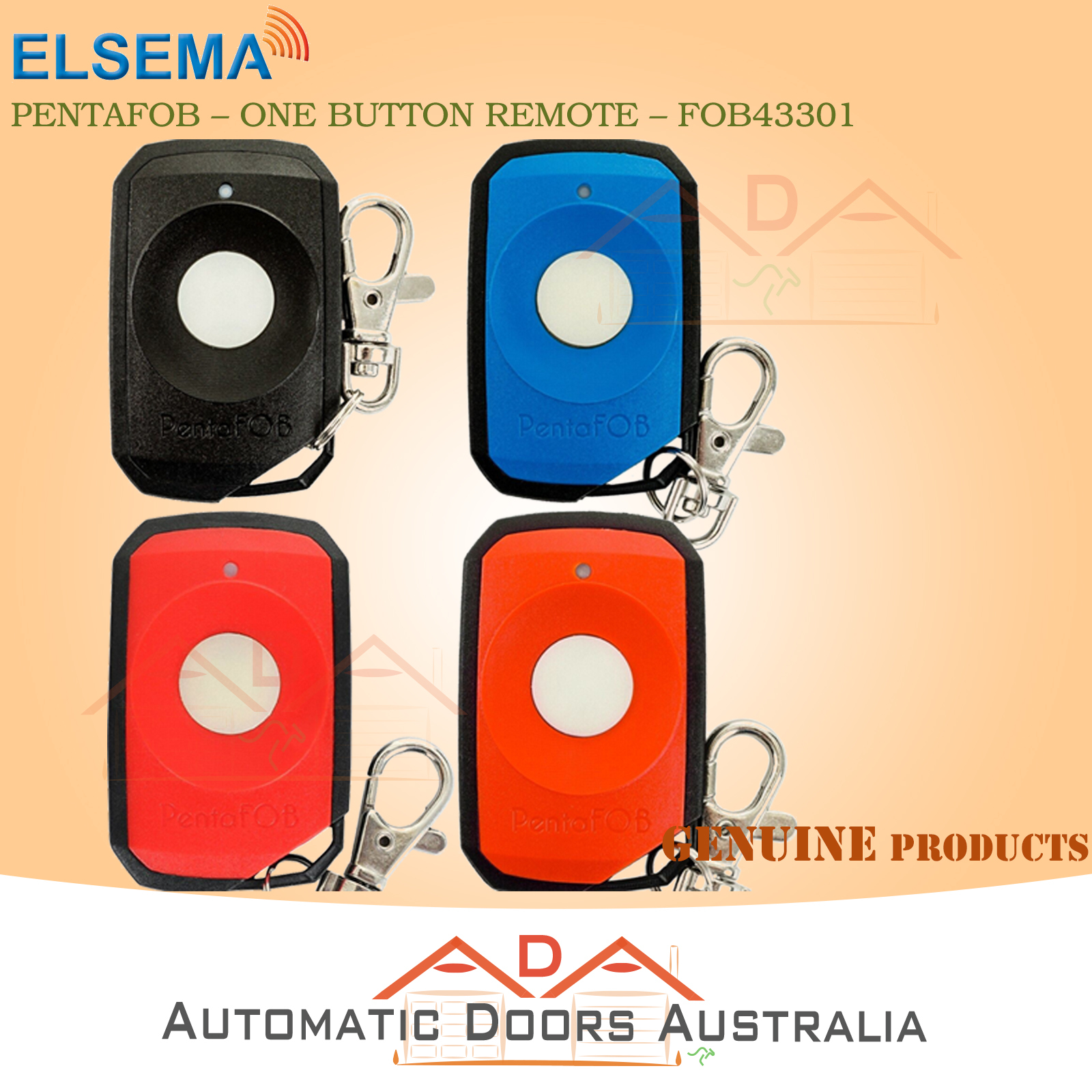

FOB43301 1-Button, Keyring Remote
FOB43301L 1-Large Button, Keyring Remote

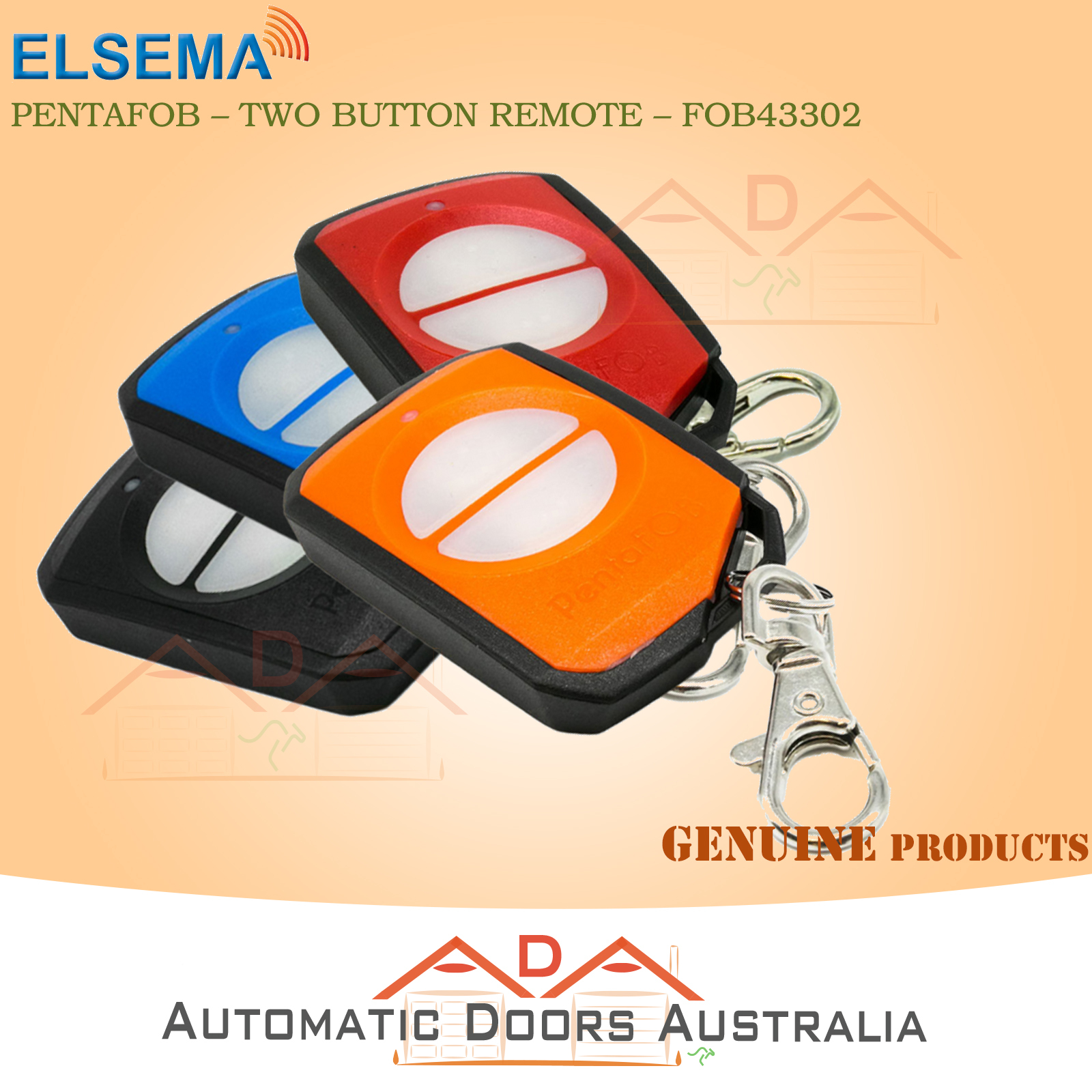

FOB43302 2-Button, Keyring Remote

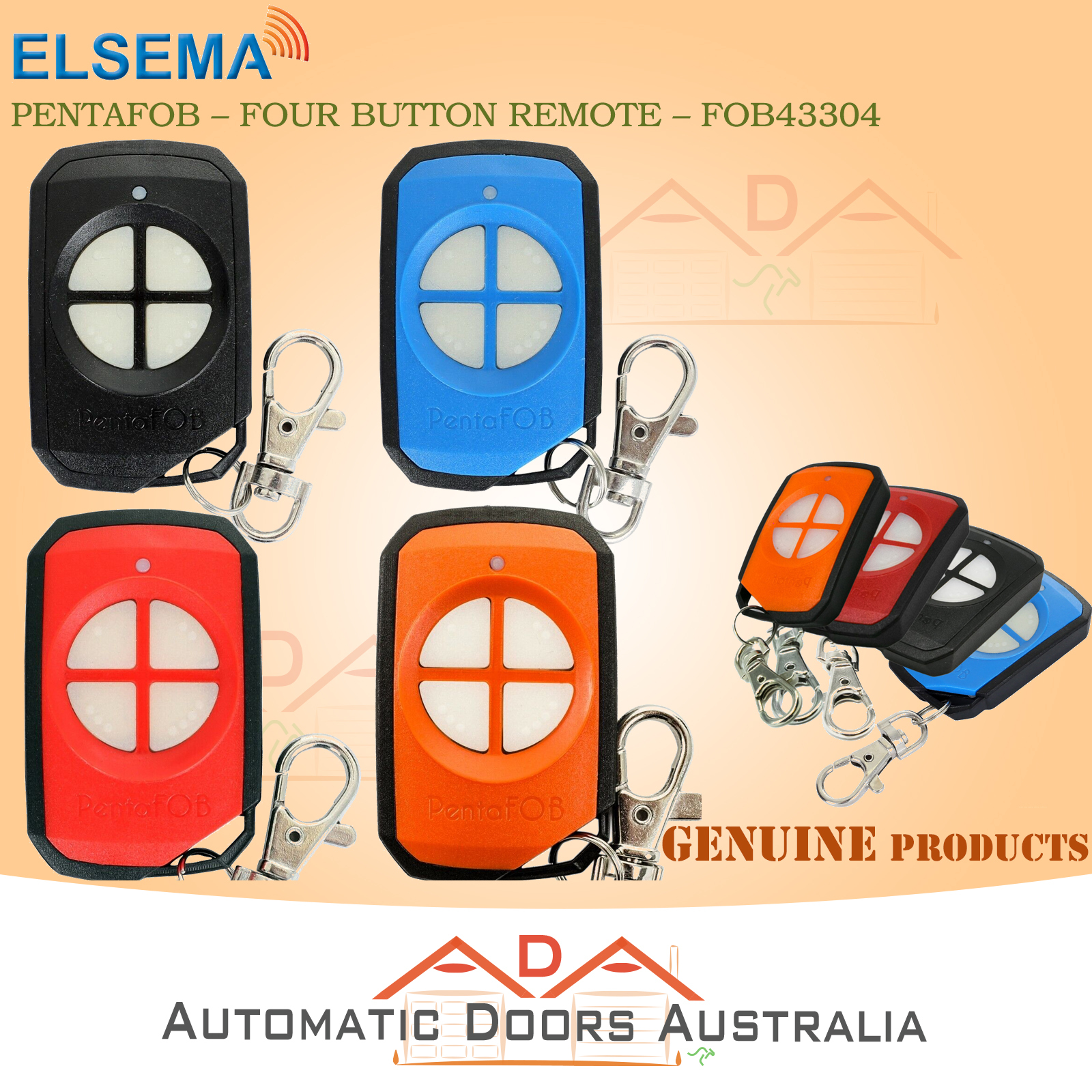

FOB43304 4-Button, Keyring Remote

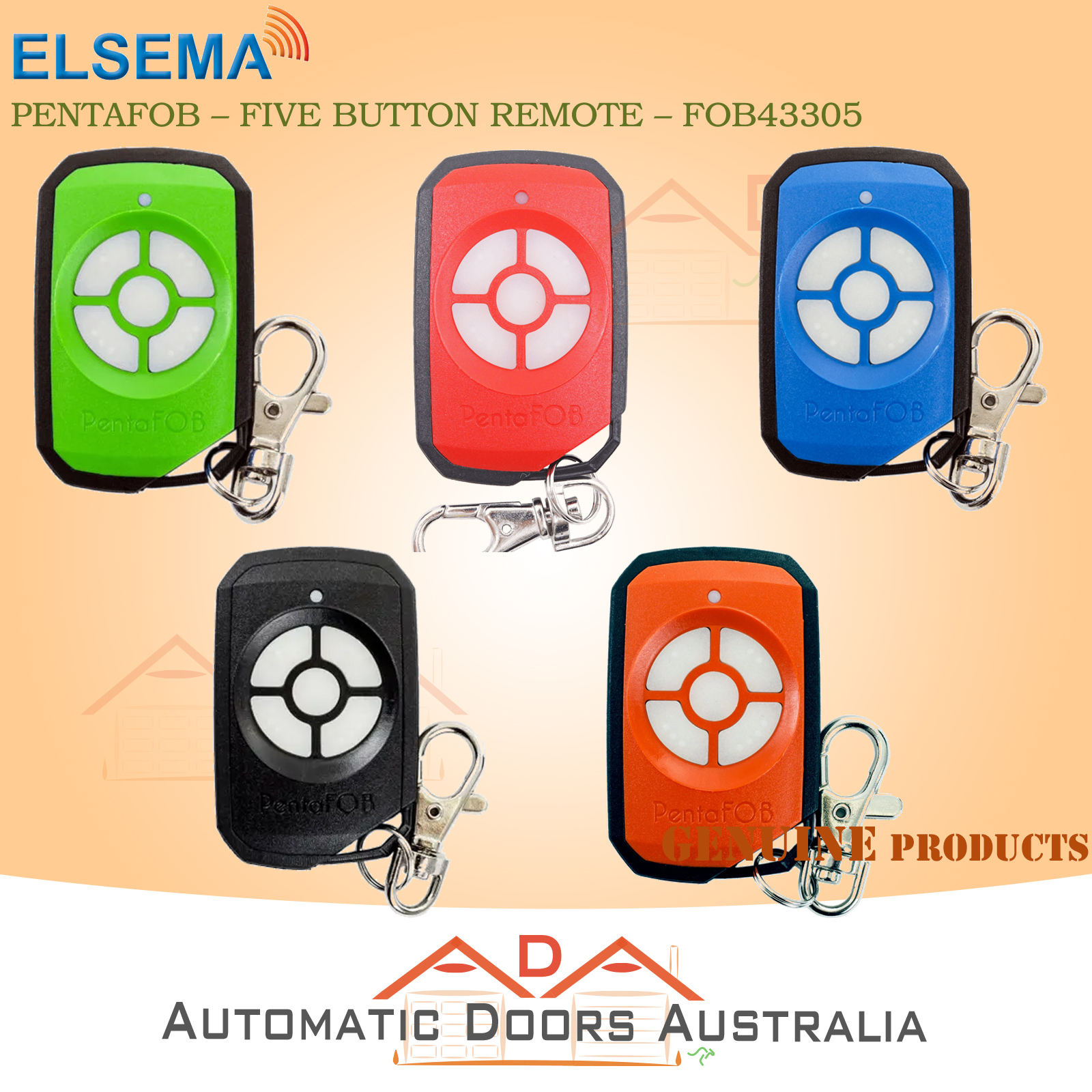

FOB43305 5-Button, Keyring Remote

The FOB remotes are available in different colours. Add the colour code to the end of the part

number to order a different colour. No colour code in the part number is the standard orange.

RED = Red Rose             BLU = Blue Sky           BLK = Black Pearl            xxx = Wild Orange

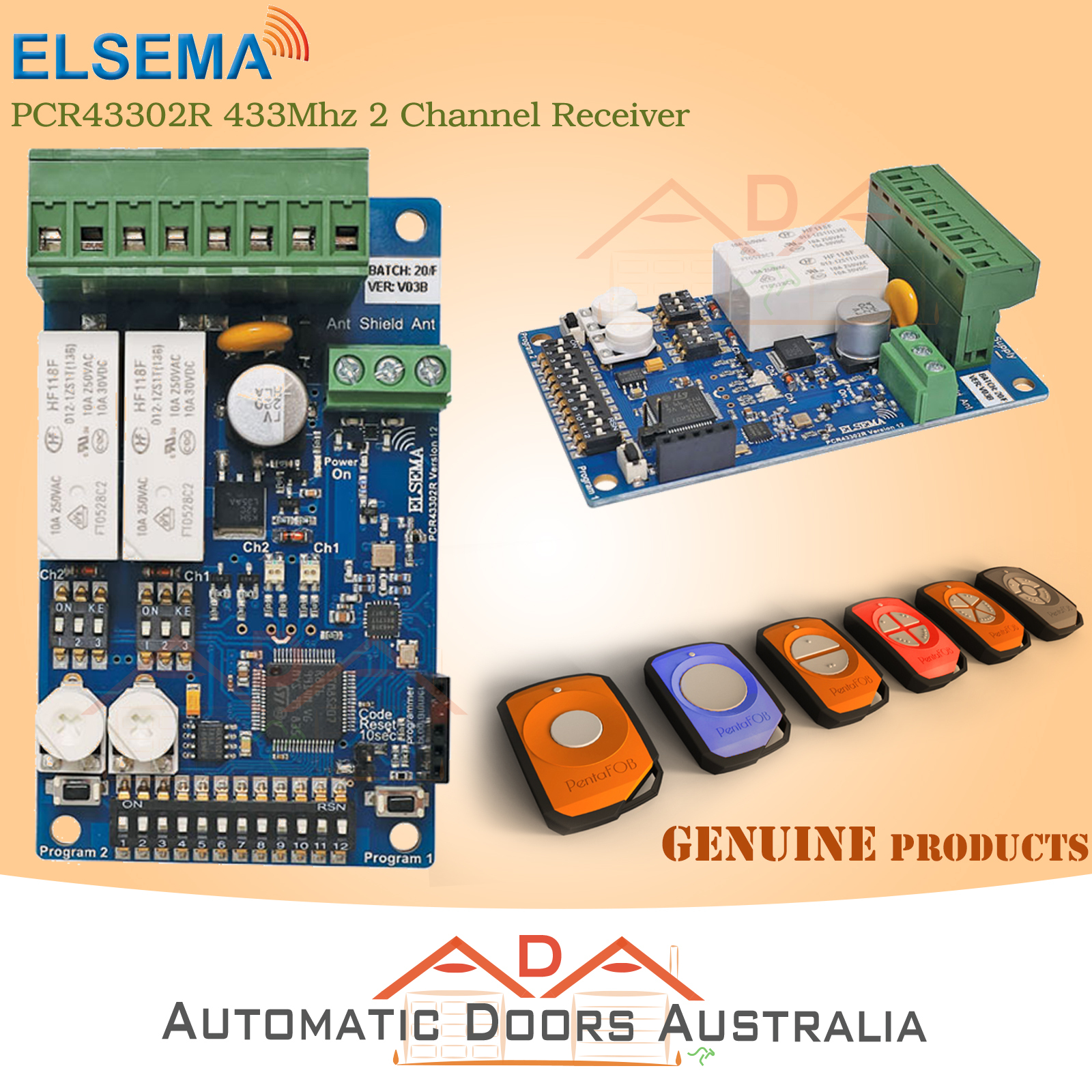

433Mhz 2 Channel Receiver - Penta PCR43302R

Wirelessly switch connected devices

The receiver is small and can be easily installed into your existing automatic gate opener or garage door controls. Other applications include light control, security shutters or anywhere else you need a wireless signal to transmit a contact closure.

The PentaCODE® dual coding system gives the installer the option to use the classic 12-way dip switch coding or one of over 17 billion encrypted codes.

With the 12-way dip switch, just match the keyring remotes and the receiver's dip switch and it's coded. With the encrypted code you switch all the 12-way dip switches OFF and the remote and receiver automatically goes into the encrypted coding. Please see coding instructions for encrypted coding procedure.



  • Two channel receiver with relay output
  • 12-way dip switch coding or one of over 17 billion encrypted codes.
  • Supply voltage can be AC or DC
  • Antenna diversity
  • Frequency hopping
  • Compatible with A 1017A and A 1025A remotes
  • Unlimited remotes can be programmed to the receiver
  • Highly sensitive receiver input stage
  • Crystal controlled for high reliability
  • Modes include Momentary and Latching
  • Easy mounting to cases or walls


  • PCR43302R: 11 to 28 Volts AC or DC
  • Current Consumption: 21 mA standby
  • Operating frequency: 433.100 to 434.700 MHz
  • Sensitivity: Better than 0.316µV (-117dBm)
  • Relay Output: Two change over relay output, rated at 10 Amps /240VAC
  • Antenna: Elsema ANT 433MHz series
  • Useable Transmitters: All Elsema type PCK433 & FOB433 series
  • Ideal for garage doors, automatic gates or switching most device

    *Specifications are subject to change without notice.


Brand Elsema
Shipping Weight 0.3080kg
Shipping Width 0.120m
Shipping Height 0.025m
Shipping Length 0.160m
Shipping Cubic 0.000480000m3
