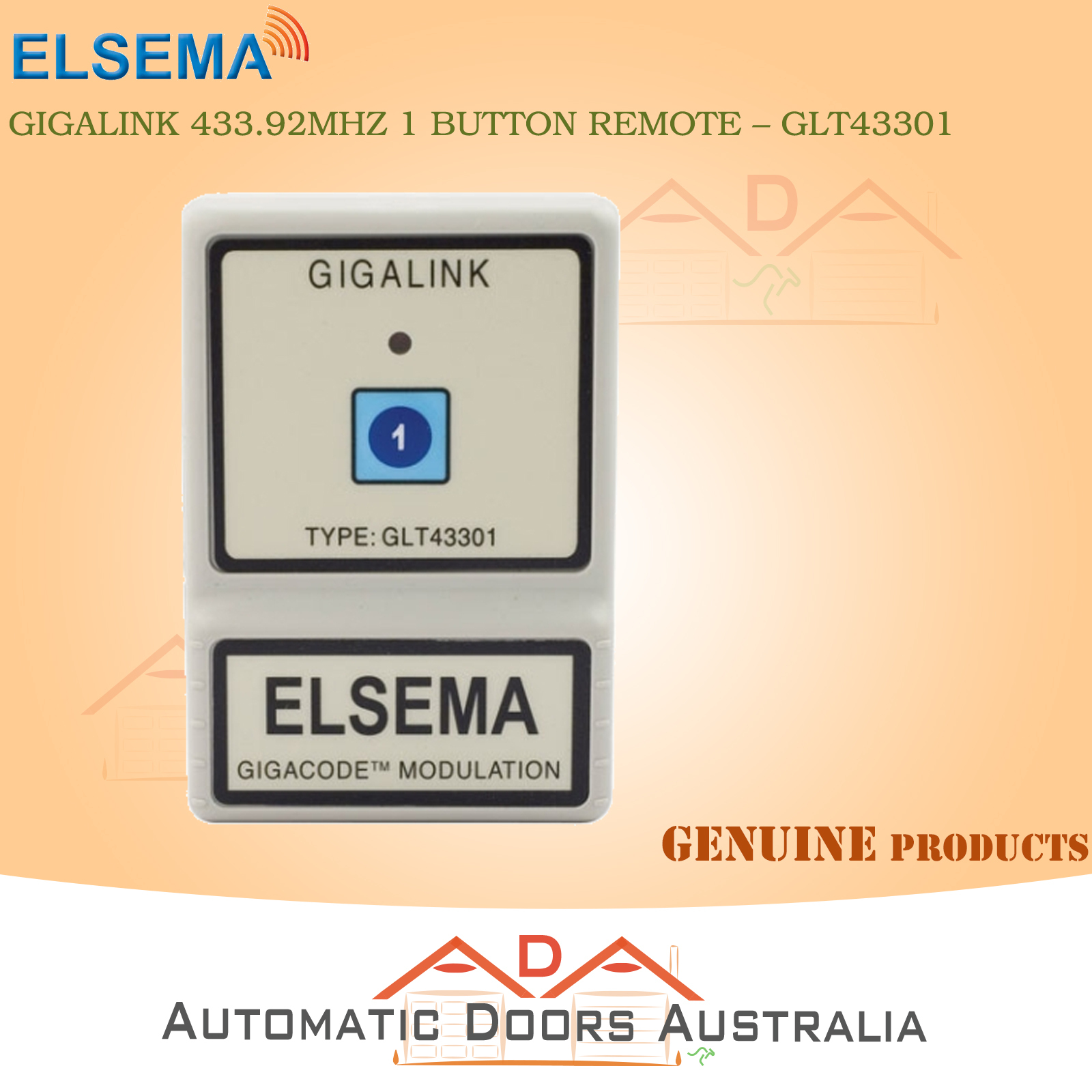

ELSEMA GIGALINK 433.92MHZ 1 BUTTON REMOTE – GLT43301

Free Delivery within Australia only ****

Includes:

  • 1 Button Gigalink Transmitter _ GLT43301
  • 1 x Silicone Case
  • Programming Instructions
  • Battery Not Included (9v)**



Warranty -  01 year manufacturer's warranty

Description

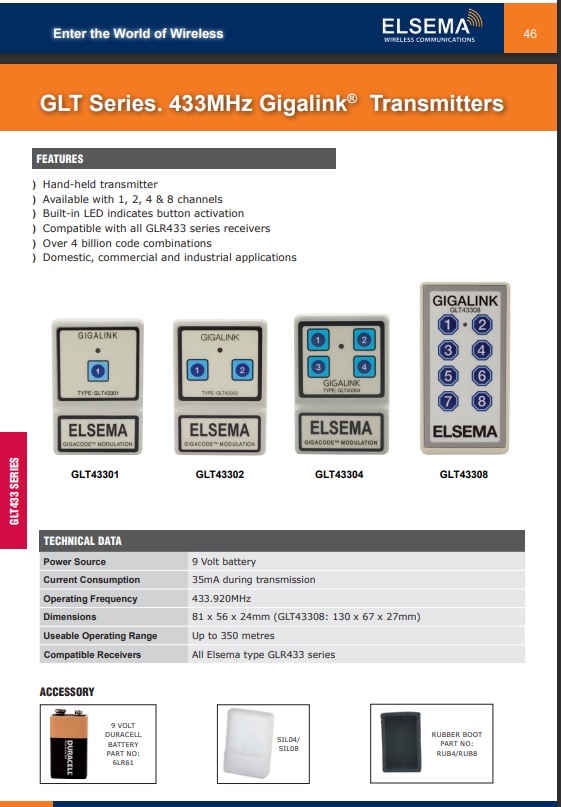

GLT 433MHz GIGALINK® Series Remote Controls

These hand held GIGALINK® transmitters operate on 433MHz. These GIGALINK® transmitters can be programmed to the 433MHz GIGALINK® receivers.

The GLT433 series is available with 1, 2, 4 and 8 buttons. The transmission is secure with over 4 billion code combinations.

The transmitter is also available without a case to allow easy integration into your applications.



 Programming Instructions

1. Connect power to the Gigalink receiver. Make sure all switches on the ‘mode’ switch are off, or down.
2. Connect the transmitter to the receiver by inserting the Gigalink cable into the transmitters and receivers 2.5-mm coding socket. This will activate the programming mode, which is indicated by the red LED on the transmitter illuminating.
3. Press the button on the transmitter you wish to operate the receiver with for one second. The transmitters LED will blink twice to confirm the code has been programmed into the receiver, then turn off.
4. Disconnect the Gigalink coding cable. Repeat steps 2-4 as required to program additional remote controls.

Features:

  • One Button Transmitter
  • More than four billion code combinations
  • Ability to program un-limited number of transmitters to a receiver
  • Built-in battery monitor
  • Flashing red LED indicates battery is flat
  • 433 MHz transmissions.
  • No interference from electrical noise and other signals.

Compatibility

The Gigalink GLT series of 433MHz remote controls are compatible with all GLR433 series receivers, please see below for a full list of models.

  • GLR43301SS
  • GLR43301SST
  • GLR43301
  • GLR43301240
  • GLR43302SS
  • GLR43302SST
  • GLR43302
  • GLR43302240
  • GLR43303
  • GLR43304
  • GLR43304240
  • GLR43308POS
  • GLR43308
  • GLR43308R
  • ANT433 LP (Antenna)
  • ANT433 S (Antenna)
  • ANT433 M (Antenna)

https://www.ada-aust.com/assets/files/GLT43301-2-4-8(1).pdf

(GLT43301)

SKU GLT43301
Brand Elsema
Shipping Weight 0.5100kg
Shipping Width 0.055m
Shipping Height 0.020m
Shipping Length 0.080m
Shipping Cubic 0.000088000m3
