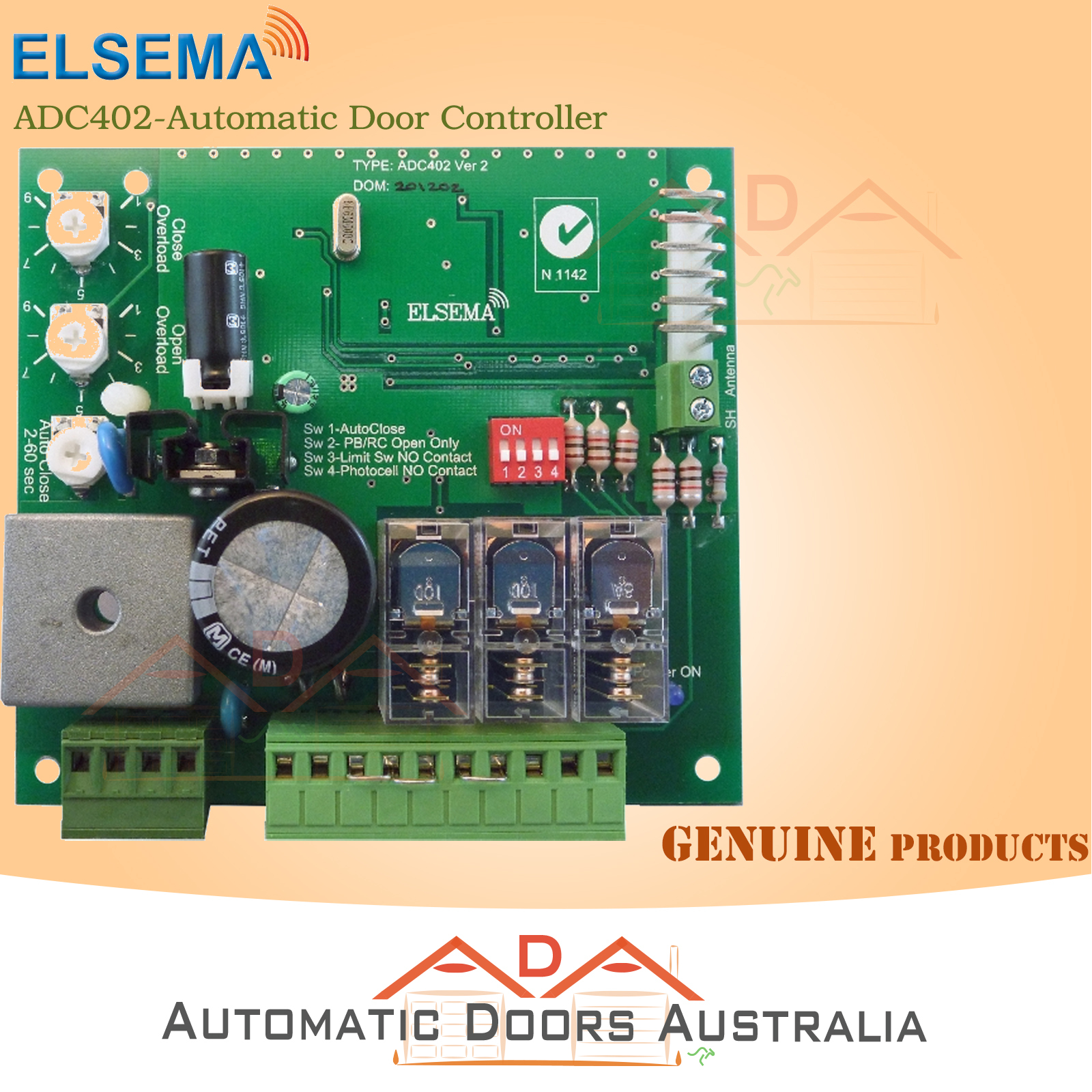

Automatic Door Controller for Single 24 or 12 Volt DC Motor

ADC402

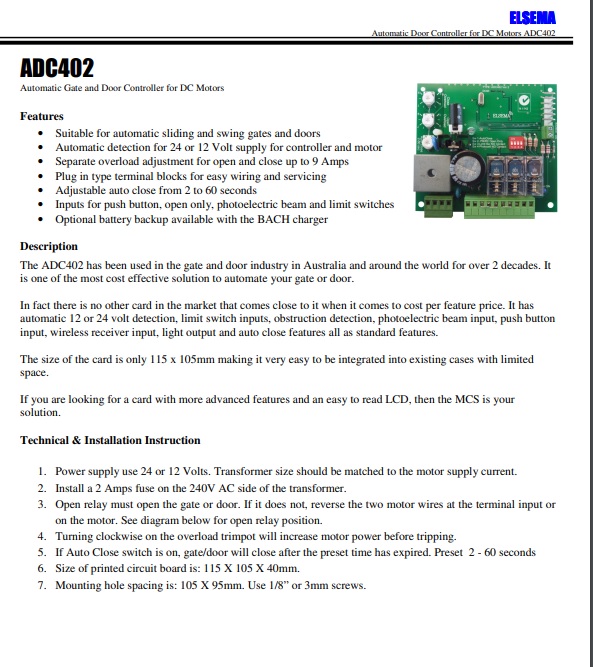

The ADC402 has been used in the gate and door industry in Australia and around the world for over 2 decades. It is one of the most cost effective solution to automate your gate or door.

In fact there is no other card in the market that comes close to it when it comes to cost per feature price. It has automatic 12 or 24 volt detection, limit switch inputs, obstruction detection, photoelectric beam input, push button input, wireless receiver input, light output and auto close features all as standard features.

The size of the card is only 115 x 105mm making it very easy to be integrated into existing cases with limited space.

If you are looking for a card with more advanced features and an easy to read LCD, then the MCS is your solution.

(EL_ADC402)

SKU EL_ADC402
Brand Elsema
Shipping Weight 0.2000kg
Shipping Width 0.105m
Shipping Height 0.040m
Shipping Length 0.130m
Shipping Cubic 0.000546000m3
