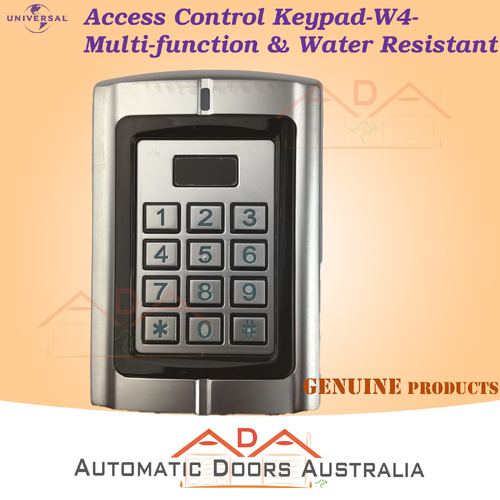

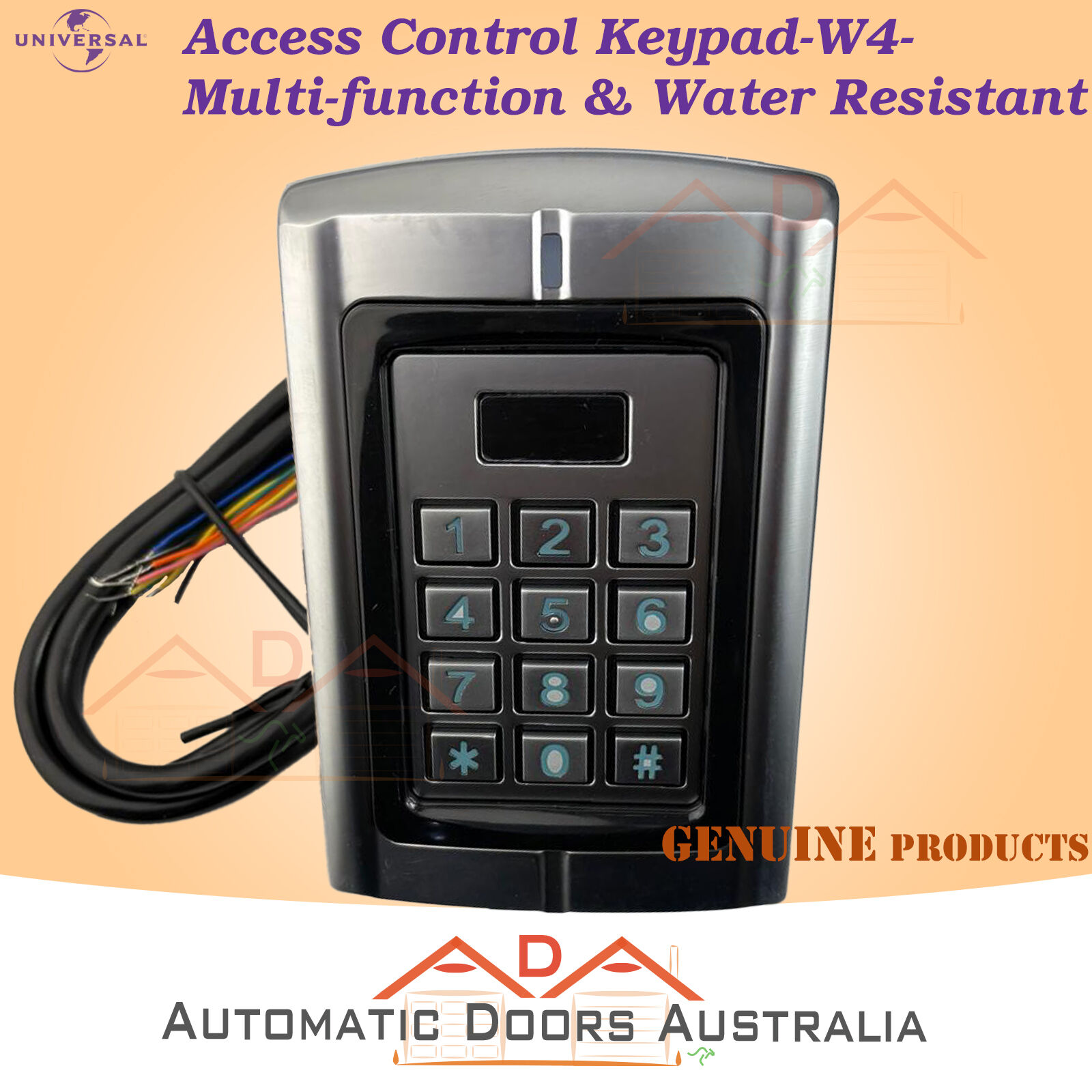

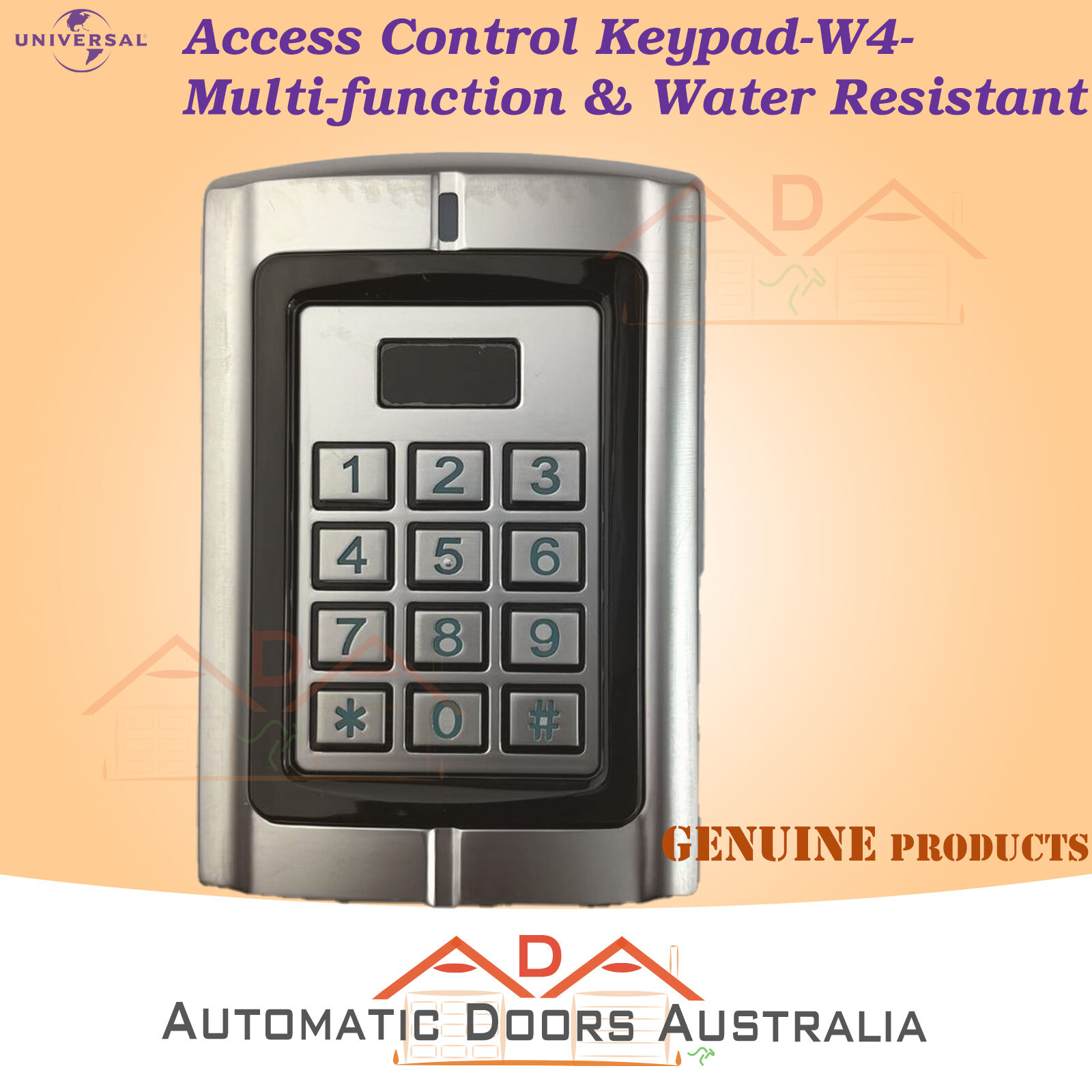

KEYPAD _ Access Control_W4-Anti-vandal and Waterproof design

Free Standard Delivery Australia-wide only

Incudes

  • KEYPAD _ Access Control_W4
  • RFID Card
  • Manual

Warranty -  01 year manufacturer's warranty (This warranty covers failure due to manufacturer's fault)


Description

his Access control/reader is designed for supporting 125KHZ HID and EM card &PIN. It is anti-vandal and waterproof design. 3 access modes optional. It an ideal choice for door access not only for small shops and domestic households but also for commercial and industrial applications such as factories, warehouse, laboratories, banks and prisons. The W4 is a dual-relay access control keypad supporting up to 2100 users with EM & HID 125KHz card reader. Suitable for mounting either indoor or outdoor in harsh environments. The strong zinc alloy electroplated case makes this vandal resistant IP68 rated unit ready to be fitted in any domestic or commercial location.

Features

● 2100 user capacity.

● Can be used as a Wiegand reader.

● Two relay.

● Standalone operation or 26 - 37 bit Wiegand output.

● 4-8 digits PIN length. ● Built-in EM & HID 125 kHz RFID reader.

● Tricolour LED display for programming and operation.

● Strong zinc alloy electroplated anti-vandal case.

● Supports card and/or password operation.

● 12-24Vdc, 12-18Vac power input.

● Backlit keypad.

● Built-in buzzer.

● Fully programmable via the keypad.

● Water proof IP68 rated.

● Dimensions 128 (L) x 82 (W) x 28 mm (H).

● Lock output load Max 2A.

● Active current draw

W4 IP66 Metal Waterproof Door Access Keypad RFID Proximity Card Reader



(keypad_W4)

SKU keypad_W4
Brand Access Control
Shipping Weight 0.6800kg
Shipping Width 0.100m
Shipping Height 0.075m
Shipping Length 0.140m
Shipping Cubic 0.001050000m3
