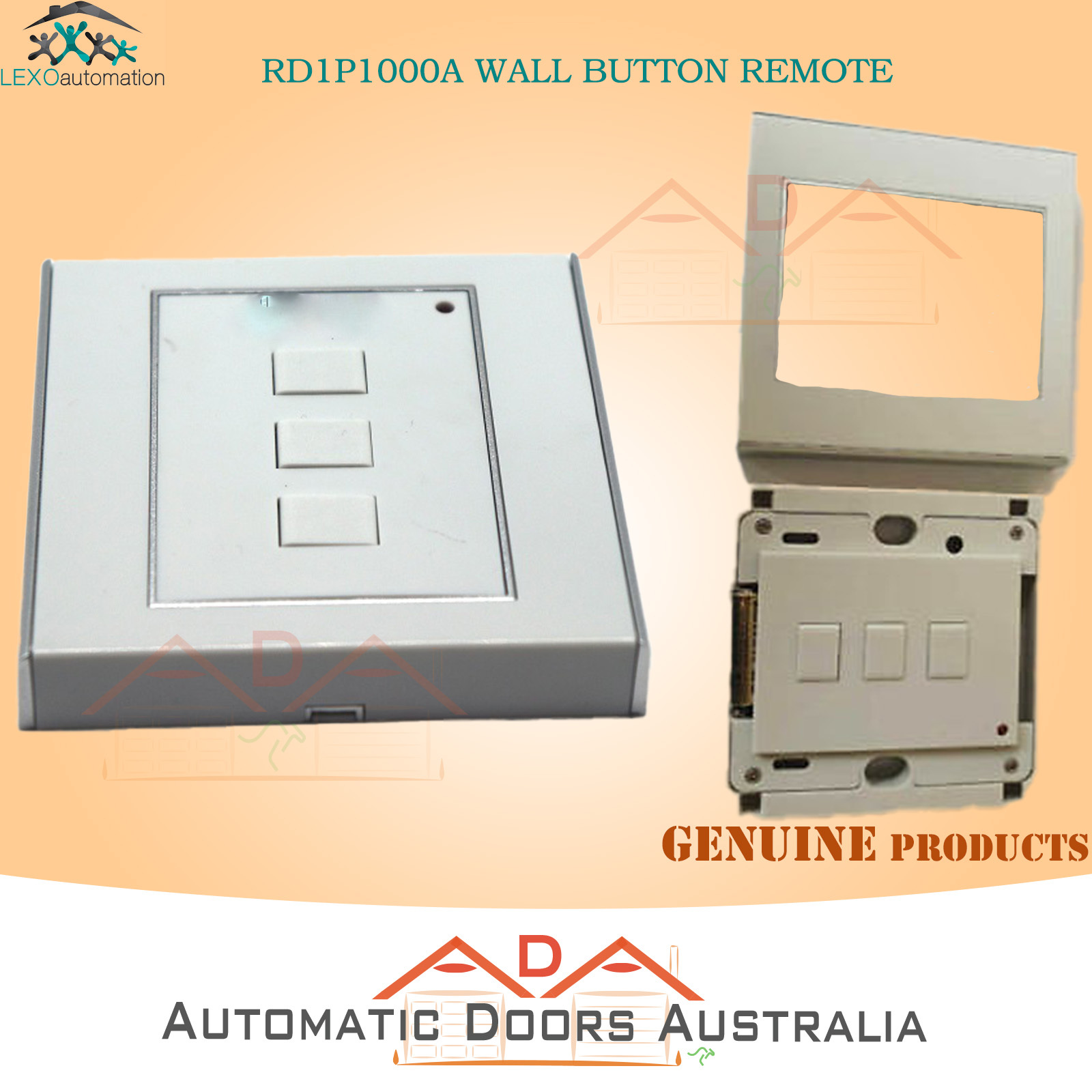

• Lexo RD1P1000A Remote
• Overhead Garage Door Openers GDO2V5, GDO2V6, GDO2V7, GDO-7V1, GDO-9V1

• Roll up Garage Door Openers GDO4V3, GDO4V4, GDO4V5, GDO4V6, GDO-6V1, GDO-6V2, GDO-8v1, GDO-8V2
• CRX-1 CRX-2 UHF AM stand-along receivers.

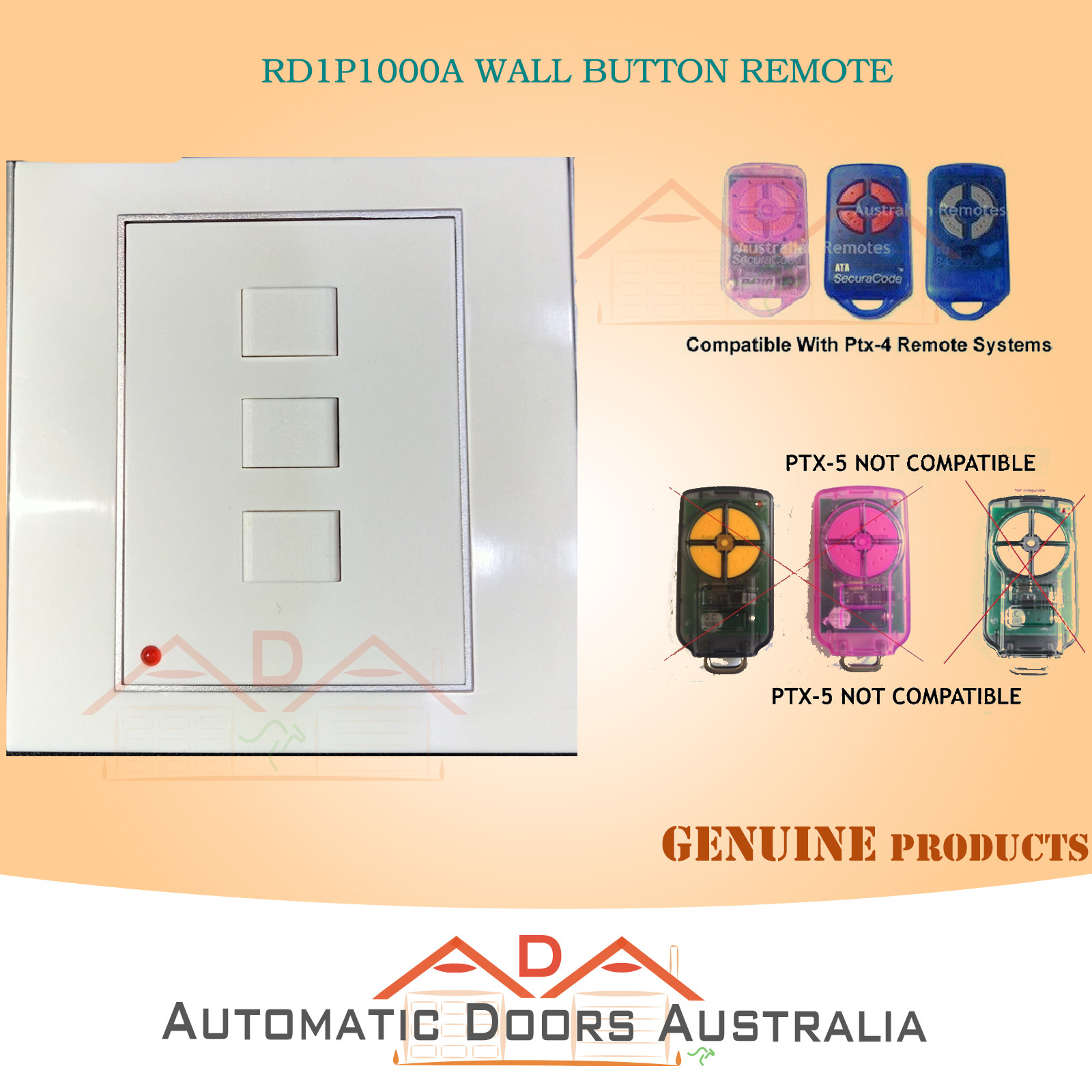

• Automatic gates installed with ATA receivers using PTX-4 remotes.

• Not compatible with the latest multi frequency PTX-5 systems
• Not Compatible with other brands or models other than BLUE or PINK ATA PTX-4 pictured
• Not Compatible with old 27mhz cigarette packet size remote controls
• NOT Compatible with B&D BLACK PTX-4

Coding Transmitter to Receiver

• Press and Hold on “CODE” button for 1 second until the LED dot is on.
• Press button on Transmitter once, the LED dot will go off. Press the same Transmitter button again.
• The LED dot will flash fast 8 times and then return to standby mode.
• The transmitter is now coded into the receiver.
• Repeat the above steps to code more transmitters.

The receiver has the capacity to store 20 transmitters. If the led display flashes “F” and returns to standby mode (after you have pressed the CODE button) this indicates that the memory storage is full (20 transmitters).

Delete Transmitters

•  Press and Hold on “CODE” button for more than 8 seconds until the LED flashes “C” all the stored codes are deleted. Only the matched switch on the transmitter is available.
• Once deleted test your previously working remotes to confirm all deleted then follow instructions to code transmitter to receiver.
• Note: If failed to match the transmitter within 20 seconds, it will return to standby mode automatically.
