MERLIN MR655MYQ SLIENT DRIVE ESSENTIAL GARAGE ROLLER DOOR MOTOR

Free Standard Delivery Australia-wide only

Incudes

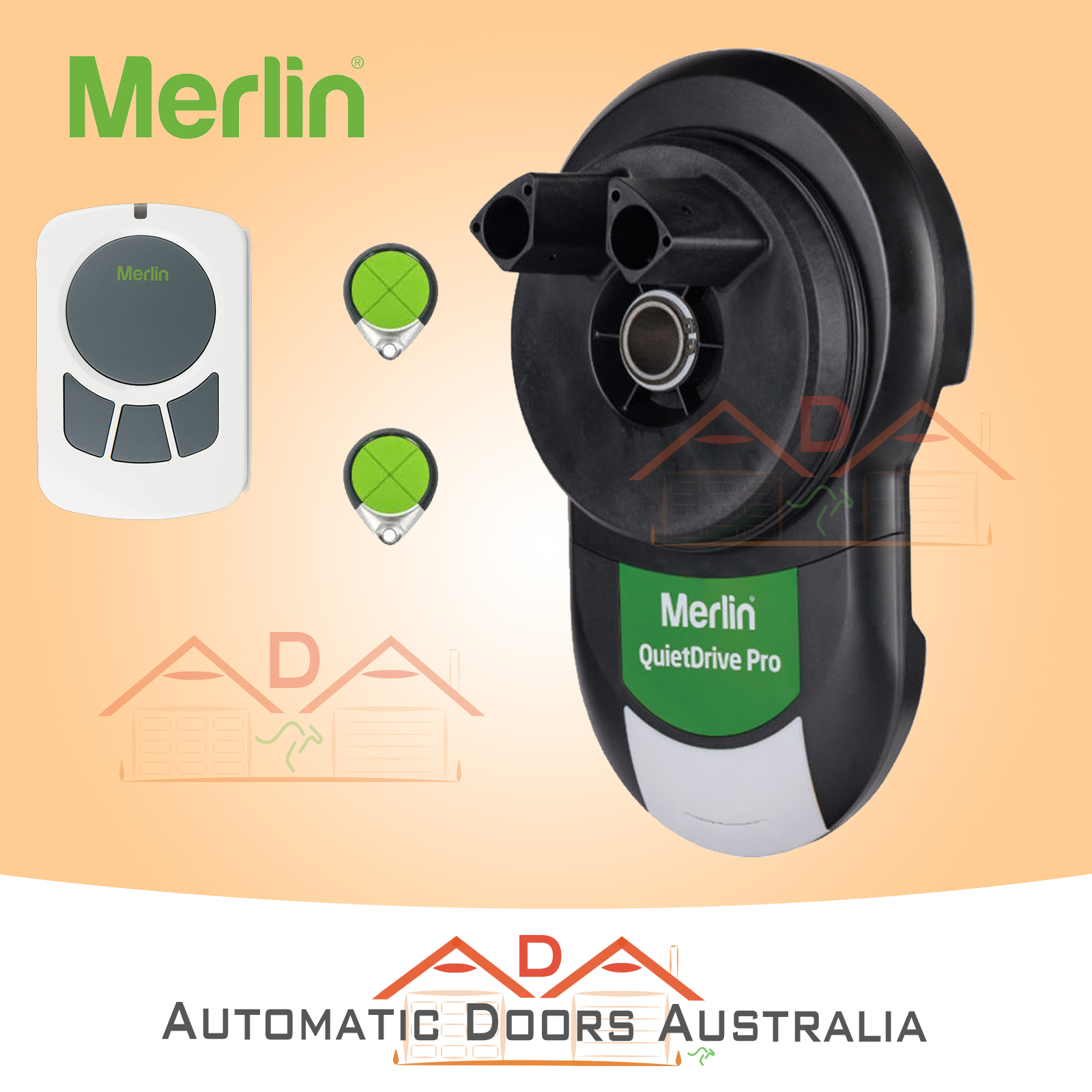

  • MERLIN MR655MYQ SilentDrive Essential Roller Door Motor

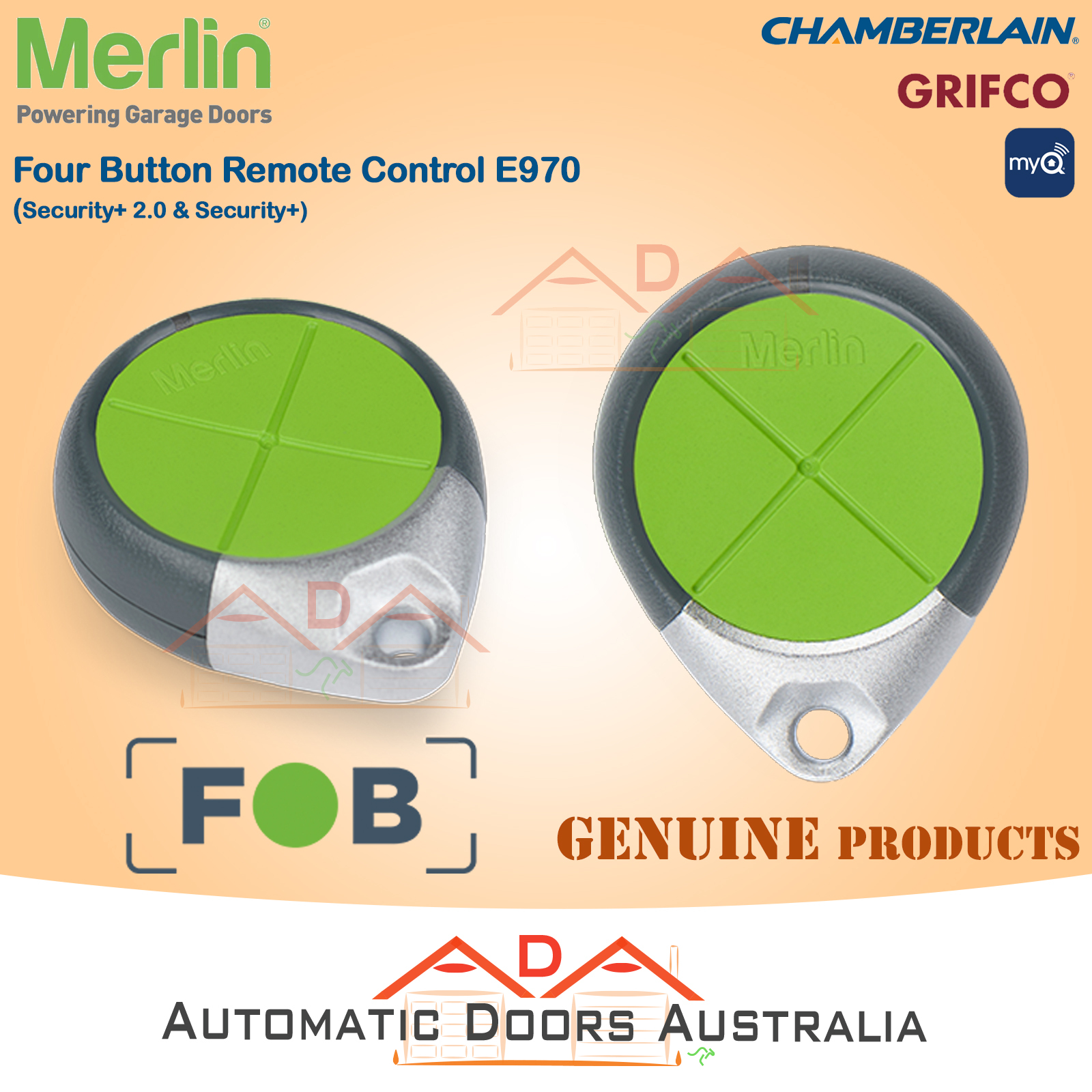

  • Premium E970M remotes

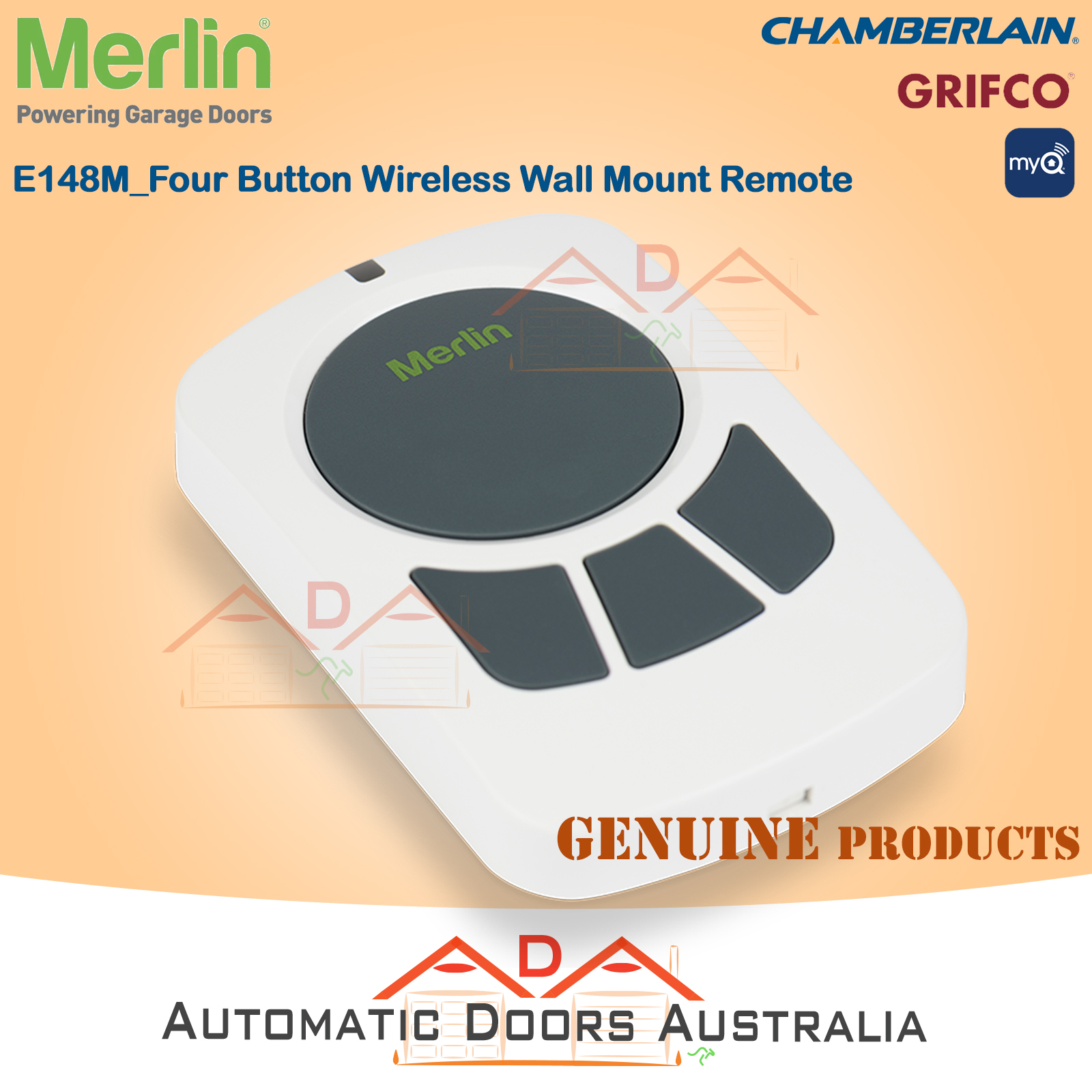

  •  E148M Wireless Wall Button
  • Weight Bar
  •  Installation Instructions

Warranty -  05 year manufacturer's warranty (This warranty covers failure due to manufacturer's fault)

Specifications:

ated Door Area 16.5m² (5.5m W x 3m H)
Suitable Doors Single, Double Rollers
Min Side Room 45mm
Model Number MR655MYQ
Peak Power 500N
Standby Power 2.2W
Opening Speed 130mm/sec
MHz Frequency FM 433.92
Memory Register 64
Lighting LED Lighting



General

  • 24 DC motor with thermal overload protection

  • Input voltage: 240V AC

  • Rated door area up to 16.5m2

  • Drum rotations: 4.5

  • Max Door weight: up to 100kg

  • Max peak pulling force: 500N

  • Minimum side room 45mm

  • 433.30, 434.54, 433.92 MHz AM radio with Security+2.0 encrypted rolling code technology

  • Up to 64 memory registers

  • Courtesy light: LED

  • Noise rating: 1M 57DB



Door Specs

  • Maximum lifting under spring tension = 20kg

  • Suitable for steel spring balanced doors



Door Opening and Closing Times

  • Door opening time: 13 seconds

  • Door closing time: 13 seconds

  • Based on a 2.3m high door



Door Height



  • Door height: 4.5m, 3.0m

  • Door width: 3.6m, 5.4m

  • Single dwelling



Suited For:



Can be used as a Replacement  for any MR650EVO opener or equivalent.



(MR655MYQ)

SKU MR655MYQ
Shipping Weight 8.7000kg
Shipping Width 0.490m
Shipping Height 0.230m
Shipping Length 0.320m
Shipping Cubic 0.036064000m3
