MERLIN MR855MYQ SILENTDRIVE_ ELITE _

Free Shipping Australia Wide


Listing Includes:

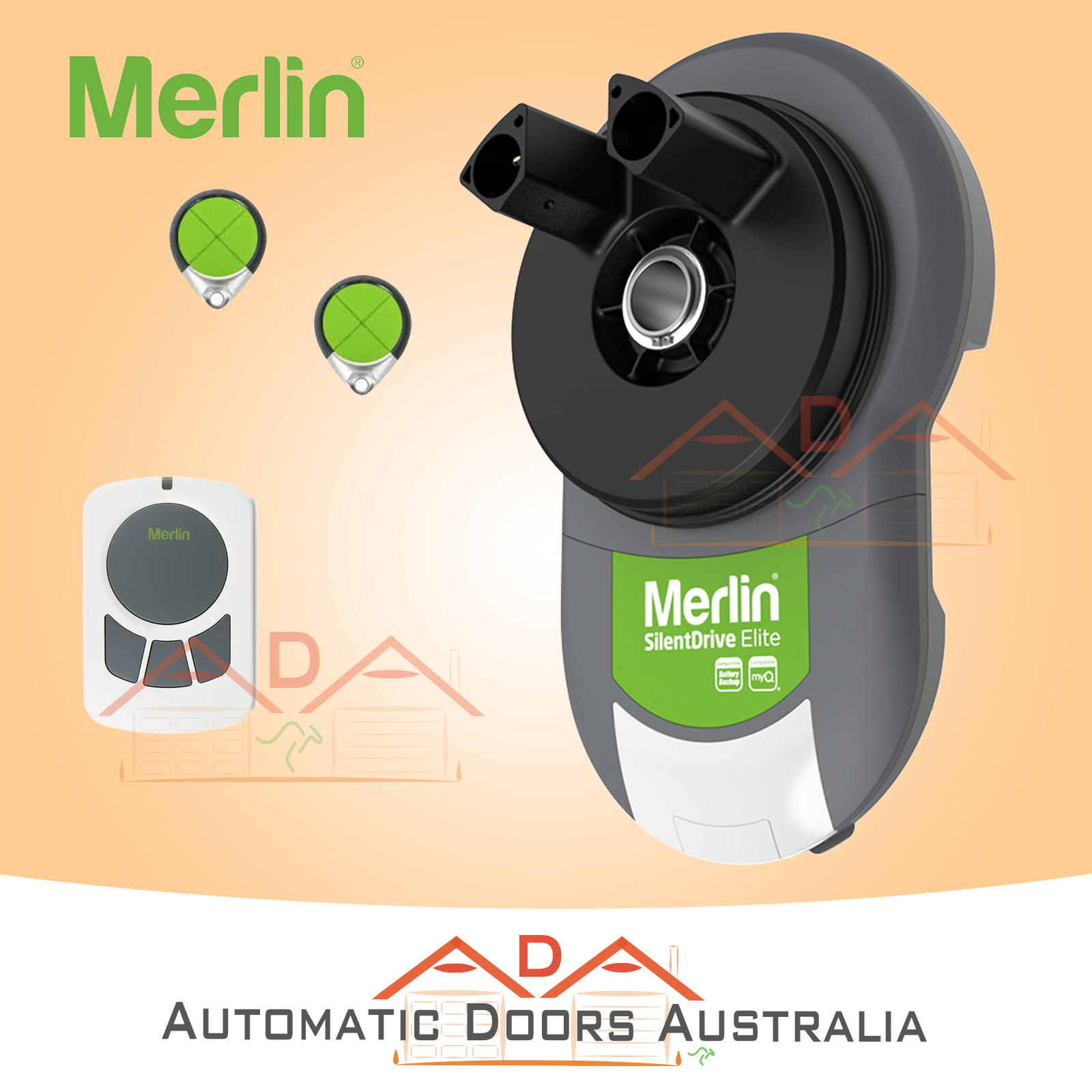

1 x MERLIN MR855MYQ SilentDrive Elite Roller Door Motor

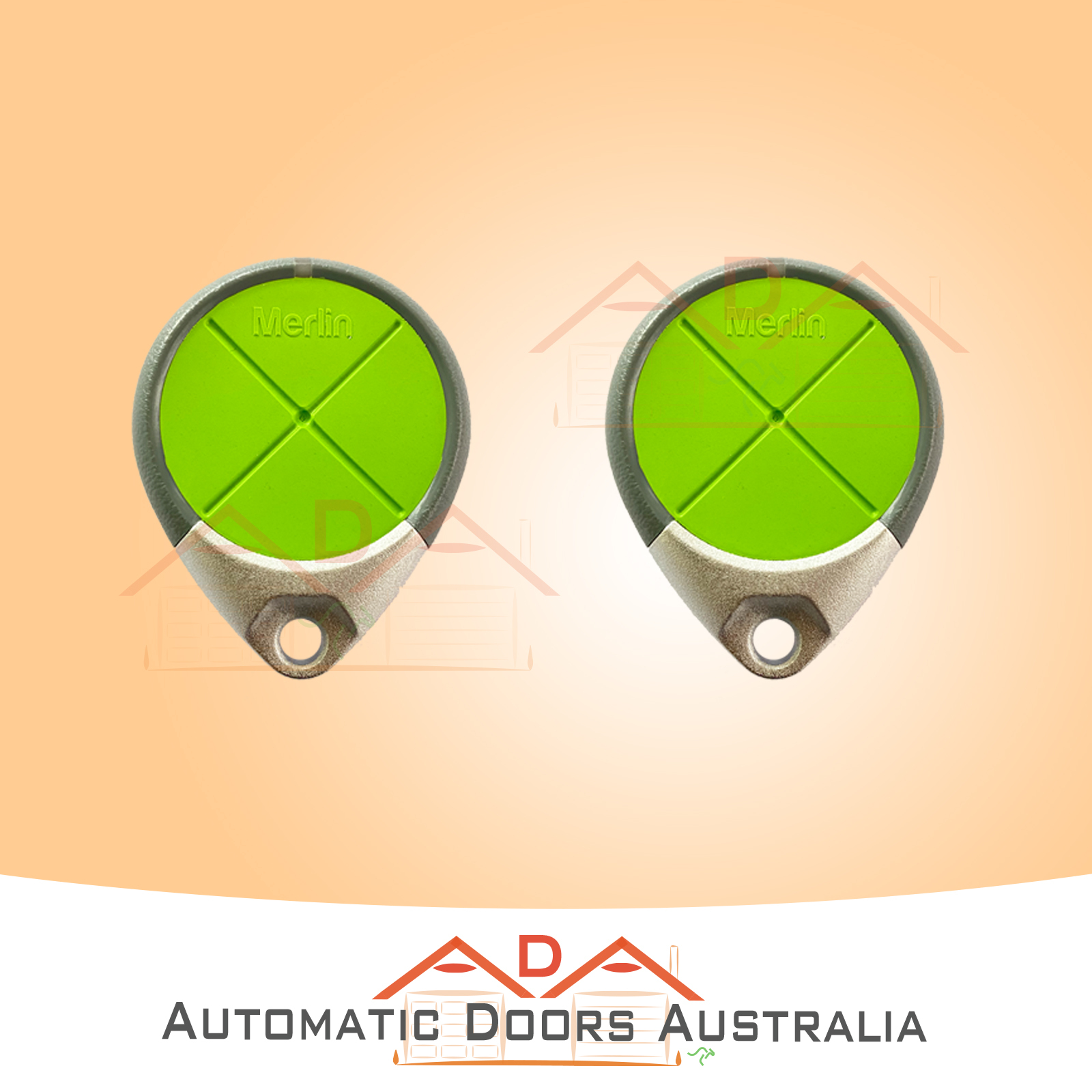

2 x Premium E970M remotes

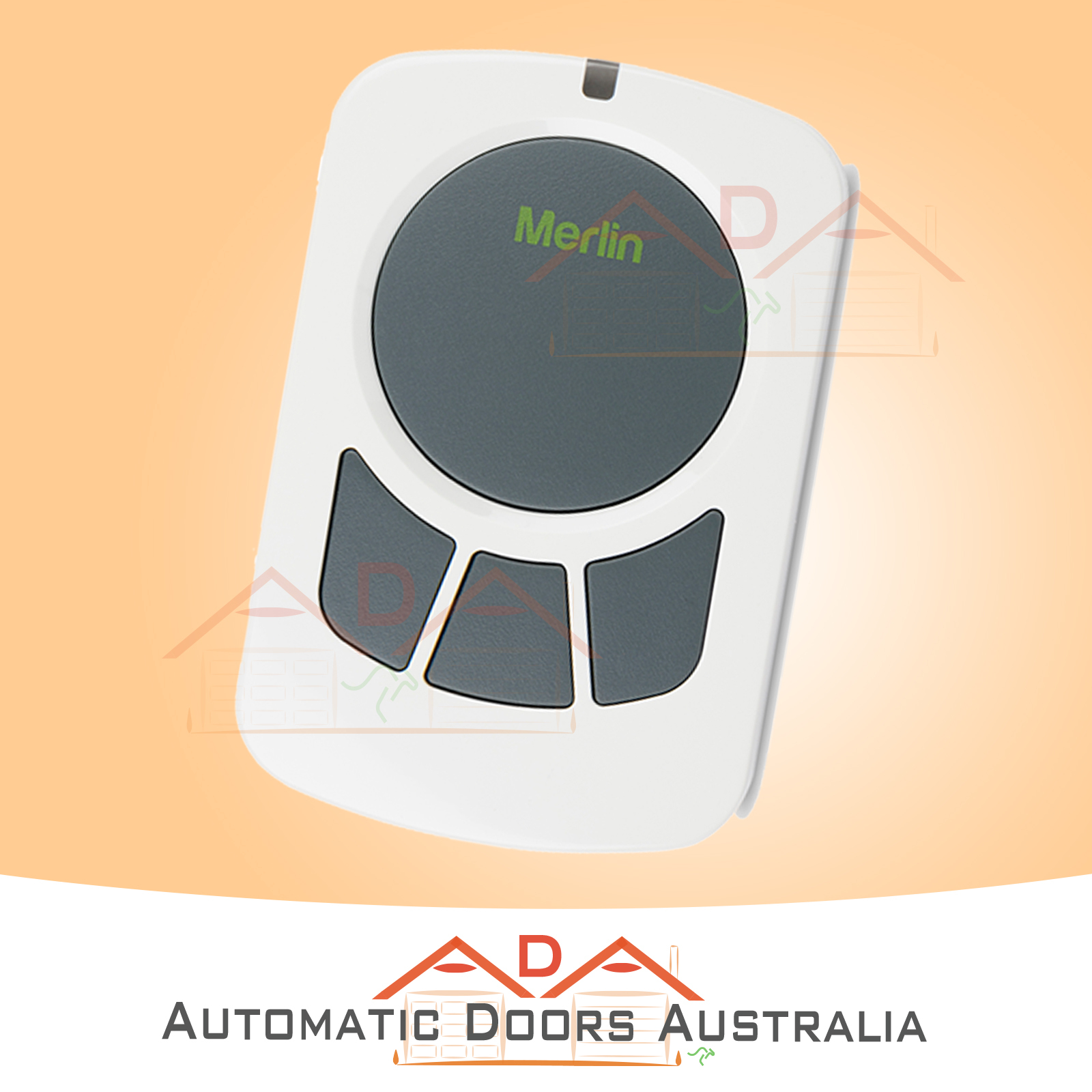

1 x E148M Wireless Wall Button
1 x Weight Bar
1 x Installation Instructions



Warranty:



7 YEAR WARRANTY warranty.


Features:


MYQ compatible technology: Lets users create schedules, monitor, receive alerts and control the garage door opener away from home.
Battery back compatibe: ensures access even when the power is out.


Specifications:


General
  • 24V DC motor with thermal overload protection
  • Input voltage:24V AC
  • Rated door area up to 18m2
  • Drum rotations:4.5
  • Max door weight: up to 120kg
  • Max peak pulling force: 550N
  • Minimum side room 45mm
  • 433.30, 434.54, 433.92 MHz AM radio with Security+2.0 encrypted rolling code technology
  • up to 64 memory registers
  • Courtesy light: LED
  • Noise rating 1M: 57DB



Door Specs
  • Maximum lifting under spring tension = 20kg
  • Suitable for steel spring balanced doors

Door Opening and Closing Times
  • Door opening time: 13 seconds
  • Door closing time: 13 seconds
  • Based on a 2.3m high door

Door Height
  • Door height: 4.5m
  • Door width: 4.0m, 6.0m
  • Single dwelling

Suited For:

Can be used as a replacent for any MR850, MR850EVO and MR855EVO opener or equivalent.


(MERLINMR855MYQ)

SKU MERLINMR855MYQ
Brand merlin
Shipping Weight 8.5000kg
Shipping Width 0.320m
Shipping Height 0.230m
Shipping Length 0.480m
Shipping Cubic 0.035328000m3
Unit Of Measure ea
