Merlin_Solar Power Kit for Gate Openers

Free Standard Delivery Australia-wide only

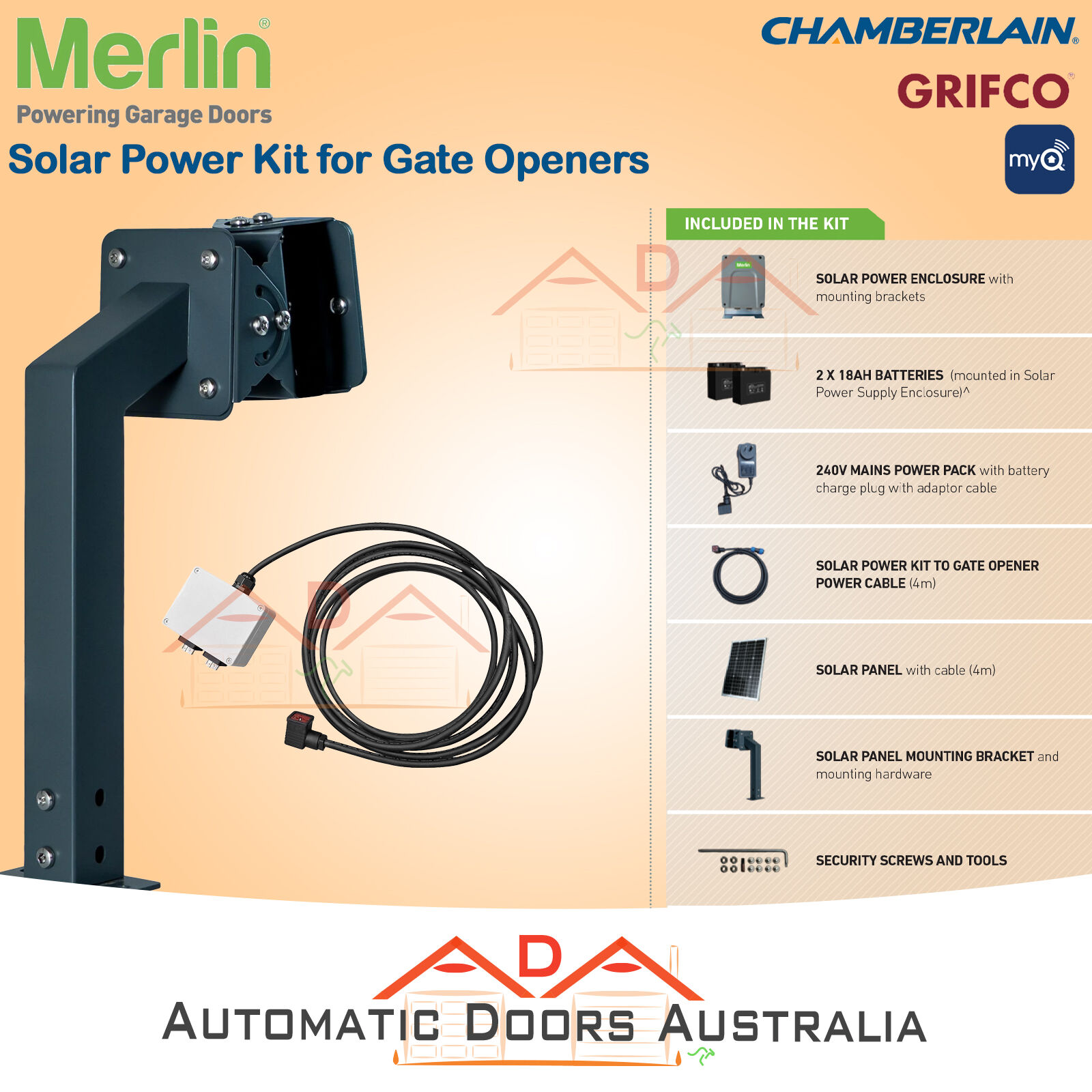

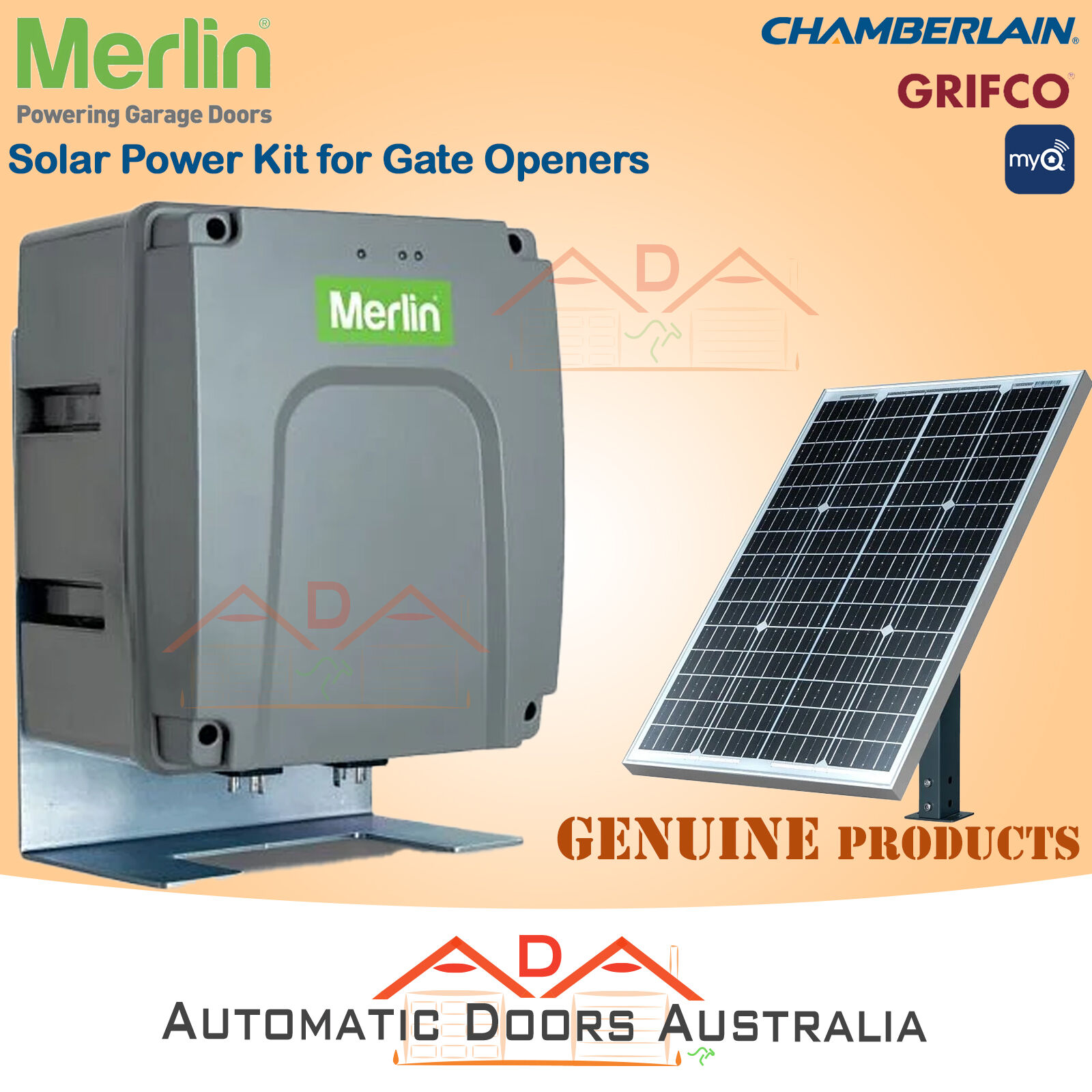

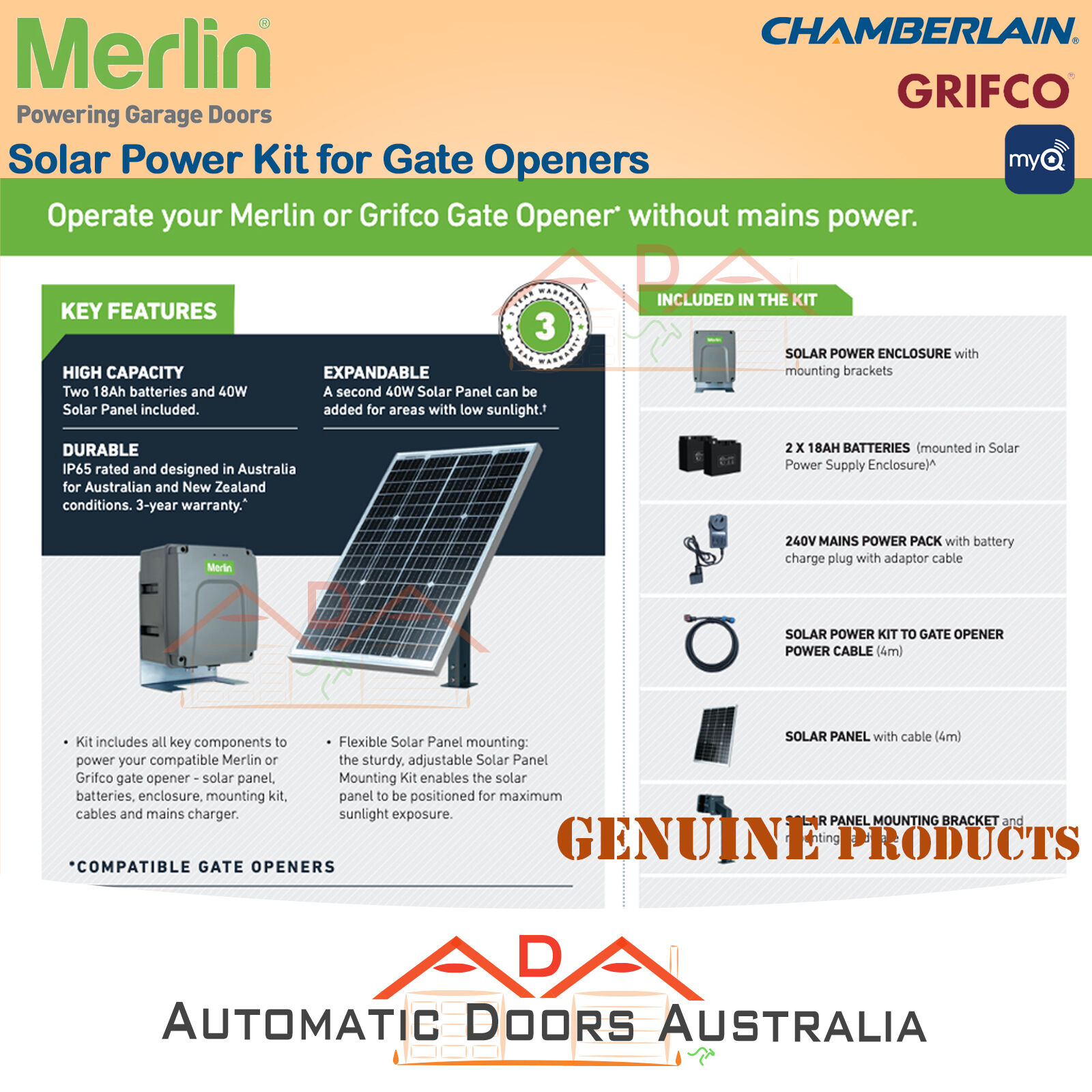

Incudes

• Solar panel with 4m cable
• Solar panel mounting bracket and mounting hardware
• Solar power enclosure with mounting brackets
• 18Ah Batteries x 2
• 240V Mains power pack with battery charge plug with adaptor cable
• Solar power kit to gate opener 4m power cable
• Manual
• Brochure

Warranty -  03 year manufacturer's warranty (This warranty covers failure due to manufacturer's fault) & Warranty for battries 01-Year.

Description

Enjoy the freedom of automated gate access powered by clean, renewable energy. The Merlin Solar Power Kit is designed for locations where mains electricity isn’t available or practical, offering a reliable solution tailored specifically for Merlin systems. It delivers smooth, consistent operation with minimal maintenance.

Whether you’re managing a long driveway, rural property, or remote entry point, this solar-powered kit provides dependable performance day and night. Featuring a durable 40W solar panel built to withstand tough weather conditions across the Tasman, it delivers the benefits of advanced solar technology by ensuring reliable gate automation.

With a design focused on bringing convenience, security, and ease of access to your life, the Merlin Solar Power Kit makes gate automation simpler than ever.

Compatibility

• Slide 600 Gate Opener,
• Swing L 300 Actuator Single Gate Opener MGLSK/ MGLSK-LV,
• Swing L 300 Actuator Double Gate Opener,
• Swing A 200 Articulated Single Gate Opener MGASK/ MGASK-LV,
• Swing A 200 Articulated Double Gate Opener MGADK/ MGADK-LV,
• Swing LR 500 Rural Gate Opener with Solar Kit,
• Swing LR 500 Rural Gate Opener with Main Power Kit

Terms & Conditions

Solar performance may vary depending on your geographic location, average daily sunlight hours, and the frequency of gate usage. For detailed guidance, please refer to the product instruction manual and consult your local Merlin Dealer..

Solar Panel Specifications

• Peak Power (Pmax): 40W / 34.2V
• Maximum Current: 1.17A
• Maximum Voltage: 34.2V
• Operating Temp Range: -40°C to +85°C
• IP Rating: IP65
• Dimensions: 620mm x 400mm x 25mm
• Weight: 2.6kg

Solar Power Supply Specifications

• Rated Voltage: 21.6VDC to 35VDC
• Maximum Output Current: 5 Amps
• Battery Capacity: 2 x 18Ah
• Recharge Time (AC Charger): Approx 24 hours
• Operating Temp Range: -20°C to +50°C
• IP Rating: IP65
• Dimensions: 335mm x 230mm x 210mm
• Weight: 20kg
