Steel Hinge 2.0mm Standard – No.1 for Sectional Garage Doors
Universal Steel Hinge #4 x 2

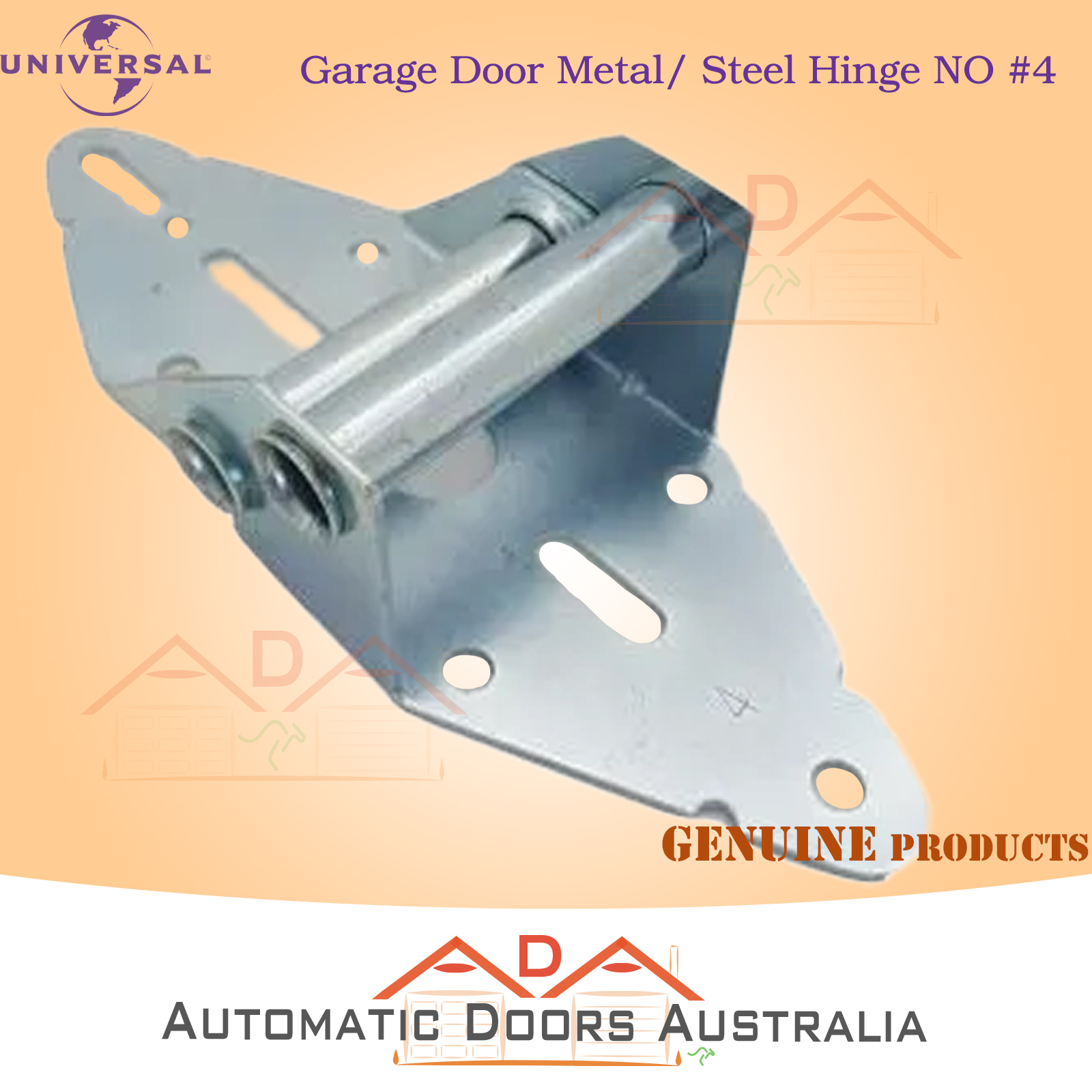

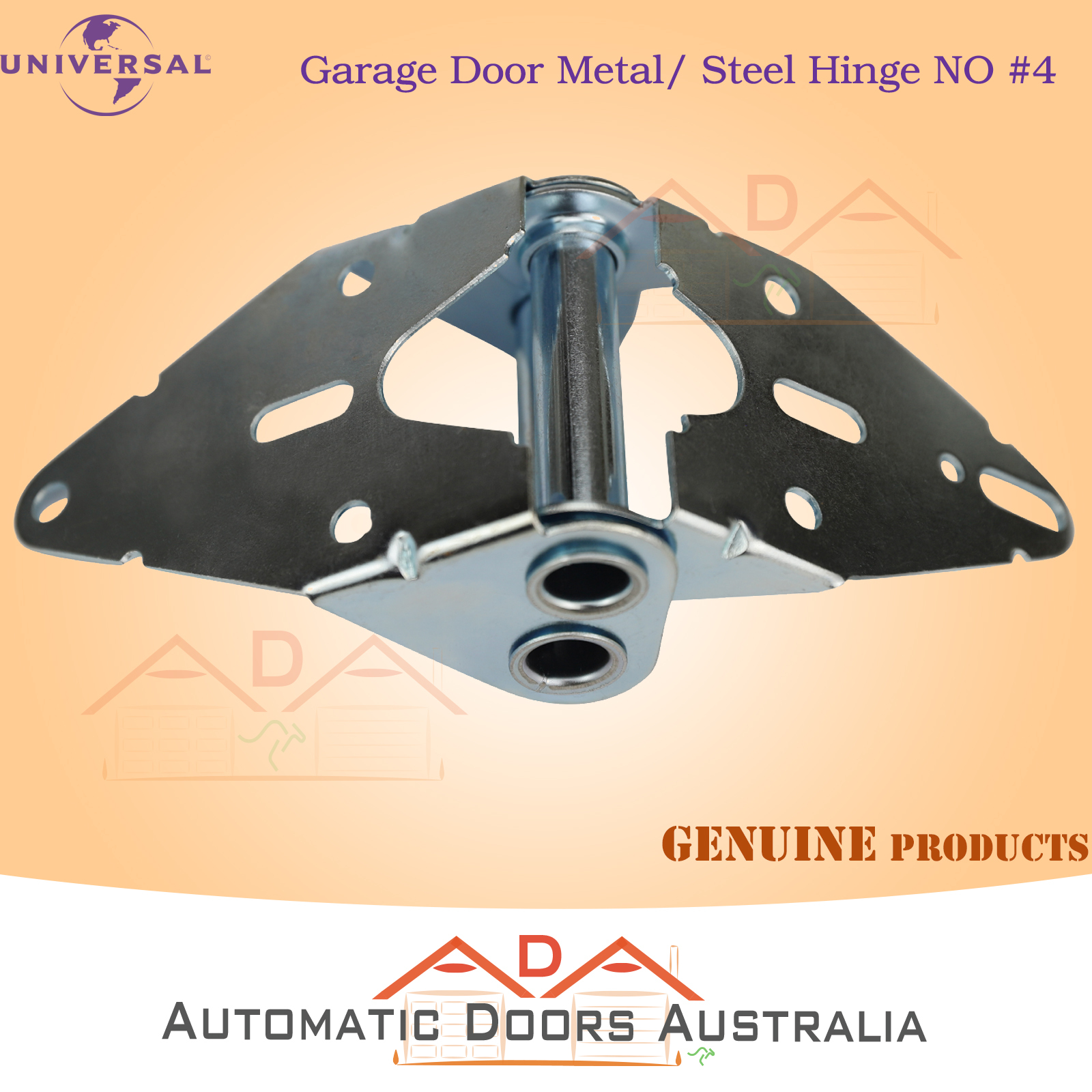

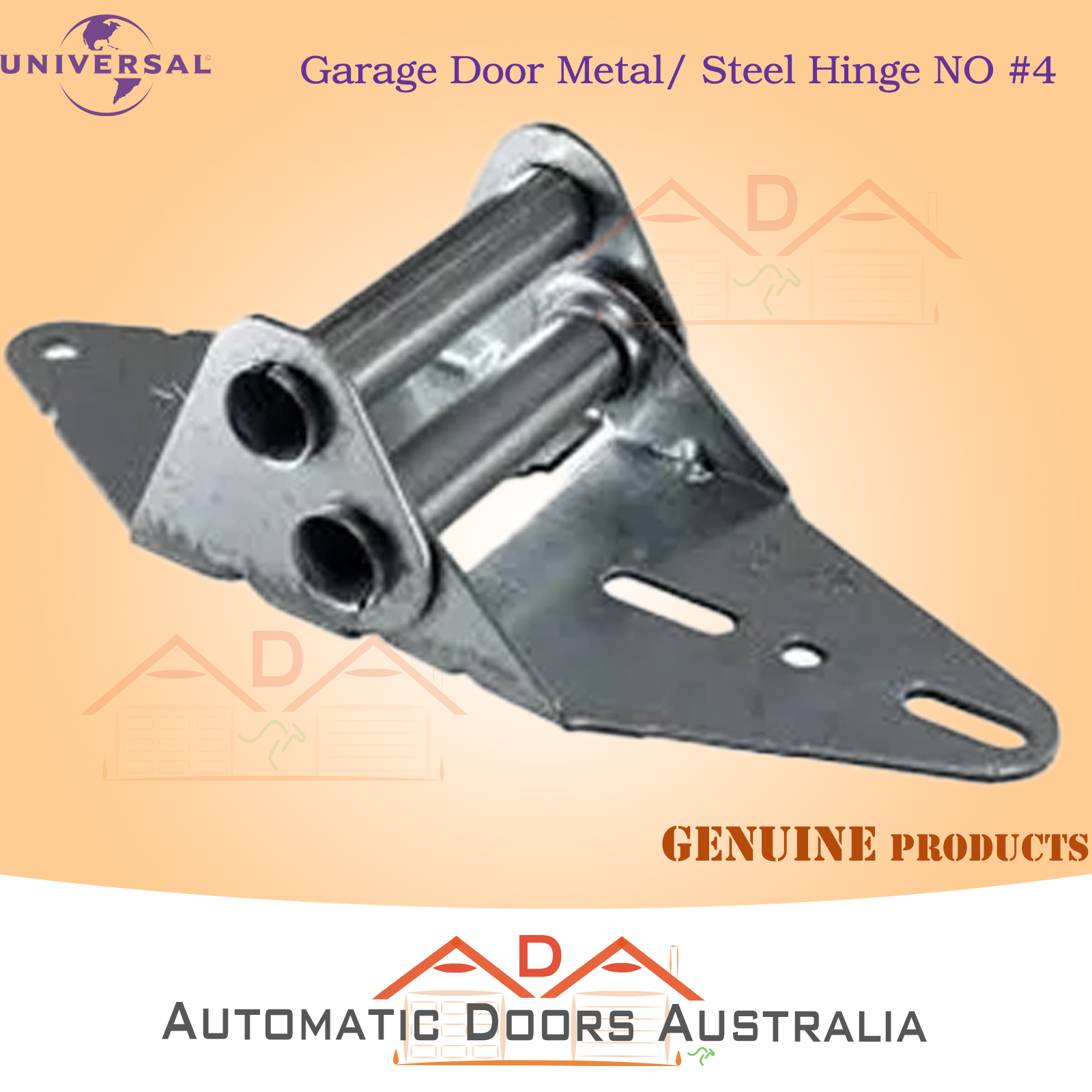

Steel Hinge 2.0mm Standard – No.4 for Sectional Garage Doors //x2//Dual Pack //
Free Standard Delivery Australia-wide only
- #4 Steel Hinge x2
Warranty - 01 year manufacturer's warranty (This warranty covers failure due to manufacturer's fault)

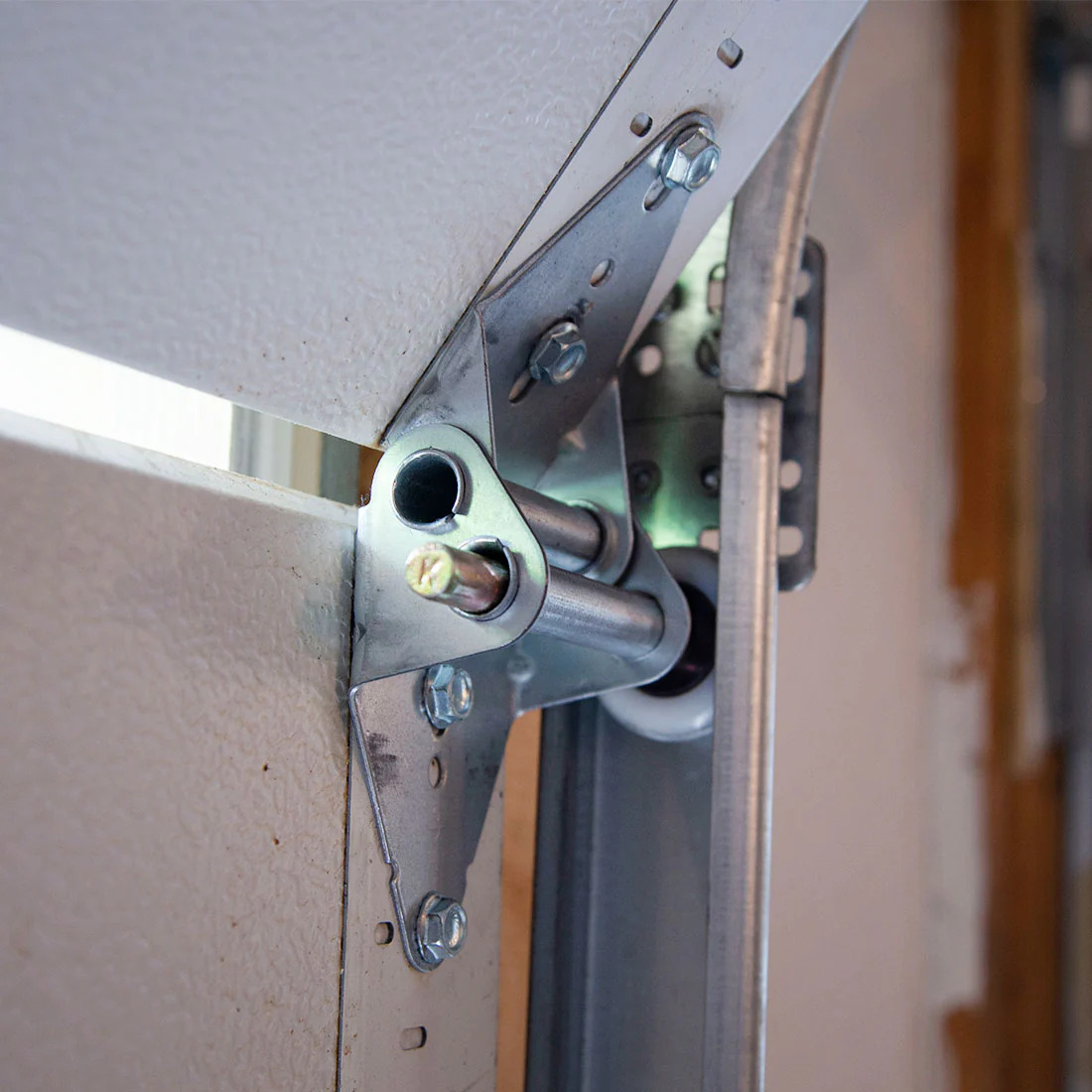

Residential #4 hinge for overhead sectional garage doors, for attaching to the fourth and fifth panels only. This hinge is only required on residential sectional garage doors 5 panels or higher. The floating roller shaft is inserted through the center of the hinge, and the hinge is easily attached to the door using metal Tek fixing screws. Can be used on single track and double track (low headroom) residential sectional garage doors.
Universal sectional garage door hinge suitable for most pre-fingersafe sectional & panelift garage doors.
Dimensions: 185mm long x 70mm wide
Also a suitable direct replacement for obsolete CSI hinges as below
The hinge number is usually engraved on your existing hinge or you can work it out by counting which panel it is on, listed from the bottom of the door (panel 1 ) upwards. The middle hinges are always number 1’s.
We have a range of 6 different hinges available:
#1, #2, #3, #4, #5 and the adjustable top hinge made from heavy duty steel
Select the hinge that suits your application
Instructions on how to order your hinge:
Garage door hinges are identified by location on the door they may also be stamped with a number. Usually, the hinges in the center of the door are always #1 and have a single sleeve.
The hinges between the 2nd and 3rd panels will be #2 hinges. Those between the 3rd and 4th panels will be #3 hinges, and so on.
