Steel-line Nylon Hinge #3 for Sectional Doors
Steel-Line Nylon Hinge No -4 x 2

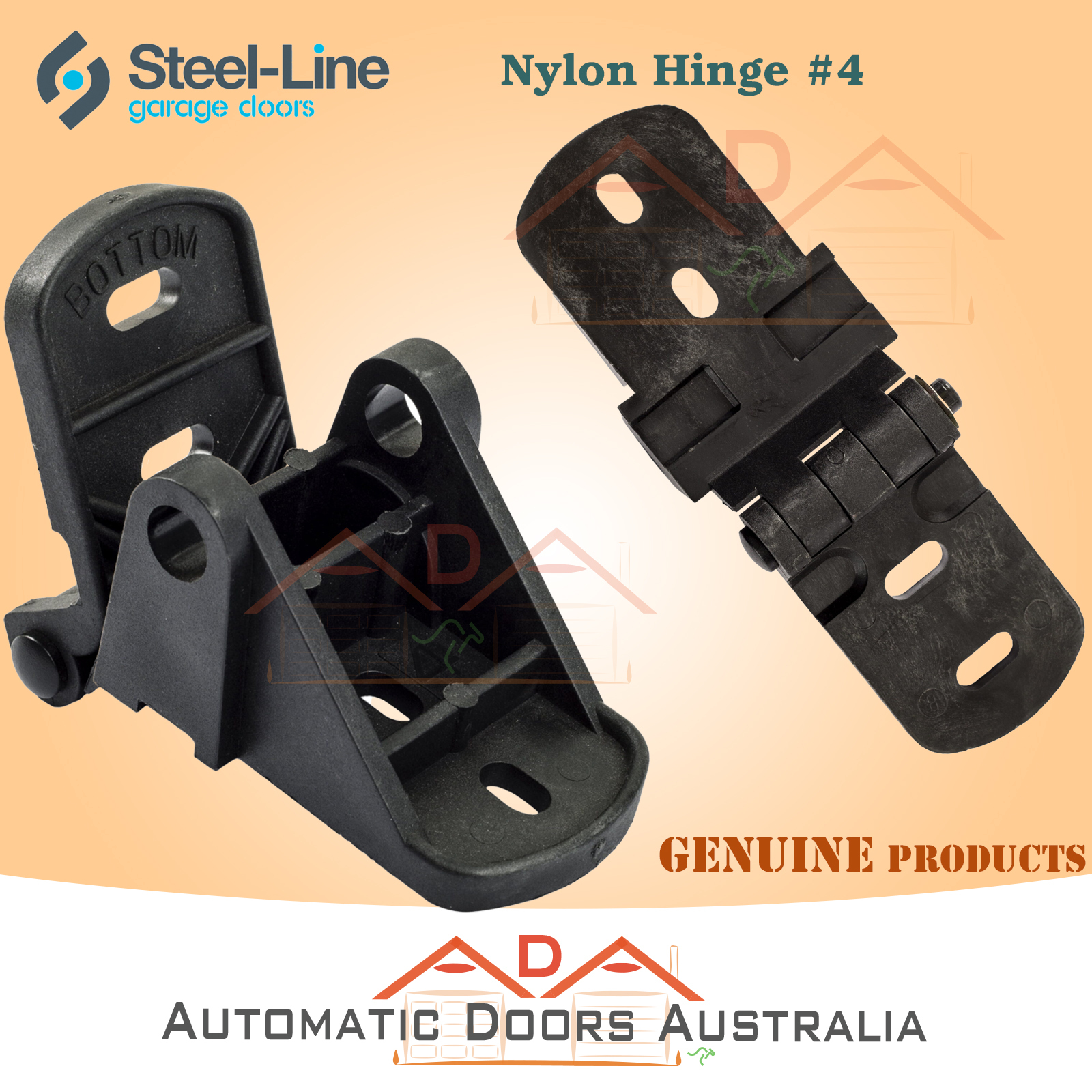

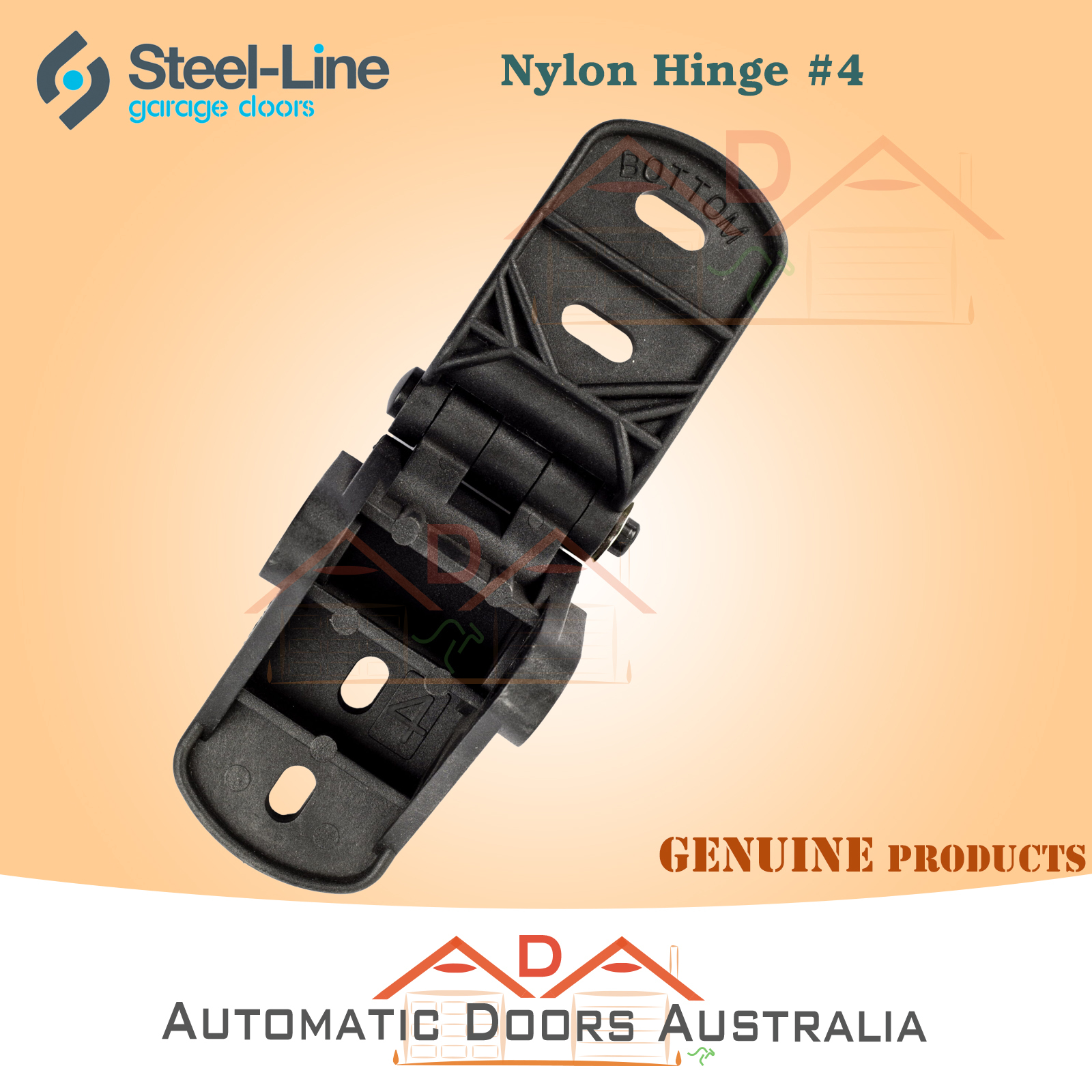

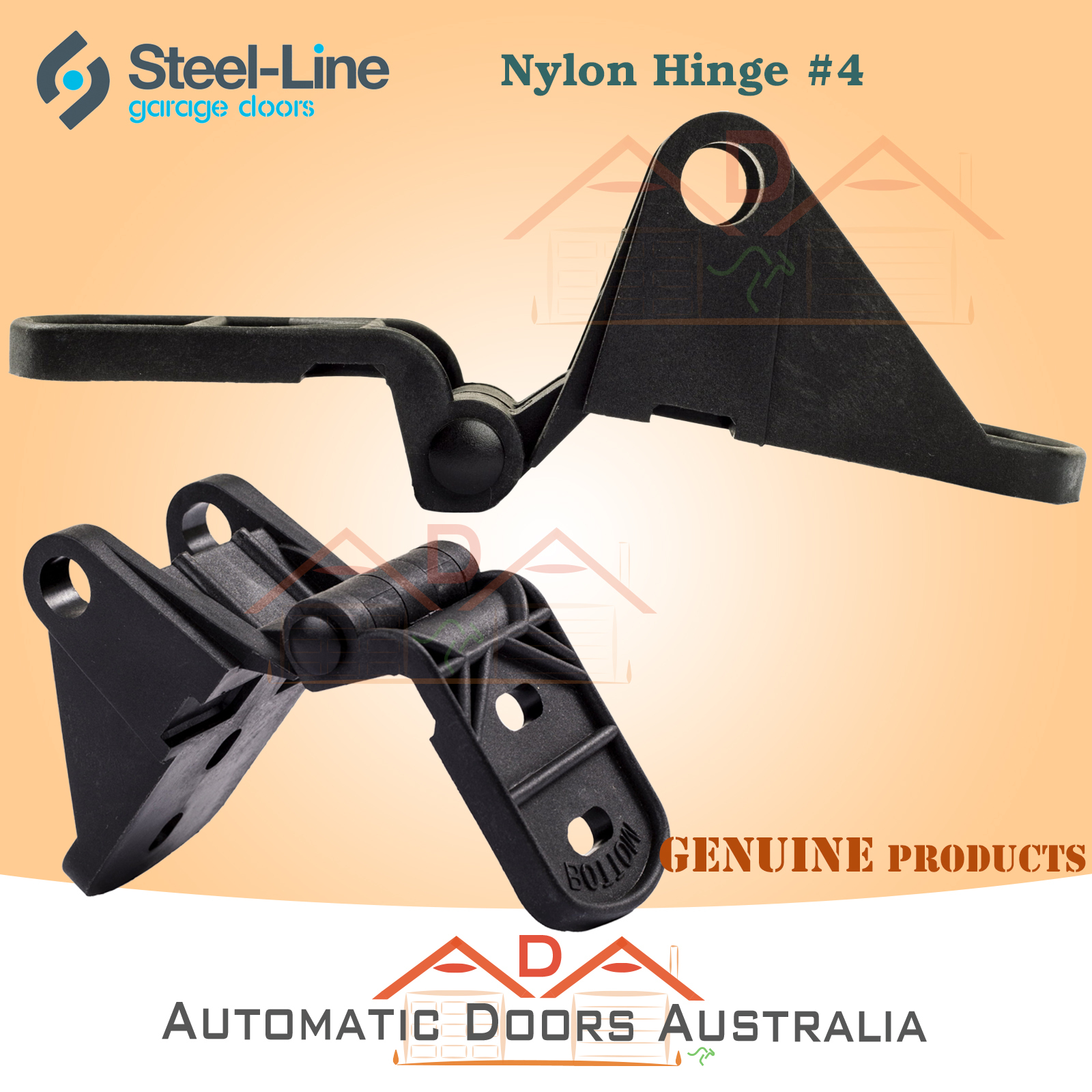

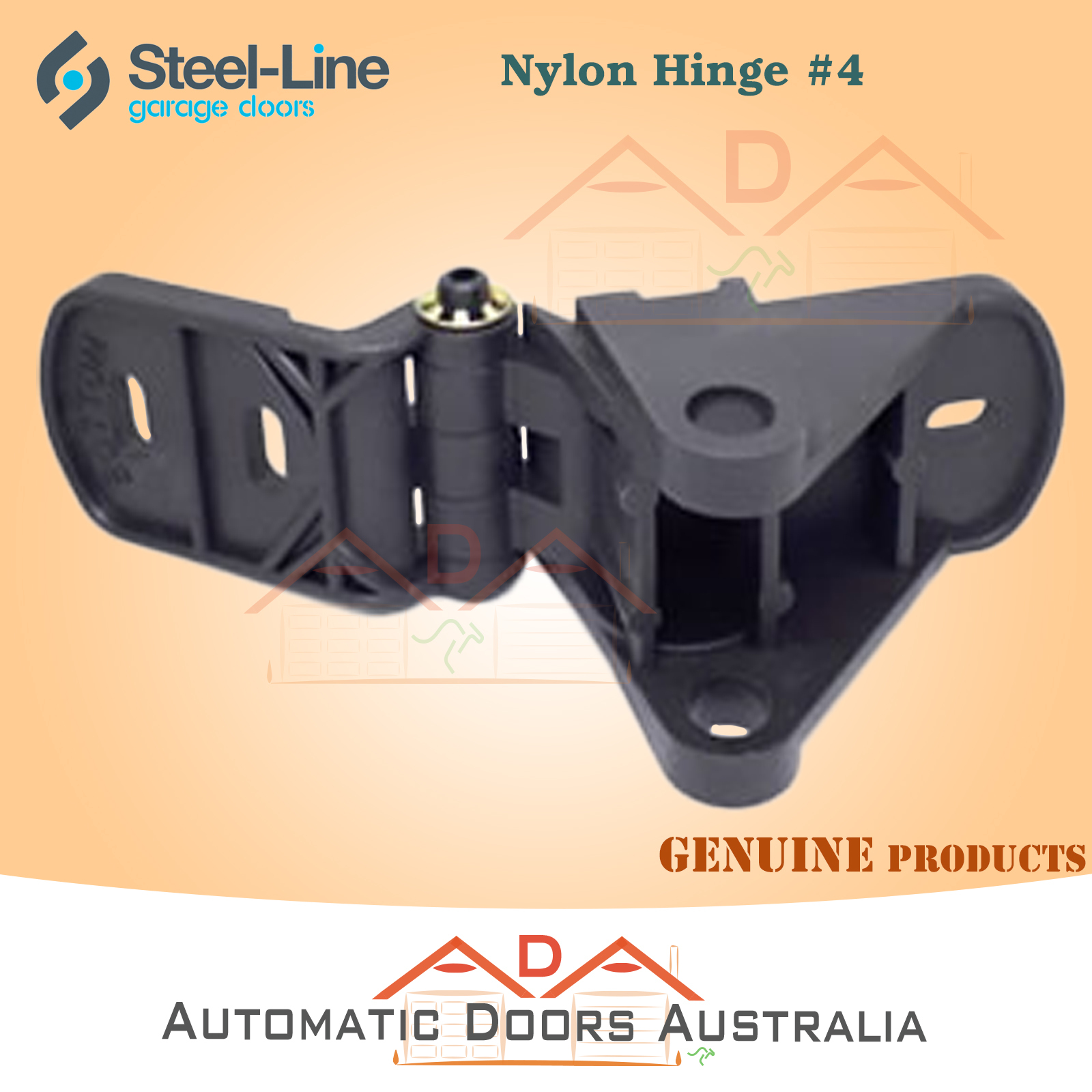

Steel-line Nylon Hinge #4 for Sectional Doors //Dual Pack //
Free Standard Delivery Australia-wide only
- Steel-Line Nylon Hinge No -4 x 2
Warranty - 03-Months manufacturer's warranty (This warranty covers failure due to manufacturer's fault)
Number 4 nylon hinge to suit Steel-Line Sectional Garage Door. Hinges will be numbered 1 to 4 from the bottom to the top of the door. If your hinge is stamped “4” this will replace the hinge used to join the 4th panel and the 5th panel.
Replacement hinge to suit earlier Steel-Line garage doors.
These hinges are embossed with a number according to which panel they came from (usually 1, 2, 3 or 4)
The number 1 hinge is used to house the roller and join the bottom panel to the second panel
It is important to select the correct number hinge as although they look the same at first glance the hole centers for the roller shaft will change by 5-6mm between each panel so fitting the incorrect hinge will cause your door to bind or scrape along the face.
Dimensions: 160mm long x 55mm wide
When ordering online, Identify the hinge number you require or combination of hinge numbers.
Hinges will be numbered 1 to 4 from bottom to the top of the door. There is also a middle hinge that has no number stamped on it, referred to as an ‘Intermediate’ hinge. If your hinge is stamped “4” this will replace the hinge used to join the 4th panel and the 5th panel. Please note that the hinges are not interchangeable with one another, i.e. Hinge #1 will not suit #3 hinges.
Garage door hinges are the hinges that connect the sections of your garage door together, allowing the sections to navigate along the rounded portions of garage door track. Standard garage door hinges are manufactured utilizing galvanized steel or hardened nylon, produced in a variety of styles, shapes, and gauges to accommodate the overall dimensions of the door.
Most of the time all, of the hinges in the centre of the door are #1 hinges. The hinges on the edge of the garage door that hold the rollers are numbered. The hinges between the bottom panel and the second panel are #1 hinges. Between the second and third panel are #2 hinges. The hinges between the third panel and fourth panel are #3 hinges and #4 hinges
