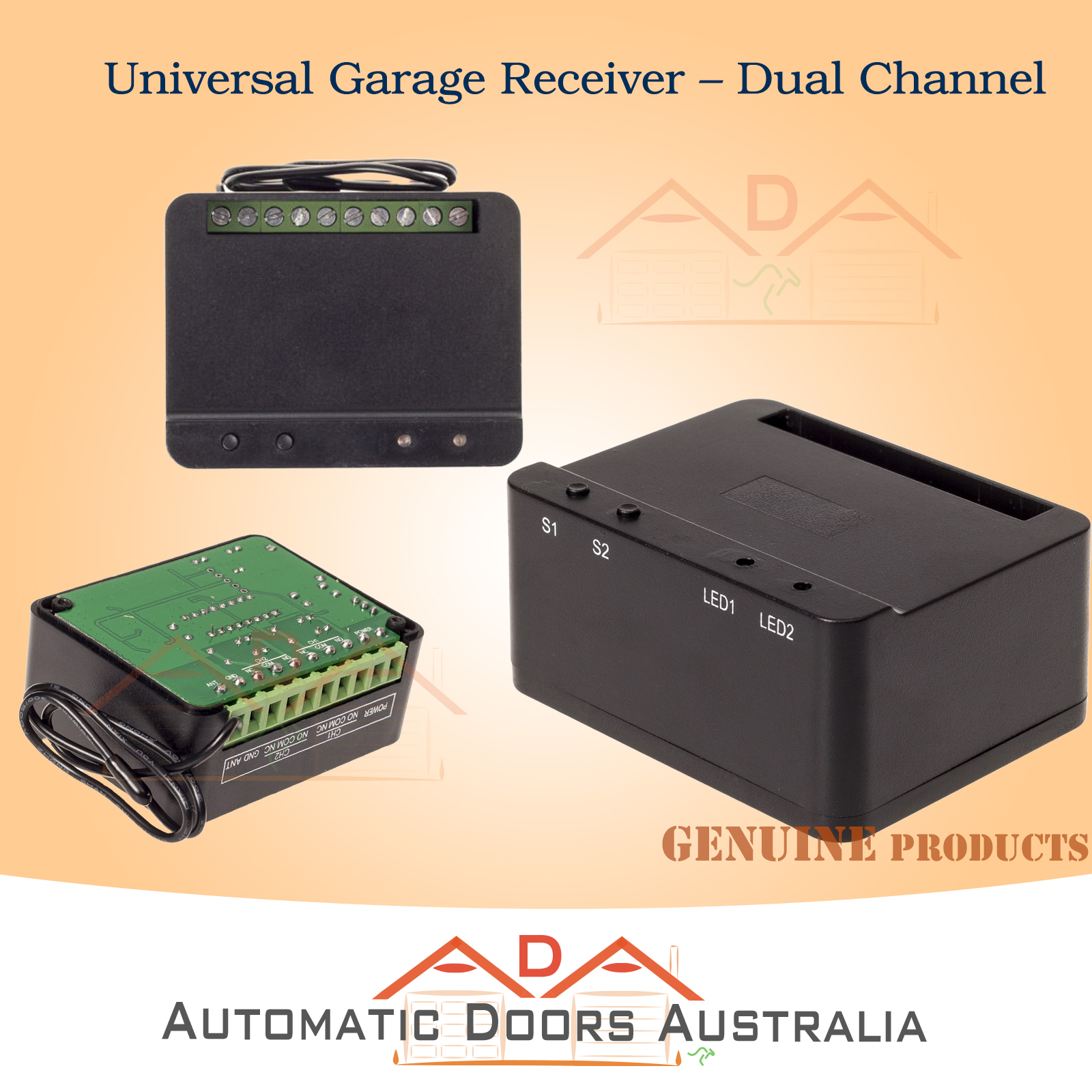

Universal Garage Receiver – Dual Channel

Free Standard Delivery Australia-wide only

Incudes

• Genuine Auto Openers Dual Channel Receiver
• Insrctions

https://www.ada-aust.com/assets/files/Auto-Openers-Universal-Receiver-2021.pdf

https://www.ada-aust.com/assets/files/Auto-Openers-Universal-Receiver-Wiring-Guides-Dip-Setting.pdf

Warranty -  01 year manufacturer's warranty

 Features

The Universal Garage Receiver is a dual channel receiver, with the ability to mimic any of Australia’s major garage door brands. As an add-on receiver, you can wire this into any garage door or gate motor that has accessory terminals and control your opener with a new series remote controls, without affecting your openers original remote controls. You can easily select the brand you wish the Auto Openers Universal Garage Receiver to work with by opening the rear of the case and toggling switches to a particular setting.

For example, if you wanted the Universal Garage Receiver to work with ATA’s PTX4 remote controls, you would push switch 5 up, or to ‘on’. Once switch 5 had been pushed up, the Universal Receiver would function exactly the same as ATA’s CRX2 PTX4 receiver.

Compatibility

The Auto Openers’ Universal Garage Receiver is compatible with over 16 different rolling code & fixed code remote encryptions. By changing the dipswitch code inside the receiver you can easily select what brand of remote controls your want this receiver to operate.

We have wiring diagrams available upon request for common Australian brand openers (ATA, Auto Openers, Merlin, B&D). However, if your motor is an overseas import we may not have a wiring diagram available.

Please see below for a list of compatible remotes.

Note- SELECT  12V OR 24V AC OR DC VIA JUMPER PINS LOCATED NEXT TO THE POWER TERMINALS PRONGS 1&2 = 12 V PRONGS 2&3 = 24V

433MHz Rolling Codes

• ATA PTX4
• ATA PTX5
• B&D TB5
• Merlin Security+ (“C” Series)
• Aprimatic
• BFT Mitto
• DEAA
• Doorhan
• Ditec
• FAAC (Genuine remotes only, some aftermarket remotes do not work)
• CAME
• NICE FLOR-s (Genuine remotes only, some aftermarket remotes do not work)
• Herculift
• Marantec
• Superlift / Avanti

315MHz Rolling Codes

• Gliderol TM305c

315MHz Fixed Codes

• Ditec A
• Ditec B

868MHz Rolling Codes

• Marantec A
• Marantec B
• Hormann
• Berner
• 4D Doors

Generic Codes

Some remote controls or manufacturers share an unnamed code that can operate across multiple brands. As we identify what brands this receiver can suit, we will update the above list as well as the instructions. However, the receiver can program itself to below frequencies to detect generic codes for use:

• 300MHz Fixed Code
• 318Hz Fixed Code
• 330MHz Fixed Code

Programming

• Select the brand name & set 8 x DIP switch to suit
• Press CH1 or CH2 learn Button Press button on remote LED flaches 4 Times 3-4 seconds
• Repeat 2 for additional remotes

Set the DIP Switches

• ATA PTX-5 = 3 ON
• B&DTRI-TRAN = 3 ON
• ON MELIN '+' = 3 -7 ON
• BFT MITTO = 5 ON
• NICE SMILO = 5 ON
• SEIP 433 = 5 ON
• MHOUSE = 5 ON
• ATA PTX 4 = 5 ON
• HERCULIFT = 5 ON
• AVANTI - CENTURION-SUPERLIFT = 5 ON
• GLIDEROL TM305C - 4 ON
• FAAC 433 = 6-8 ON
• FAAC 868 = 4-5-6-7 ON
• MARANTEC 433 = 6-8  ON
• MARANTEC 868 - 7-8 ON
• NICE ERA INTI 2 -FLOR-S1,2 &4 = 8 ON
• UNIVERSAL 390 = 5-6-7 ON
• UNIVERSAL 300 = 5-8 ON
• UNIVERSAL 310 = 5-7 ON
• UNIVERSAL 318 = 5-6 ON
• UNIVERSAL 330 = 5-6-8 ON
• UNIVERSAL 433 = 6 ON
