ATA & B&D Plug-In Receiver - TrioCode / Tri-Tran (32-Bit)

ATA & B&D Plug-In Receiver only - TrioCode / Tri-Tran (32-Bit) + HARNES

Free Standard Delivery Australia-wide only

Includes

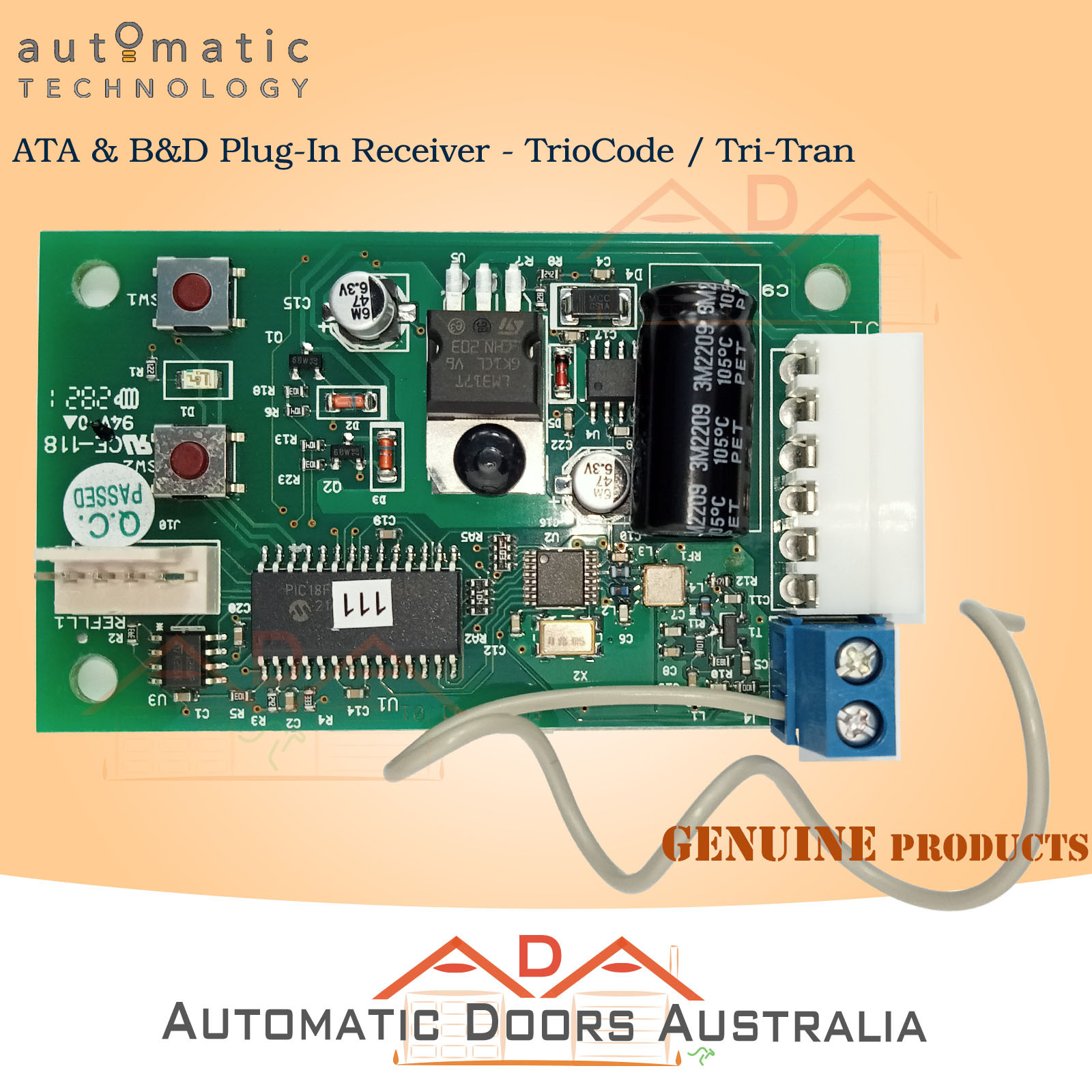

1 x ATA PLUG-IN RECEIVER only

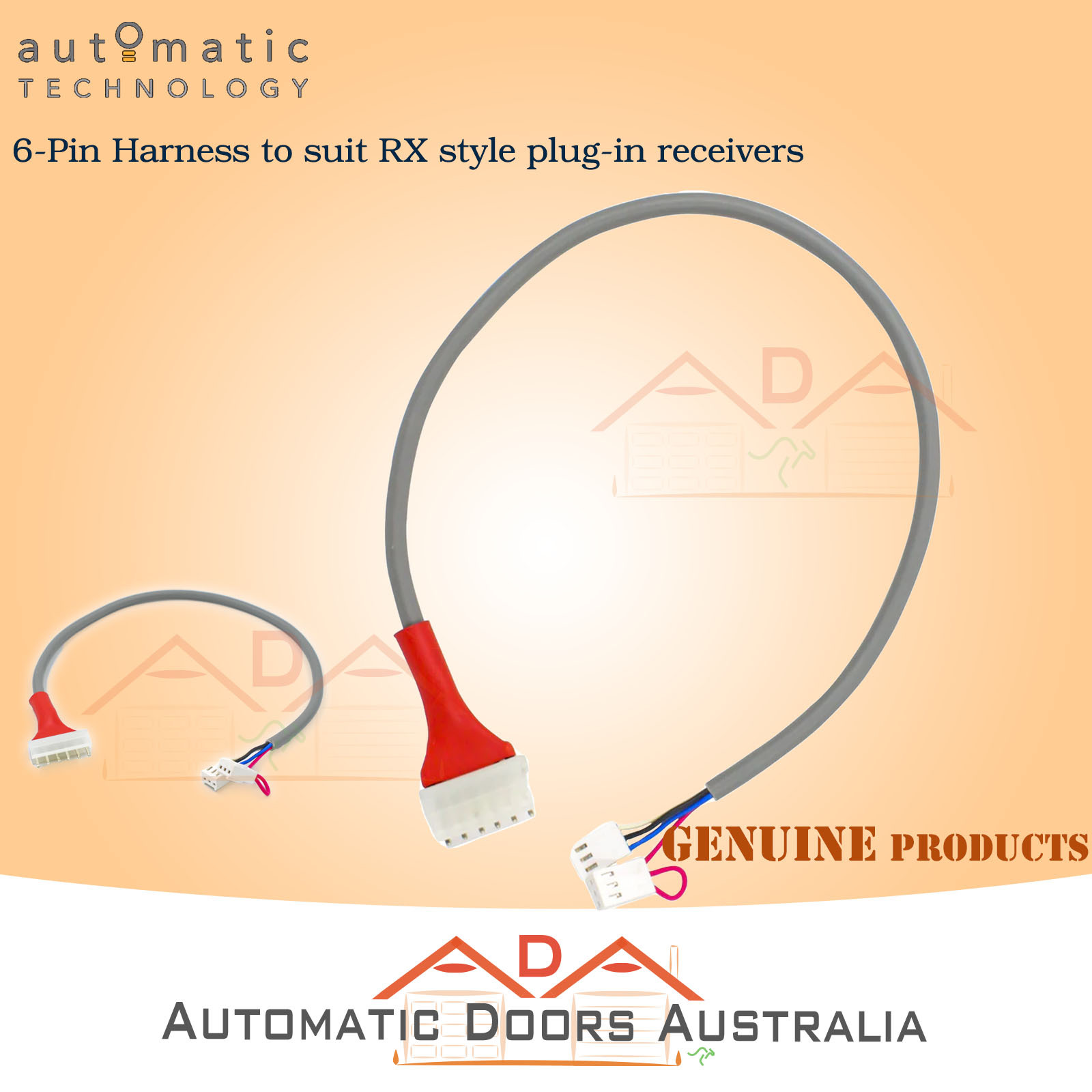

1 x wire harness

Instructions-

https://www.ada-aust.com/assets/files/RX-2-Instructions(1).pdf

Warranty - 01 year manufacturer's warranty

Specifications

2 Channel
Input Power - 9-24V DC ONLY
Connection Type - 6-pin Plug (included)
Output Channels - 2 x Open Collector (Sink 50mA Max)
Relay Operating Modes - Pulse
Relay Rating - n/a
Transmitter Memory - 250
Transmitter Types - TrioCode™ & Tri-Tran®
PG-3 Compatible - Yes
Antenna Length - 170mm
Co-Axial Antenna Terminal - Y

Compatibility

ATA PTX-5v2 TrioCode™128 4-Button Transmitter - Grey
ATA PTX-5v1 TrioCode™ 4-Button Transmitter - Orange / Pink Buttons
ATA WTX-4v2 TrioCode™128 4-Button Wall Mount Transmitter
ATA WTX-4v1 TrioCode™ 4-Button Wall Mount Transmitter
ATA PTX-2v2 TrioCode™128 2-Button Water Resistant Transmitter
ATA PTX-2v1 TrioCode™ 2-Button Water Resistant Transmitter
ATA EAT-2v2 Easy Access Transmitter - TrioCode™128
ATA EAT-2v1 Easy Access Transmitter - TrioCode™
ATA KPX-7v2 Wireless Keypad - TrioCode™128
ATA KPX-7 Wireless Keypad - TrioCode™
ATA KPX-6 Wireless Keypad - TrioCode™
B&D TB-6 Premium Transmitter (Red)
B&D TB-6 Premium Transmitter (Black)
B&D WTB-6 Wall Mount Transmitter
B&D TB-5v2 Transmitter
B&D TB-5v1 Transmitter
B&D KPX-7v2 Wireless Keypad

Please Note

TrioCode™/Tri-Tran™ receivers are compatible with both TrioCode™/Tri-Tran™ and TrioCode™128/Tri-Tran+™ transmitters
This receiver can have either TrioCode™128 and TrioCode™ or Tri-Tran™ and Tri-Tran+™ coded into it. This is on a ''first in'' basis only, i.e. if a TrioCode™ or TrioCode™128 transmitter is first coded into this receiver a Tri-Tran™ or Tri-Tran+™ can not, and vice versa
TrioCode™128 and Tri-Tran+™ technology transmitters are backward compatible with existing TrioCode™ and Tri-Tran™ openers (e.g. with blue or green aerial). Thus, TrioCode™128 and TriTran+™ transmitters can be coded into TrioCode™ and Tri-Tran™ openers. However, original TriCode™ and Tri-Tran™ transmitters are not forward compatible with TrioCode™128 and Tri-Tran+™ openers

(ATA_PLUG-INRCV_-HNS)

SKU	ATA_PLUG-INRCV_-HNS
Brand	ATA Automatic Technology Australia
Shipping Weight	0.0260kg
Shipping Width	0.060m
Shipping Height	0.020m
Shipping Length	0.090m
Shipping Cubic	0.000108000m3
