Listing Includes:


1 x ATS-2 TEMPO Powerhead
1 x ATA Steel Belt rail

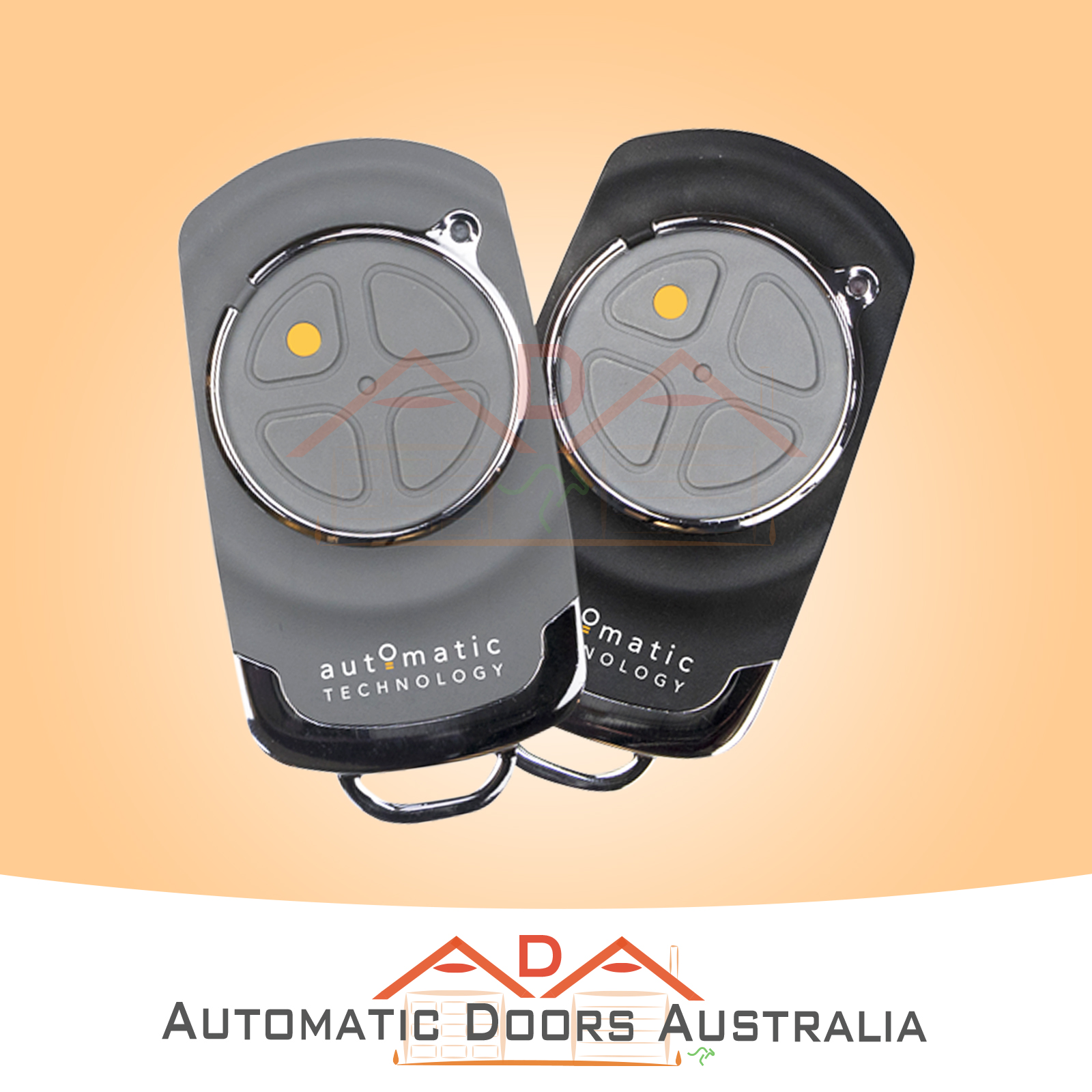

2 x PTX-6v1 Transmitters (1 x Black, 1 x Grey)

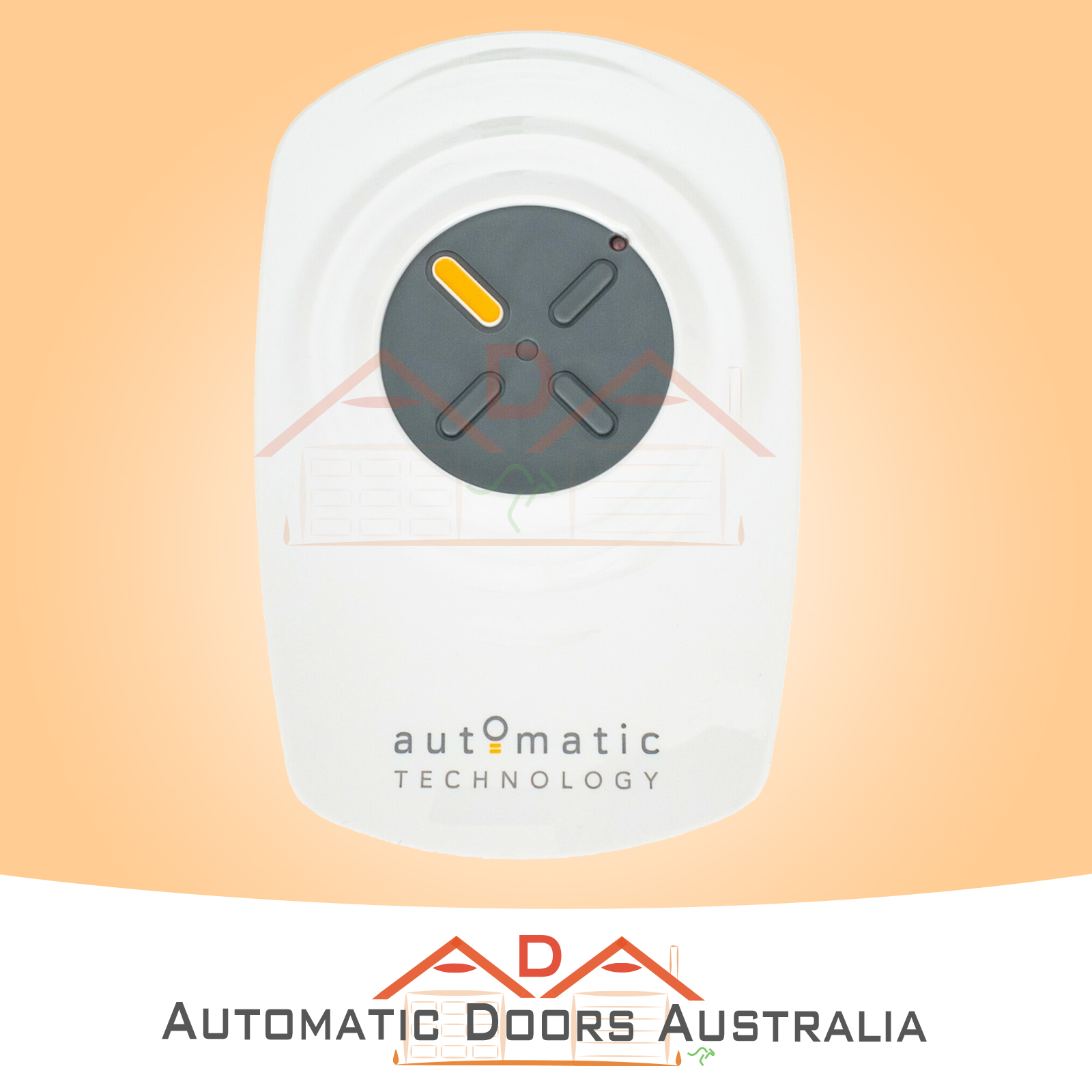

1 x WTX-6v1 Wall Button Transmitter
1 x Mounting Hardware
1 x Instruction Manual


Warranty:


NOW WITH 7-YEAR/20,000 CYCLE WARRANTY


Description:

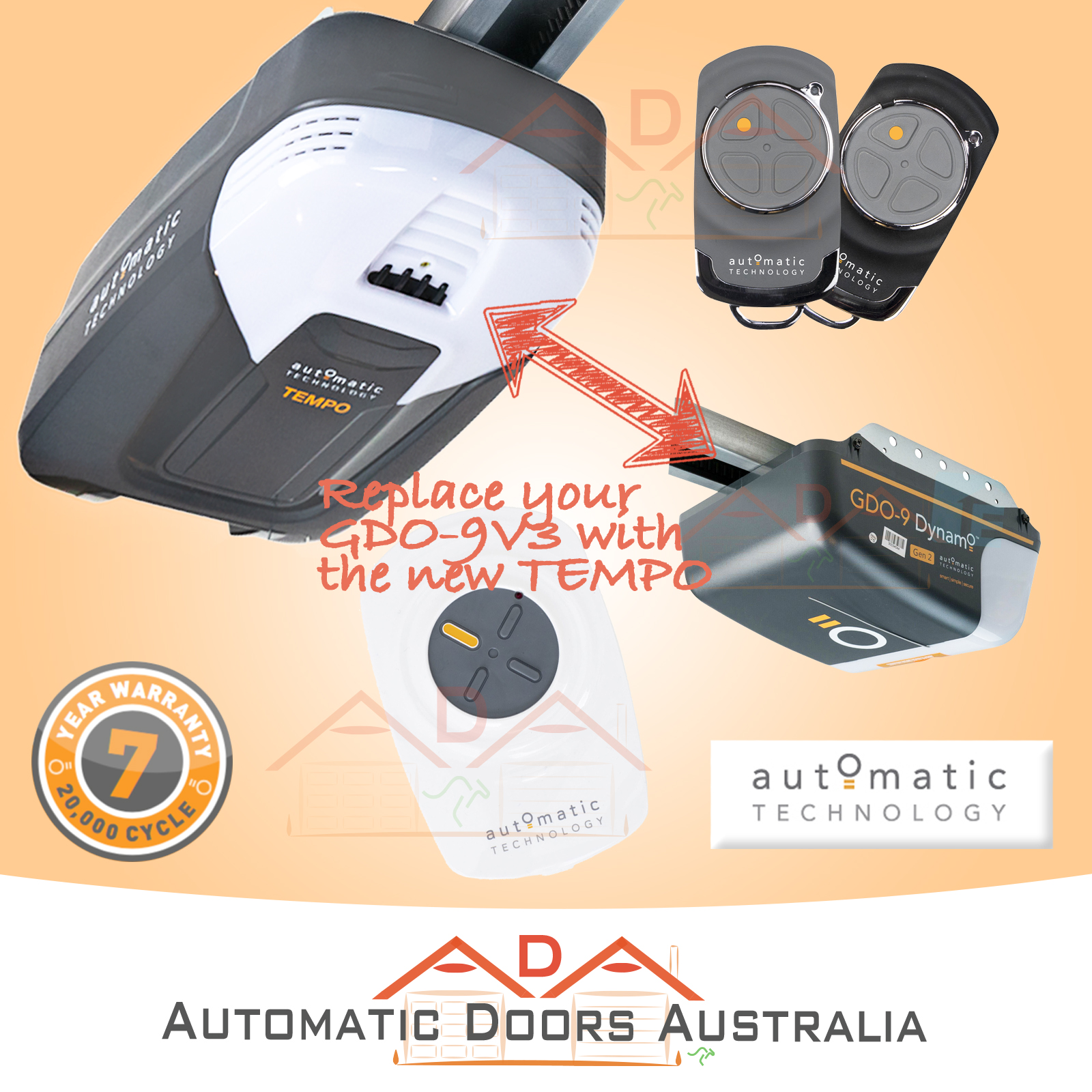

The predecessor to the GDO-9v3 is a proven performer offering basic, no fuss functionality. It operates rolling doors up to 200kg.


Features:


Fast Opening Speed

This motor boasts a range of opening speed options for optimal performance. A faster opening minimises the wait time. if this is important to you, chose Tempo.

Secure & Reliable Access Control

Remote controls and wall button are designed to work every time you press the button. Our patented TioCode 128 encyrption avoides interference from wireless devices within your home and prevents code grabbing.

Saftey Without Compromise

Tempo features an auto-reverse function making your home's largest moving object - the garage door, safer to operate. This model is compatible with non-contact safety beams to further protect your family, per and pssessions.

Applications

Consider Tempo if you are planning to automate a single or double sectional, tilt door, are replacing orupgrading your motor.




Specifications:


Technical Specifications

Rated voltage range:                                      230V - 240V A.C.

Rated frequency:                                            50Hz / 60Hz

Rated power input:                                        165 Watts
Door opening:
Maximum Door Area:                                     18m2
Maximum Door Weight:                                  200kg*


Door must be well balancedand able to
be operated by hand, as per warranty
conditions and AS/NZS 4505:2012

Minimum headroom                                        57mm
Rated Operating Time                                     4 mins
Rated Temp                                                    +5oC to +40oC
Short Term Peak force:                                    1100N
Rated load                                                       400N
Nominal force                                                  200N (20kg)
Receiver type                                                   Muti-frquency UHF FM
                                                                       (433.47, 433.92 & 434.36MHz)
Receiver code storage capacity                        64 x 4-button Transmitters
Transmitter battery                                         CR2032 (3 Volts)
Main Light                                                       LED (Light Emitting Diodes)
Network connectivity                                       Network compatible, (requires optional Smart Phone Control Kit)






(ATATEMPOATS-2)

SKU ATATEMPOATS-2
Brand ATA Automatic Technology Australia
Shipping Weight 9.5000kg
Shipping Width 0.330m
Shipping Height 0.250m
Shipping Length 0.400m
Shipping Cubic 0.033000000m3
Unit Of Measure ea
