B&D CAD SMART SDO-7 Sectional / Panel / Tilt - Garage Door opener  /// Power Head Only /// NO RAIL OR TRACK ////

Free Shipping Australia Wide


Includes:

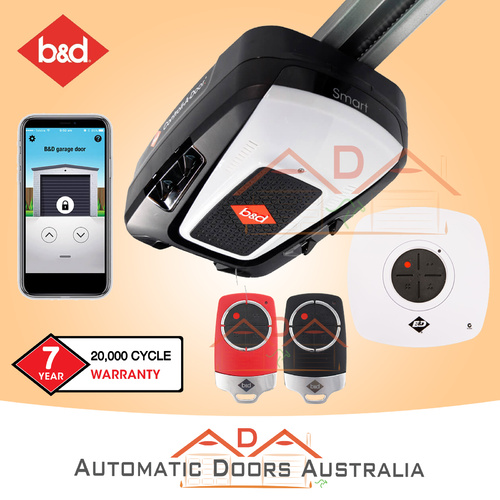

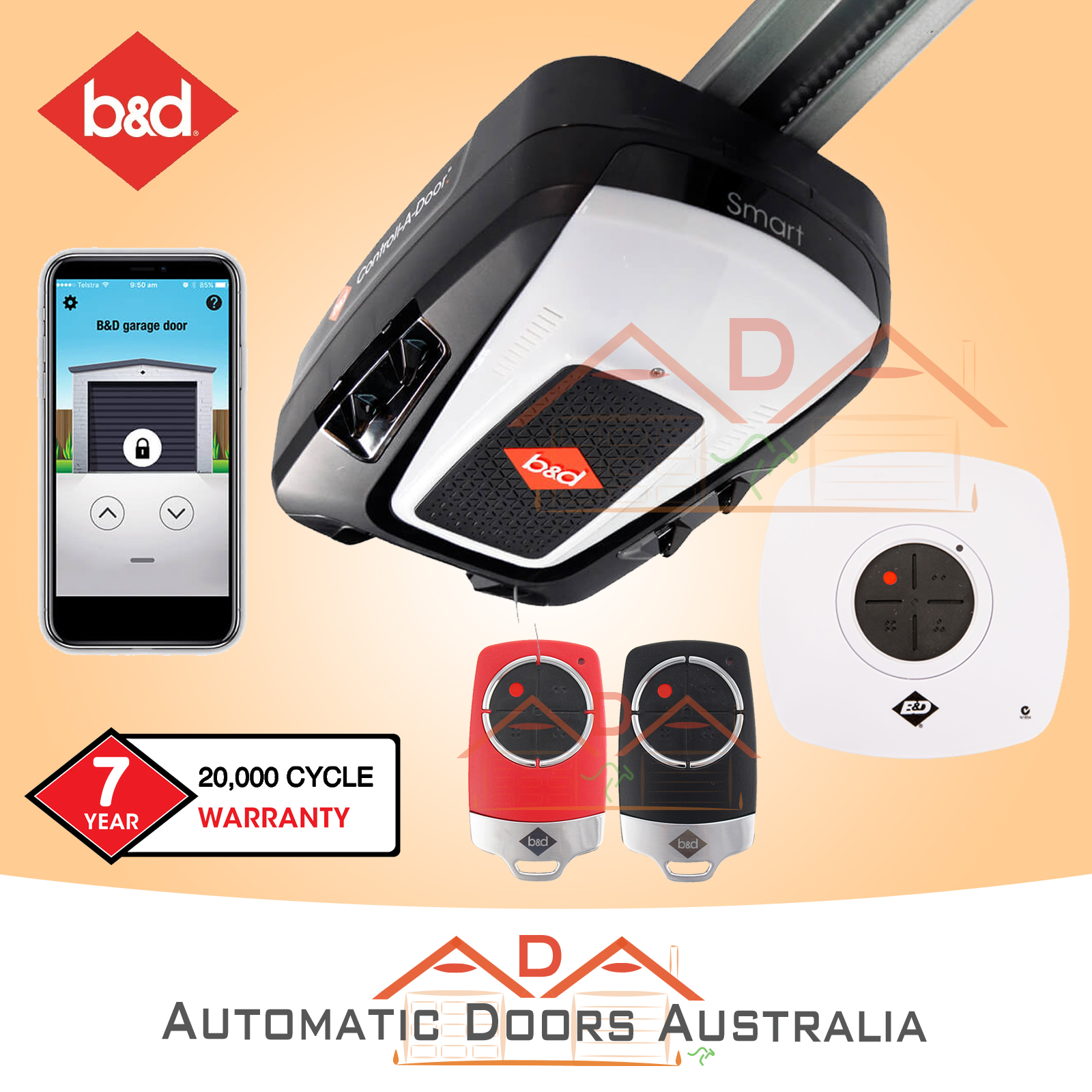

1 x SDO-7 SMART Powerhead

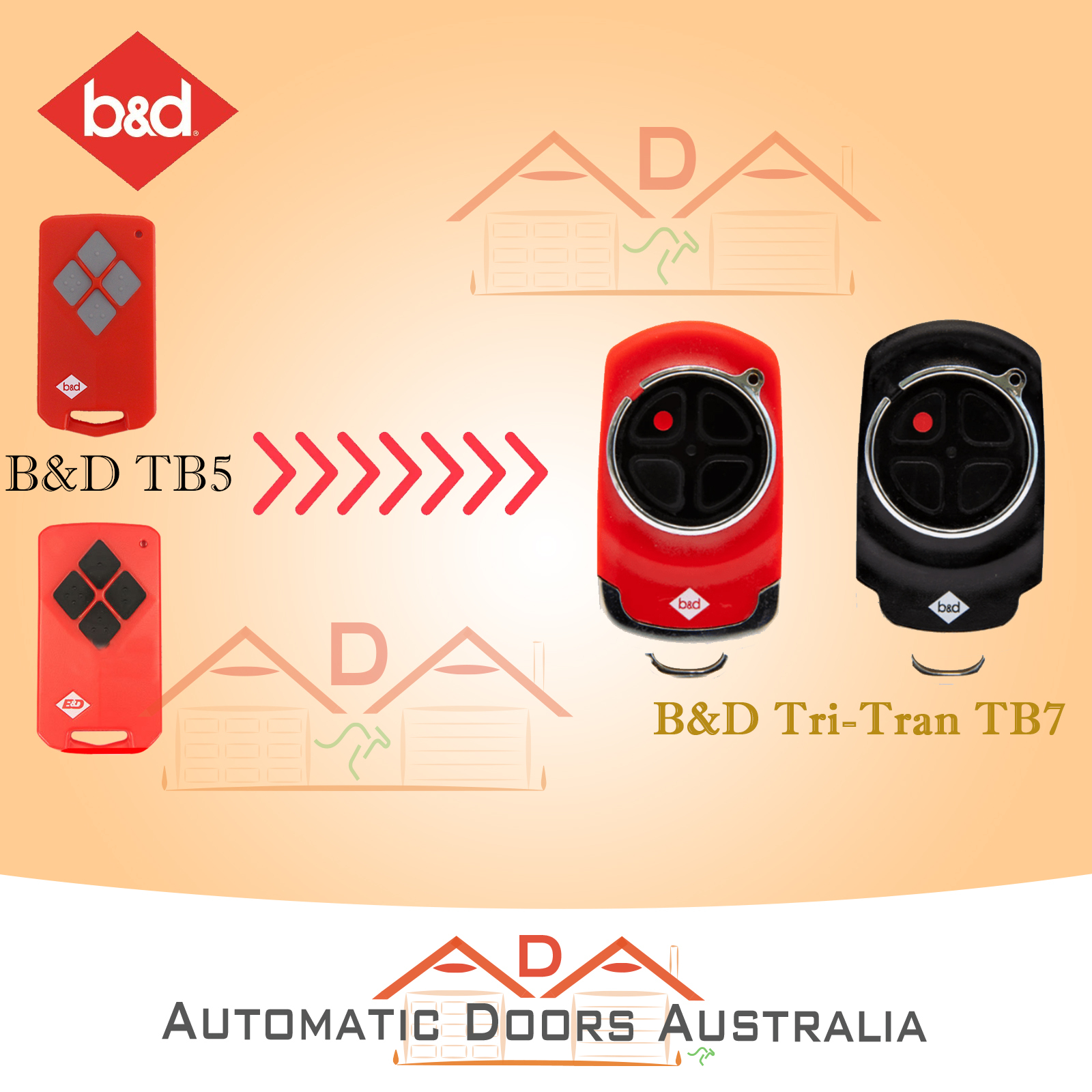

2 x TB7 Transmitters (1 x Black, 1 x Red)

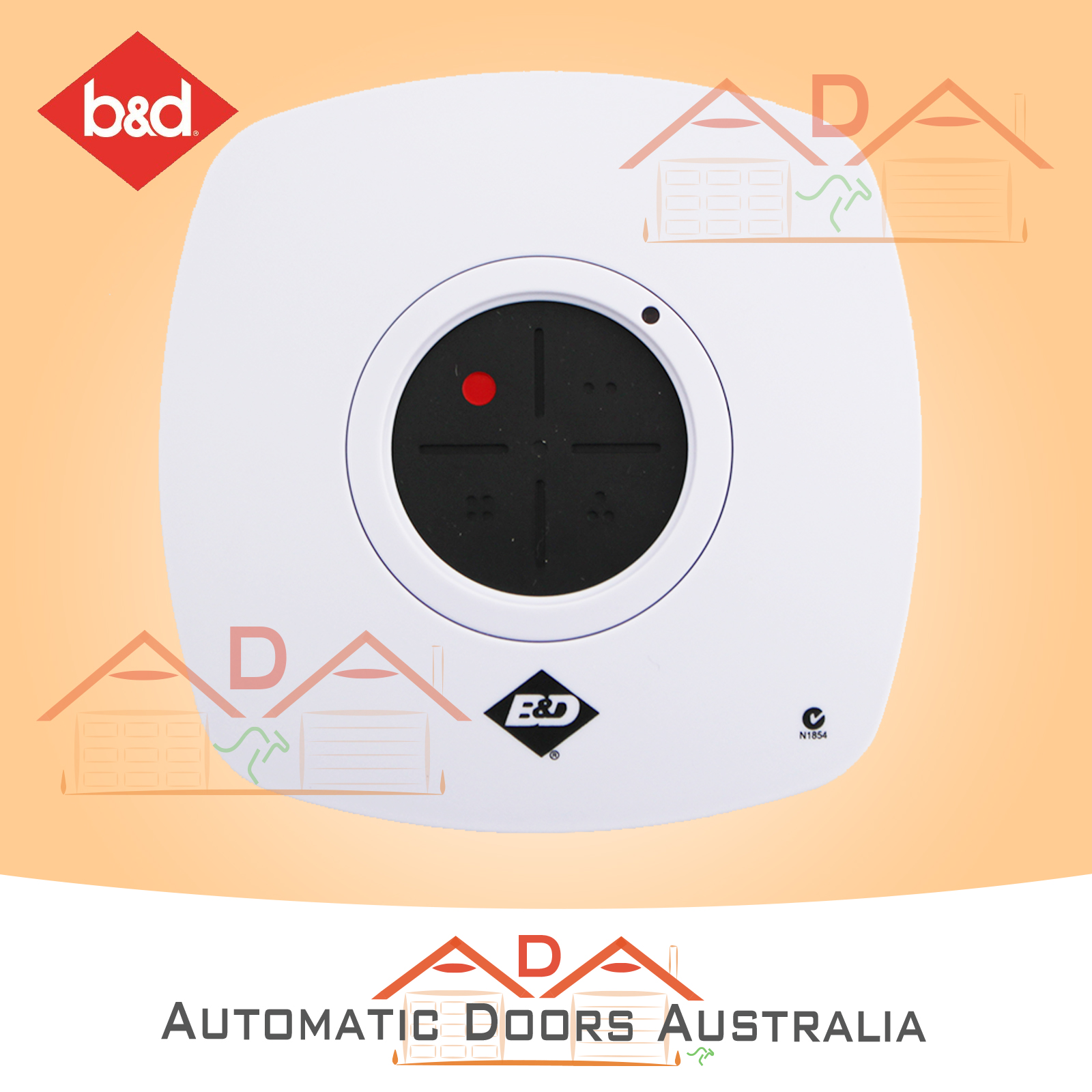

1 x WTB-8 Wall Button Transmitter
1 x Mounting Hardware
1 x Instruction Manual


Warranty: NOW WITH 7-YEAR/20,000 CYCLE WARRANTY -(This warranty covers failure due to manufacturer's fault)

NOTE - Compatible with ATA C-Rail (#100605-STEEL-BELT-RAIL) - PICK UP ONLY  or Customer has to arrange shipping . ... Pick up place - Factory 2/67-75 Garden Drive,Tullamarine VIC 3043

Description:


Controll-A-Door Smart is B&D’s new top of the range opener, designed to fit seamlessly into your life. Controll-A-Door® Smart’s intelligent technology and premium features deliver a better experience than you ever imagined. The inclusion of Smart Phone Control and Safe Lock anti-tamper system provide an exceptional level of security and safety for your garage and gives you total confidence. For complete peace of mind, Controll-A-Door® Smart can be fitted with an optional battery backup ensuring operation during a power outage.


Features:


Marketing leading sensing technlogy

Your motor is designed to resist forced entry, plus you will get real time alerts thrugh your B&D App if a break in attempt is detected.

Unique self engaging lock

Safe lock anti tamper system locks the garage door if an intruder tries to lift it.

Auto lock compatible

B&D smartkeylesstechnology automatically locks your garage door with a heavy duty bolt every time you chose it.

A smart home starts in the garage

Many families today, enter and exit their home through the garage door, relying on it as the new front door. This is why B&D Control-.A-Door Smart delivers unrivalled levels of protectionforyour garage.




Specifications:


Technical Specifictions:

Rated voltage range:                                      230V - 240V A.C.

Rated frequency:                                            50Hz / 60Hz

Rated power input:                                        225 Watts
Door opening:
Maximum Door Area:                                     18m2
Maximum Door Weight:                                  236kg*


Door must be well balancedand able to
be operated by hand, as per warranty
conditions and AS/NZS 4505:2012

Minimum headroom                                        57mm
Rated Operating Time                                     4 mins
Rated Temp                                                    +5oC to +40o
Short Term Peak force:                                    1100N
Door tavel speed (mm/sec)                              180mm
Rated load                                                       400N
Nominal force                                                  200N (20kg)
Receiver type                                                   Muti-frquency UHF FM
                                                                       (433.47, 433.92 & 434.36MHz)
Receiver code storage capacity                        64 x 4-button Transmitters
Transmitter battery                                         CR2032 (3 Volts)
Main Light                                                       LED (Light Emitting Diodes)
Network connectivity                                       Network ready (Smart hub already installed)




(B-DSMARTSDO-7)

SKU B-DSMARTSDO-7
Brand B&D
Shipping Weight 9.5000kg
Shipping Width 0.330m
Shipping Height 0.250m
Shipping Length 0.400m
Shipping Cubic 0.033000000m3
Unit Of Measure ea
