Listing Includes:

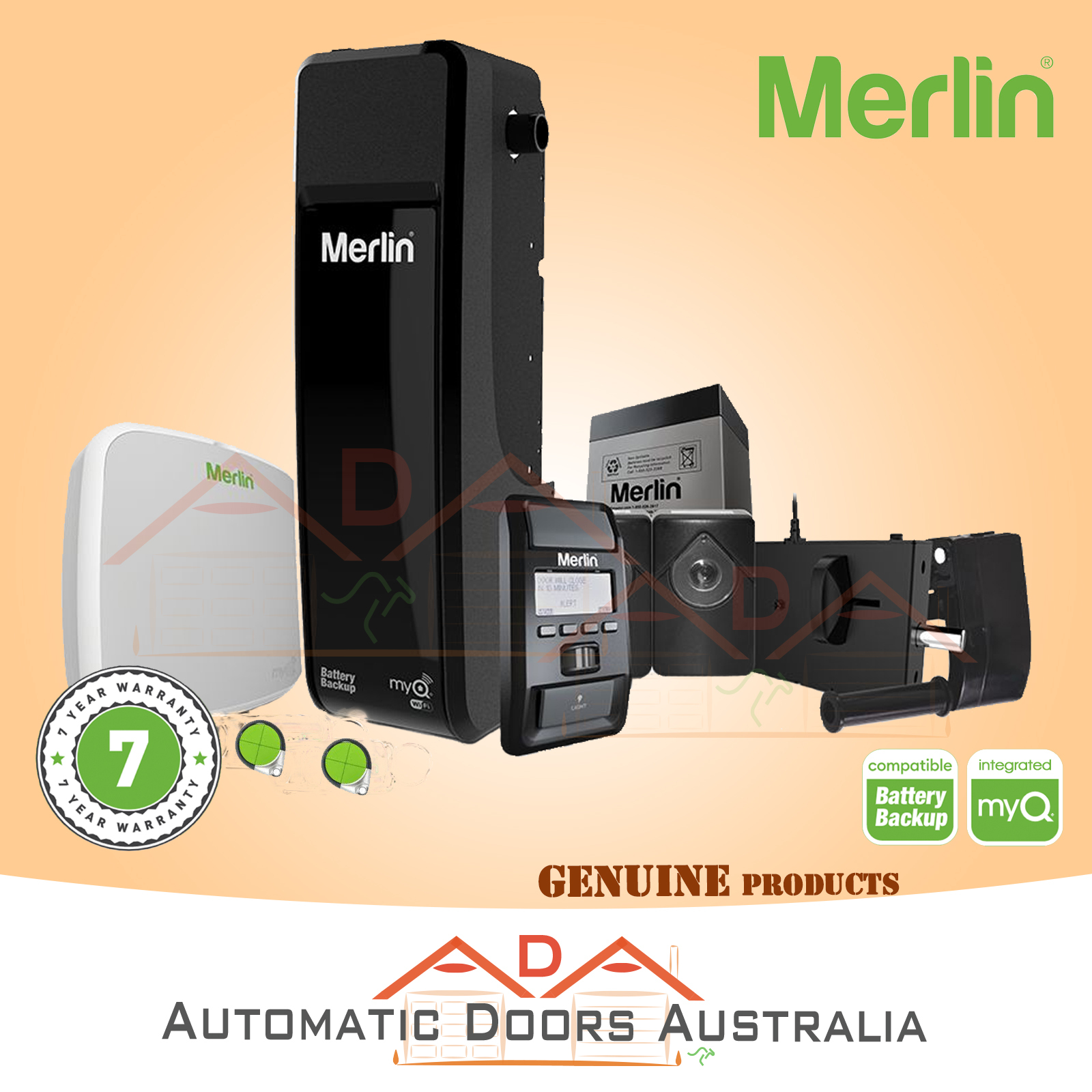

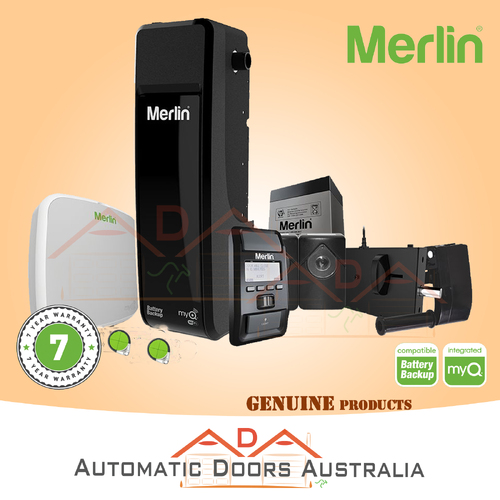

1x Merlin “Commander Ultimate” MJ3800MYQ Garage Door Opener

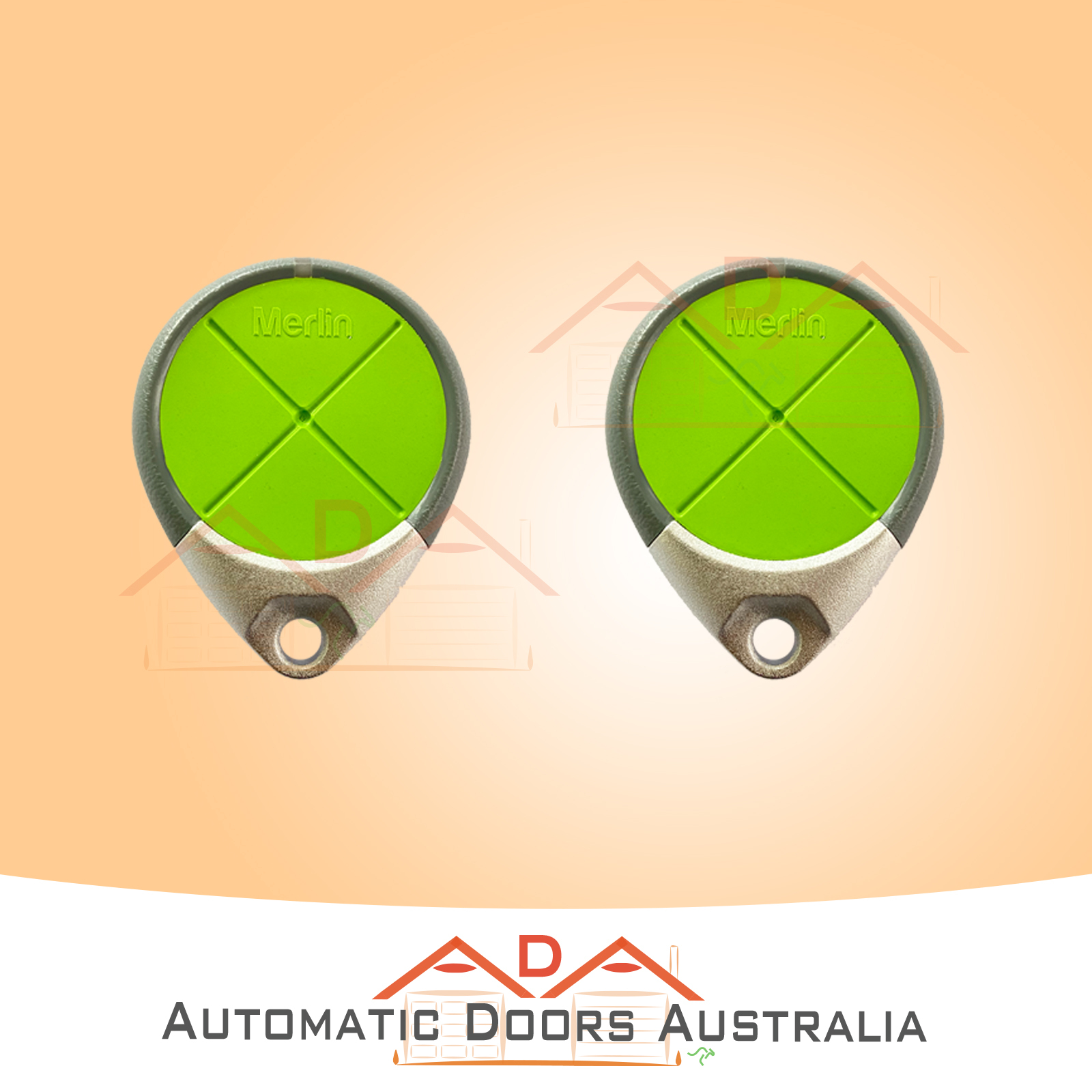

2x E960M Keyring Remote Controls

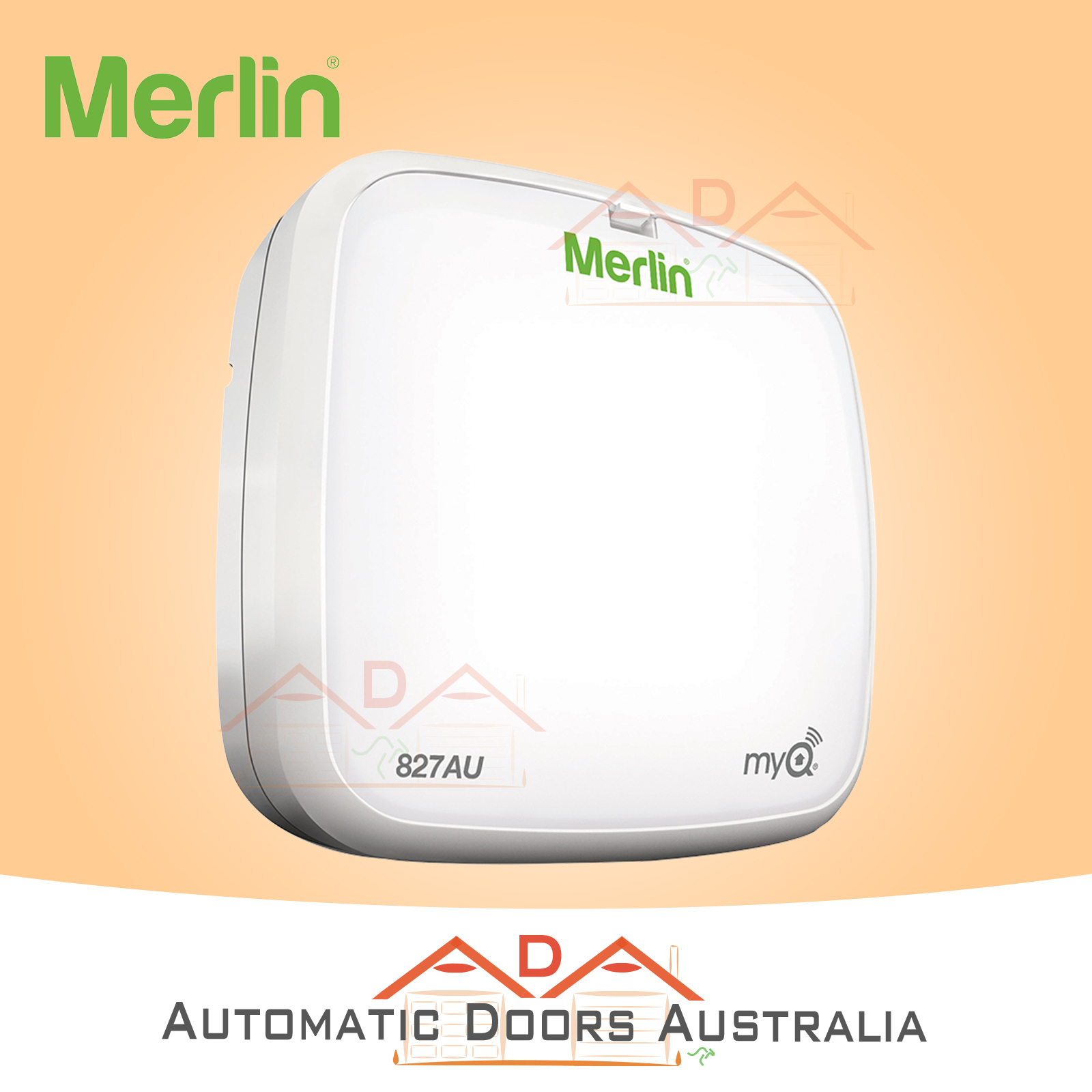

1x Merlin MyQ Remote LED Light (827AU)

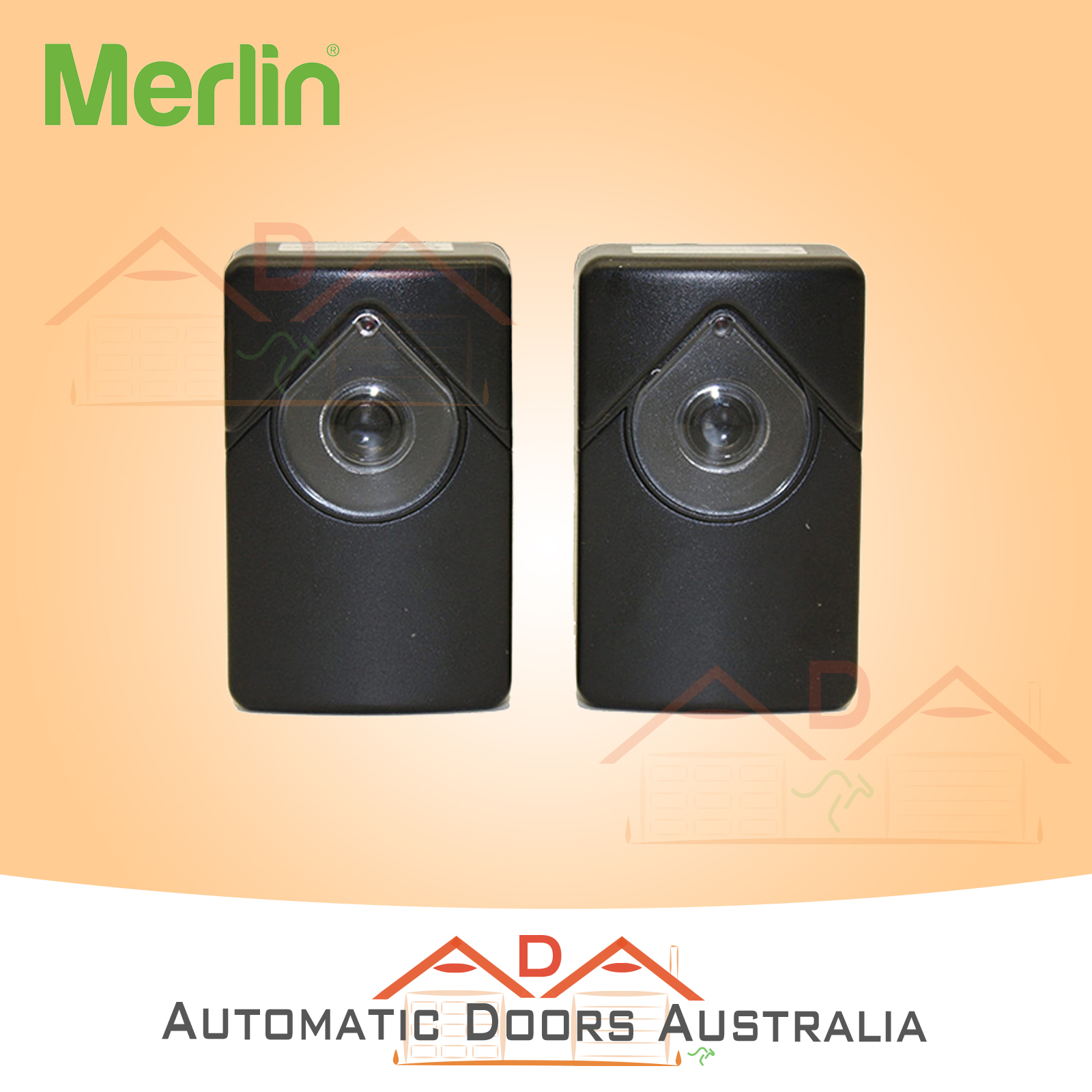

1x Outdoor Protector System Safety IR Beams (774ANZ)
1x Smart Control Panel (880AUW)
1x Automatic Door Lock (841ANZ)
1x Cable Tension Monitor (041A9264)

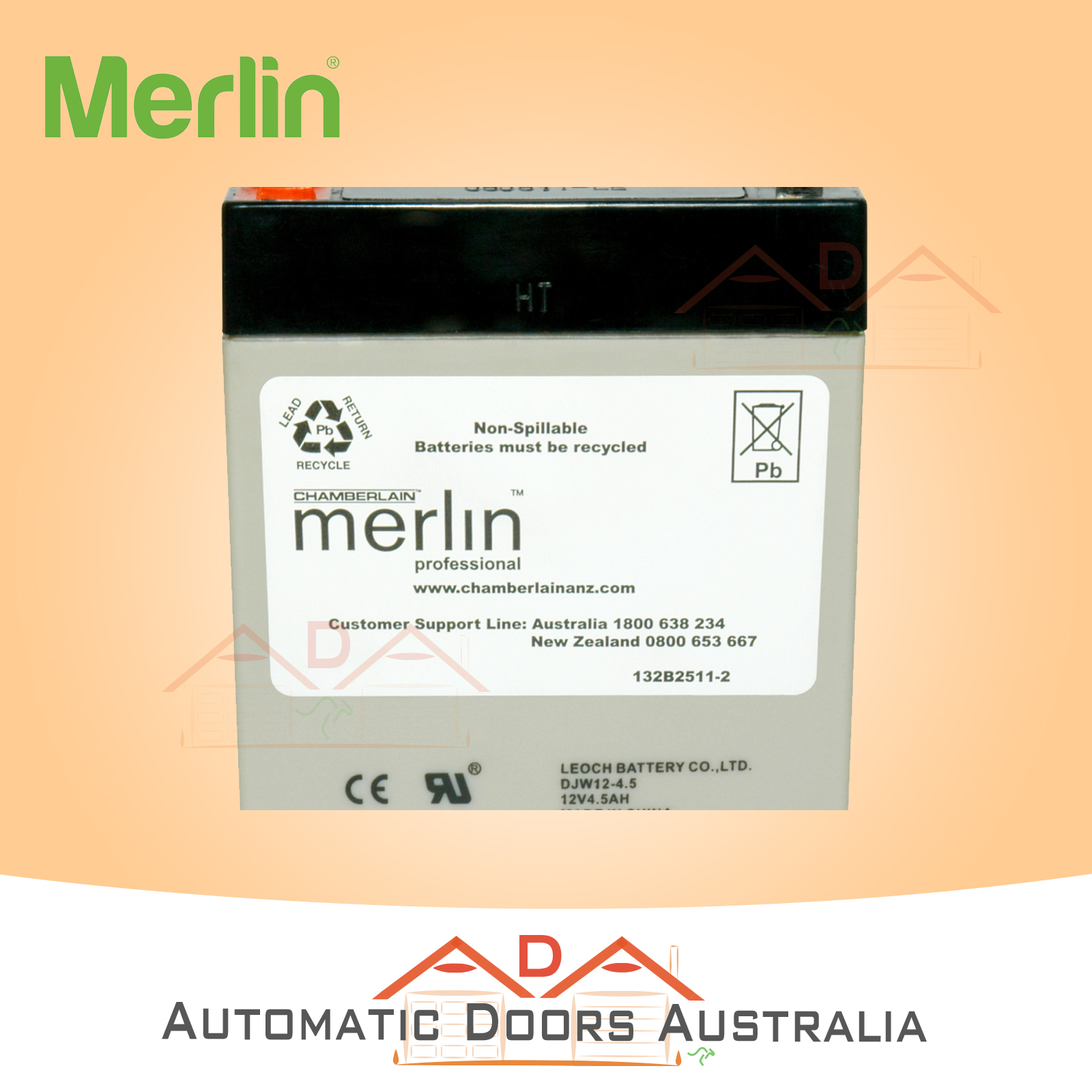

1x Integrated Battery Backup (041A6357-2)
7 year manufacturing warranty.
Open Up Possibilities, Commander Ultimate is the most premium opener within the Merlin sectional range with built-in myQ Wi-Fi & integrated Battery Backup with Security+2.0. Jam packed with many accessories including a myQ remote LED light, Smart Control Panel, Automatic Door Lock, Cable Tension Monitor, 2 x Premium+ remotes.



  • 12V DC motor with thermal overload protection
  • Input voltage: 240V AC
  • Rated door area up to 16.5m2
  • Max door weight: up to 130kg / 230kg ( with beams installed)
  • Max peak pulling force: 600N
  • 433.92, 433.30, 434.54 MHz AM radio with Chamberlain Security +2.0 rolling code technology
  • Up to 40 remote controls, 4 wireless key entry systems and 16 myQ devices
  • Min headroom required: 216mm


Door Specs
  • Maximum lifting under spring tension = 20kg
  • Suitable for steel and timber spring balanced doors
Door Opening and Closing Times
  • Door opening time: 18 seconds
  • Door closing time: 21 seconds
  • Based on 2.2m high door
Door Height
  • Maximum door height: 3m
  • Door width: 5m
  • Double dwelling

Merlin MJ3800MYQ Garage Door Opener Features

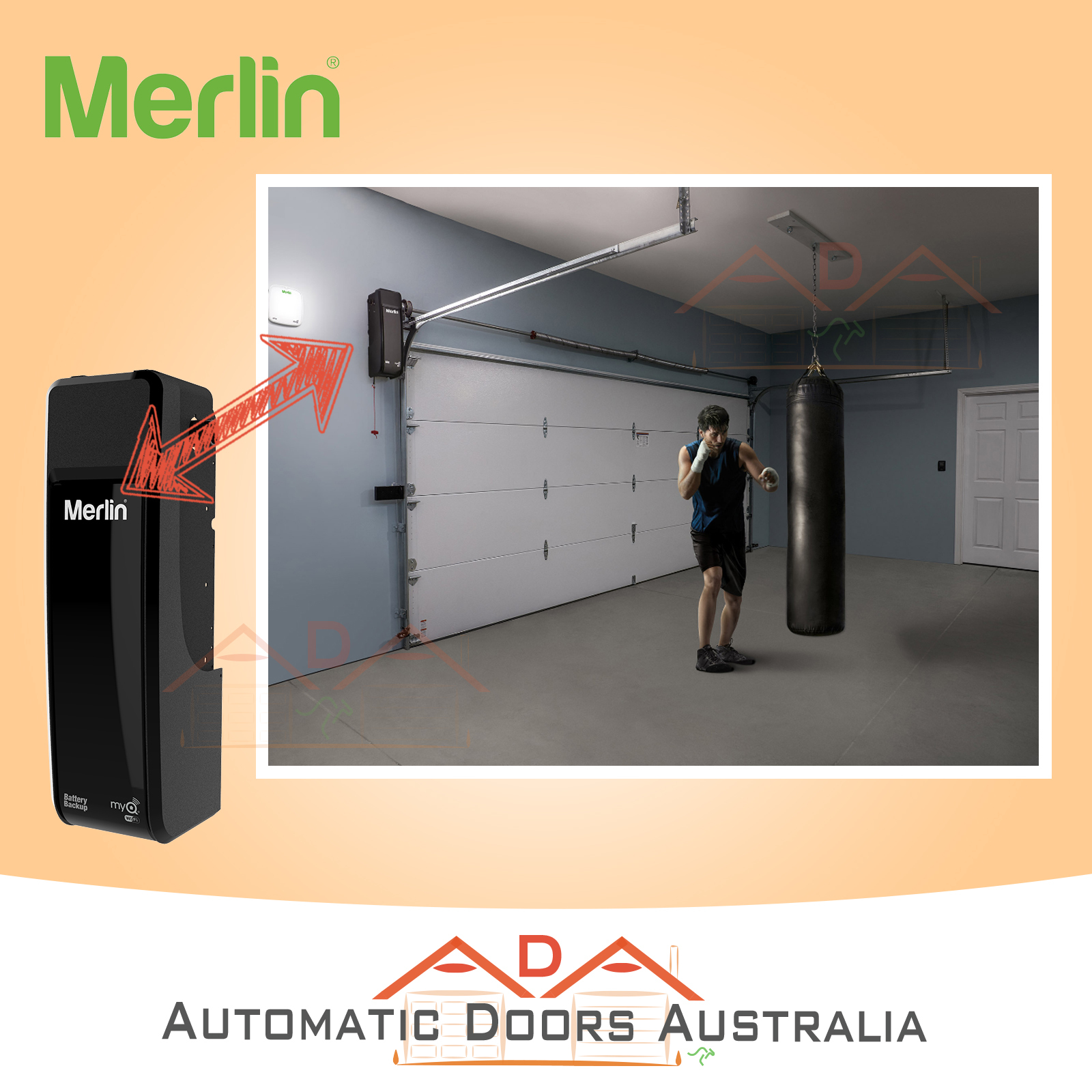

First introduced in 2012, the Merlin Jackshaft series (also known as the “MJ” series), are a particularly unique series of garage door openers for sectional, tilt and panel doors. Traditionally, these kinds of garage doors have been opened via a motor with a pole or C-rail, which requires clear ceiling space that is free from bulkheads or obstructions. Jackshaft motors mount to either the left or right side of the garage door, connected to the garage door’s torsion bar to raise and lower the door.

Benefits of this include improved storage space for canoes, bicycles or other large items. You can also use these openers in garages with higher, lower or sloped ceilings, where you might struggle to fit a traditional garage door opener. Coming with nearly every add-on accessory that Chamberlain Merlin have to offer, the MJ3800MYQ improves on the older MJ3800 & MJ3800EVO in every way.

The included E960M remote controls features a rolling code encryption called Security+ 2.0, which generates a new code each time the button is pressed from over trillions of possibilities. By transmitting across three frequencies, the E970M all but eliminates interference problems, meaning your garage door will open with every press of the button. Due to the remotes high security, only your garage door remotes will ever open your gate or door preventing code grabbing devices from ‘replaying’ the code to open your garage door.



Brand merlin
Shipping Weight 15.0000kg
Shipping Width 0.300m
Shipping Height 0.250m
Shipping Length 0.720m
Shipping Cubic 0.054000000m3
Unit Of Measure ea
