Merlin MS65MYQ Commander Essential for single sectional and panel garage doors  /// Power Head Only /// NO RAIL OR TRACK ////

Free Standard Delivery Australia-wide only


Includes:

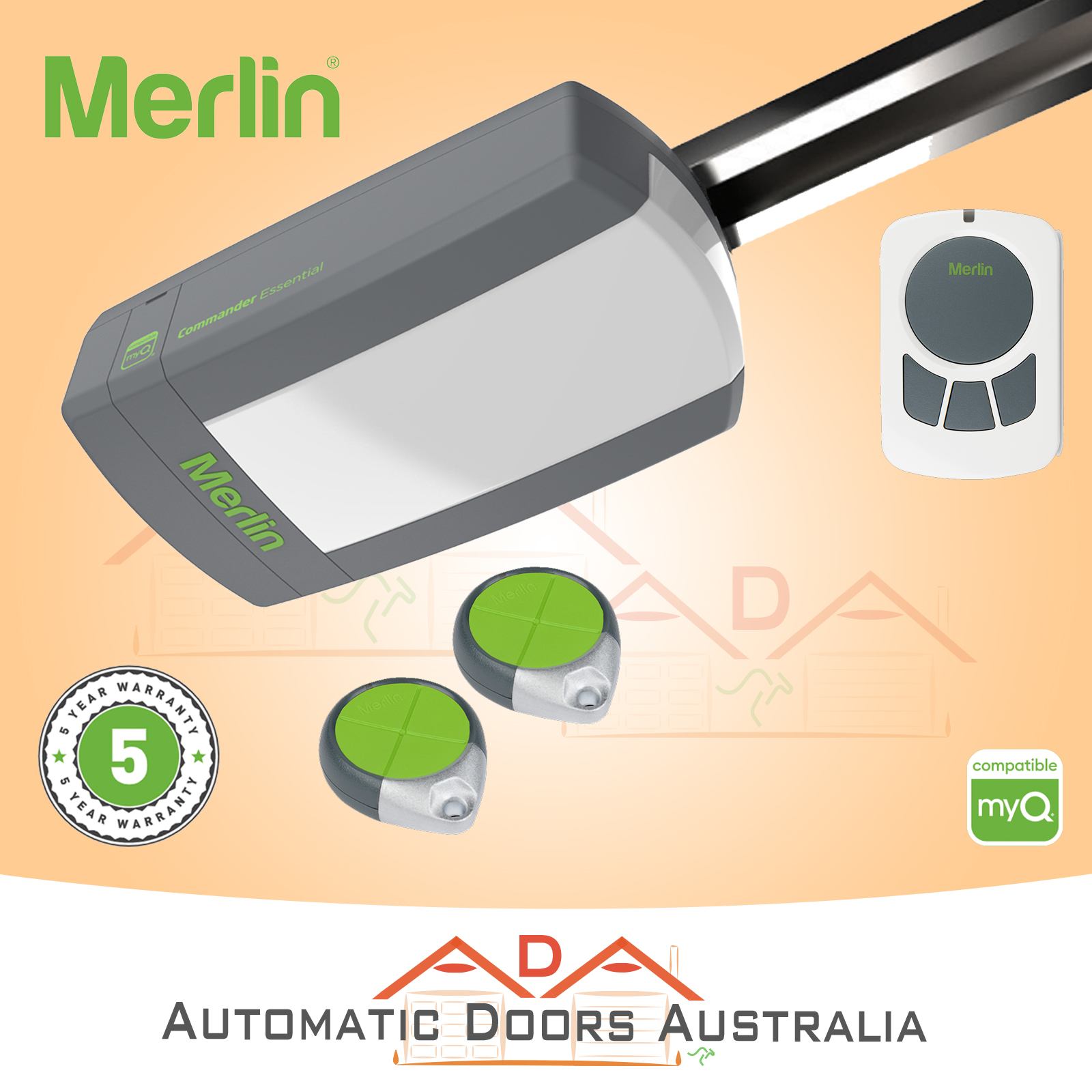

1x Merlin “Commander Essential” MS65MYQ Garage Door Opener

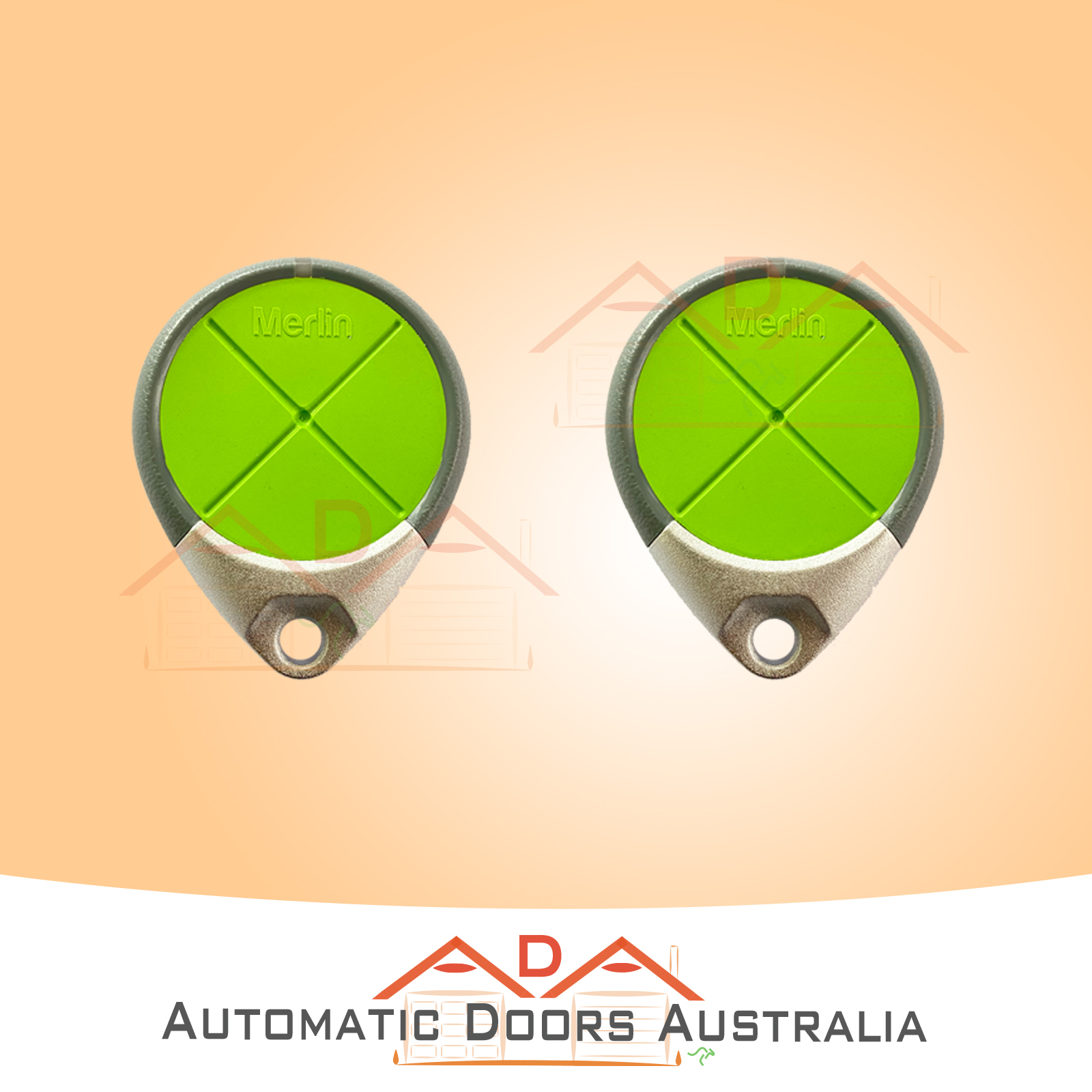

2x E970M Premium Keyring Transmitters

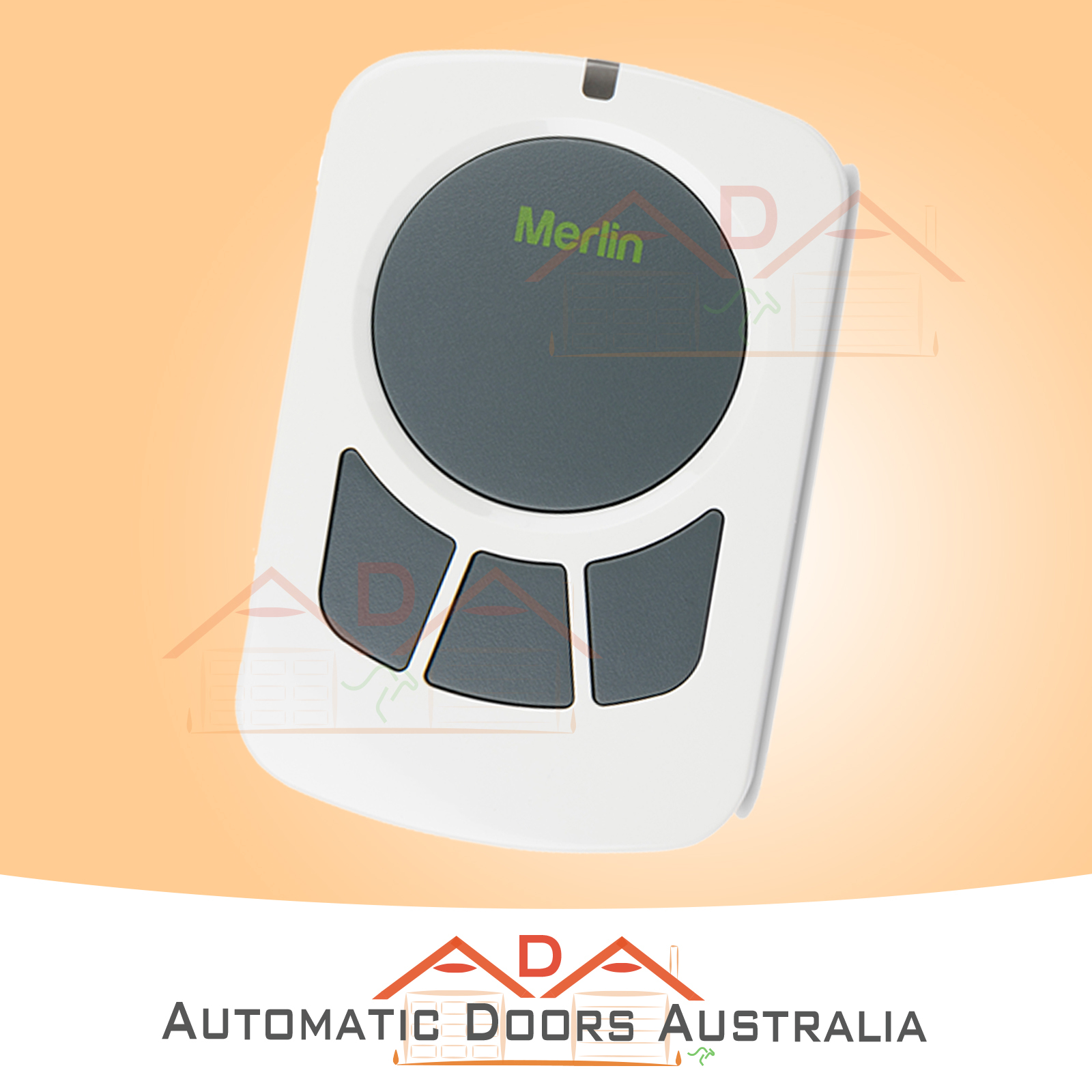

1x E148M Premium Wireless Wall Button


Warranty -  05 year manufacturer's warranty (This warranty covers failure due to manufacturer's fault)

NOTE - Compatible with ATA C-Rail (#100605-STEEL-BELT-RAIL) - PICK UP ONLY  or Customer has to arrange shipping . ... Pick up place - Factory 2/67-75 Garden Drive,Tullamarine VIC 3043,

https://www.ada-aust.com/merlin-8025cr5anz-belt-rail


Merlin MS65MYQ Garage Door Opener Specifications

Rated Door Area 13.5m² (5.5m W x 2.4m H)
Suitable Doors Single Panel or Tilt
Min Head Room 30mm
Model Number MS65MYQ
Peak Power 600N
Standby Power 2.2W
Opening Speed 130mm/sec
MHz Frequency FM 433.92
Memory Register 64
Lighting LED Lighting



5 year/20,000 cycles  manufacturing warranty.



Features:



Merlin’s Commander Essential is small in size, big on features.
This sectional garage door opener has the latest security and multi frequency technology, and includes a 5 Year Warranty.



Specifications:


General
  • 24V DC motor with thermal overload protection
  • Input voltage: 240V AC
  • Rated door area up to 13.5m2
  • Max door weight: up to 90kg
  • Max peak pulling force: 600N
  • C-rail with belt drive
  • 433.92, 433.30, 434.54 MHz AM radio with Chamberlain Security +2.0 rolling code technology
  • Up to 64 memory registers
  • Courtesy light: LED
  • Min head required: 30mm



Door Specs
  • Maximum lifting under spring tension = 20kg
  • Suitable for steel and timber spring balanced doors

Door Opening and Closing Times
  • Door opening time: 18 seconds
  • Door closing time: 21 seconds
  • Based on 2.2m high door

Door Height
  • Maximum door height: 2.4m
  • Door width: 5.5m
  • Double dwelling

Suited For:

Can be used on single or double sectional or panel domestic garage doors up to 2.4m opening door height.


(MERLINMS65MYQ)

SKU MERLINMS65MYQ
Brand merlin
Shipping Weight 6.5000kg
Shipping Width 0.200m
Shipping Height 0.250m
Shipping Length 0.400m
Shipping Cubic 0.020000000m3
Unit Of Measure ea
