Merlin MS125MYQ Commander Extreme double sectional & panel garage doors  /// Power Head Only /// NO RAIL OR TRACK ////
Free Shipping Australia Wide

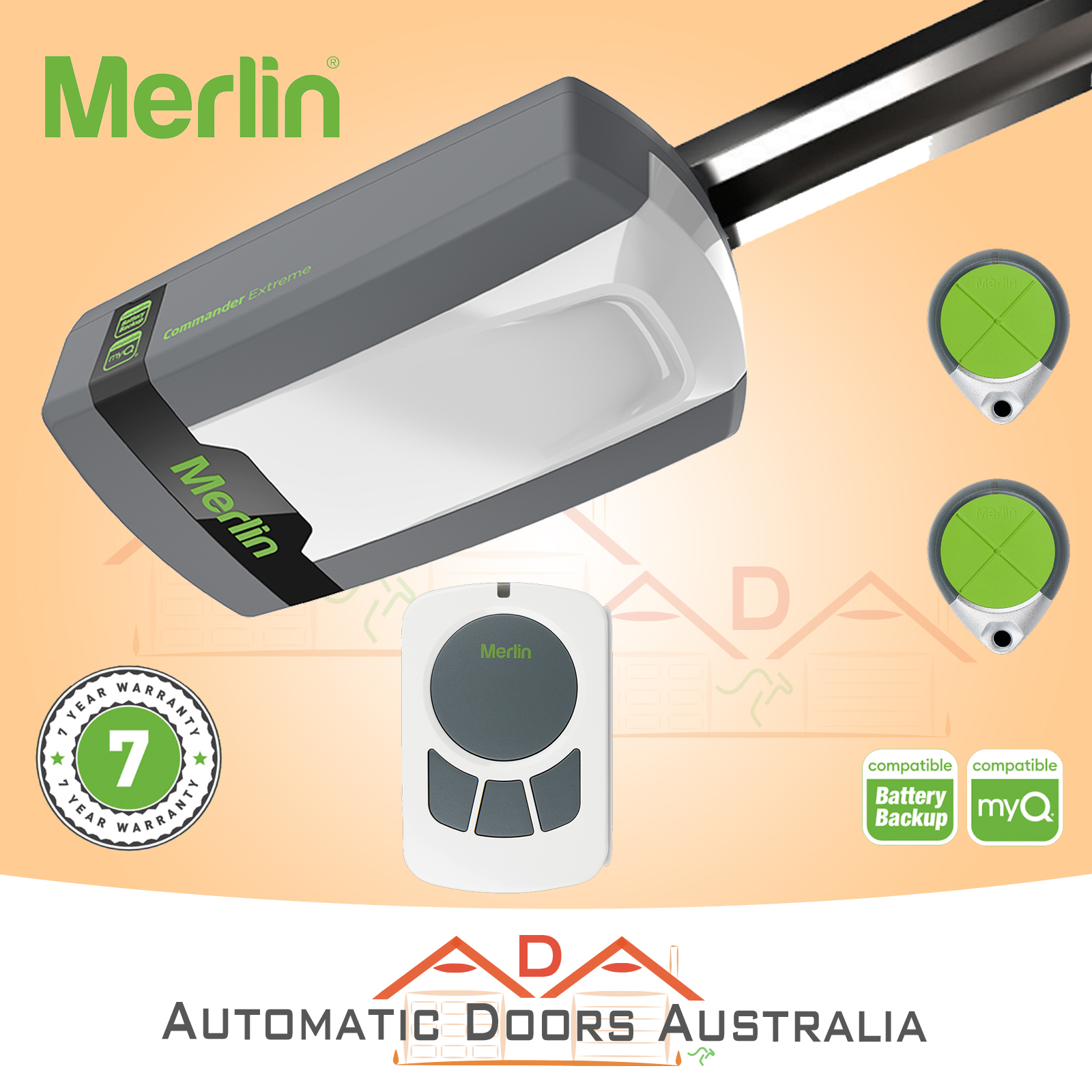

Merlin MS125MYQ Garage Door Opener

  • Merlin “Commander Extreme” MS125MYQ Garage Door Opener

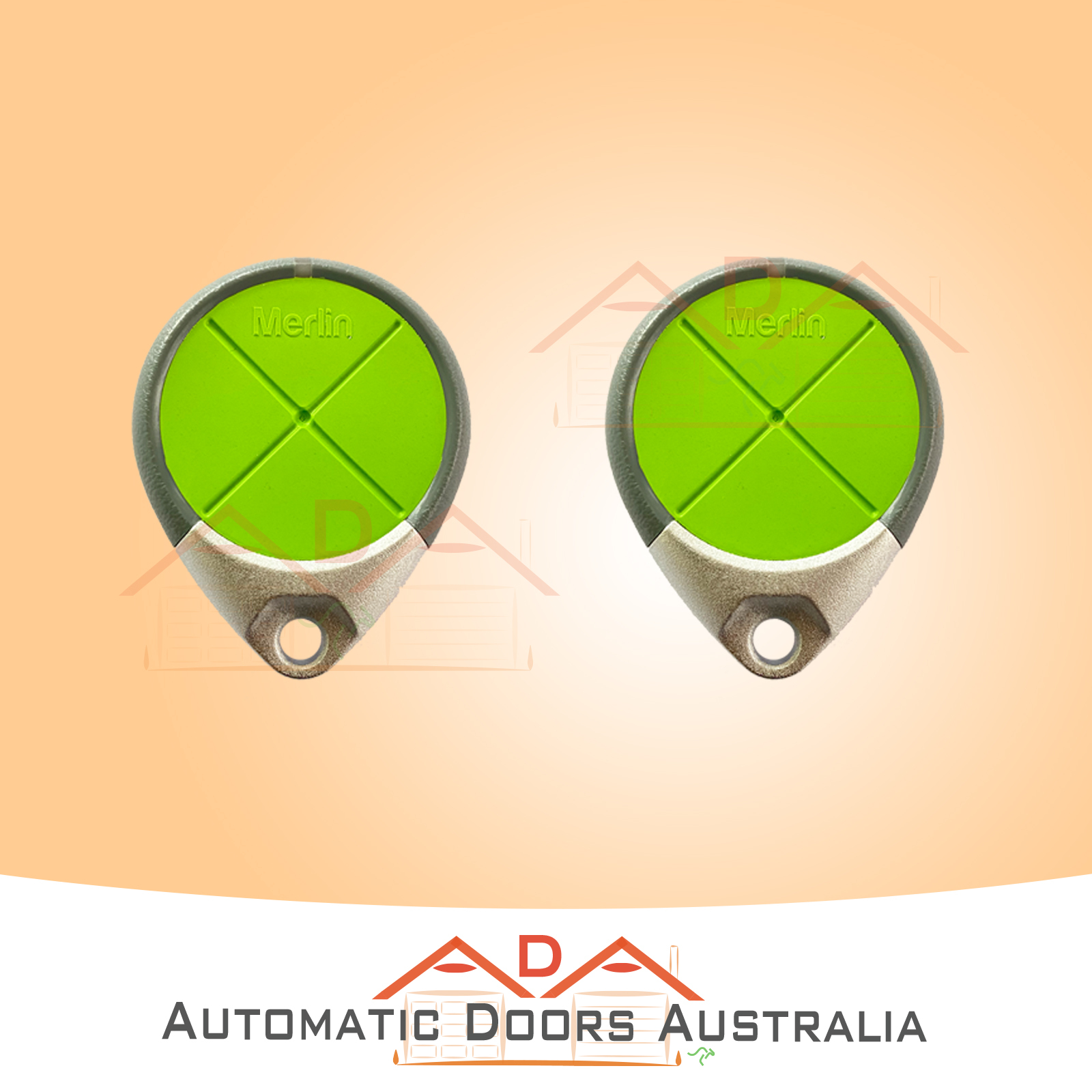

  • E970M Premium Keyring Transmitters x 2

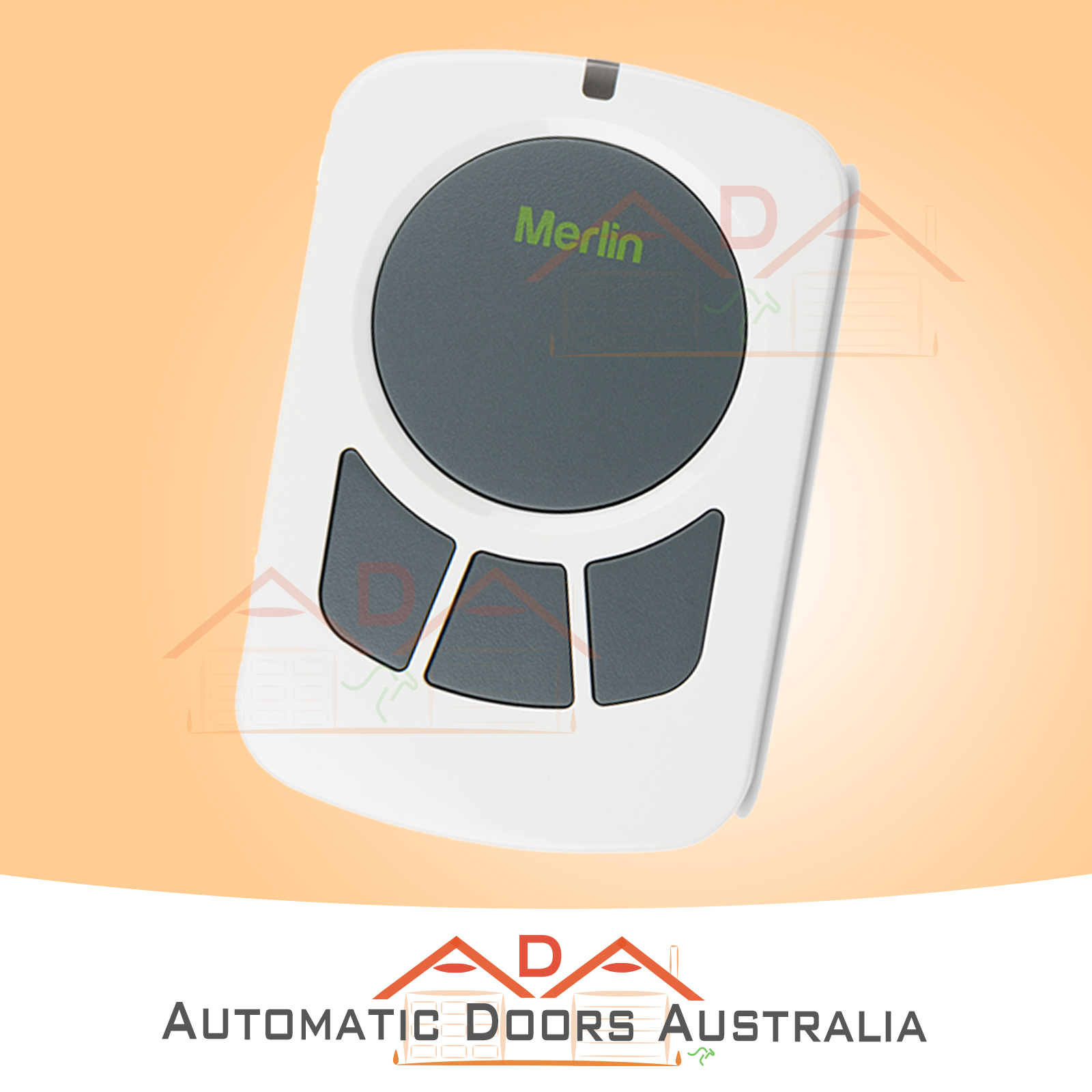

  • E148M Premium Wireless Wall Button

Warranty - 07 year manufacturer's warranty (This warranty covers failure due to manufacturer's fault)

NOTE - Compatible with Merlin C-Rail- Chain -STEEL-RAIL) - PICK UP ONLY  or Customer has to arrange shipping . ... Pick up place - Factory 2/67-75 Garden Drive,Tullamarine VIC 3043,


Merlin MS125MYQ Garage Door Opener Specifications

Rated Door Area 20m² (6.5m W x 3m H)
Suitable Doors Double Panel or Tilt
Min Head Room 30mm
Model Number MS125MYQ
Peak Power 1200N
Standby Power 2.2W
Opening Speed 130mm/sec
MHz Frequency FM 433.92
Memory Register 64
Lighting LED Lighting
7 Years / 20,000 cycles, manufacturing warranty.

Designed for extreme weather conditions & heavy custom doors, Commander Extreme is myQ compatible, with heavy lifting power of 150kg or 286kg (with beams) plus new powerful LED lighting.

Powerful, quiet and compliant to Australian & New Zealand standards (AS/NZS 60335-2-95), enjoy complete peace of mind with the market leading 7 Year Warranty and built in premium safety reversal technology, to ensure your family and possessions are protected. Loaded with Merlin Security+2.0 encryption rolling code technology means perfect operation under all environment conditions and from a greater distance than ever before



  • 24V DC motor with thermal overload protection
  • Input voltage: 240V AC
  • Rated door area up to 20m2
  • Max door weight: up to 150kg / 286kg ( with beams installed)
  • Max peak pulling force: 1200N
  • C-rail with chain drive
  • 433.92, 433.30, 434.54 MHz AM radio with Chamberlain Security +2.0 rolling code technology
  • Up to 64 memory registers
  • Courtesy light: LED
  • Min head required: 30mm


Door Specs
  • Maximum lifting under spring tension = 20kg
  • Suitable for steel and timber spring balanced doors
Door Opening and Closing Times
  • Door opening time: 18-22 seconds
  • Door closing time: 21-23 seconds
  • Based on 2.4m high door
Door Height
  • Maximum door height: 3.5m
  • Door width: 5.7m
  • Double dwelling
Suited For:
Can be used on single or double sectional or panel domestic garage doors up to 2.5m opening door height.


Brand merlin
Shipping Weight 6.5000kg
Shipping Width 0.240m
Shipping Height 0.200m
Shipping Length 0.400m
Shipping Cubic 0.019200000m3
Unit Of Measure ea
