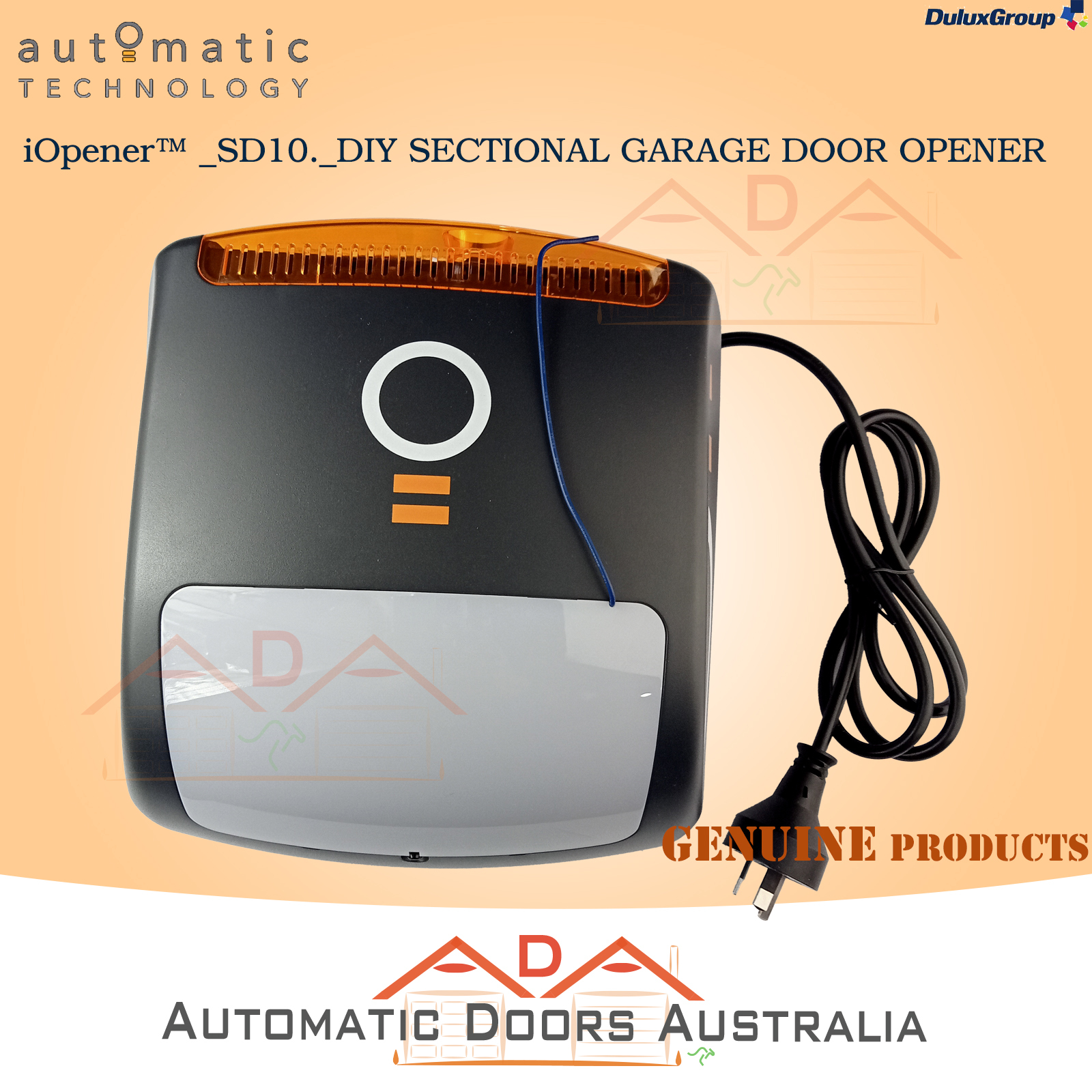

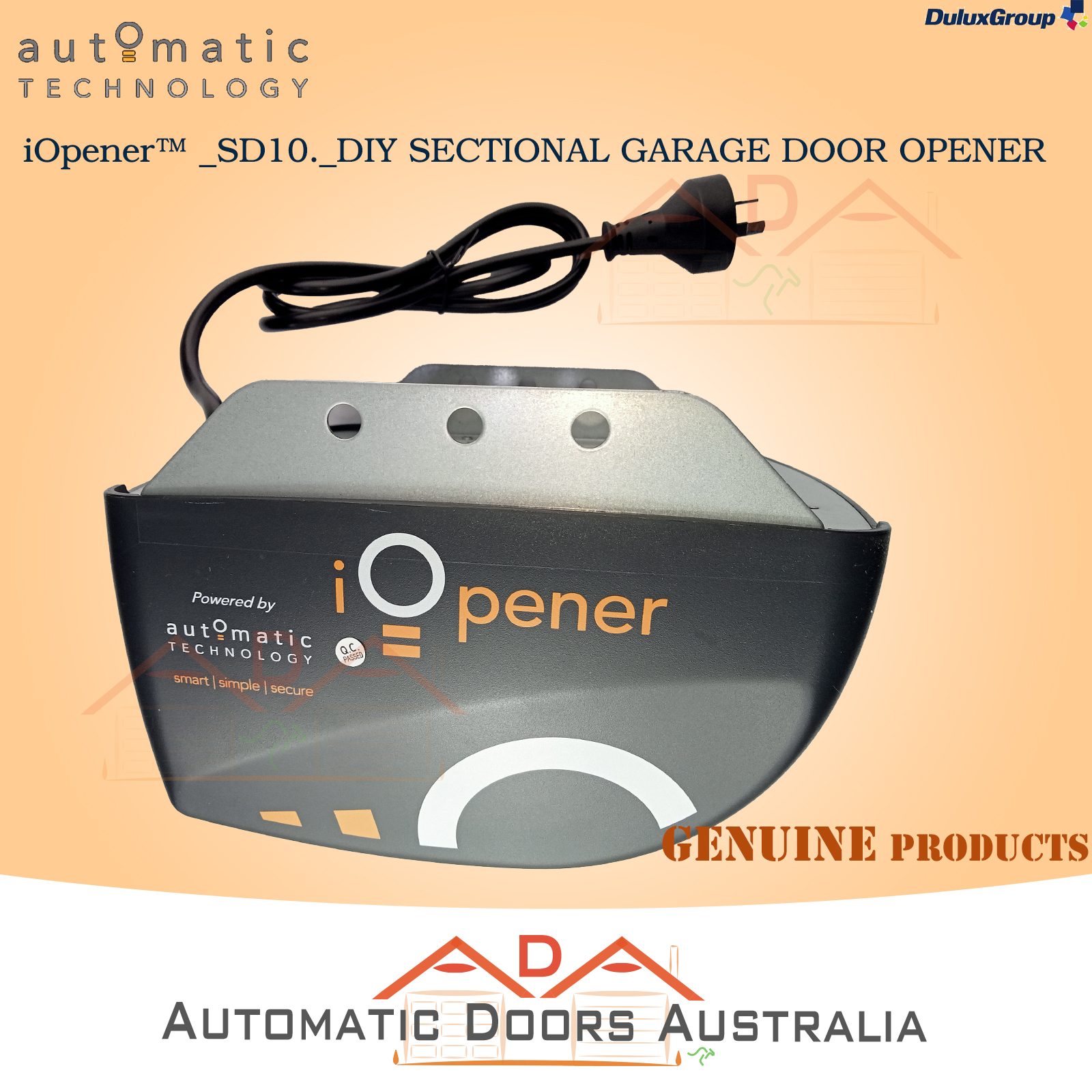

ATA_i-Opener Sectional Garage Door  with Chain Rail -SD10 (DIY)

Free Standard Delivery Australia-wide only

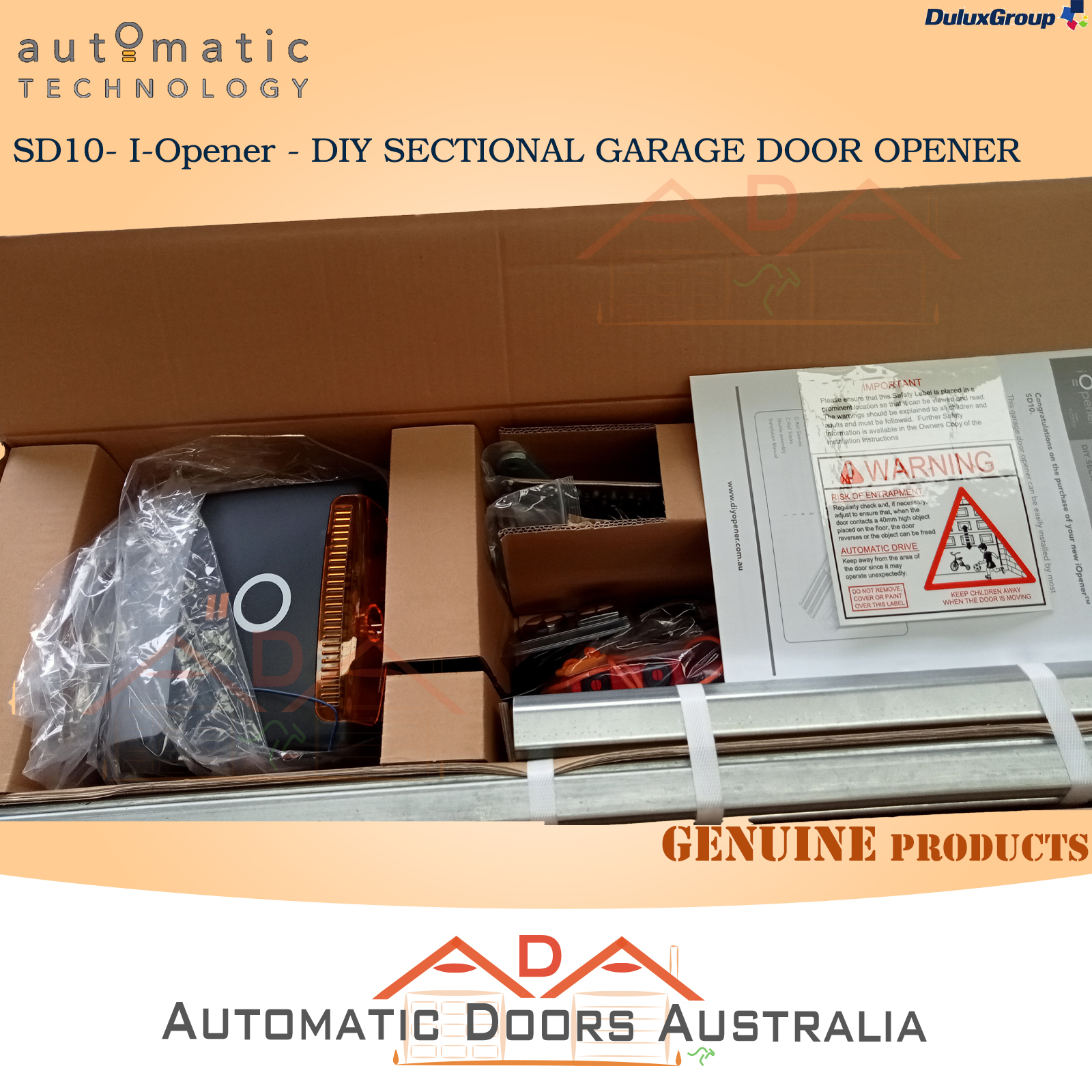

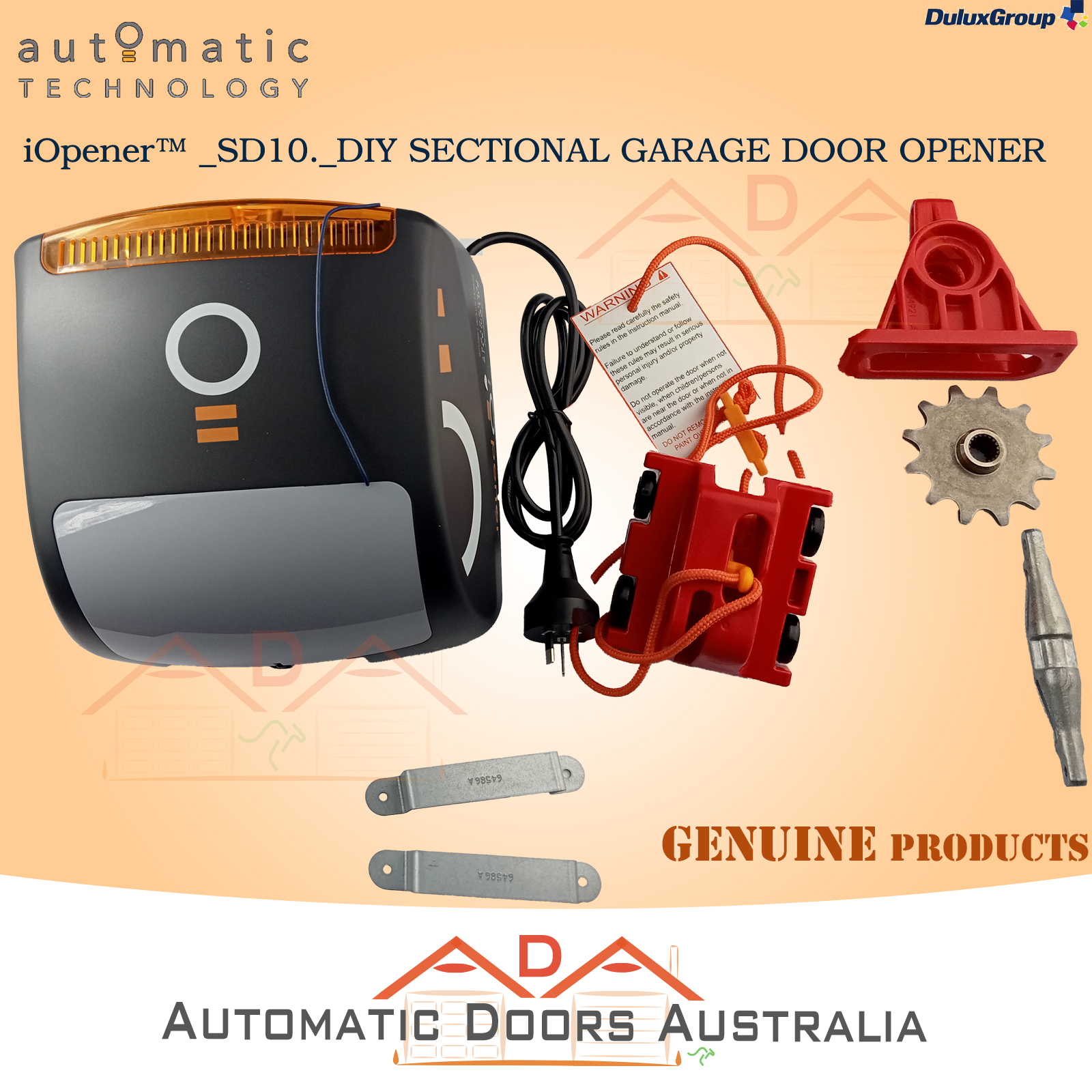

Incudes



  •  iOpener ™ SD10 drive unit FOR Sectional or Tilt Doors
  •  PTX2v2 Triocode Remote Hand Transmitters x 2
  • WTX-6v1 ATA Wireless Wall Button
  • Door attachment arms  x 2
  • Accessory and hardware pack
  • Drive Chain
  • C=Rail Sleeves
  • C-Rail Tracks x 4
  • Shuttle assembly
  • Installation Manual​

Warranty -  01 year manufacturer's warranty (This warranty covers failure due to manufacturer's fault)


​Description

  • 650N Motor
  • Intelligent Safety System
  • Ready For Smart Phone Control Kit
  • Suits Door Sizes Upto 13.5 meter sq.
  • DIY SECTIONAL GARAGE DOOR OPENER

Factory default settings

  Default Step  Maximum

Maximum motor run time  60 Secs.

Courtesy light time 3 Mins.
10 Sec in battery back
up mod

Obstruction force margin 0.5 Amp 0.1 2 Amp

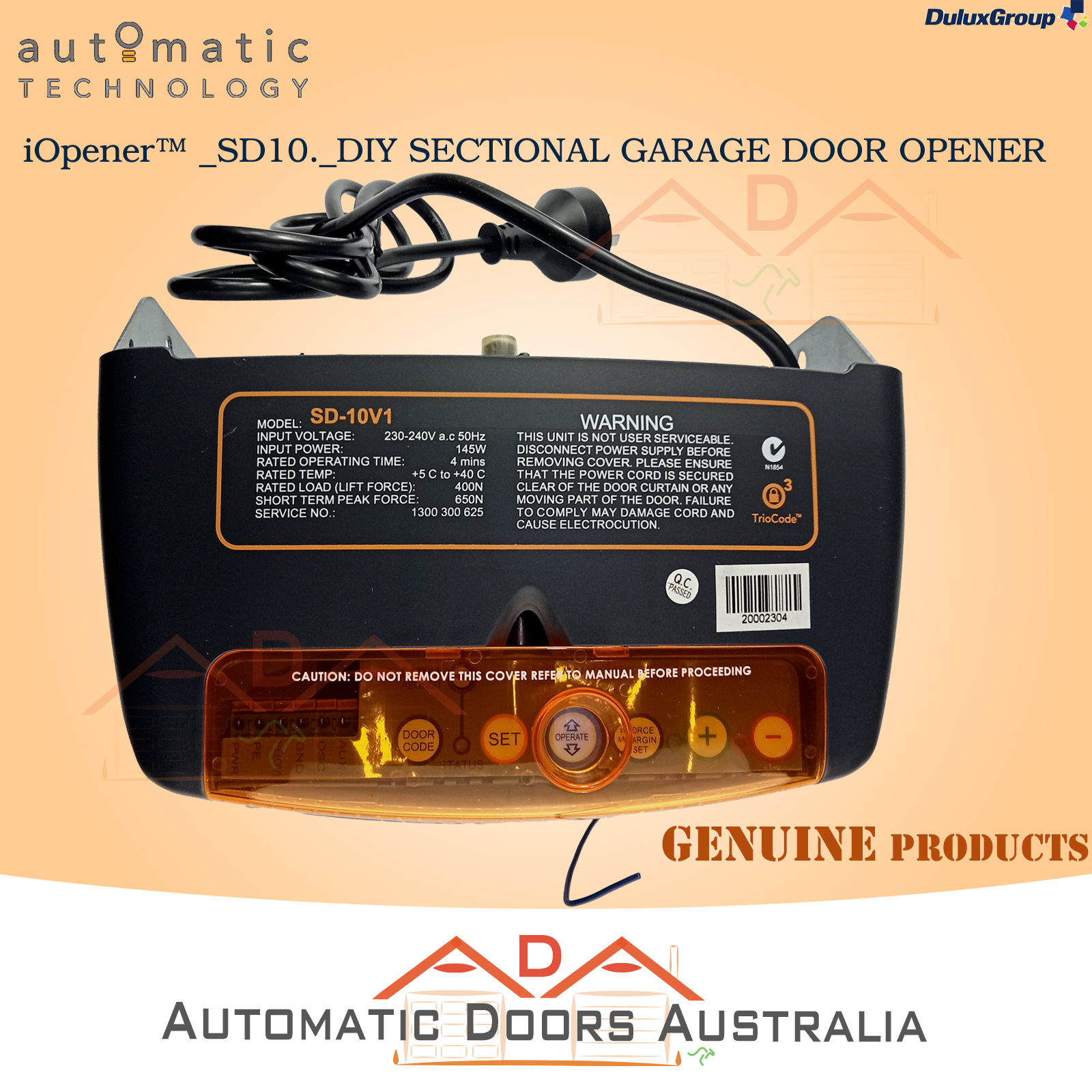

Specifications

Power supply  230V - 240V AC 50Hz

Transformer rating 72 VA

Standby power  2.2 Watts

Motor power 90 Watts

Motor type 24V DC permanent magne

Shuttle travel distance in the C-Rail 2.4m approx (standard)

Maximum shuttle travel distance in the C-Rail  4m (with extended C-Rail)

Maximum door opening:                 Width:
(With 2775mm Standard track)   Height:
                                                       Weight:		 5500mm (13.5m2)
2400mm
100 kg

Minimum Clearance
 (Bottom of C-Rail to highest point of door travel)		 25mm

Short term peak force 650N (65kg)

Lift force 400N (40kg
Nominal force  150N (15kg)

Receiver type Multi-frequency FM Receiver
Receiver code storage capacity  8 x 4 button transmitter codes

Transmitter frequency  433.47, 433.92, 434.37 MHz
Coding type  TrioCode™

Number of code combinations  Over 4.29 billion random codes
Code generation  Non-linear encryption algorithm

Transmitter battery CR 2032
Courtesy light  Festoon style lamp 24 volts 15 watts
Controller fuse 10A slow blow

(ATA_I-OPENER)

SKU ATA_I-OPENER
Brand ATA Automatic Technology Australia
Shipping Weight 16.0000kg
Shipping Width 0.280m
Shipping Height 0.200m
Shipping Length 0.800m
Shipping Cubic 0.044800000m3
