CENTSYS_SMARTGUARDAIR – WIRELESS KEYPAD

Free Standard Delivery Australia-wide only

Incudes

Warranty -  01 year manufacturer's warranty (This warranty covers failure due to manufacturer's fault)


Description

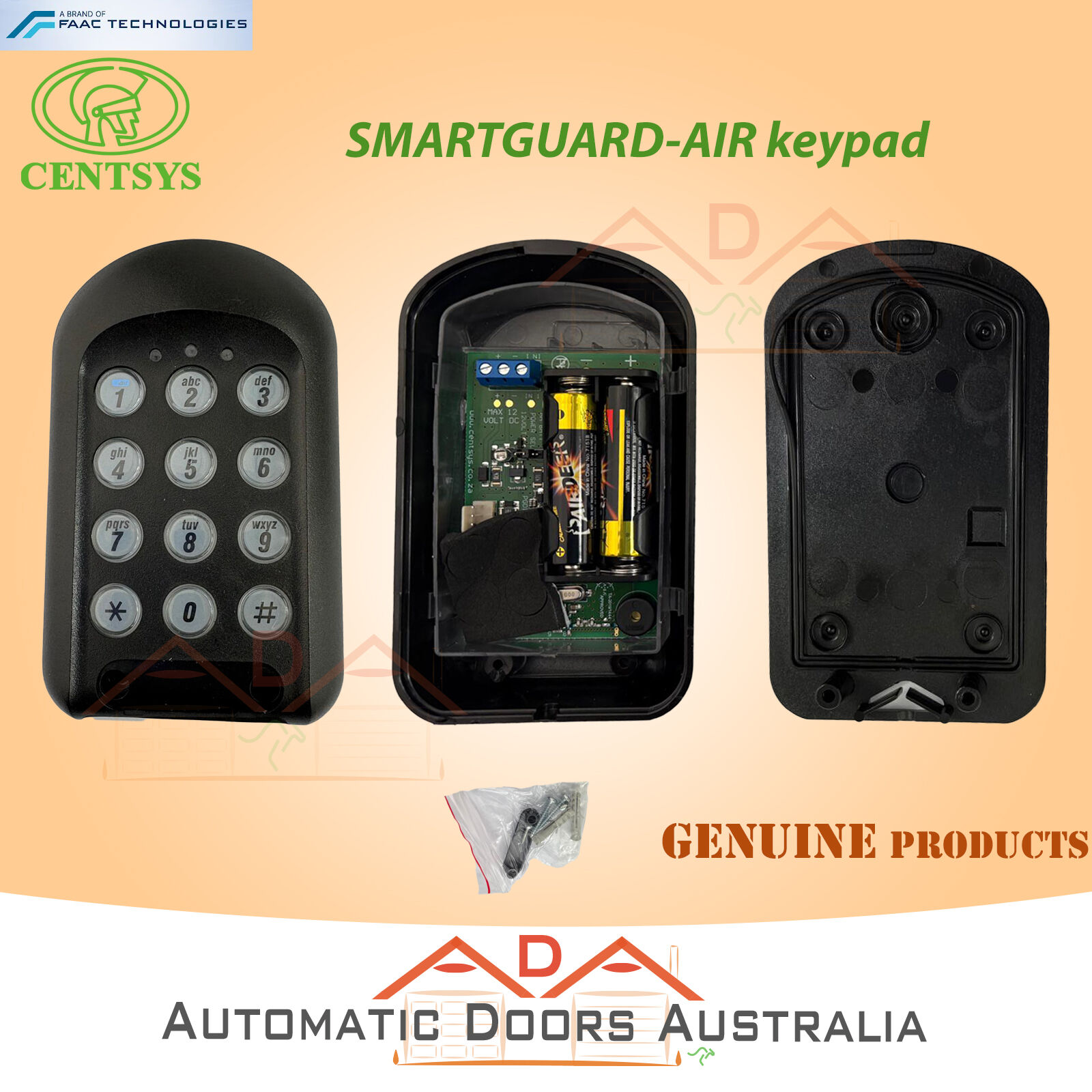

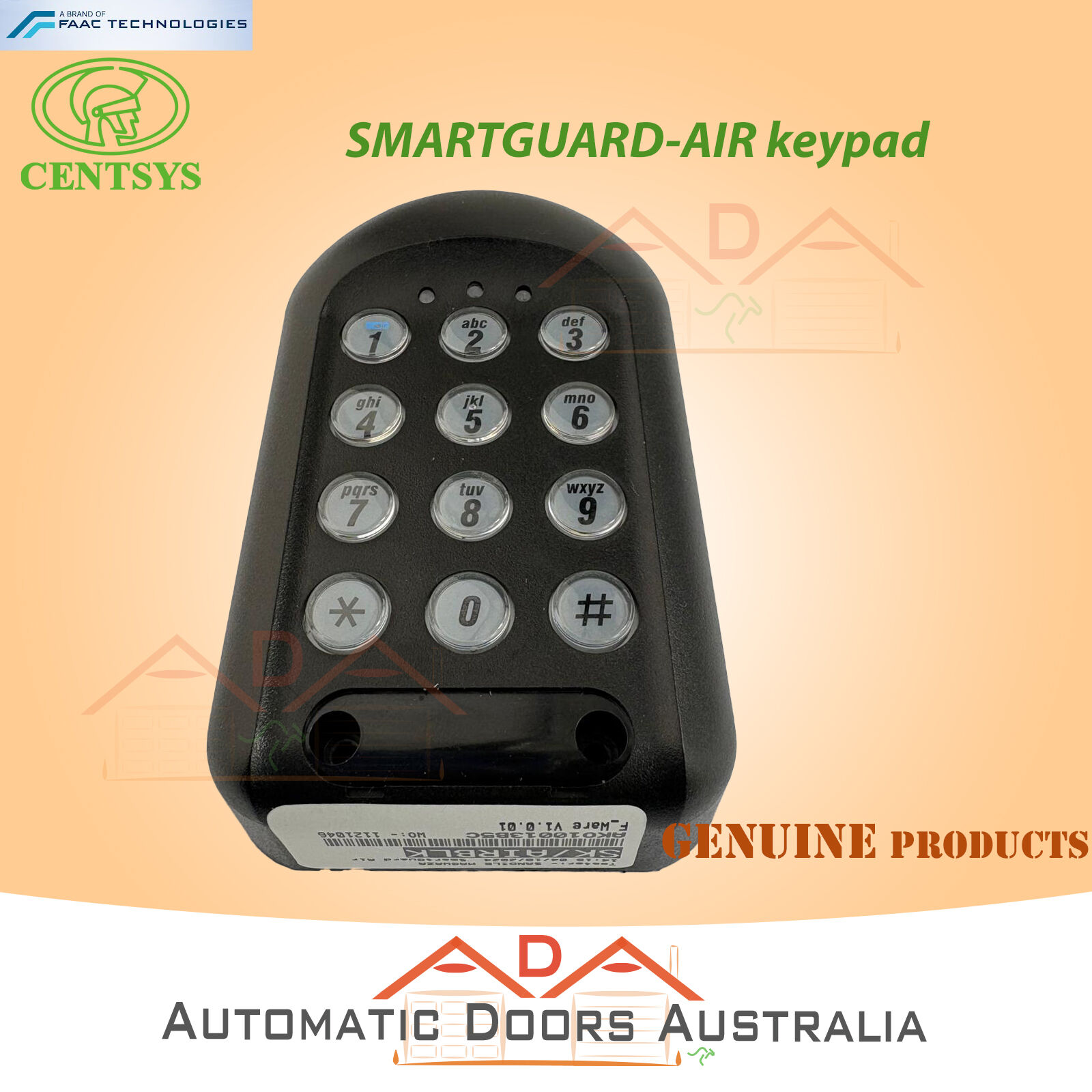

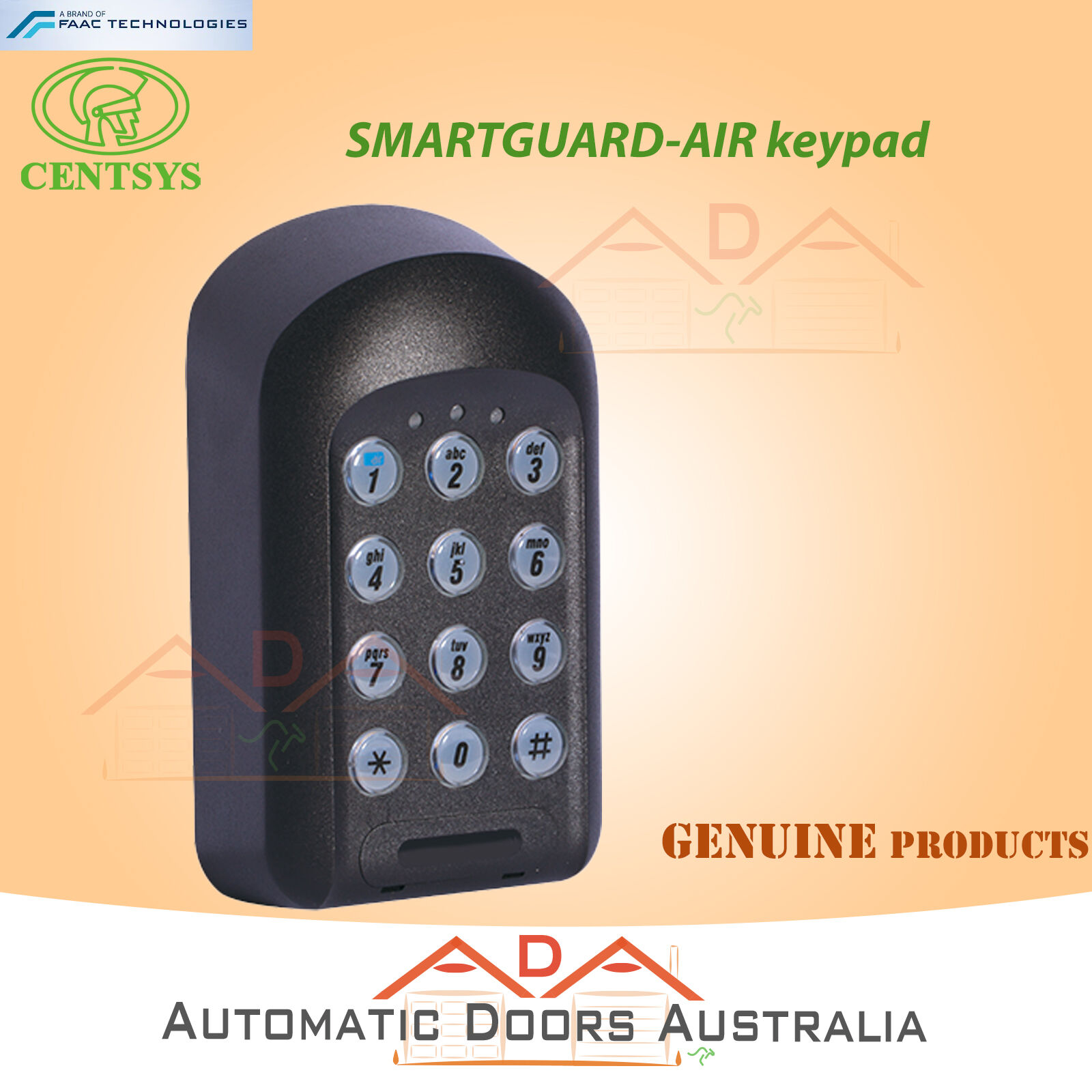

SMARTGUARDAIR – WIRELESS ACCESS CONTROL KEYPAD

For standalone access control at an entrance to a property, or inside a building, CENTSYS offers the SMARTGUARDair wireless access control keypad which affordably delivers unmatched functionality and reliability. The SMARTGUARDair wireless keypad can accommodate up to 1 000 unique PIN codes with any user-defined length from one to ten digits. There are 15 separate channels, each able to be paired with any of the CENTSYS code-hopping receivers. Such functionality caters for many different scenarios for example: a motorised gate entrance may be opened fully using one code, or activate the pedestrian opening using another, and switching on the house alarm using a third. User codes can also be selectively deleted without affecting other codes stored in the memory. The keypad also boasts a “downcounter” allowing select codes to have a limited number of uses. This is ideal for granting single occasion access, for example to an armed response company with the code deleting itself after use. The same memory module used on the D10 industrial sliding gate motor, may also be used on the SMARTGUARDair, allowing all the settings and codes to be backed up and restored in seconds.

MAIN FEATURES:
  • SMARTGUARDair for wireless, easy installations.
  • 1000 unique codes using one to ten digits.
  • 15 channel output.
  • Selectively add and delete user codes.
  • Backup Memory Module.
  • Limited uses counter.
  • Fully weatherproof with backlit keypad.
  • Operates on two AA Alkaline batteries, or a separate 12V power supply.
  • Up to two years of battery life with up to 300 uses per day.
  • Operating range of up to 30 metres.
  • Compatible with CENTSYS code-hopping receivers.
TECHNICAL DATA:
    DESCRIPTION
  Supply voltage Two x AA Alkaline batteries
  Current Two years (with up to 300 uses per day
  Operating temperature External 12V DC power supply
  Outputs -18ºC to +55ºC
  Output pulse time range Up to 30m1
  Memory 433MHz
  Size Up to 15 individual channels2
  Housing material NA
  Degree of protection 1000 user codes
  Colour 132mm x 80mm x 38mm
  Housing material Polycarbonate
  Degree of protection IP55
  Colour Black

1. This is specified as Line of Sight range
2. Requires CENTURION code-hopping receiver(s)

(CENTSYS_KEYPAD_AIR)

SKU CENTSYS_KEYPAD_AIR
Brand CENTSYS
Shipping Weight 0.2500kg
Shipping Width 0.080m
Shipping Height 0.040m
Shipping Length 0.130m
Shipping Cubic 0.000416000m3
