Elsema FMR 201 Receiver- 1 channel



  • 1 x FMR-201 plug in type Receiver (6 pin plug)
  • ​Instruction Manual


  • 1 Channel receiver
  • Crystal controlled for high performance
  • works on a digitally encoded 27.145MHz frequency modulated (FM) signal​


  • ELSEMA FMT 101
  • ELSEMA FMT 102
  • ELSEMA FMT 201
  • ELSEMA FMT 202
  • ELSEMA FMT 301
  • ELSEMA FMT 302
  • ELSEMA FMT 304
  • ATA TXA1
  • ATA TXA2
  • ATA TXA3
  • ATA TXA4

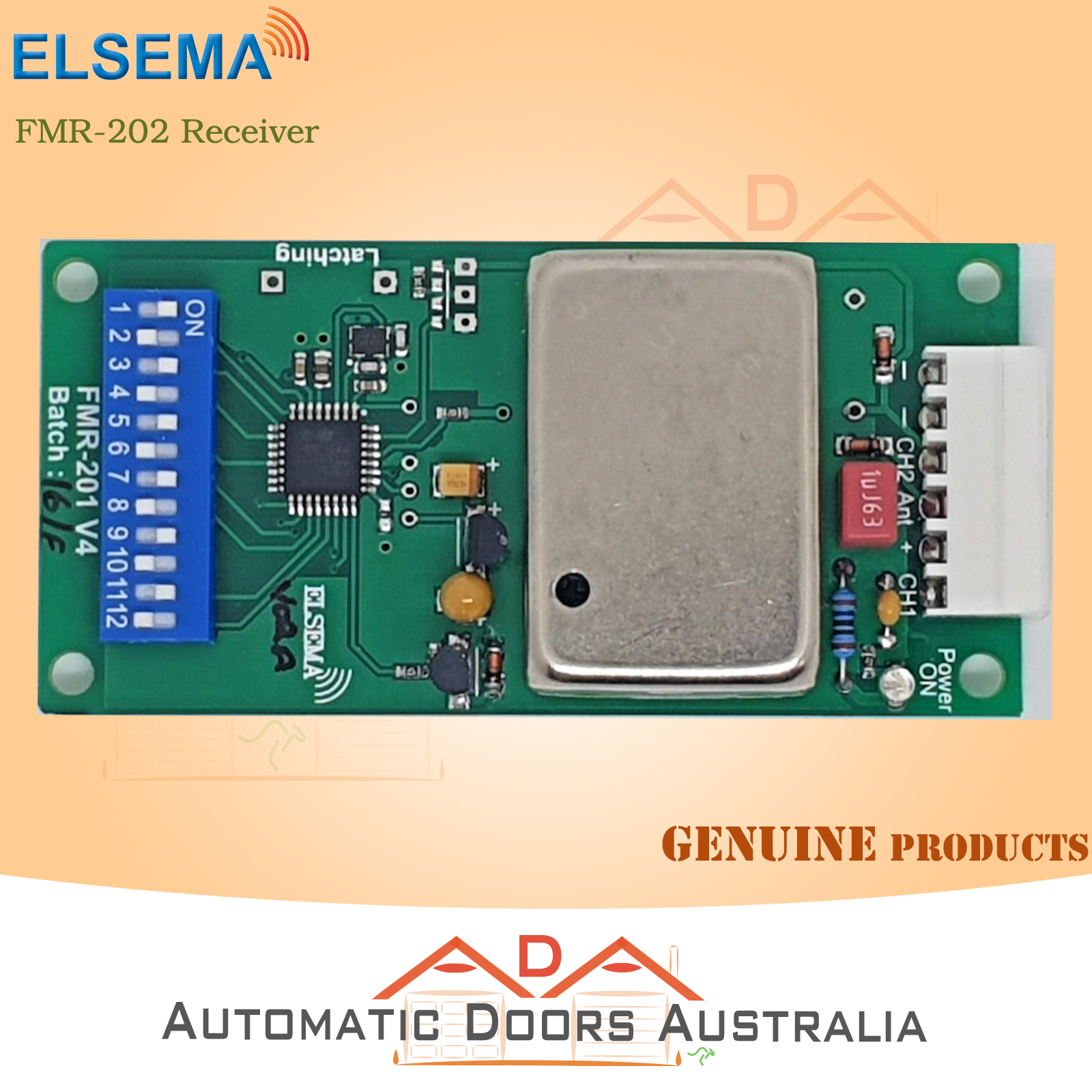

The FMR-201 is a crystal controlled single channel receiver, comprising of

receiving, decoding and open collector output sections. A specially designed

LARGE SCALE INTEGRATED CIRCUIT (LSI) is employed in the decoder

section, which ensures operation at low supply voltage, highest reliability, associated with very low power drain.

The receiver works on a digitally encoded 27 MHz frequency modulated (FM) signal. It may be used in an

application that requires the 27MHz receiver to be mounted on a printed circuit board.

If the code of the input signal (from a transmitter) matches the setting of the coding switch on the receiver (up to

4096 combinations), an output is obtained i.e. the open collector is switched to ground.

Connection to the receiver is via a six-way female connector. The male connector can be soldered onto any type of

printed circuit board, requiring a 27 MHz receiver. The male connector is available as a Nylon 6-way male low

profile connector, part number 6WLP or high profile connector part number 6WHP. See design dimensions page for

more details.

Elsema’s ANT27MHz series antennas will give a reliable control range of up to 200 metres, when used with

Elsema’s FMT-301, FMT-302 and FMT-304 transmitters.

The default mode is in momentary mode, i.e. the output transistor is only activated while the correct signal is

received. When a latching mode (toggling the output every correct incoming signal) is required the latching link

should be soldered into the receiver. In latchingmode, the output transistor is on at the initial "power-up".

Care must be taken, not to bring a receiver near strong magnetic fields, such as DC-Motors, speakers, magnets for

reed switches, transformers etc. as it would magnetise the coils and may cause severe de-tuning.

Warranty - 6 Months Money Back or Replacement


Brand Elsema
Shipping Weight 0.0370kg
Shipping Width 0.085m
Shipping Height 0.001m
Shipping Length 0.120m
Shipping Cubic 0.000010000m3
