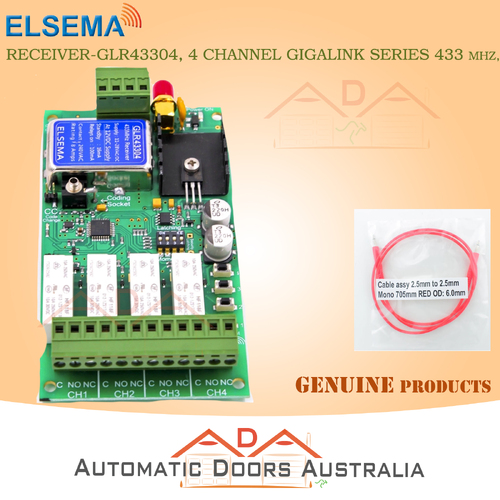

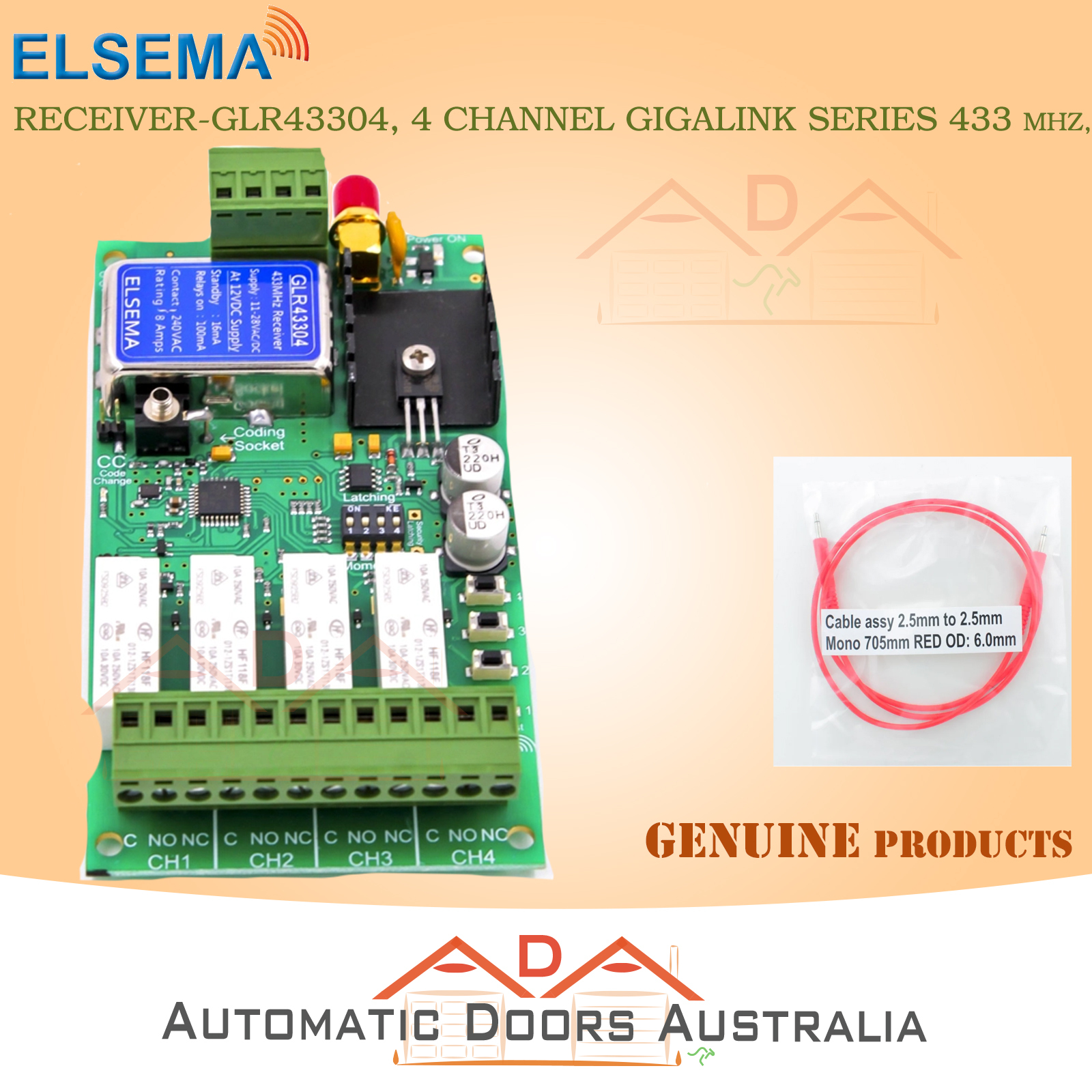

GLR43304, 4 Channel Gigalink® Series 433MHz Receiver

4-CH . 11-28 VAC/DC SUPPLY CONNECION AND RELAY OUTPUTS

**Free Delivery within Australia only

1 X Elsema GLR43304 Wired 4 Channel Gigalink Receiver

Discription

This Gigalink® receiver gives you four relay outputs that can switch currents up to 8 Amps each. There is an on-board switch to test each relay and a LED to indicate when the relay is “On”. The receiver has a power “On” LED to indicate that the correct supply voltage is connected.

The receiver’s micro-controller can store unlimited number of transmitters with a high security level using the encrypted 32-bit digital code. Included with the receiver is the Gigalink® programming cable.

  • Operating range of up to 350 – 400 metres
  • Can store unlimited number of transmitters
  • Supply voltage can be 12 – 24 Volts AC or DC
  • Momentary, Latching and Security Latching output modes can be selected by the user
  • Ideal for Industrial Automation, eg Crane Control, winches, wireless cement truck operation, Automatic Gates, Security Systems, Timer Controlled outputs and other simple on/off functions

 Receiver Compatibility

This Elsema GLR43304 receiver is compatible with the Gigalink series of Elsema remotes.

GLT43301
GLT43302
GLT43303
GLT43304
GLT43308
ANT433 LP (Antenna)
ANT433 S (Antenna)
ANT433 M (Antenna)

Features

  • Four channel receiver with relay outputs
  • Over 4 billion code combinations
  • Antenna: Elsema ANT 433MHz series
  • Can store unlimited number of transmitters
  • Useable Transmitters: All Elsema type GLT433 series
  • Momentary, Latching and Security Latching output modes can be selected by the user
  • Ideal for Industrial Automation, eg Crane Control, winches, wireless cement truck operation
  • E version available

https://youtu.be/X1V0ReHyHY0

https://youtu.be/8VkWCMCLe6Q

.

  •

(glr43304)

SKU glr43304
Brand Elsema
Shipping Weight 0.1490kg
Shipping Width 0.125m
Shipping Height 0.030m
Shipping Length 0.165m
Shipping Cubic 0.000618750m3
