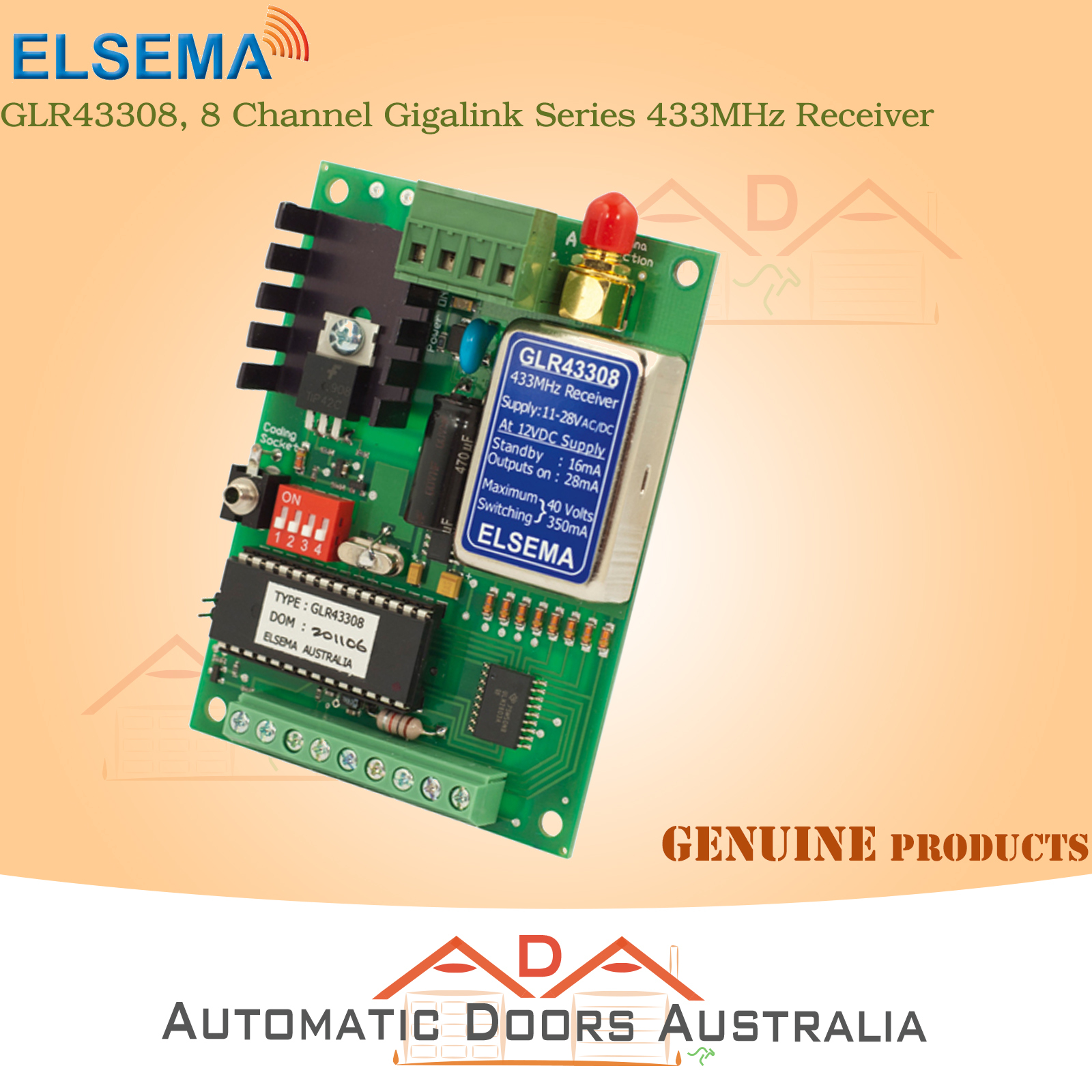

GLR43308... 8 Channel Gigalink^® Series 433MHz Receiver

4-CH . 11-28 VAC/DC SUPPLY CONNECION AND RELAY OUTPUTS

**Free Delivery within Australia only

1 X Elsema GLR43308 Wired 8 Channel Gigalink Receiver

Warranty -  01 year manufacturer's warranty

Discription

This Gigalink receiver gives you eight outputs.

The outputs for GLR43308 switches to negative when activated. Outputs can hold 40 Volts in “Off” state with output current rated up to 125mA.

The outputs for GLR43308POS switches positive when activated. Each output can be up to 50 Volts and a drive current of 120 mA

The outputs are protected with a diode to stop any EMF or transient from getting to the receiver.

The receiver’s micro-controller can store unlimited number of transmitters with a high security level using the encrypted 32-bit digital code. Included with the receiver is the Gigalink programming cable.

• Operating range of up to 350 – 400 metres
• Can store unlimited number of transmitters
• Supply voltage can be 12 – 24 Volts AC or DC
• Momentary, Latching and Security Latching output modes can be selected by the user
• Ideal for Industrial Automation, eg Crane Control, winches, wireless cement truck operation, Automatic Gates, Security Systems, Timer Controlled outputs and other simple on/off functions

 Receiver Compatibility

This Elsema GLR43308 receiver is compatible with the Gigalink series of Elsema remotes.

GLT43301
GLT43302
GLT43303
GLT43304
GLT43308
ANT433 LP (Antenna)
ANT433 S (Antenna)
ANT433 M (Antenna)

Features

• Four channel receiver with relay outputs
• Over 4 billion code combinations
• Antenna: Elsema ANT 433MHz series
• Can store unlimited number of transmitters
• Useable Transmitters: All Elsema type GLT433 series
• Momentary, Latching and Security Latching output modes can be selected by the user
• Ideal for Industrial Automation, eg Crane Control, winches, wireless cement truck operation
• E version available
