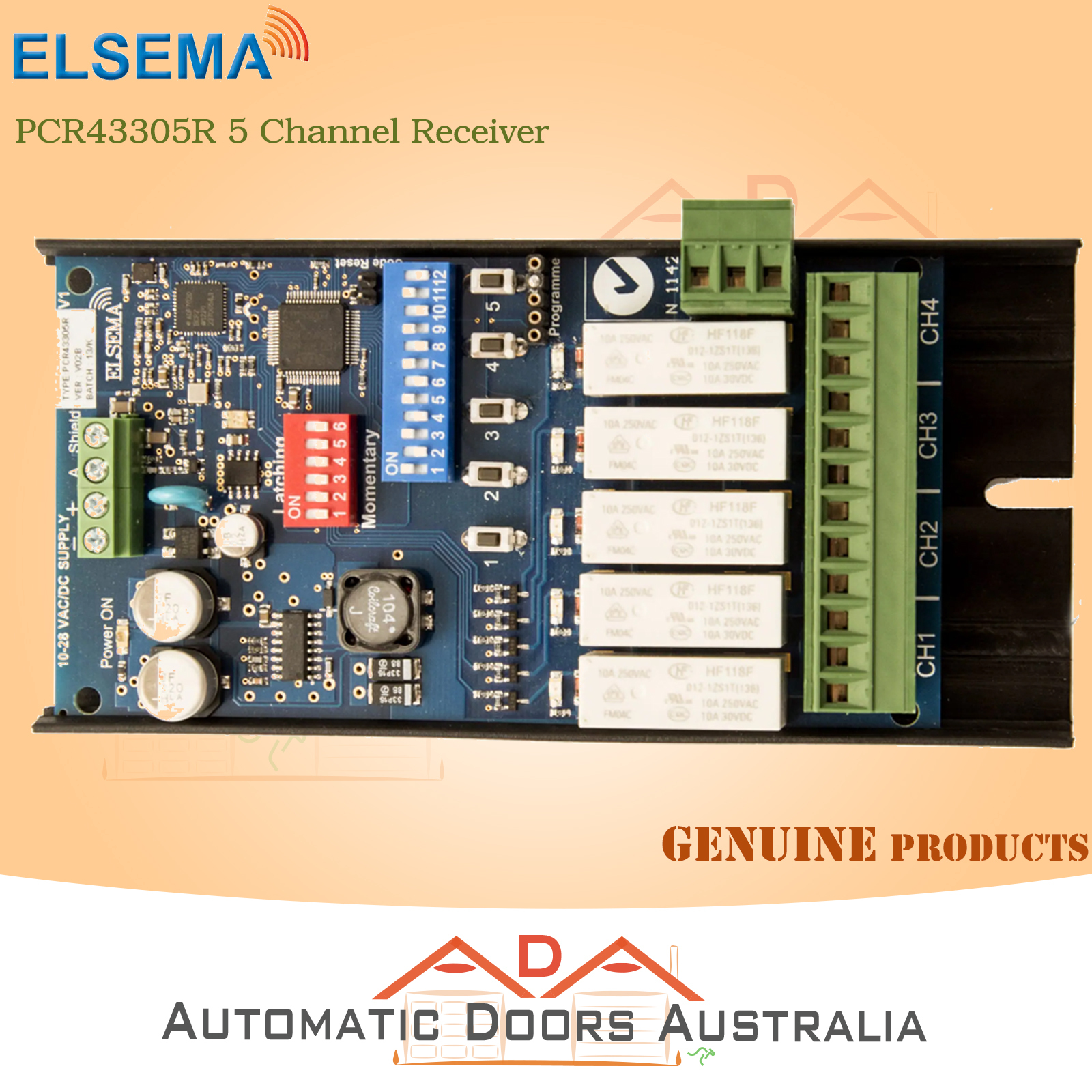

Elsema PCR43305R 5 Channel Receiver Board Only

1x Elsema Dual Channel Relay Receiver

Instruction Manual


* IP66 Waterproof Case need to be purchased separately

Free Delivery within Australia only ..

Descriptions

PCR43305R -5 Channel 433MHz Receiver with Frequency Hopping

This receiver is compatible with “PentaFOB® and “PentaCODE® remotes. It has five relay outputs which can be switched “on” and “off ” independently. The relays are capable of switching loads of up to 10 Amps at 240Volts AC.

The PentaCODE® dual coding system gives the installer the option to use the classic 12-way dip switch coding or one of over 17 billion encrypted codes.

With the 12-way dip switch, just match the keyring remotes and the receiver’s dip switch and it’s coded. With the encrypted code you switch all the 12-way dip switches OFF and the remote and receiver automatically goes into the encrypted coding. Please see coding instructions for encrypted coding procedure.

https://www.ada-aust.com/Specifications

Receiver Dimensions  13 x 7 x 2 (cm)
 Receiver Weight  -g
 Manufacturer  Elsema
 Model Number  PCR43305R
 Remote Encryption  PentaCode & PentaFob
 Connection Type  Wired
 Warranty  2 Year



Compatibility

This receiver is compatible with both the PentaCode and PentaFob series of Elsema remotes. The PentaCODE® dual coding system allows you to program a remote control using the older dipswitch settings, or via digital ‘Learning’.



 Features

This receiver is compatible with “PentaFOB®” and “PentaCODE®” remotes. The receiver is small and can be easily installed into your existing automatic gate opener or garage door controls. Other applications include light control, security shutters or anywhere else you need a wireless signal to transmit a contact closure.

The PentaCODE® dual coding system gives the installer the option to use the classic 12-way dip switch coding or one of over 17 billion encrypted codes.

With the 12-way dip switch, just match the keyring remotes and the receiver’s dip switch and it’s coded. With the encrypted code you switch all the 12-way dip switches OFF and the remote and receiver automatically goes into the encrypted coding. Please see coding instructions for encrypted coding procedure.

  • Coding using 12-way dipswitch or digital codes
  • Momentary and Latching modes are user selectable
  • Antenna diversity for robust link with extended range
  • Compatible with PentaFOB® and PentaCODE® remotes
  • Narrow-band hopping transmission across multiple channel frequencies (433.1MHz to 434.7MHz



https://www.youtube.com/watch?v=flqe8Z2SQlw&t=2s

https://www.thetechherald.com



(PCR43305R)

SKU PCR43305R
Brand Elsema
Shipping Weight 0.1250kg
Shipping Width 0.090m
Shipping Height 0.030m
Shipping Length 0.110m
Shipping Cubic 0.000297000m3
