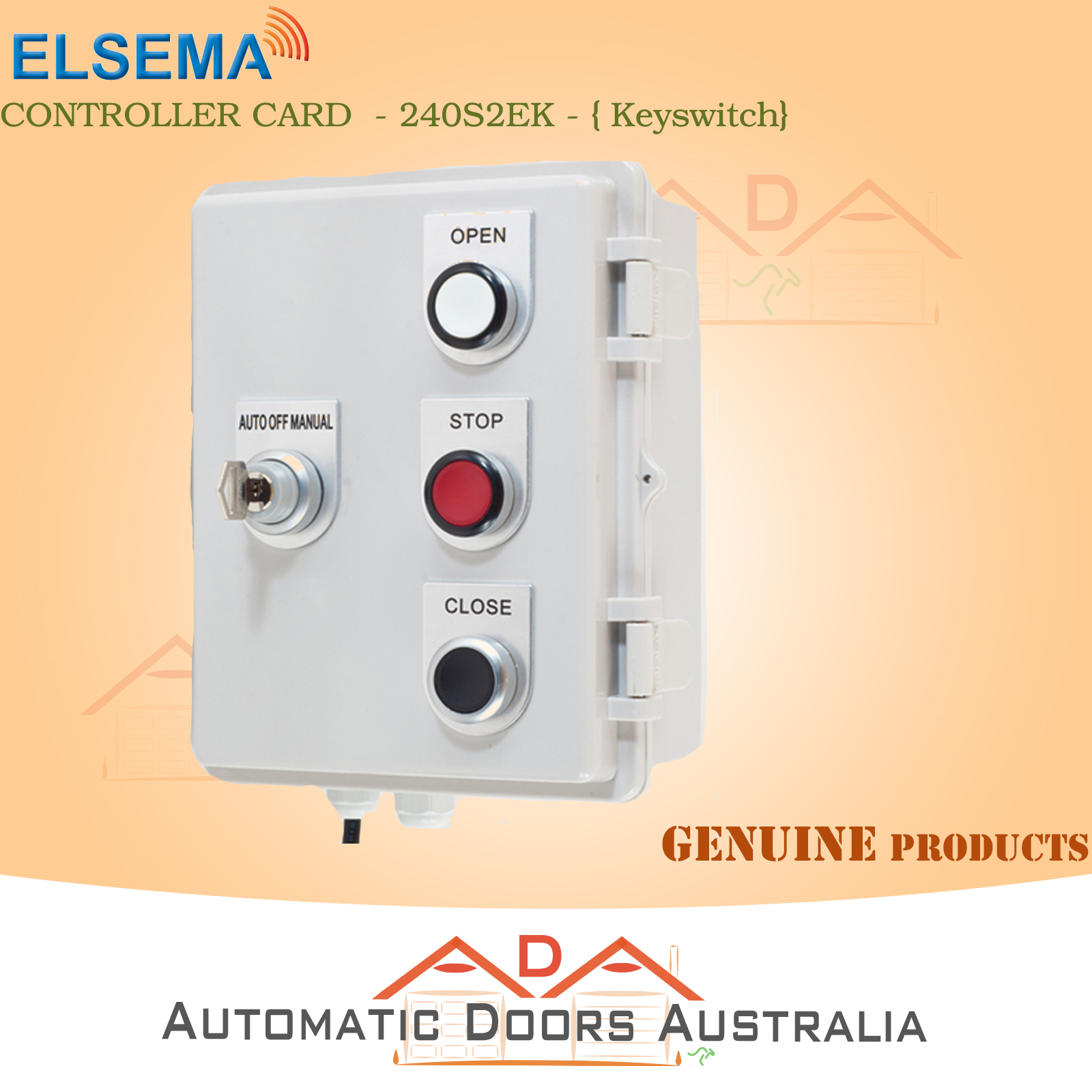

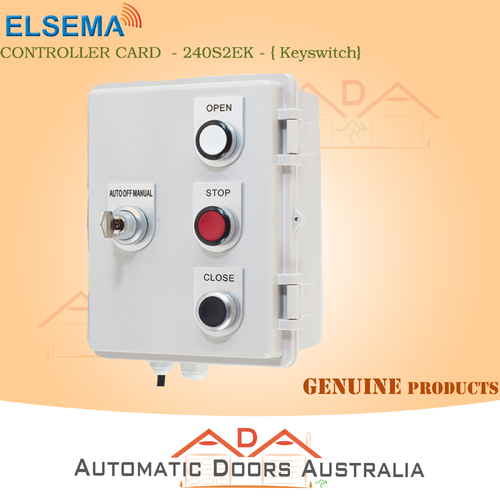

ELSEMA 240S2EK Controller for 240V AC Motors – Garage Door & Gate Control
ELSEMA _ 240S2EK
ELSEMA 240S2EK CONTROLLER FOR 240 VOLT AC MOTORS
Garage Door, Industrial Roller Shutter & Automatic Gate Control Board
Product Overview
The Elsema 240S2EK Controller is a premium 240 Volt AC motor controller designed for garage doors, industrial roller shutters, sectional doors, sliding doors, and light commercial doors. This IP66 rated control board features external Up, Down, Stop buttons and a key switch for enhanced safety.
Key Features & Benefits
- Adjustable auto close for customized door operation
- External key switch for added safety and security
- Dead man controls for open and close buttons
- Automatic ground and travel distance calibration
- Supports photocell, pedestrian and wireless remote inputs
- Compatible with NO or NC limit switches or travel timer setup
- Aux relay output to control courtesy lights or other accessories
- 24VDC output to supply loop detectors or swipe card accessories
- Custom models available upon request
Technical Specifications
| Model | Elsema 240S2EK |
| Motor Rating | Up to 1.0 kW / 1.3 HP |
| Card Size | 148 x 120 mm |
| Enclosure Size | 200 x 170 x 110 mm |
| Limit Switch Support | NO / NC limit switches or travel timer setup |
| Accessory Output | 24VDC for external accessories |
Ideal For
- Automatic garage doors
- Industrial roller shutters
- Sectional doors & sliding doors
- Automatic gate systems
- Light commercial doors
Order Options
| Part Number | Contents |
|---|---|

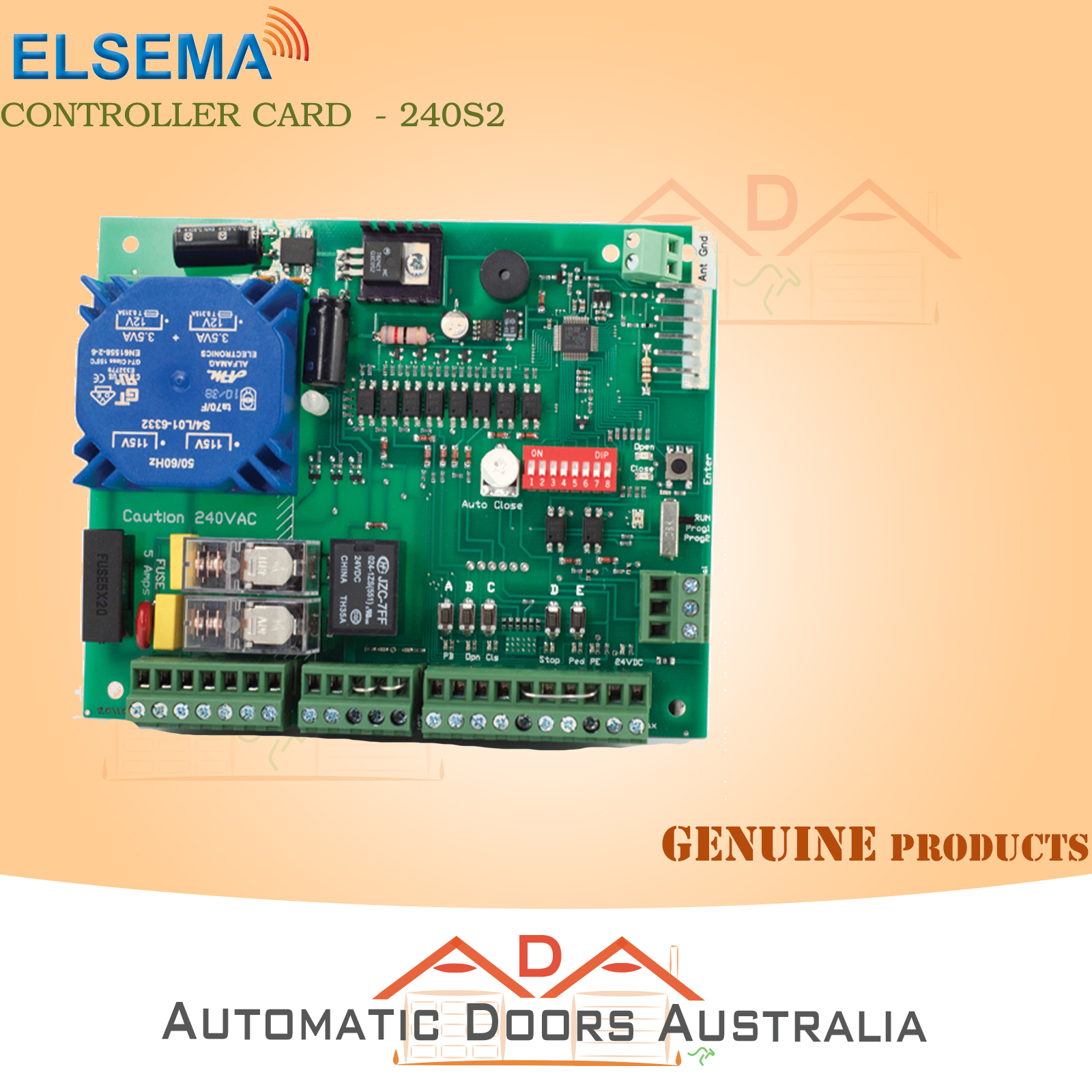

| 240S2 / 120S2 | Single gate/door controller for 240 Volt motor (card only) |
| 240S2E / 120S2E | Controller card with IP66 enclosure and external Up / Down / Stop buttons |
| 240S2EK / 120S2EK | Controller card with IP66 enclosure, external Up/Down/Stop buttons and key switch |
Delivery & Warranty
Free Delivery Australia-wide. Includes 2 Year Manufacturer’s Warranty for full peace of mind.
Elsema 240S2EK Controller - Secure & Reliable Garage Door & Gate Control Board
Keywords: Garage Door Controller, Automatic Gate Control, Roller Shutter Motor, 240V AC Motor Controller, Industrial Door Control Board
(240S2EK)
| SKU | 240S2EK |
| Brand | Elsema |
| Shipping Weight | 1.7000kg |
| Shipping Width | 0.180m |
| Shipping Height | 0.140m |
| Shipping Length | 0.230m |
| Shipping Cubic | 0.005796000m3 |
