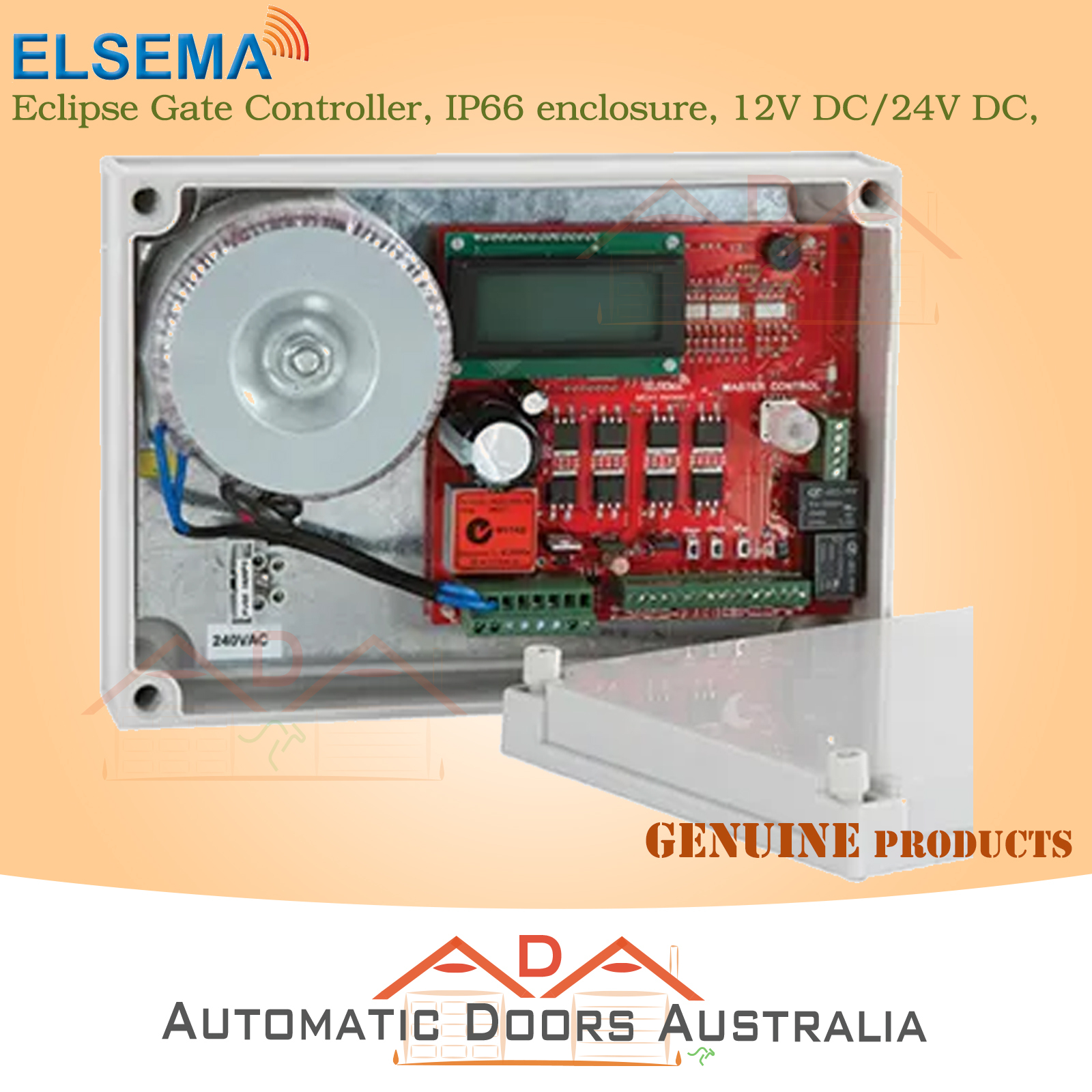

Double or single gate and door controller for 24 / 12 Volt motor bigger than 120 Watts *motors includes IP66 rated plastic enclosure and transformer.



Free Delivery within Australia only .......

Include

  • Elsema MCv224E box
  • Installation Instruction

Descriptions

MCv2*. Double or single gate and door controller ... MC & MCv2 control card can be used to control automatic gates, doors, boom gates, automated windows.

Features:

  • Suitable for larger motors up to 120W
  • Suitable for single and double gate
  • Eclipse Operating System
  • Day and Night Sensor
  • 24 Volt DC motor operation
  • Motor soft start and soft stop
  • Speed and force adjustment
  • Large 4-line LCD to indicate controllers status and setup instructions
  • 1-Touch control for easy setup
  • Auto profiling using latest intelligent technology
  • Various inputs, push button, open only, close only, stop, pedestrian and photoelectric beam
  • Supports limit switch inputs or mechanical stops
  • Adjustable auto-close, obstruction load and pedestrian access
  • Adjustable lock and courtesy light outputs
  • Variable photoelectric safety beam functions
  • Built-in Penta receiver
  • Energy saving mode to reduce running costs
  • 12/24 Volt DC Output to power accessories
  • Service cournters, password protection, holiday mode, plus many more features
  • Built in 12 and 24 Volt battery charger for backup batteries
  • 12mA standby current – ideal for solar gates
  • Free Shipping Australia-Wide*

Warranty*

  • 2 Years Manufacturers Warranty*

Compatible with:

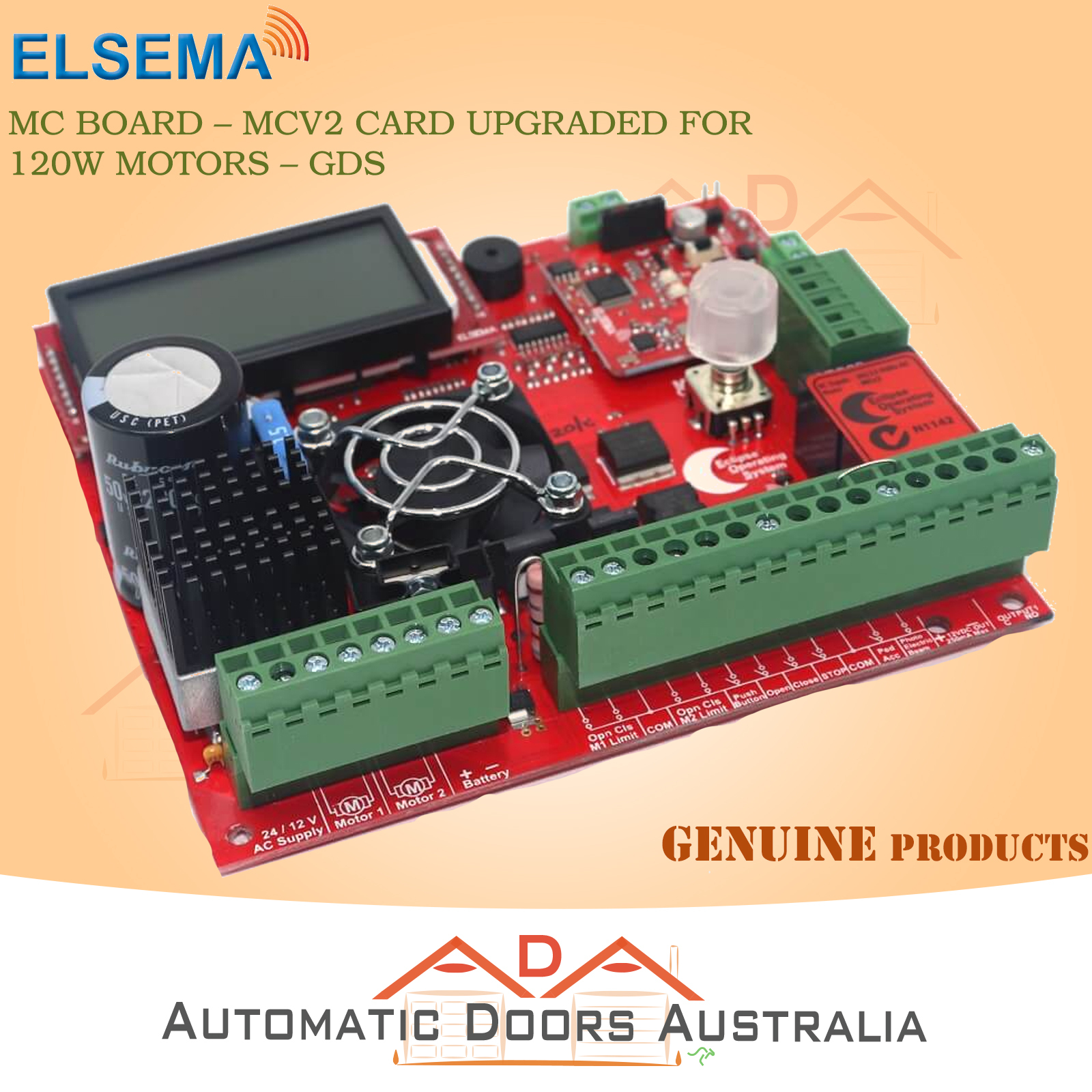

The Elsema Eclipse MCv2 Board with LCD screen is compatible with larger sliding and swing gate motors.  With built-in Penta Receiver this board is compatible with the Elsema Pentafob remote.

  • Elsema Pentafob 1 Button Large
  • Elsema Pentafob 1 Button Small
  • Elsema Pentafob 2 Button
  • Elsema Pentafob 4 Button
  • Elsema Pentafob 5 Button
  • Elsema Pentafob Waterproof Remotes

https://www.ada-aust.com/assets/files/mc-manual.pdf

https://www.ada-aust.com/assets/files/mc-brochure.pdf

(EL_MCv224E)

SKU EL_MCv224E
Brand Elsema
Shipping Weight 3.1000kg
Shipping Width 0.170m
Shipping Height 0.080m
Shipping Length 0.250m
Shipping Cubic 0.003400000m3
