ELSEMA_CONTROLLER FOR 240 VOLT A/C MOTORS  240S2E



Free Delivery Australia-wide only ****

Warranty -  02 year manufacturer's warranty

Controller for 240 or 120 Volt AC Motors

Used on Light Commercial Doors, Industrial Roller Shutters, Sectional Doors, Garage and Sliding Doors

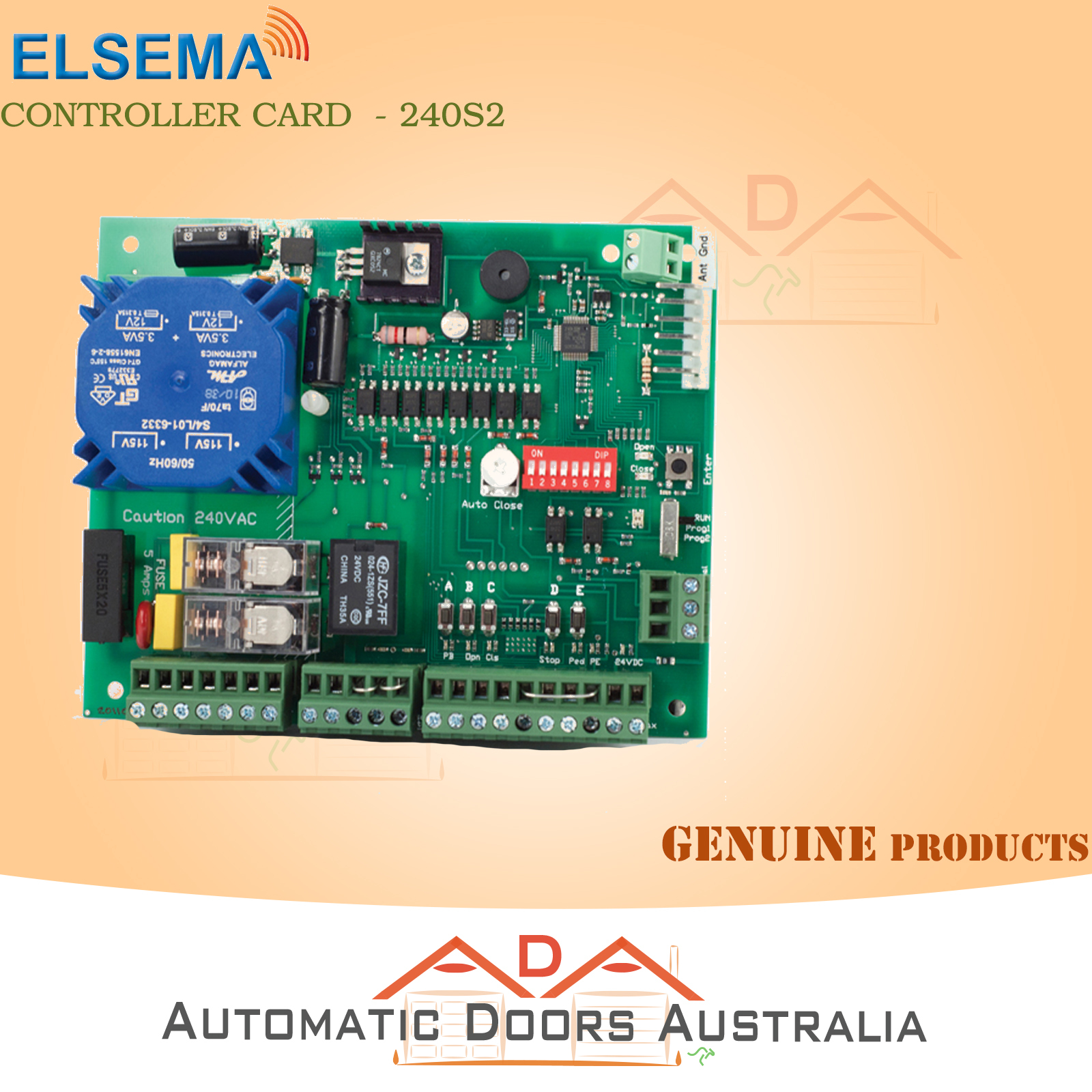

The 240S1 and 240S2 are very similar cards except for the card size and the 240S2 has a key switch input. Offering two different sizes allows the cards to be easily installed into existing cases as replacement or upgrade cards. These two cards are one of our best valued cards on the market, selling for a very competitive price, yet still loaded with many features.

The control cards were built from the ground up, based on customer feedback and using today’s technology. With its rich functions, consumer friendly price and with the focus during development being ease of use and setup makes these 240VAC control cards the ultimate board to control your motors...

Features

  • Adjustable auto close
  • External key switch for safety and security (Only on 240S2)
  • Dead man controls for open and close buttons
  • Automatic ground and travel distance calibration
  • Photocell, pedestrian and wireless remote control inputs
  • Supports NC or NO limit switch inputs or travel timer setup
  • Aux relay output to control courtesy lights and other accessories
  • 24VDC output to supply external accessories such as loop detectors, swipe cards etc
  • Customised models available upon request

Technical Data

  • Small Size 240S1: 163 x 94 mm. 240S2: 148 x 120 mm
  • Suitable for motors up to 1.0kW (1.3Hp). For higher rated motors please see 240S3, 240S4
  • Can be used with NO or NC limit switches or travel time
  • Test buttons for control inputs
  • For detailed technical data,

Order Information

Part Number Contents
240S2, 120S2* Single gate/door controller for 240 Volt motor, card only 144mm x 120mm

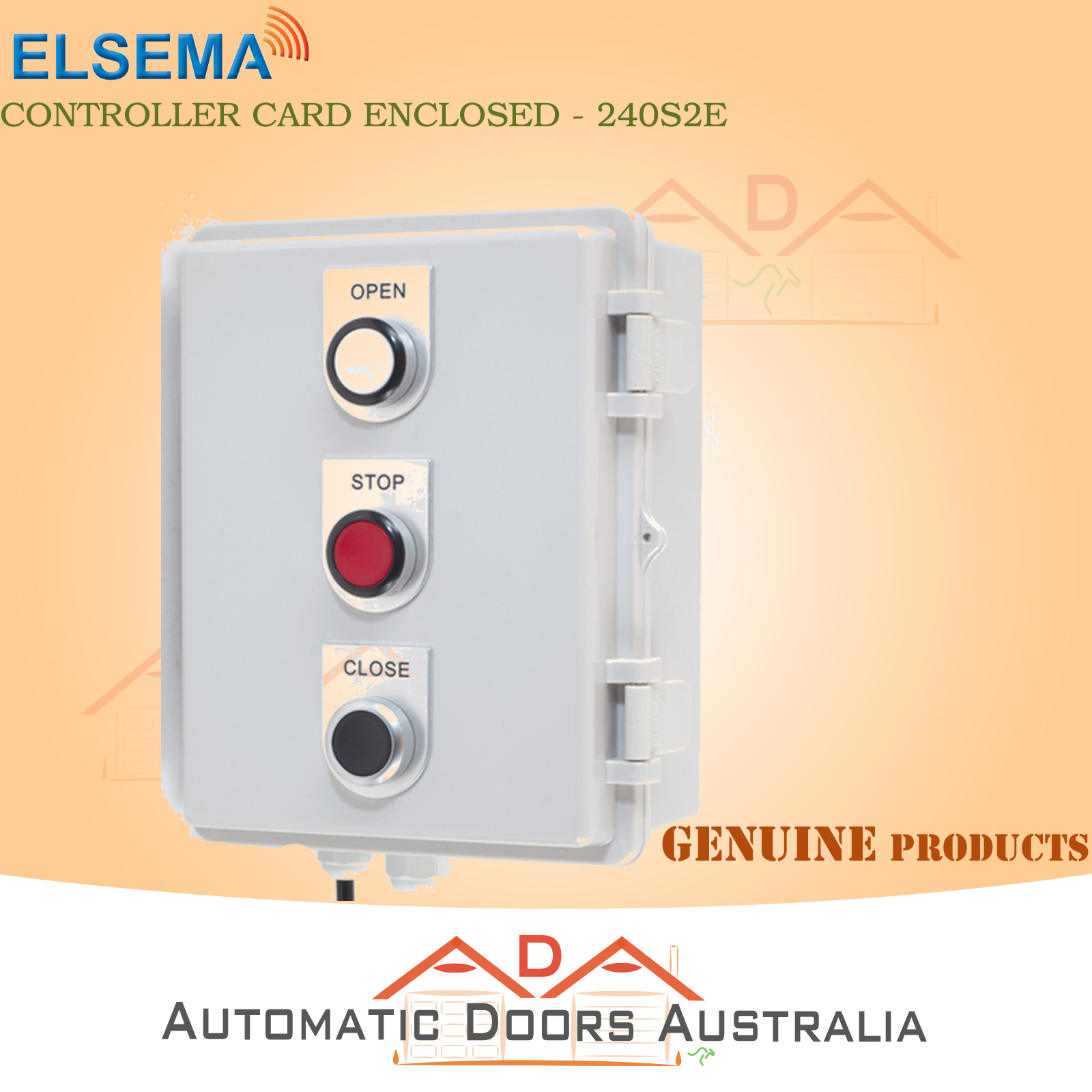

240S2E, 120S2E* 240 Volt controller card IP66 rated Plastic Enclosure External Up/Down/Stop buttons 200 x 170 x 110 mm
240S2EK, 120S2EK* 240 Volt controller card IP66 rated Plastic Enclosure External Up/Down/Stop buttons Key switch for extra safety. 200 x 170 x 110 mm

Accessories

  • Automatic Gates Kit: We have kits and control cards for all types of automatic gates including sliding gates, swing gates, cantilever gates, solar gates, farm gates and industrial roller doors
  • Keyrings & FOB remotes: Elsema’s next generation of key fob remote controls features over 17 billion encrypted codes, dual coding, frequency hopping, antenna diversity and customised colours and labels. It’s never been that easy to own your own key fob remote control. These remotes are superior to normal rolling code remotes
  • Photo Electric Beams: Safety device to control automatic swing gates, sliding gates, roller shutters or electronic doors from accidentally hitting people or vehicles
  • Magnetic LocksDesigned to secure any type of door or gate that closes against a fixed stop. All of our magnetic lock components are carefully designed, manufactured and tested to ensure superior quality
  • Loop Detectors: The digital technology of the loop detector is used to detect metal objects such as motor vehicles, motor bikes or trucks. Applications are, automatically open or close swing gates, sliding gates, roller doors and garage doors when a vehicle is present. Also used in policing, traffic control or surveillance

(240S2E)

SKU 240S2E
Brand Elsema
Shipping Weight 1.5050kg
Shipping Width 0.180m
Shipping Height 0.180m
Shipping Length 0.230m
Shipping Cubic 0.007452000m3
