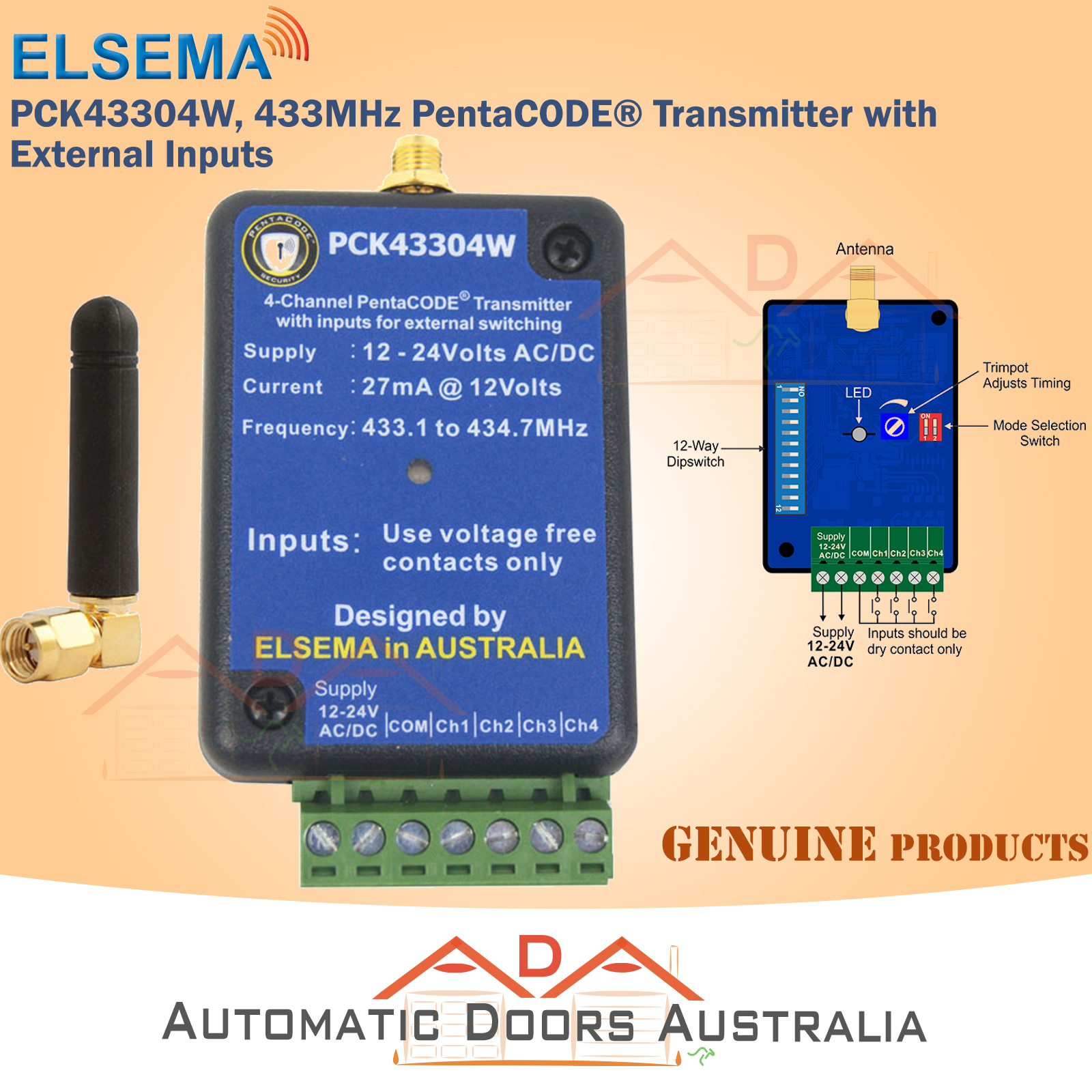

ELSEMA PCK43304W PentaCODE® 4-Channel Transmitter
Reliable Wireless Control for Gates, Doors and Industrial Equipment
The ELSEMA PCK43304W is a high-power, four-channel PentaCODE® 433MHz transmitter designed for connecting external normally open, voltage-free contact closures.
Push buttons, PLC outputs, security controls and other compatible equipment can be connected to the four external inputs, allowing contact closure signals to be transmitted wirelessly without running long control cables.
The PentaCODE® dual coding system allows installers to select either traditional 12-way DIP-switch coding or secure encrypted coding. The unit is compatible with ELSEMA 433MHz Penta-series receivers.
Key Features
|
4 External Inputs
Normally open, voltage-free dry contact inputs. |
Long Wireless Range
Operating range of up to 500 metres. |
|
Flexible Power Supply
Operates from 12 to 24 volts AC or DC. |
Dual Coding Options
12-way DIP-switch or encrypted coding. |
|
Frequency Hopping
Operates between 433.100 and 434.700MHz. |
Easy Installation
Pluggable screw-type terminal connections. |
Suitable Applications
| ✓ Automatic gate systems | ✓ Garage door openers |
| ✓ Wireless push buttons | ✓ Industrial controls |
| ✓ PLC-controlled equipment | ✓ Security and duress buttons |
| ✓ Remote contact closures | ✓ Long-distance wireless signalling |
PentaCODE® Dual Coding System
12-Way DIP-Switch Coding: Set a code on the receiver and match the transmitter DIP-switch settings for straightforward installation.
Encrypted Coding: Set all 12 DIP switches to OFF and follow the PentaCODE® encrypted programming procedure to pair the transmitter and receiver.
Technical Specifications
| Brand | ELSEMA |
| Model | PCK43304W |
| Product Type | Fixed high-power wireless transmitter |
| Number of Channels | 4 channels |
| External Inputs | 4 dry contacts, optically isolated |
| Input Type | Normally open, voltage-free contact closure |
| Supply Voltage | 12–24V AC or DC |
| Frequency Band | 433.100–434.700MHz |
| Operating Range | Up to 500 metres |
| Standby Current | 6µA at 12V DC |
| Transmit Current | 27mA |
| Connections | Screw-type terminal blocks |
| Dimensions | 90mm × 50mm × 25mm |
| Weight | Approximately 70g |
| Receiver Compatibility | ELSEMA 433MHz Penta-series receivers |
Package Includes
Important Information
External inputs must be connected to voltage-free contact closures only. Do not apply an external voltage directly to the input terminals.
Wireless operating range may vary depending on installation location, antenna position, surrounding structures, electrical interference and environmental conditions.
