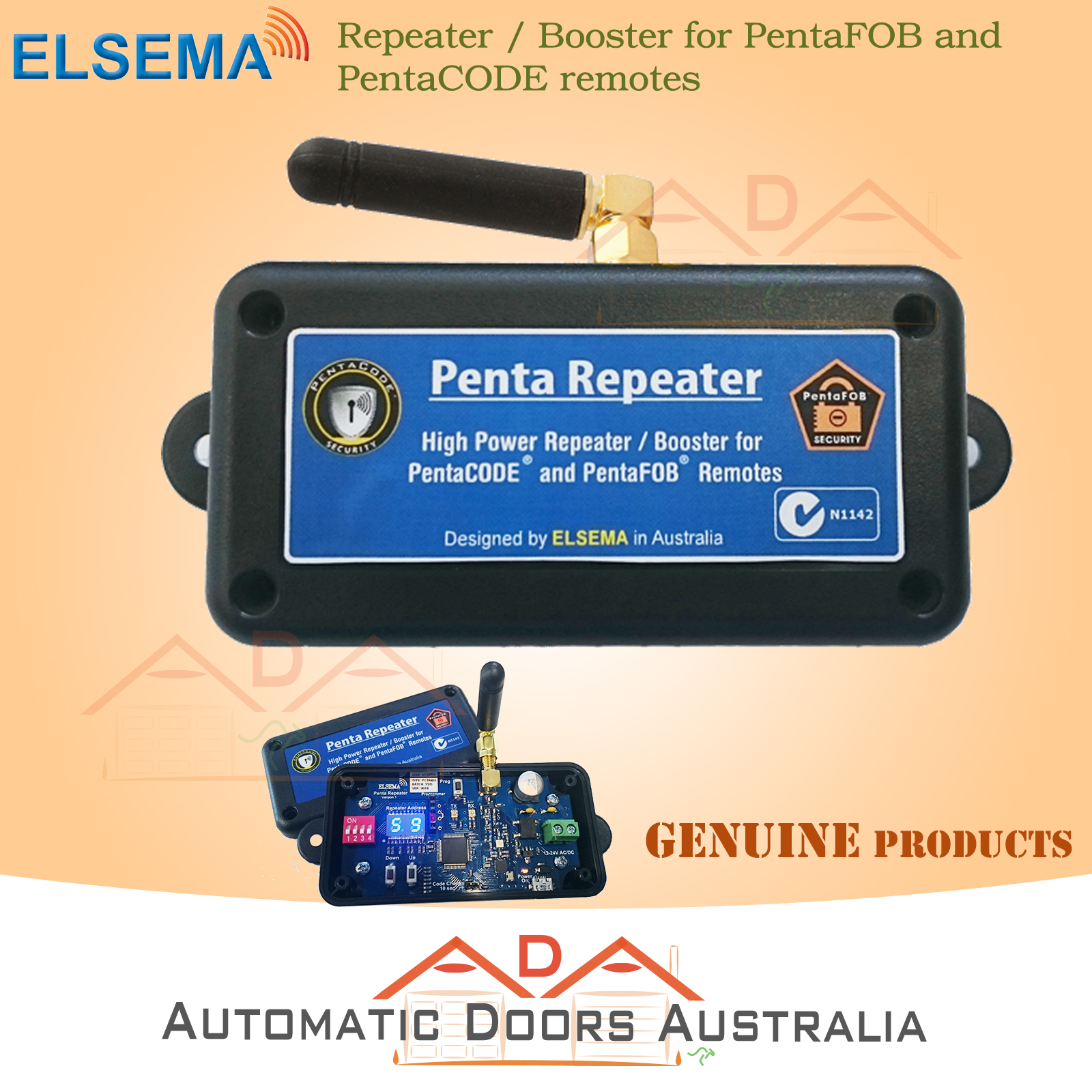

ELSEMA Repeater / Booster for PentaFOB® and PentaCODE® remotes The Pentarepeater receives the transm
PCTR433 -PENTA REPEATER
- Compatible with “PentaFOB®” and “PentaCODE®”remotes
- Micro USB or external supply
- Unlimited remotes can be programmed
- Highly sensitive receiver input stage
- Crystal controlled for high reliability
- Easy mounting to walls
- Antenna: Elsema ANT 433MHz series
- Useable Receivers: All Elsema type Penta Receivers
- Ideal for nursing homes, garage doors, automatic gates or switching household lights
- Technical data click here
The Pentarepeater receives the transmissions from “PentaFOB®” and “PentaCODE®” remotes and than re-transmits it with high power. The repeater can increase the operating range of these remotes to 500 metres. It can be powered by common micro USB such as phone, digital camera charges or by external AC-DC supply.
The repeater can repeat both encrypted code and dip switch code. Multiple repeaters can be used to further extend the range.
This receiver is compatible with both the PentaCode and PentaFob series of Elsema remotes. The PentaCODE® dual coding system allows you to program a remote control using the older dipswitch settings, or via digital ‘Learning’.
The Wiegand output of the receiver can link with almost any commercial access control panel. Without requiring any software changes, remote controls can be installed as a Wiegand card or RFID tag. The system requirements can be matched with the ID and facility codes.
01 year warranty is a guarantee from the manufacturer
