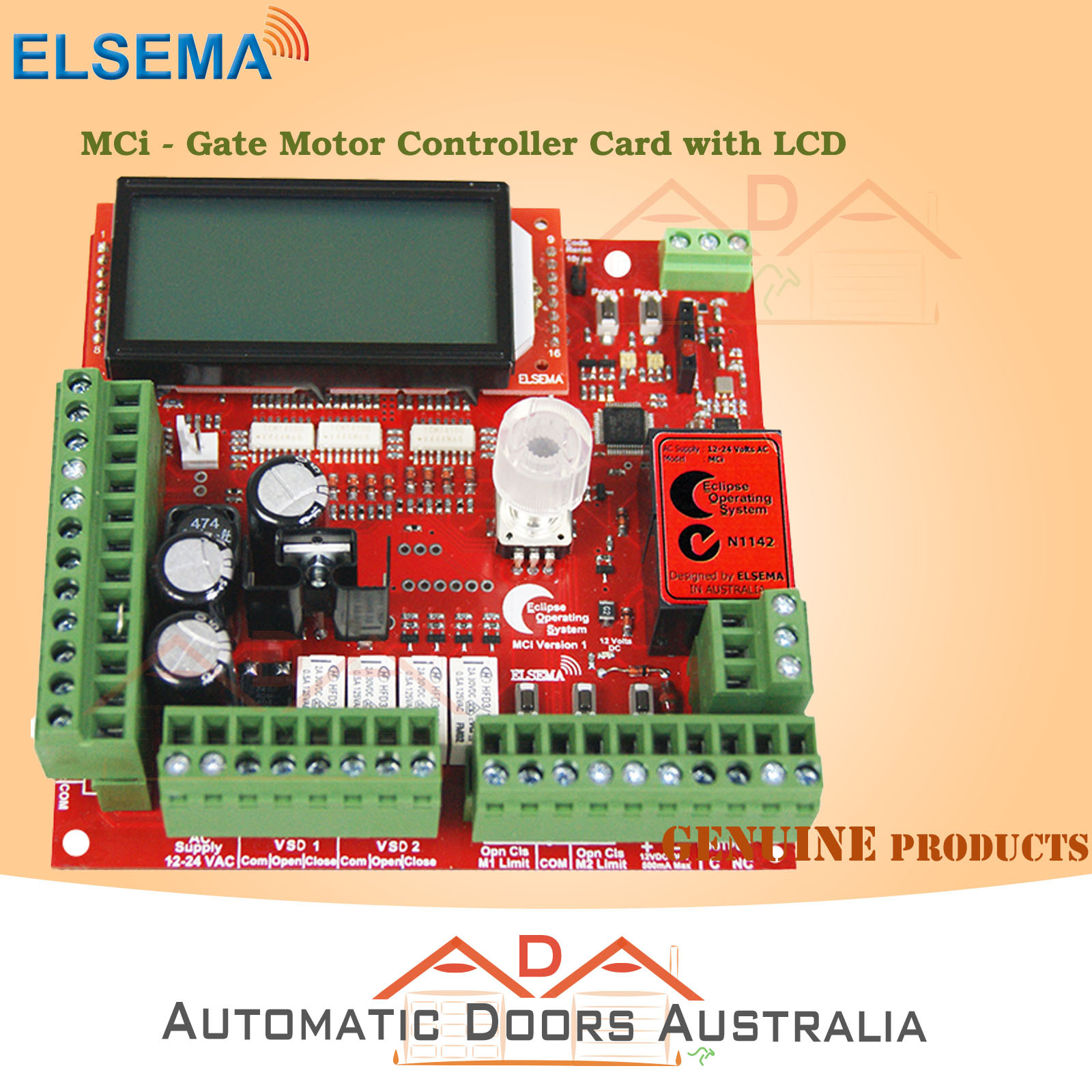

ELSEMA_ MCi _ Gate Motor Controller Card with LCD

Free Standard Delivery Australia-wide only

Incudes

• ELSEMA_ MC i  Card
• Instruction Manual

Warranty -  01 year manufacturer's warranty (This warranty covers failure due to manufacturer's fault)


Description

Features › Suitable for swing and sliding gates › Double or single motor operation › Eclipse Operating System (EOS) › Slow speed adjustment › Large 4-line LCD to indicate controllers status and setup instructions › 1-Touch control for easy setup › 12 Volt DC Output to power accessories › Various inputs, push button, open only, close only, stop, pedestrian and photoelectric beam › Adjustable auto close and pedestrian access › Adjustable lock and courtesy light outputs › Variable photoelectric safety beam functions › Auxiliary inputs for fire alarms. › Service counters, password protection, holiday mode and many more features The MCi Controller has been specifically designed to control Variable Speed Drives (VSD). Elsema’s MCi-VSD kit comes with its own Omron VSD for controlling a 3-phase 240 Volt AC motor. The MCi card only version can also be used to control almost all types of VSD’s or even contactors. The relay outputs on the MCi are voltage free contacts, allowing the user to connect it to VSD’s Open, Close & Common inputs (Forward, Reverse & Common). It can also be used to operate coils of open and close contactors. The MCi’s Eclipse® Operating System (EOS) automatically does all the confusing and hard to find VSD parameters settings by simply asking the user a few questions. It also gives the user options for more advance settings, where the user can configure each parameter of the VSD. All selections are done in the EOS menu instead of the VSD. Eclipse® Operating System (EOS) is a user friendly menu driven system that uses the 1-touch button to control, setup and run automatic gates, doors and barriers. It uses a large 4-line LCD screen showing live reading of the motor performance and status of all inputs and outputs. The MCi is not just the next generation but the “Next Transformation” in the gate and door industry creating an Eclipse over previously developed motor controllers. With its rich functions, consumer friendly price and with the focus during development being ease of use and setup makes this controller the ultimate board to control your motors.

The MCi card only version can also be used to control almost all types of VSD’s or even contactors. The relay outputs on the MCi are voltage free contacts, allowing the user to connect it to VSD’s Open, Close & Common inputs (Forward, Reverse & Common). It can also be used to operate coils of open and close contactors.

The MCi-VSD kit with Eclipse^® Operating System (EOS) automatically does all the confusing and hard to find VSD parameters settings by simply asking the user a few questions. It also gives the user options for more advance settings, where the user can configure each parameter of the VSD. All selections are done in the EOS menu instead of the VSD.

Features

• Eclipse Operating System (EOS)
• Braking Resistor included in MCi-VSD
• Instant stop on obstruction and photo beam interruption
• Large 4-line LCD to indicate controllers status and setup instructions
• 1-Touch control for easy setup
• Profiling using latest intelligent technology
• Various inputs, push button, open only, close only, stop, pedestrian and photoelectric beam
• Slow on limit or stop on limit
• Adjustable auto close, obstruction load and pedestrian access
• Adjustable lock and courtesy light outputs
• Variable photoelectric safety beam functions
• 12 Volt DC Output to power accessories
• Service counters, password protection, holiday mode and many more features

Technical Data

• Day & Night sensor
• Small Size 140mm x 130mm (Card only)
• Outputs to control Dual Inverter system
• Options to wire low voltage Contactors
• Can be used with or without limit switches
• Auxiliary input can open, close, stop, ped open or disable auto-close
