ELSEMA GIGALINK 11-28V AC/DC Receiver, Supply & relay output,

Free Delivery within Australia only ...

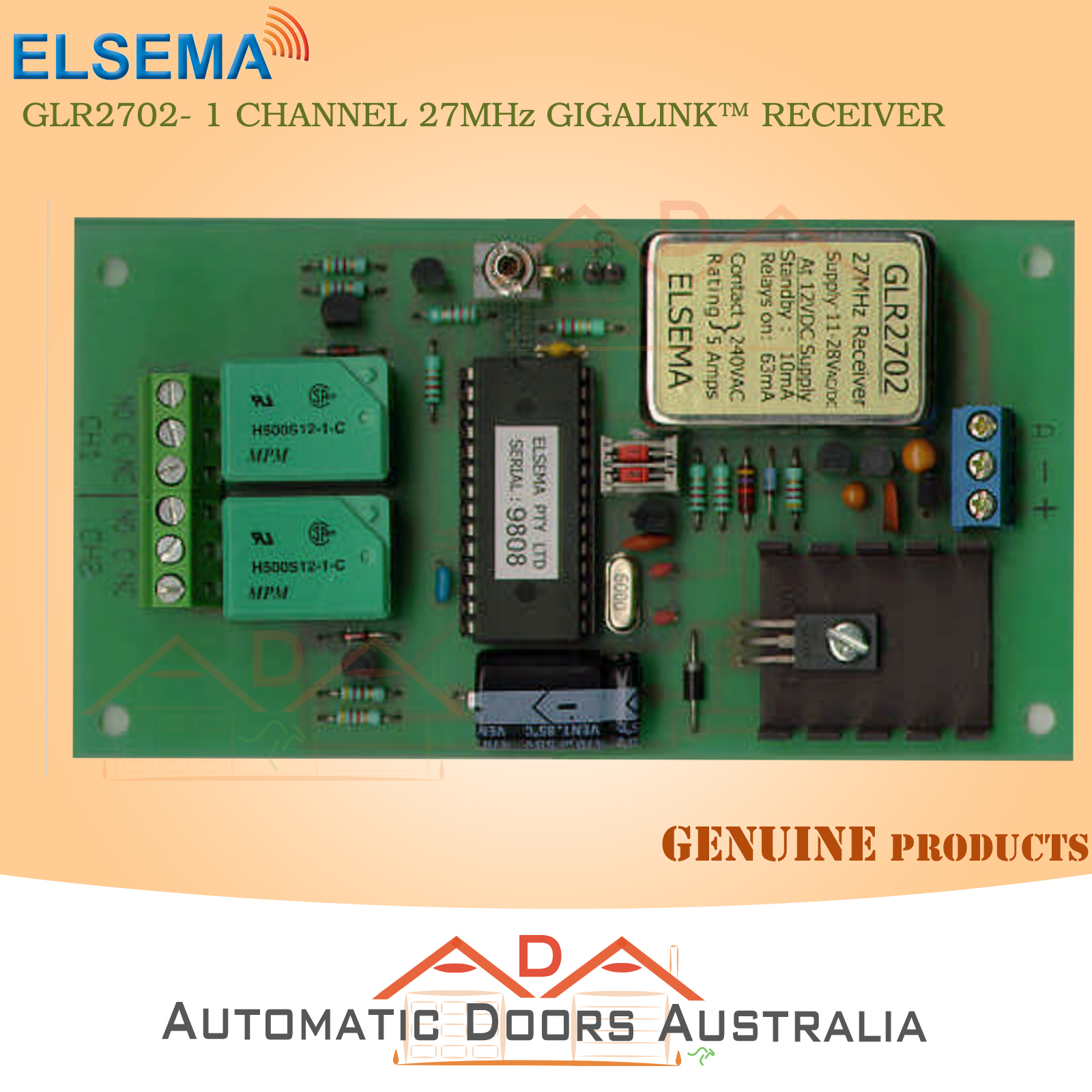

The GIGALINK™ , GLR2702 is an advanced Remote Control technology available in the world today. GIGALINK™ is an invention that has revolutionised the entire Remote Control technology including Elsema's earlier version of FMT- … and FMR- … series. This state-of-the-art invention brings a new dimension in the world of Remote Control technology in domestic, commercial and industrial applications. The innovative microcontroller technology replaces the traditional dip switch coding which eliminates any possible code grabbing. Special features such as over four billion code combinations, operational over a wide voltage range, eight user selectable modes and ability to program any number of transmitters to a receiver adds up to the most advanced and secure Remote Control available. The receiver has a relay output that is activated when the GLR2702 receives the correct code from the GIGALINK™ transmitter. The relay out has voltage free contacts. Contacts available are “C” Common, “NC” Normally Closed and “NO” Normally Open

Features -

  • Wide supply connection – 11.0 to 28.0 Volts AC/DC
  •  Highly sensitive receiver input stage. When used with GLT27…. series transmitters and an ANT27L antenna, an operating range of 350 metres (980 ft) is possible.
  •  Relay Output.
  •  Crystal controlled for high stability and performance
  •  Dual Conversion to reduce interference.
  •  Uses micro-controller technology that can be re-programmed to suit unique applications.
  •  Momentary, latching and security latching output modes is user selectable.
  •  Power ON LED indicator.

Warranty -  01 year manufacturer's warranty







Brand Elsema
Shipping Weight 0.1350kg
Shipping Width 0.100m
Shipping Height 0.045m
Shipping Length 0.110m
Shipping Cubic 0.000495000m3
