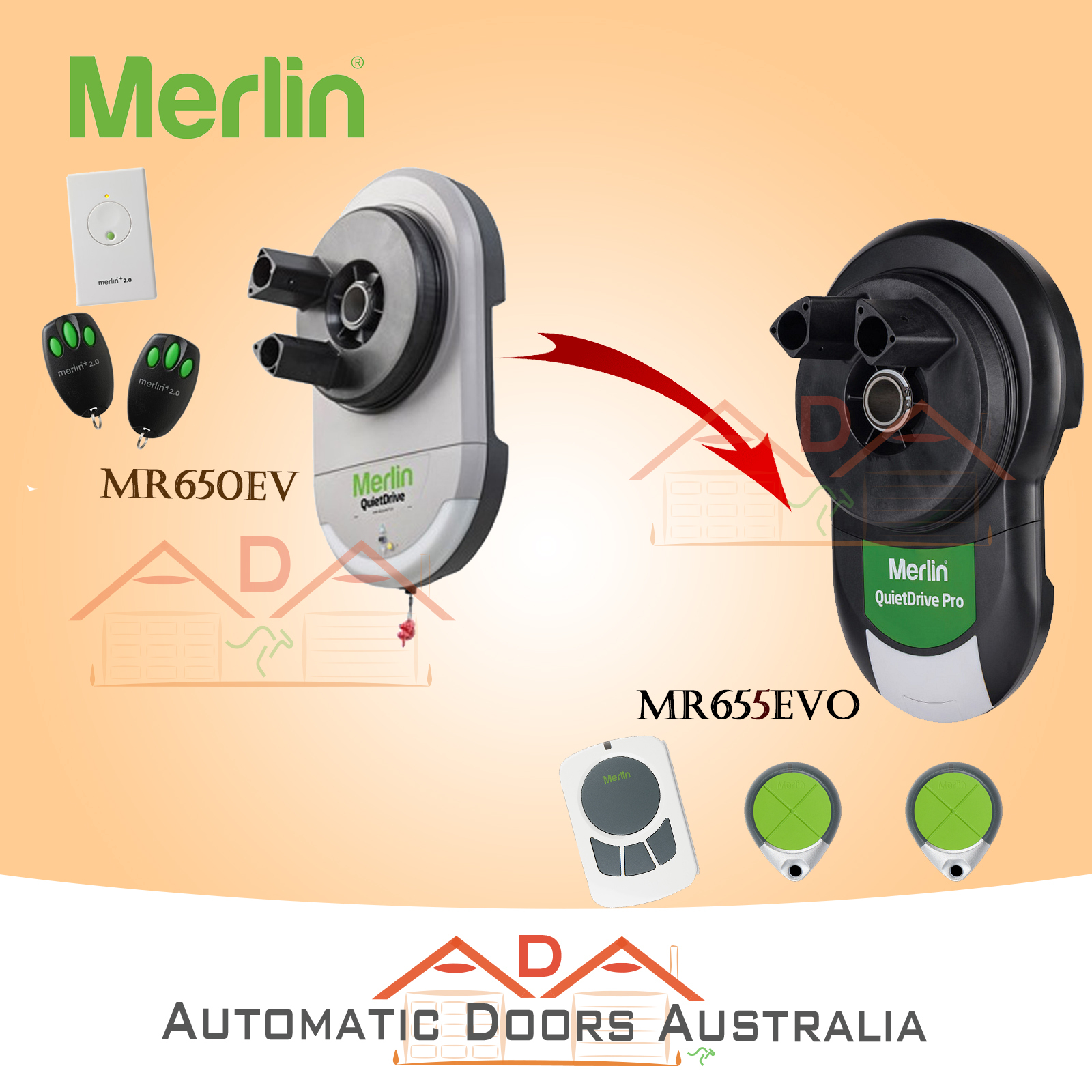

Merlin MR650EVO Rolling Door Opener Upgrade to MR655MYQ

Silent Drive Premium Series
The versatile slimline roller door opener

The Chamberlain Merlin MR650EVO/MR655EVO roller door opener is a residential door opener. Easy to install on existing or new garage doors, the opener is equipped with energy-saving features. The QuietDrive motor ensures discreet motor operation.

Listing Includes

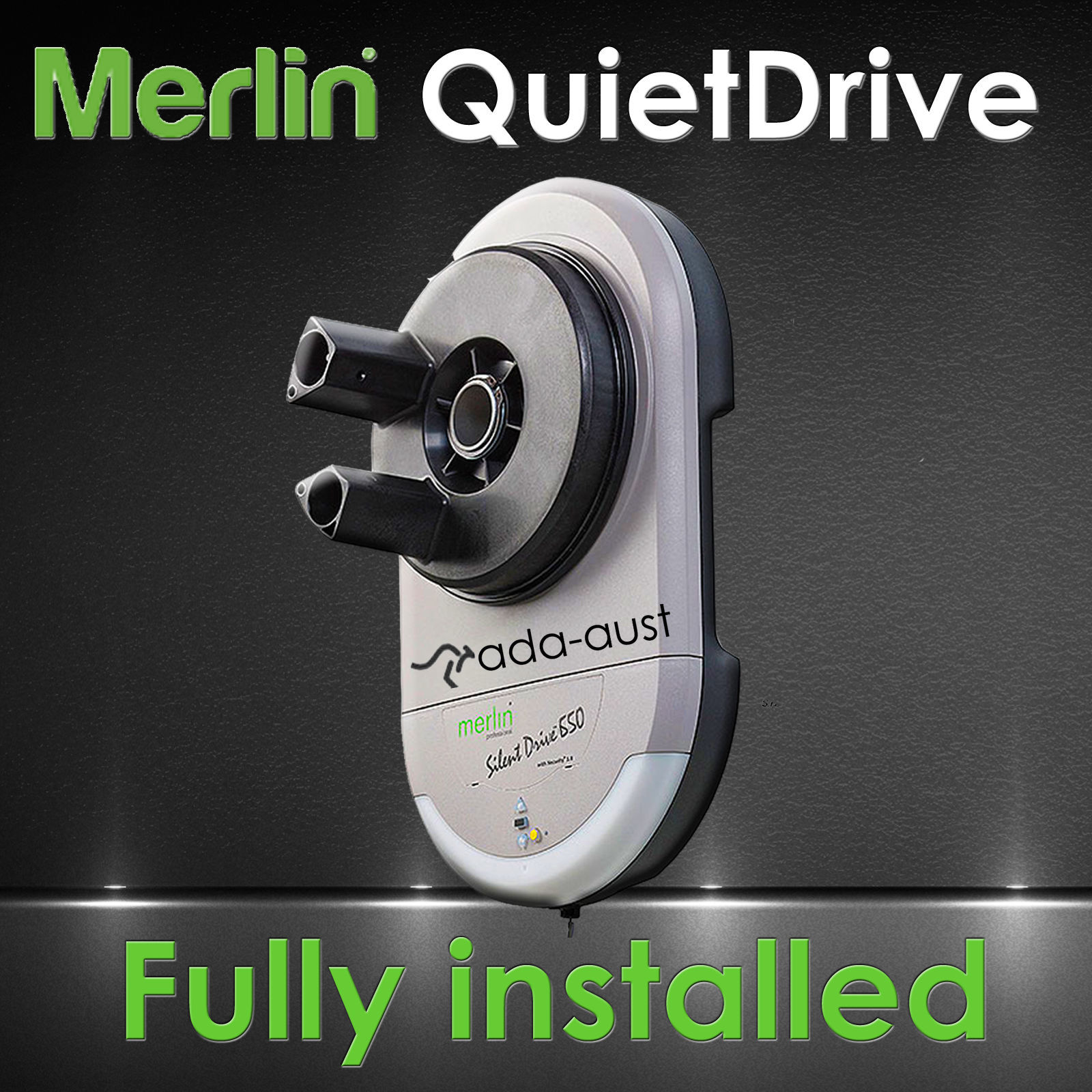

  • 1 x MR655MYQ Powerhead
  • 2 x Three-channel key ring mini-transmitters E970M
  • 1 x Wireless wall button E148M
  • 1 x Weight bar
  • 1 x Instruction Manual



With now a more powerful 24V DC motor This quiet unit is a great choice of product. This will include the following:


1 x MR655EVO Silent Drive Pro Powerhead

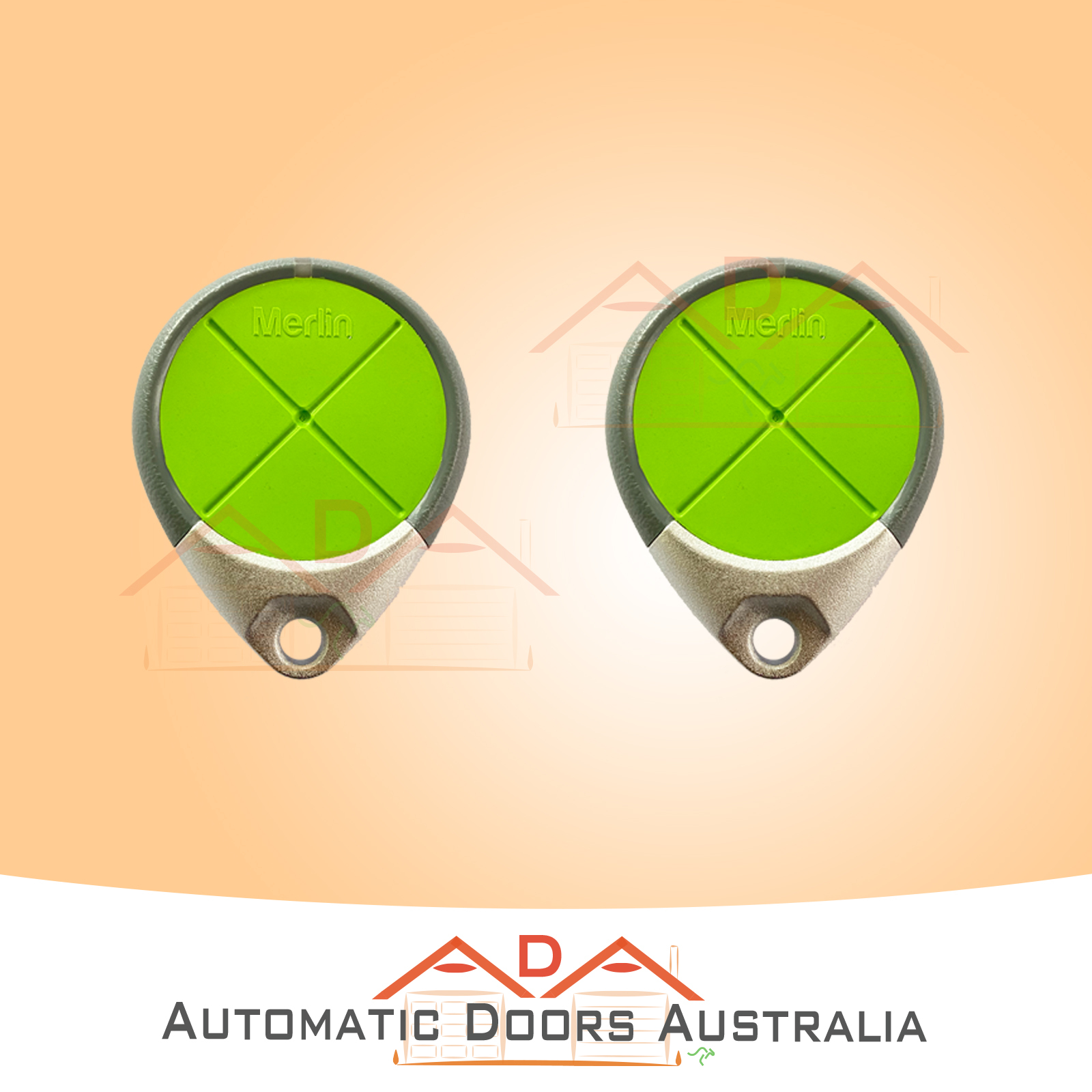

2 x E960M Premium transmitters

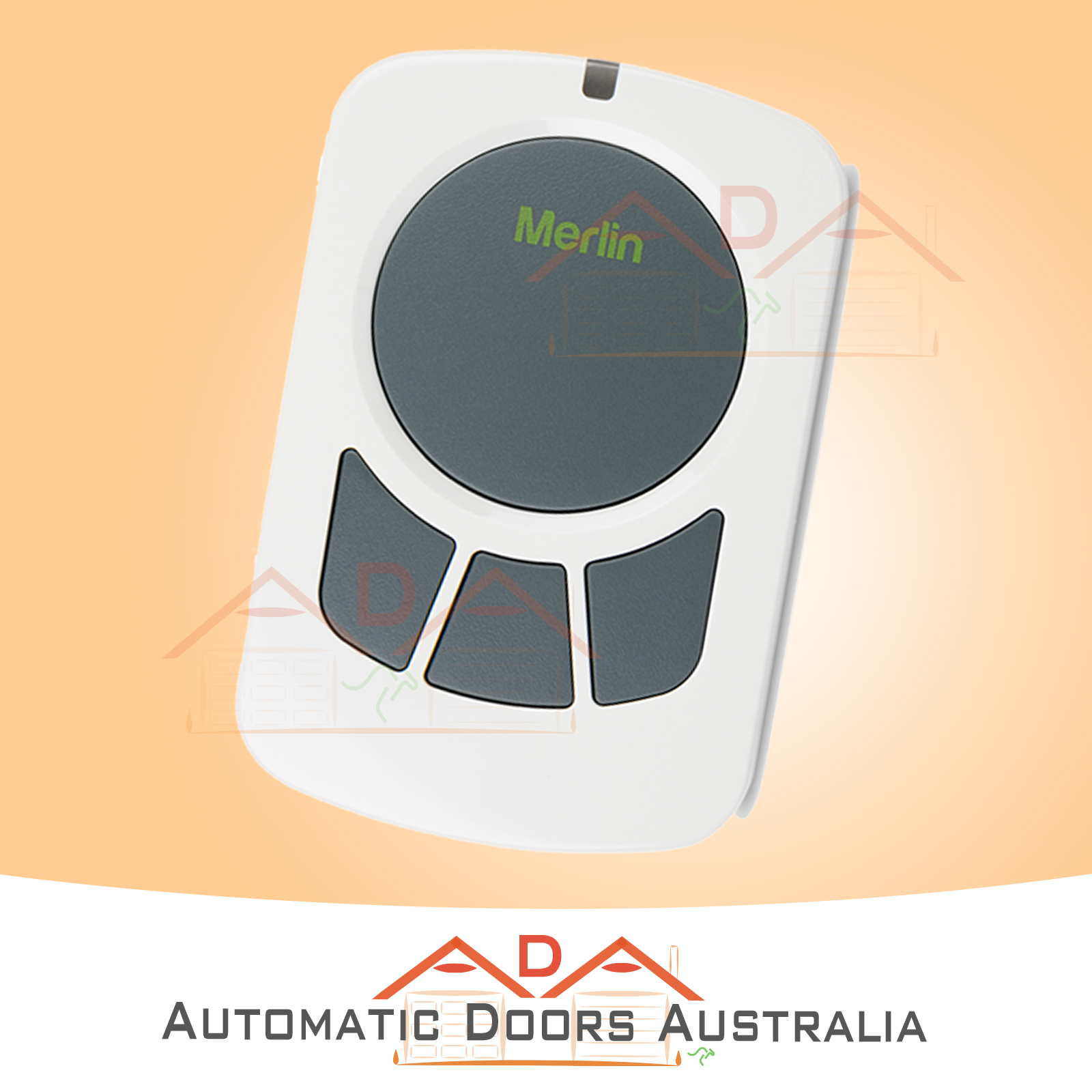

1 x E138M wireless wall button

1 x Weight bar

1 x Instruction Manual



  • 24V DC motor with thermal overload protection
  • Input voltage: 240V AC
  • Rated door area up to 16.5m2
  • Max door weight: up to 100kg
  • Max peak pulling force: 500 N
  • Minimum side room 45mm
  • 433.30MHz, 434.54MHz, 433.92MHz AM radio with security+2.0 encrypted rolling code technology
  • Up to 64 memory registers
  • Noise rating 1M: 59DB



Warranty -  5 Years

We stand behind our products with a full 5 Year Warranty*, backed by an after sales support team that we believe to be the best in the industry. We can offer this warranty because of our global quality standards, manufacturing quality and continuous improvement processes.
*Conditions Apply

WARNING! This product contains Lithium coin batteries.

KEEP BATTERIES OUT OF REACH OF CHILDREN. Never allow children to replace button batteries on any device. Swallowing or placing inside any part of the body may lead to severe or fatal injuries in as little as 2 hours or less due to chemical burns and potential perforation of the oesophagus.

If you suspect your child has swallowed a button battery or placed inside any part of the body immediately call the POISONS INFORMATION CENTRE on 13 11 26 for prompt advice. If your child is having any difficulty breathing, contact 000.

Dispose of used button/coin batteries immediately and safely. A battery can still be dangerous even when it can no longer operate the device. Place sticky tape around both sides of the battery and dispose of it immediately out of reach of children in an outside bin or recycle safely.

For more information please review the button battery safety information available on the Australian Competition & Consumer Commission (ACCC) website.



Shipping Weight 5.0000kg
Shipping Width 0.250m
Shipping Height 0.200m
Shipping Length 0.300m
Shipping Cubic 0.015000000m3
Unit Of Measure ea
