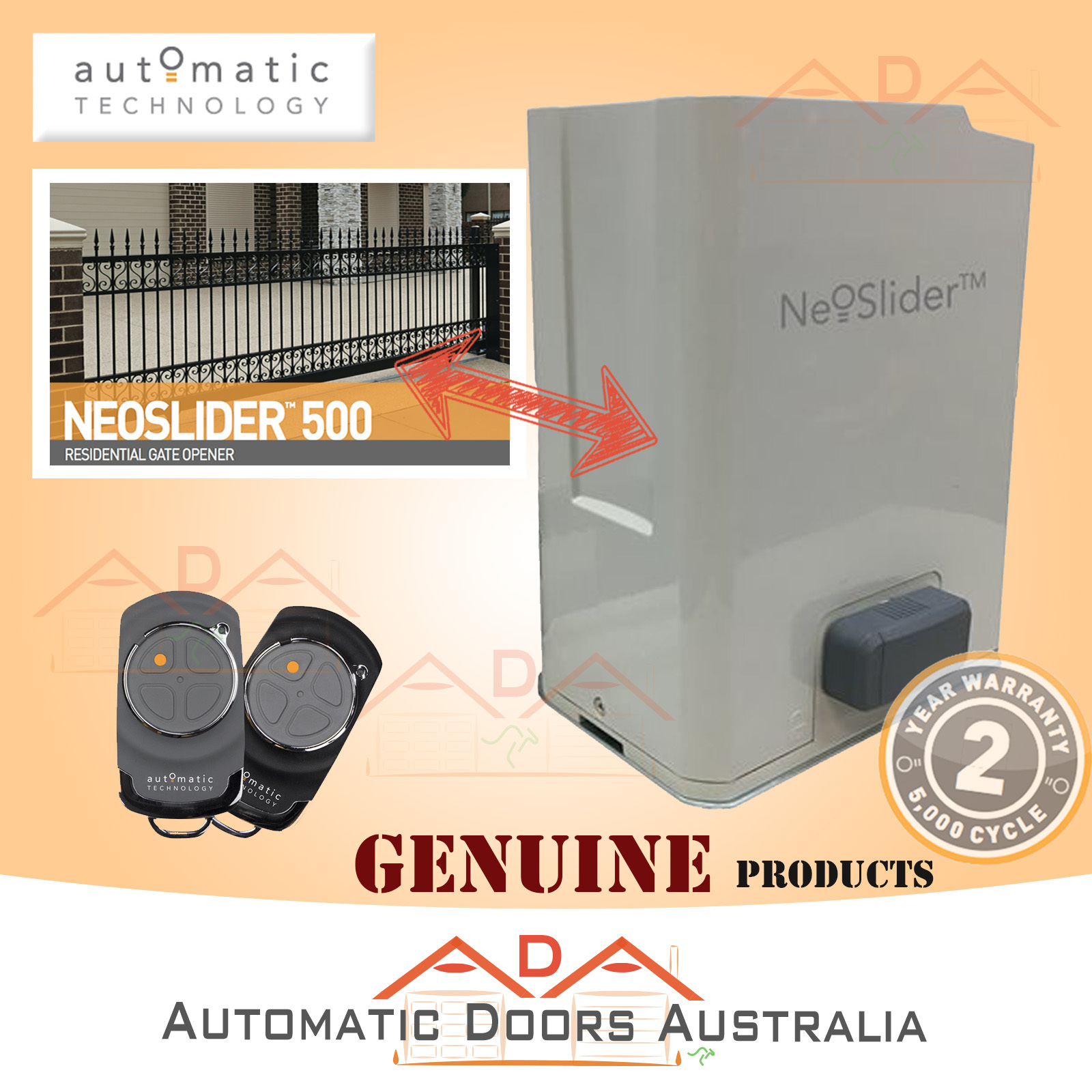

NES-24v3 ATA Single Sliding Gate Motor NeoSlider Opener Slider NES24v3 x1 Motor

$699.00
RRP $799.00
SAVE $100.00 (13%)
In Stock


Calculate Shipping



Free Shipping Australia Wide



Listing Includes:


1 x NES-24v3 Drive Unit
2 x PTX-5v2 Transmitters
1 x Antenna Kit
1 x Instruction Manual
1 x Limits Actuator Kit


Warranty:


NOW WITH 2-YEAR/5,000 CYCLE WARRANTY


Description:


The NeoSlider range combines clever electronics and robust mechanics to make residential sliding gate automation simple. It features a variety of operating modes, keyed lockout, numerous inputs to interfacing with devices such as intercoms, and options for battery back-up and solar.

This is the gate opener that has it all. Tough weather resistant housing, intelligent features such as Soft Start/Soft Stop and Gate Profiling, Auto Close, Service Indicator, Pedestrian and Vacation Modes, as well as Keyed Lockout System. In addition, it has a suite of controlling inputs to interface with intercoms, loop detectors and other auxiliary devices. You can also upgrade to Battery Backup, SmartSolar and a Courtesy Light to give you peace of mind.


Features:


Logic Controls with LCD Screen

The integrated logic control system, with LCD screen, provides scalable functionality, allowing the operation of the NeoSliderTM to be customised speci cally to the site’s needs.

Transmitters

Comes standard with Automatic Technology’s TrioCodeTM transmitter system. Utilising 4.29 billion random access codes in tandem with
three frequencies, you can be assured of your home’s security and accessibility even in the face of radio interference.

Powerful Motor

A powerful DC motor means this gate opener is both consistent and reliable, and we back this up with a two year guarantee.

Intelligence

This opener is top of its range with built in intelligent features such as Intelligent Safety System and Gate Pro ling – meaning the gate adjusts itself when opening and closing or if blocked.


Specifications:


Technical Specifications


Protection rating:                                                           IP33
Input voltage:                                                                230V - 240V AC 50Hz
Transformer primary voltage:                                        230V/240VAC
Secondary voltage:                                                        24V AC 150 VA
Controller voltage:                                                        24V DC
Motor type:                                                                   Permanent Magnet Direct Current
Motor voltage:                                                              24V DC
Maximum pulling force:                                                200N
Maximum gate opening:
Width:                                                                           10m
Weight:                                                                         250kg
Opener maximum
Opening/closing run time:                                            30 seconds
Receiver type:                                                               TrioCodeTM128
Receiver code storage                                                   capacity: 30 x 4 Button Transmitter Codes
Transmitter frequency:                                                 433.47, 433.92, 434.37 MHz
Coding type:                                                                 Hopping Code
No. of code combinations:                                            Over 100 billion random codes
Code generation:                                                          Non-linear encryption algorithm
Transmitter battery:                                                      CR2032






(ATANES24v3)

SKU ATANES24v3
Shipping Weight 10.0000kg
Shipping Width 0.320m
Shipping Height 0.240m
Shipping Length 0.410m
Shipping Cubic 0.031488000m3
Unit Of Measure ea
