Listing Includes:


1 x NES-800 Drive Unit
2 x PTX-5v2 Transmitters
1 x Antenna Kit
1 x Instruction Manual
1 x Limits Actuator Kit


Warranty:


NOW WITH 2-YEAR/5,000 CYCLE WARRANTY


Description:

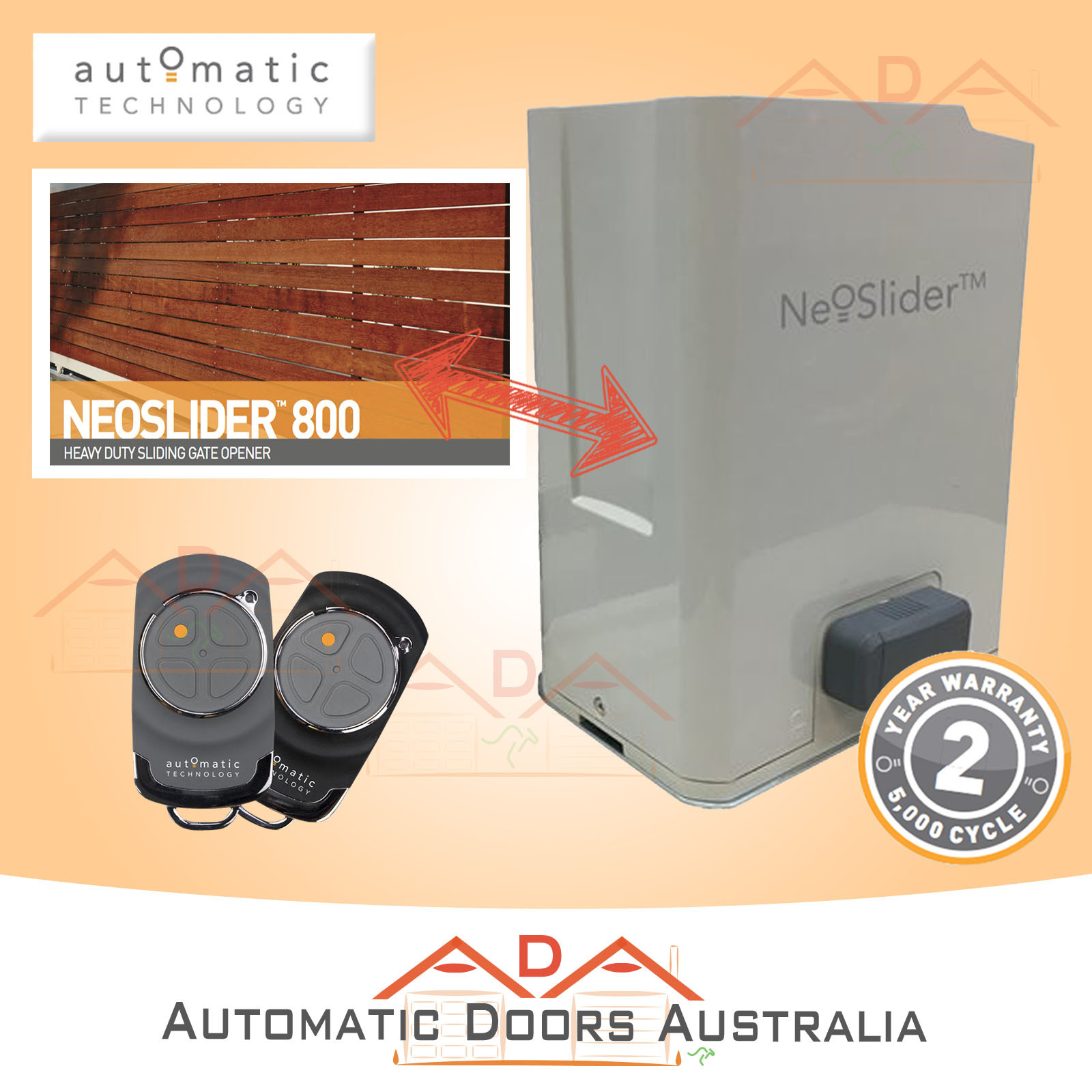

The NeoSlider range combines clever electronics and robust mechanics to make residential sliding gate automation simple. It features a variety of operating modes, keyed lockout, numerous inputs to interfacing with devices such as intercoms, and options for battery back-up and solar.

This is the gate opener that has it all. Tough weather resistant housing, intelligent features such as Soft Start/Soft Stop and Gate Profiling, Auto Close, Service Indicator, Pedestrian and Vacation Modes, as well as Keyed Lockout System. In addition, it has a suite of controlling inputs to interface with intercoms, loop detectors and other auxiliary devices. You can also upgrade to Battery Backup, SmartSolar and a Courtesy Light to give you peace of mind.


Features:


Logic Controls with LCD Screen

The integrated logic control system, with LCD screen, provides scalable functionality, allowing the operation of the NeoSliderTM to be customised speci cally to the site’s needs.

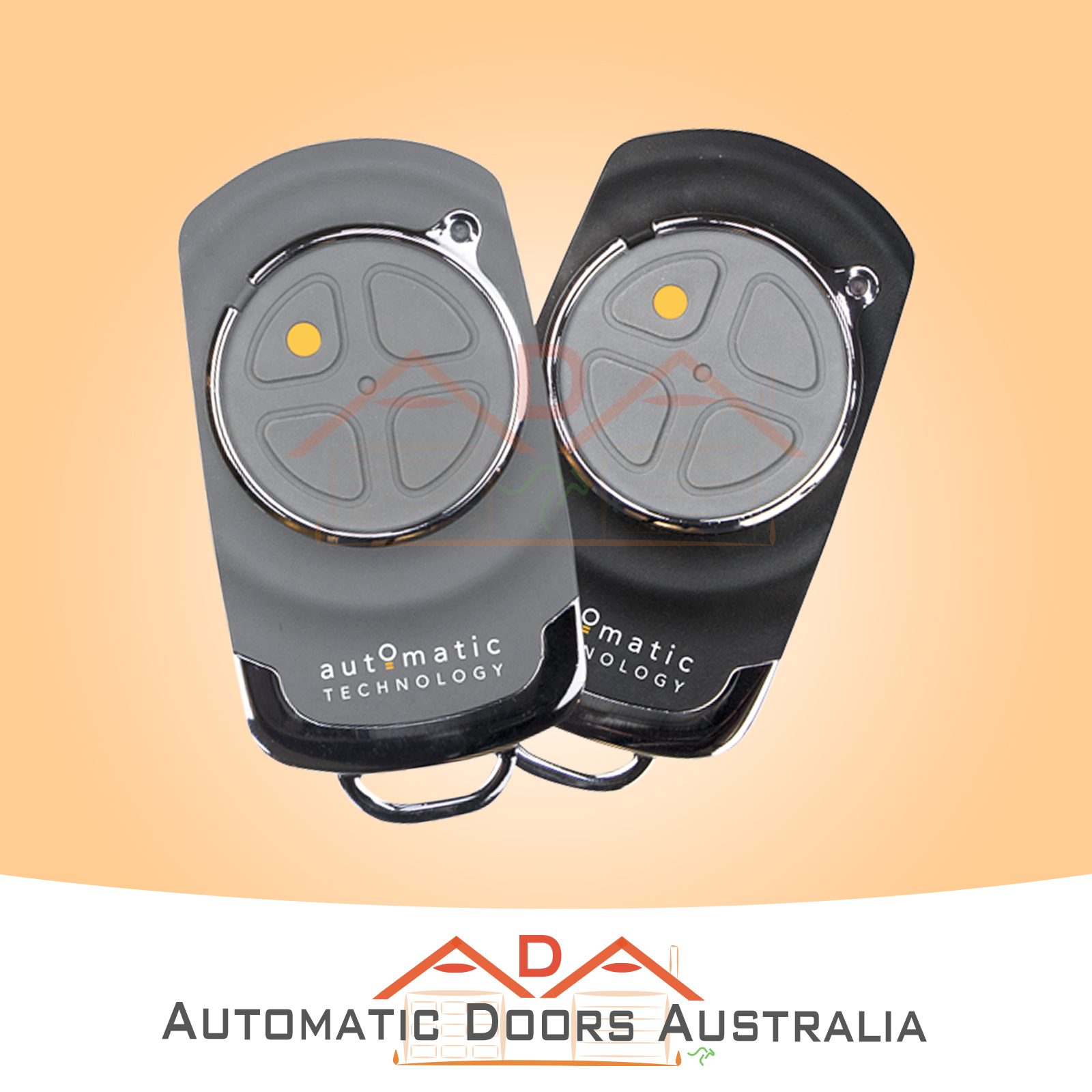

Transmitters

Comes standard with Automatic Technology’s TrioCodeTM transmitter system. Utilising 4.29 billion random access codes in tandem with
three frequencies, you can be assured of your home’s security and accessibility even in the face of radio interference.

Powerful Motor

A powerful DC motor means this gate opener is both consistent and reliable, and we back this up with a two year guarantee.

Intelligence

This opener is top of its range with built in intelligent features such as Intelligent Safety System and Gate Pro ling – meaning the gate adjusts itself when opening and closing or if blocked.


Specifications:


Technical Specifications

TA Part # Single Gate Kit:                                              60198
ATA Part # SmartSolar Kit
including single gate opener and
SmartSolar accessories:                                                 90757
Kit Type:                                                                        Residential
Maximum gate weight:                                                  Up to 800kg
Maximum gate width:                                                    8m
Driving force:                                                                700 N
Power Supply Voltage:                                                   230 - 240 Vac  50Hz
Standby Power:                                                              2.8W
Travel speed:                                                                 0.15m / second
Operating ambient temperature:                                    -20to +50oC
Dimensions (w x h x d):                                                 275mm H x 250mm W x 170mm D
Weather resistance rating:                                             IP44
Motor type:                                                                   24 DC Permanent Magnet
Limit switch type:                                                          Mechanical
Type of pinion:                                                              M4-T14
No. of Safety Beam Inputs:                                             2
Transmitter storage capacity:                                        30 x 4 button Transmitter
Smart Phone Control Enabled:                                       Yes
Warranty                                                                     2 years / 5,000 cycles




















(ATANES800)

SKU ATANES800
Brand ATA Automatic Technology Australia
Shipping Weight 12.0000kg
Shipping Width 0.300m
Shipping Height 0.280m
Shipping Length 0.350m
Shipping Cubic 0.029400000m3
Unit Of Measure ea
