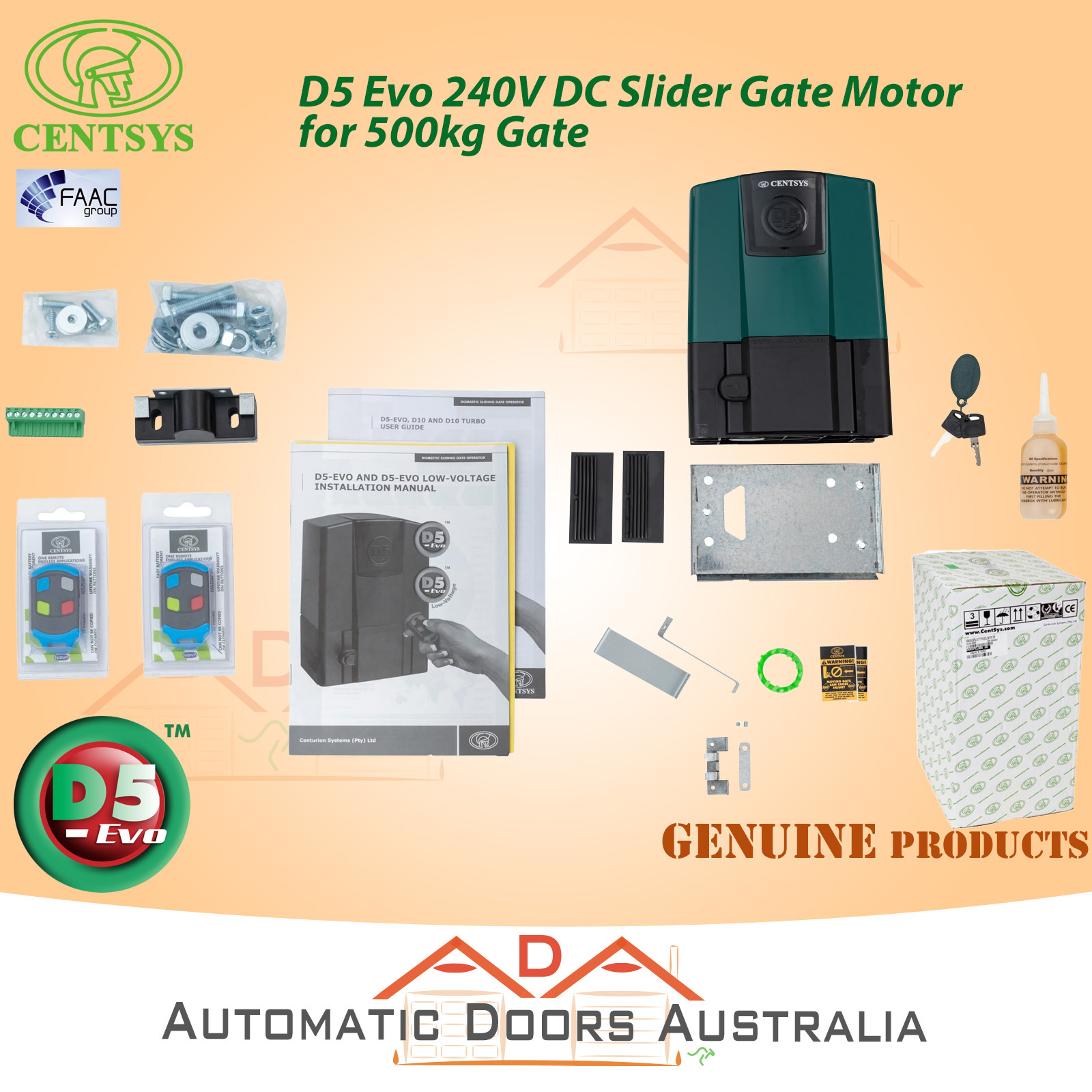

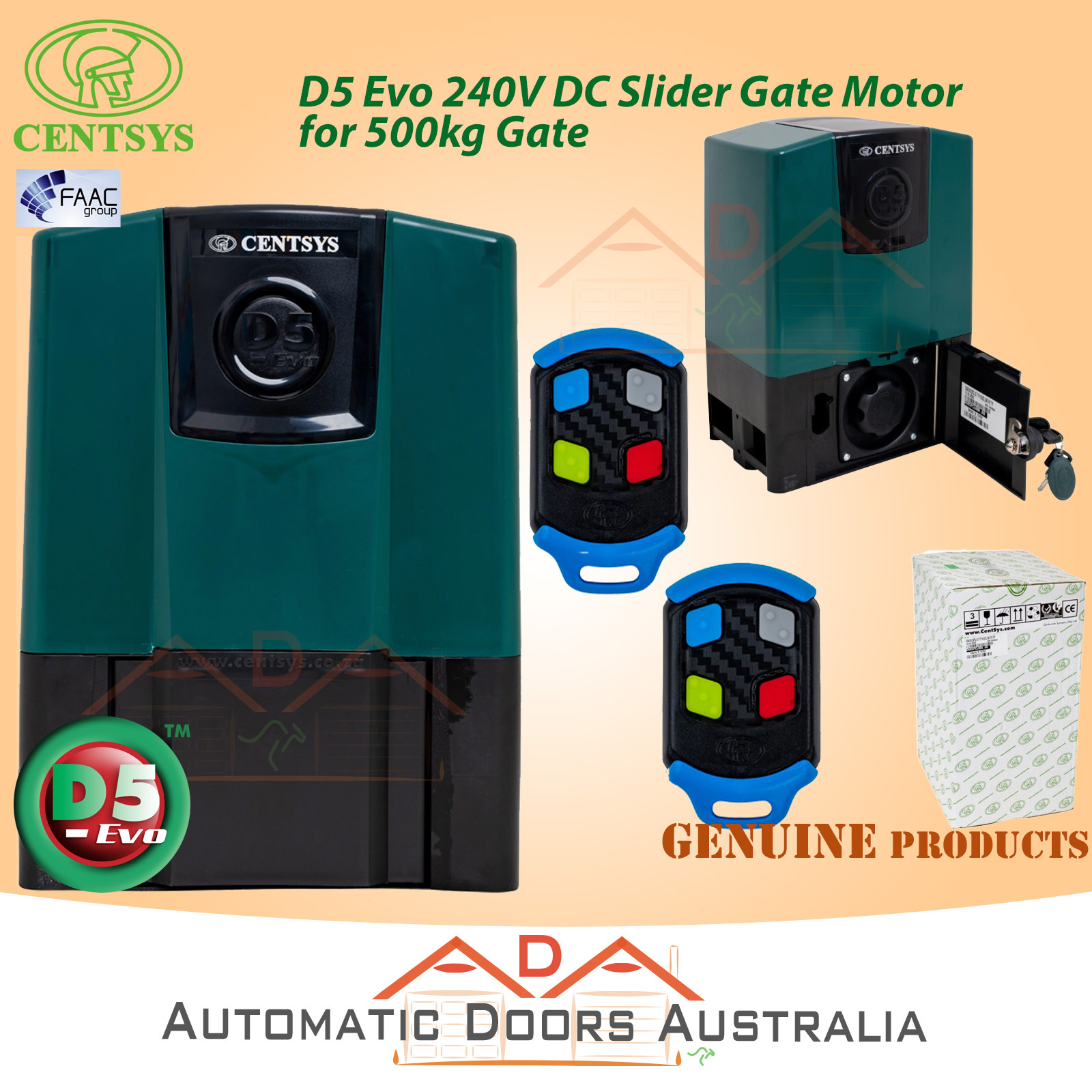

CENTSYS Centurion D5-EVO ,240V AUTOMATIC MOTOR FOR 500KG SLIDE GATE

Free Standard Delivery Australia-wide only

Incudes

Warranty -  02 year manufacturer's warranty

 Compatibility

The D5 EVO suits gates up to 10m wide and up to 500kg in weight.

Description

D5-EVO – DOMESTIC & LIGHT-INDUSTRIAL SLIDING GATE MOTOR

The evolution of the tried and tested D5 500kg gate motor for domestic and light-industrial applications. Incorporating battery backup you can bank on, potent push force and an intelligent LCD controller for easy setup, not to mention a plethora of features all tailor-made for the ultimate in security and convenience, the CENTSYS D5-Evo is the apex predator of gate motors – it simply has no competition and no equal.

FEATURES:
  • Battery backup
    We pioneered power failure protection in gate motors. So in line with all our other operators, the D5-Evo sliding gate motor carries on guarding your entrance even when the lights go out.
  • All important speed
    The original D5 made a mark for itself being a quick operator opening the gate swiftly when you arrive at your entrance. The D5-Evo is now that little bit faster, opening your average four metre gate in less than 12 seconds, adding even more security and convenience.
  • Open it the way you like it
    Rapid opening but a more tempered closing just in case a loved one is in the way, that’s the sort of sophistication in motor control you can expect from the D5-Evo. Added to this, you can vary the acceleration and deceleration of your gate and make it move so smoothly, it will do so for many years to come.
  • Pushes like a mule
    Such a compact package but such a potent push force, it will reliably move almost any gate weighing up to 500kg for a very long time.
  • Wide awake all the time!
    Incorporating the tried and tested DOSS position control system of its predecessors, the D3 and D5, the CENTSYS D5-Evo moves accurately open and closed, stopping in just the right spot each and every time. It’s also wide awake to any obstruction that might cross its path, ensuring safe and sensitive anti-crushing protection.
  • It will turn heads
    The D5-Evo takes on a new and more attractive look compared to the original D5. It’s nice to know that even your trusty gate guard will turn heads.
  • Plug and play

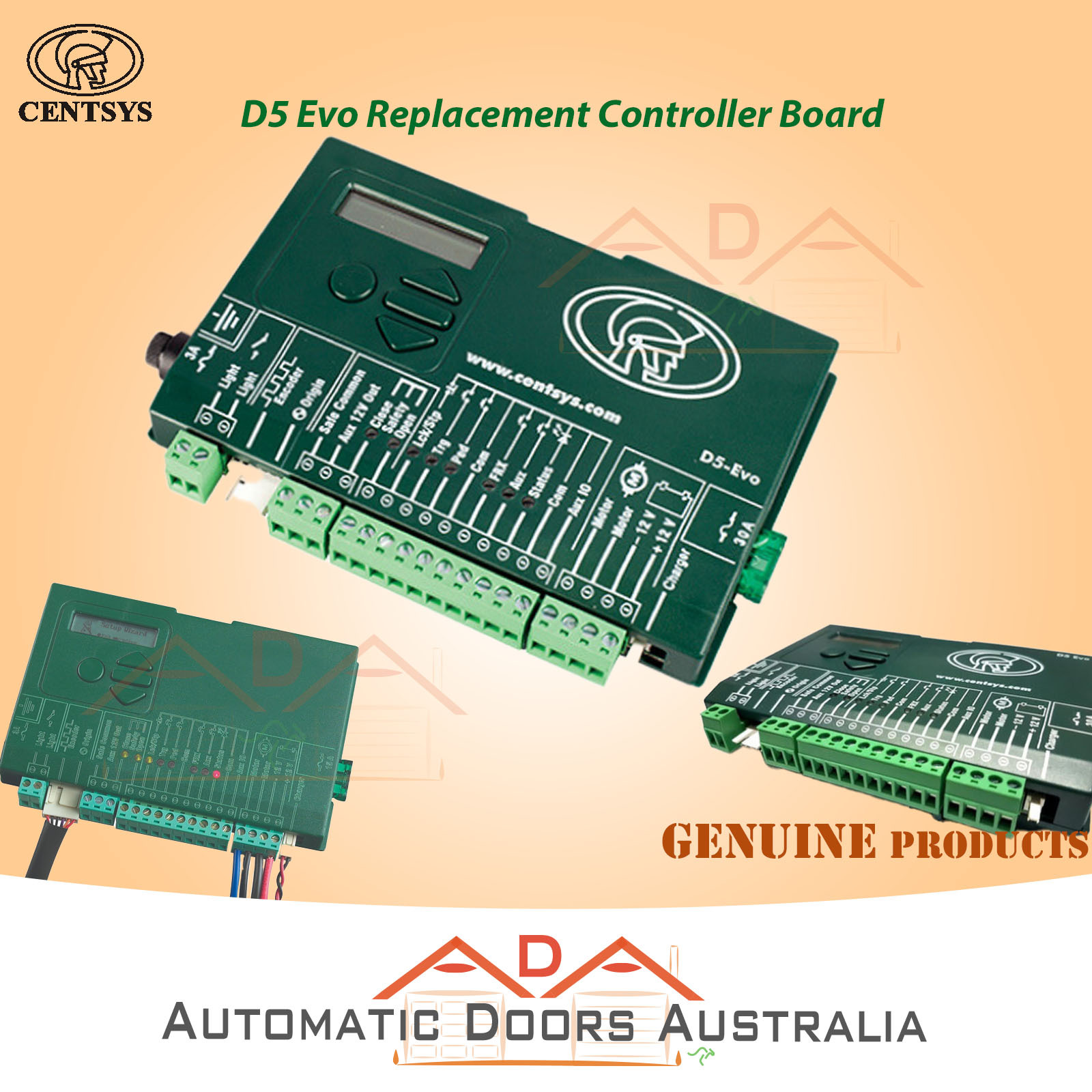

    The LCD-based controller makes child’s play of setting up the gate. It is literally plug and play – the D5-Evo‘s controller does all the thinking for you.
  • It’s got it all
    What a pleasure to click through an almost endless list of really useful features – from multiple Modes of Operation, Gate operating parameters, Pillar Light control with pre-flash, Alarm functions, Positive Close Mode and Real Time Clock and Calendar to enable time-based features – to helpful diagnostic feedback. It just stops short of making the coffee!
  • Forever yours
    We know that this compact companion will serve you well – year, after year, after year. So just like all other CENTSYS products, your beautiful D5-Evo gate motor also comes with an industry-leading 24-month warranty for added peace of mind.
  • Alarm features (a world first)
    Burglars have some nifty techniques to get into your home. Fortunately, criminals can’t outsmart the CENTSYS D5-Evo. An Ambush Alarm will alert your security company if the opening or closing beams are interrupted for a predefined, but adjustable, time. Similarly, a Break-in Alarm will go off if the closing beam outside your house is interrupted. Their gig is up!
    1. Requires gate safety beams to be installed

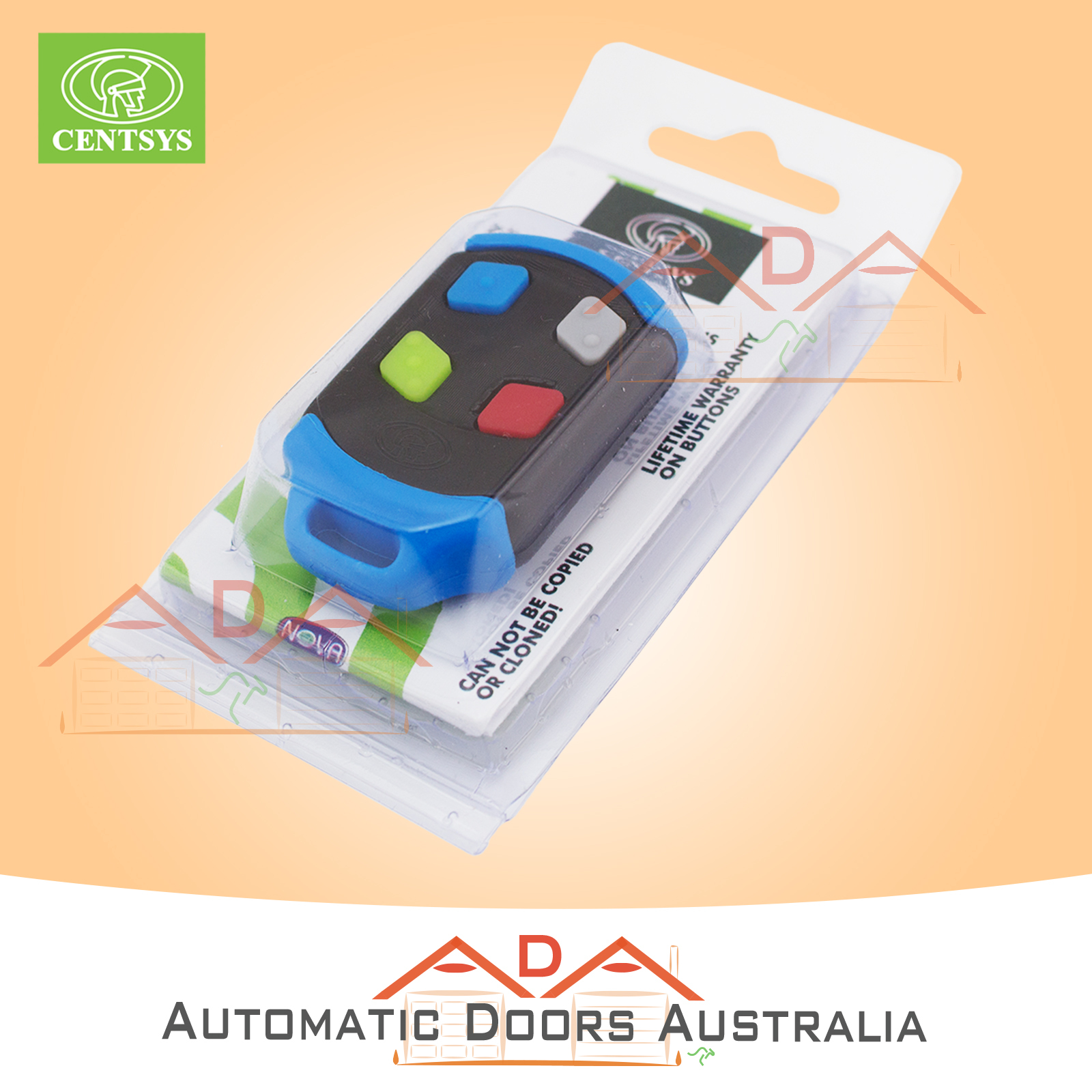

  • Operate wirelessly, thanks to CENTSYS
    Besides its code-hopping technology offering the highest level remote control security, this multichannel and multi-user CENTSYS onboard receiver allows for a multi-button remote to operate any combination of the system inputs such as Gate trigger, Pedestrian opening, Holiday Lockout, etc. It stores up to 500 transmitter buttons, and amongst other access control features, it provides the ability to selectively add and delete transmitter buttons saved into its memory.
    2. CENTSYS code-hopping
  • ChronoGuard timer technology (a world first)
    The D5-Evo is so advanced that it no longer needs humans to look after it. With CENTURION’s ChronoGuard timer technology onboard, many of the D5-Evo‘s features can be set to operate automatically or be time-barred at any time you choose. It’s built-in Real Time Clock and Calendar allows you to set up different exclusions, which can cater for public holidays, special Time-periods, etc.
 DATA:
Input voltage 90 - 240V AC +/-10%, 50Hz
Input voltage 12V DC
Motor power supply Battery-driven – 2A charger
Push force – rated 17kgf
Gate speed at push force < 5kgf 22m/min
Gate speed at rated push force 18m/min
Duty cycle - mains present 50%
Maximum daily cycle 150 cycles
Gate mass – maximum 500kg
Onboard receiver type CENTSYS code-hopping,multichannel, 433MHz, capacity - 500 transmitter buttons





(CENTSYS_D5-EVOSLD)

SKU CENTSYS_D5-EVOSLD
Brand CENTSYS Centurion Nova 2
Shipping Weight 9.5000kg
Shipping Width 0.230m
Shipping Height 0.300m
Shipping Length 0.430m
Shipping Cubic 0.029670000m3
